Usha Tecnopower Pvt. Ltd. Vikas Marg, Delhi

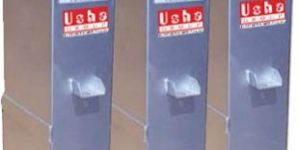

Medium and high frequency, water cooled capacitor are specially designed and manufactured for induction heating and melting applications. Manufactured against specific orders,   and tailor-made to suit the specific requirement of the customer. These products employ the rich experience and technology acquired by us over the past many years. Capacitors are housed in aluminium casing. Capacitor elements are wound with Corona ring design, edge and end folding of the electrode (aluminium foil) is done during the winding process. This feature greatly reduces the possibility of corona discharge and increases partial discharge inception voltage (PDIV) levels. End soldering of the foil ensures firm electrical and mechanical contact and achieves drastically low losses. Capacitor elements are wound with high purity imported aluminium foil as electrode, hazy BOPP film as dielectric medium. Capacitors are vacuum impregnated with NON PCB fluids having very high heat transfer coefficient characteristics thereby ensuring low operating power losses and longer life due to low heat generation.

We provide our clients with an array of high performance Thyristor Switch. These are semi conducting device with 4 layers of alternating n and p material. Our range acts as a switch carrying out the current pulse constantly for as long as they are forward biased. Thyristors broadly find its usage wherever high voltage and current are concerned. These are also used to manage alternating currents to change its polarity that causes automatic switch off of the device.   Features High Voltage and Ampere ratings Unidirectional and Bidirectional transient voltage protection Automatically triggered "off" for specied periods of time RoHS compliant Glass-passivated junctions High voltage capability up to 1000 V High surge capability up to 950V Applications Home appliances - lighting, heating, temperature control, alarm activation, fan speed Electrical tools - for controlled actions such as motor speed, stapling event, battery charging Outdoor equipment - water sprinklers, gas engine ignition, electronic displays, area lighting, sports equipment, physical fitnes

Synchronizing as we know is important from the point of view that how loads sharing between different unit's takes place and load transfer during the maintenance is important. Panels require two or more different sources of power likewise between DG SETS and the main GRID.Synchronizaing panel is used where one DG set synchronizing with two or more DG set when mains fail all DG start at a time but after some time one will be on & other will be stop as per load demand .When load increased above 70% of the total load the 2nd dg will be start & it synchronies with first one & total load was distributed equally On that two DG set & this process will go on. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic.   Specifications To be operated In parallel are fast/reliable Synchronizing & precise KW Load sharing Inbuilt protections for engine,generators & Mains like over current,overload,earth fault Reverse power,over/under voltage,low oil pressure,high water temp Over speed & SYNC CHECK, AMF and GRID paralleling is possible with import/export control PLC for system logic configurable input/ output as per requirement Features Highly performance Easy operation Easy to install Low maintenance cost

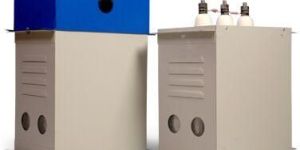

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Box type (Mild Steel) Waterproof powder coating design Working Life Expectancy - 50,000 Hours Losses

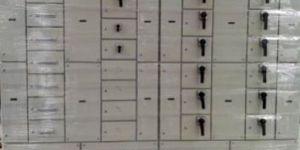

our organization is well known as a leading manufacturer and supplier of PDB Panel. These panels are applied in batteries, electrical metering equipments, transformers and motor control centers. Our expert personnel team manufactures these panels using the quality grade materials and components soured from the reliable vendors. We check the PDB Panel on safety and quality parameters before offering to the clients at reasonable price.   Features Sturdy construction Cost-effective Easy-to-maintain User friendly

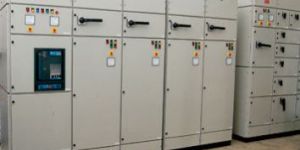

Made up of 14/16 SWG CRCA material semi bolted structure our PCC Panel is firmly supported. We are the leading Manufacturers and Suppliers of PCC Panel which ensures desired breaking capacities, temperature rise & IP protection. It has enough Space for incoming & outgoing Cable termination. Outgoing terminals are stud type as standard practice. All starters are Type Two Coordinated. Cable Alley Illumination Lamp, Space Heaters and CT terminals with Thermostats are standard features of our Panel boards   Features Sufficient space for cable termination Provision of Louvers, Space Heaters, Lamp & Socket is mandatory in Cable alley Busbar support of reputed make or Epoxy base fiber glass

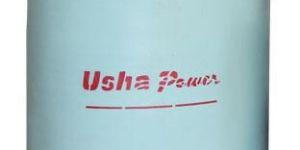

Cast resin insulation technology is sometimes necessary for medium voltage (MV) reactors, vacuum pressure impregnation (VPI) technology for the common medium- and low voltage applications. Dry-type reactors are fundamental components in the power quality management, losses reduction, cost alignment and signal shaping could be translated in an overall cost reduction for the equipped applications.   Features wide range of power ratings, from 1 kVAr to several MVAr single-phase or three-phase for voltages up to 36 kV special designs for high frequency applications (up to 25 kHz) with different types of cooling: AN (air natural), AF (air forced) or WF (water forced) with any type of enclosure

We offer an array of MV (Medium Voltage) switchgears that suit all medium voltage applications. The main task of medium-voltage switchgear is cost-efficiency, safe & reliable power distribution. And, this is a responsibility we accept. Our array of MV switchgears caters to a wide range of medium voltage applications such as utility substations, power plants, cement plants, metal plants, solar applications, wind farm projects etc.By taking an innovative approach, our products offer tangible advantages such as lower capital expenditure, longer life cycle, lower life cycle cost and a reduced environmental impact. Along with our LV (Low Voltage) switchgears & other range of products, we enable the realisation of smart grids thus laying the foundation for smarter energy efficient buildings, infrastructure and for greener cities. Our range of MV switchgears includes Indoor Draw out / Fixed type, Outdoor type Porcelain Clad Vaccum Circuit Breaker. 3.3kV to 33kV INDOOR MV SWITCHGEARS 3.3kV to 33kV OUTDOOR SWITCHGEARS

We specialize in sourcing and supplying a precision engineered range of Motor Control Panels. Manufactured using premium grade raw material and components at trusted vendors' premises, these panels are offered in different forms in accordance with the varied specifications detailed by the patrons. Further, to gain trust and confidence of the clients, we offer third party verifications of the range.   Features Low power consumption Reliability Highly durable

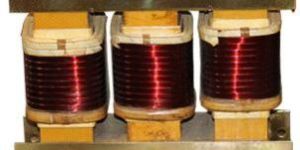

Specification IS 5553 - 1990 Range Output up to 100 KVAR Filter factor 5.67 %, 7%, 14 % Rated Voltage - 440 V, 525 V, 690 V Type Tuned & Detuned, aluminum / Copper wound- iron core dry type. Features Limiting inrush current during switching Limitimg resonance and protection of capacitor banks Harmonic banks Harmonic filteration Low losses & low noise level For Triplen and Non-Triplen Harmonic suppression though PF Capacitors. Operating ambient temperature -10 to +50 Deg C Storage temperature -10 to +75 Deg C Supply frequency: 47Hz to 53Hz Current : Continuous RMS value: 150% of the rated current Note For harmonic loads 525 V capacitors with series reactor are recommened, which also are avaiable in stock.

Features Micro controller based DSP logic for measurements All measurements with Class 1 accuracy Input sensing either through line-to-line voltage with a CT or individual phase with a CT Programmable external PT ratio for HT sensing Voltage, Load I, Cap I THD measurement Various modes of Programming step kvar, Unequal, binary, un-equal, C-series, E-series RS232 OR RS485 port with TAS/MODBUS/GSM protocol in front facia for data-downloading / MODBUS connectivity / GSM connectivity Protections provided: - Over/Under Voltage, Over/Under Load, Over/Under Cap. Current/THD, Load Unbalance, over temperature, Out-of-Steps indication

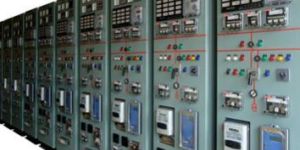

We manufacture high quality H.T panels, which are highly durable and efficient due to the best quality raw materials used in manufacturing them. Our HT power panels are designed using Vacuum Circuit Breakers and Oil Circuit Breakers with all safety features like Over-Current, Earth Faults and Transformer Protections. The systems are designed to isolate different parts of the plant during faults without damaging the switch gears.   Attributes Controls the timing of electric appliances Earth fault protection Highly durable Transformer protection Designed to isolate different parts of the plant during faults To handle required power using to feed different loads User friendly Applications Power looms Industries Steel plants

Our thyristor switched capacitor banks (TSC/TSF) with high-speed switching capability are designed to support the supply voltage of distribution systems, and eliminate the harmonic current produced by the connected loads, on the basis of DSP control technology and instantaneous power control theory. Also, the electrical device offers an ideal power factor correction solution to improve the power factor.The thyristor switch is resistant to mechanical wear and no noise is produced during operation. It is capable of practically transient-free switching, so the thyristor switched capacitor bank is much safer than the contactor switched one.   Features Thyristor switched capacitor banks with high-speed switching capability are designed to support the supply voltage of distribution systems and to correct the power factor of connected loads. Control signals can be transmitted to the capacitor bank straight from the loads, which means power factor correction with minimal delay. The minimum time the control unit needs for switching all the steps of the capacitor bank on or off is the period of only one cycle. Each step of the capacitor bank consists of a capacitor and a reactor connected in series. These two form a series resonant circuit tuned at a frequency below the lowest harmonic frequency present in the system.

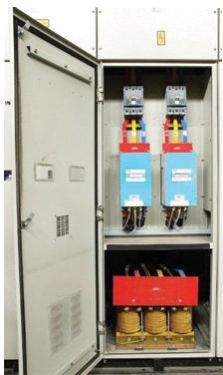

Our organization provide APFC Panels With Harmonic Filters that are useful to control power quality problems that are created by the consumer’s load. These difficulties can also easily travel within the common electricity supply network between premises, in turn disrupting a neighboring consumers supply. We have adopted guidelines such as IEEE-519 in order to limit the level of disturbance created by each individual consumer. We design and supply Harmonic filter panels as per the analysis report provided by the customer and studied by our technical experts for giving the maximum output with harmonic suppression   Specifications Our harmonic filters have an ability to maintain an annual average power factor of better than 0.99 And reduce THD to less than 5% and come with excellent payback periods. Features Low power / energy consumption Special custom built designs Single and double tuned sections Single and multi stage configurations Compensated and uncompensated filters Switched and fixed filter banks Wide voltage range from 230V to 33 kV Benefits Reduced voltage & current distortion levels Compliance with standards & regulations Avoidance of power factor, harmonic penalties & kVA demand charges Improved voltage profile Reduced losses in equipment & feeders / cables Prevents mal operation / nuisance tripping of drives, relays etc Reduced loading on transformer, lower heating and extended life

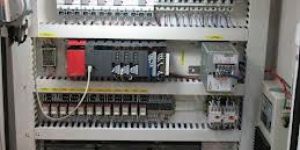

We provide our customers with a comprehensive range of PLC and Drive Panels. These are available at very reasonable prices and are known for their superior features, like excellent performance, high efficiency, simple installation, easy maintenance and long service life. These services are delivered by our team of experts who are fully proficient in installing the panels at customer locations within precise time frame.We are instrumental in offering a wide range of PLC Drive Control Panel to our deemed patrons. Offered range of panels is manufactured under the astute guidance of our experienced professionals. These control panels are highly regarded in the industry for giving higher output and consuming less power. Moreover, patrons can avail this range from us in variety of sizes, grades and other dimensions.   Features Very stable, industry tested PLC processor Solid, tested ladder logic (built to be a PLC first) Excellent ladder logic programming software Internal DC power supply Easily configured for the project Expandable for any size remediation project Large memory for basic data logging requirements Ethernet module available

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Oil impregnated capacitors have much higher discharge voltage Oil filled capacitors are hermetically sealed Box Type (Mild Steel) Weather Proof Powder Coating Design, Heavy Edge Metalised Multilayer MPP Film Working Life Expectancy 1,50,000 Hours Applications Inductive Loads, Steel Plants, Textiles, Cement Industries, Building Complexes, APFC Panels, Harmonic Filter Panels Etc.

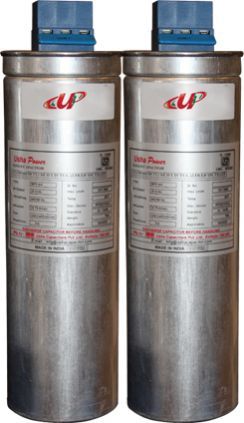

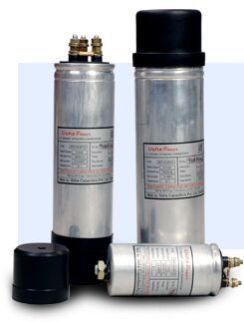

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Metallised polypropylene/Wavy cut (MKP) film design Compact Cylindrical Al. can design Working Life Expectancy more than - 75,000 Hours Gas impregnation gives cooling effect Better heat dissipation Explosion proof design Applications Steel Plants, Building Complexes, Cement Industries

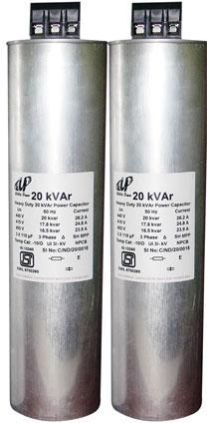

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Cylindrical(Aluminium Can Type) Pressure Disconnector Jelly Impregnation Gives Cooling Effect Better Heat Dissipation Explosion Proof Design Working Life Expectancy more than 100000 Hours Applications Steel Plants, Building Complexes, Cement Industries, Sugar Industries, Paper Industries, Textile Mills, APFC Panel, Active & Passive Filters Etc

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Metallised polypropylene/Wavy cut (MKP) film design Compact Cylindrical Al. can design Working Life Expectancy more than - 75,000 Hours Gas impregnation gives cooling effect Better heat dissipation Explosion proof design Applications All Working Loads, Harmonic Filter, APFC, Wind Mill, Solar Power, Steel Plants Etc.

Specifications Self Healing Type, IS 13340/13341/IEC : 60831,-1 Rated Output 1 To 25 KVAr For higher KVAR banking arrangement to be done Voltage Range 415, 440, 480, 525, 550 VAC, 3 phase 50hz Features Metallised polypropylene/Wavy cut (MKP) film design Compact Cylindrical Al. can design Working Life Expectancy more than - 75,000 Hours Gas impregnation gives cooling effect Better heat dissipation Explosion proof design Applications All Industrial Loads, Rice Mills, Cold Storage

Busduct designs are most important as busduct have much less volume of air dissipation compared to P.C.C. Busduct is an important link to feed power from transformer. L.T. side to the PCC inconer.   Features Bus Duct upto 6000A with copper/Aluminium bus bars supported on DMC/SMC support. Bus bar with Heat shrinkable Sleeves. Indoor/Outdoor Duty, Separate Adapted Earthing at both End with space heaters & Earth bus. Applications Non-segregated/segregated /Isolated phase, cross over-chamber, vertical /horizontal Bus-duct calculation for designing carrying conductor, heating effects, thermal effects, electro dynamic force, voltage drop Skin & proximity effects in the terms of bus-bar reactant Low volt product & medium voltage products having insulator support capacity should be 2.5kv & 11kv respectively with high tensile fastener for bus bar joints & copper flexible

Our organization provide APFC Panels With Harmonic Filters that are useful to control power quality problems that are created by the consumer’s load. These difficulties can also easily travel within the common electricity supply network between premises, in turn disrupting a neighboring consumers supply. We have adopted guidelines such as IEEE-519 in order to limit the level of disturbance created by each individual consumer. We design and supply Harmonic filter panels as per the analysis report provided by the customer and studied by our technical experts for giving the maximum output with harmonic suppression   Specifications Our harmonic filters have an ability to maintain an annual average power factor of better than 0.99 And reduce THD to less than 5% and come with excellent payback periods. Features Low power / energy consumption Special custom built designs Single and double tuned sections Single and multi stage configurations Compensated and uncompensated filters Switched and fixed filter banks Wide voltage range from 230V to 33 kV Benefits Reduced voltage & current distortion levels Compliance with standards & regulations Avoidance of power factor, harmonic penalties & kVA demand charges Improved voltage profile Reduced losses in equipment & feeders / cables Prevents mal operation / nuisance tripping of drives, relays etc Reduced loading on transformer, lower heating and extended life

Made up of 14/16 SWG CRCA material semi bolted structure our PCC Panel is firmly supported. We are the leading Manufacturers and Suppliers of PCC Panel which ensures desired breaking capacities, temperature rise & IP protection. It has enough Space for incoming & outgoing Cable termination. Outgoing terminals are stud type as standard practice. All starters are Type Two Coordinated. Cable Alley Illumination Lamp, Space Heaters and CT terminals with Thermostats are standard features of our Panel boards   Features Sufficient space for cable termination Provision of Louvers, Space Heaters, Lamp & Socket is mandatory in Cable alley Busbar support of reputed make or Epoxy base fiber glass
