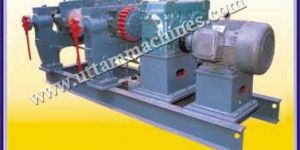

Major Constructional Details:
Rolls: Made of Chilled Cast Iron. The rolls are cooled by water or heated by steam inside.
Stands & Apron: Steel Fabricated.
Bed: Common bed construction, steel fabricated.
Bush Bearing: Phosphorous Bronze bushes switch line in graded cast iron.
Lubrication: Force-feed lubrication motorized pump for recirculation of oil in brass bushes.
Roll Clearance Adjusting Unit: NIP adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
Reduction Gear Box: V belt drive self-made reduction gear box having all EN series forged steel gears helical hob cut gears.
Major Constructional Details:
Rolls: Made of Chilled Cast Iron. The rolls are cooled by water or heated by steam inside.
Stands & Apron: Steel Fabricated.
Bed: Common bed construction, steel fabricated.
Bush Bearing: Phosphorous Bronze bushes switch line in graded cast iron.
Lubrication: Force-feed lubrication motorized pump for recirculation of oil in brass bushes.
Roll Clearance Adjusting Unit: NIP adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
Reduction Gear Box: V belt drive self-made reduction gear box having all EN series forged steel gears helical hob cut gears.
MODEL
CHILLED ROLLS BARREL DIMENSIONS
CAPACITY PER BATCH
REQUIRED MOTOR
WEIGHT APPROX.
DIA
LENGTH
MASTICATION
MIXING
HP
KG
URM-AFB-1
10"
24"
4 kg
8 kg
12.5
3200
URM-AFB-2
12"
30"
9 kg
20 kg
20
5200
URM-AFB-3
14"
36"
14 kg
30 kg
25
6700
URM-AFB-4
16"
42"
18 kg
40 kg
40
9000
URM-AFB-5
18"
48"
27 kg
60 kg
50
13000
URM-AFB-6
22"
60"
50 kg
90 kg
75
21000
URM-AFB-7
24"
72"
65 kg
120 kg
125
28000
URM-AFB-8
26"
84"
80 kg
160 kg
150
37000
Salient Features:
1. Superior Mixing Performance.
2. Low Operating Cost With High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. No continuous Lubrication hence heavy saving on lubrication cost, wear & tear and maintenance.
9. Auto Reversing electric Panel.
10. Simple & easy maintenance.
MODEL
CHILLED ROLLS BARREL DIMENSIONS
CAPACITY PER BATCH
REQUIRED MOTOR
WEIGHT APPROX.
DIA
LENGTH
MASTICATION
MIXING
HP
KG
URM-AFB-1
10"
24"
4 kg
8 kg
12.5
3200
URM-AFB-2
12"
30"
9 kg
20 kg
20
5200
URM-AFB-3
14"
36"
14 kg
30 kg
25
6700
URM-AFB-4
16"
42"
18 kg
40 kg
40
9000
URM-AFB-5
18"
48"
27 kg
60 kg
50
13000
URM-AFB-6
22"
60"
50 kg
90 kg
75
21000
URM-AFB-7
24"
72"
65 kg
120 kg
125
28000
URM-AFB-8
26"
84"
80 kg
160 kg
150
37000
Salient Features:
1. Superior Mixing Performance.
2. Low Operating Cost With High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. No continuous Lubrication hence heavy saving on lubrication cost, wear & tear and maintenance.
9. Auto Reversing electric Panel.
10. Simple & easy maintenance.
We offer rubber bale cutter. Total covering area : 44" l x 36" x 8' h
rame : hard cromed
cylinder : honed. pipe, directional control valve
fitted motor : 3 h.p.
Pump gear or rotary
release valves
breather filter
oil filters
tank 65 litres capacity
to slide rubber - 6 rollers fitted
stroke 28"
We offer rubber bale cutter. Total covering area : 44" l x 36" x 8' h
rame : hard cromed
cylinder : honed. pipe, directional control valve
fitted motor : 3 h.p.
Pump gear or rotary
release valves
breather filter
oil filters
tank 65 litres capacity
to slide rubber - 6 rollers fitted
stroke 28"
We are offering three roll calender machine.
''uttam" with decades of expertise in design and production of rubber processing machinery gives precise calenders designed to handle a variety of products . Like sheeting for lining, hospital bedsheets, films, frictioning of tyre fabrics for bycyclemotor cycle auto tyres, hoses beltings, profiling, cushion gum, single coating, laminating doubling etc. Special calenders for profiles & inner liner can be offered.
calenders are made in a wide range of sizes, from small laboratory unit upto the largest production machines. They are furnished with two, three, four or more rolls and with rolls in a number of different arrangements.
We are offering three roll calender machine.
''uttam" with decades of expertise in design and production of rubber processing machinery gives precise calenders designed to handle a variety of products . Like sheeting for lining, hospital bedsheets, films, frictioning of tyre fabrics for bycyclemotor cycle auto tyres, hoses beltings, profiling, cushion gum, single coating, laminating doubling etc. Special calenders for profiles & inner liner can be offered.
calenders are made in a wide range of sizes, from small laboratory unit upto the largest production machines. They are furnished with two, three, four or more rolls and with rolls in a number of different arrangements.
