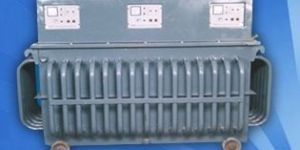

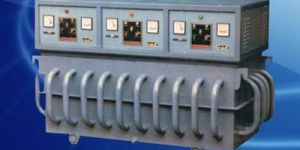

Servo Voltage Stabilizer
Get Price Quote
To obtain the best quality servo voltage stabilizer, we are the right place for you to contact. We manufacture one of the best quality servo controlled voltage stabilizer which is available nowhere else. Our voltage servo voltage stabilizer is manufactured under strict quality conditions so that there is no compromise in its working efficiency. We also offer automatic voltage stabilizer which is also of optimum quality. We have also gained the position of one of the prominent servo voltage stabilizer suppliers in India. DESCRIPTION OF AUTOMATIC SERVO VOLTAGE STABIUSER All electrically operated equipments are designed for a certain Supply Voltage. If they operate on Supply Voltage lower than or in excess of Rated Volts the end result In economic loss. There are many ways in which the fluctuation can be brought under control, at the consumer's end. The Servo Voltage stabilizers are the best Because.
They have large short time over load capacity.
Their losses are negligible whether at no load or full load. They are unaffected by load power factor.
They do not Introduce wave form distortion.
They are simple In design and easy to understand. They do not need any consumable item.
Their size is small for their load handling capacity.
High speed of voltage correction.
Principle of Operation S.V.S. Series Voltage Stabilizer' employs a Motor-Driven Autovariable Transformer feeding the primary winding of a power Transformer. The Secondary Winding of power Transformer is connected in Scenes between Incoming Supply & Load. The Voltage Induced on Secondary will be added or subtracted from the input voltage depending on its polarity. A Solid State Electronic Control Unit sense the output voltage and operate the servo motor in a suitable direction to correct the output voltage by changing the Carbon Bush Position on Auto variable Transformer. Salient Features
Voltmeter with Selector Switch provided to show input / output Voltage with ON/OFF Switch to read input & output Voltage.
Alarm Lamp Switch Light up 'When the input voltage exceeds the limits of specified range.
A Switch to Change from automatic voltage correcting action to manual. This may be necessary in the event something goes wrong with automatic voltage correcting action to manual. This may be necessary in the event something goes wrong with automatic electronic systems.
Fully automatic solid state control system to keep output level within + 1 % accuracy.
Potentiometer to set desired output voltage from 380 Volts to 420 Volts m three phase Felts and 200.240 Volts in Single phase units.
Push Button Switch marked RAISE or LOWER to changed the output voltage in manual position.
Output Indicating Lamps to show supply 'ON'
Type SVS-100 and 300 consist of one electronic sensing circuit and one servo motor whether the SVS.303 model consist of 3 sensing units and three servo motors to control each phase individually
The unit above 300KVA ratings will be supplied in two parts one is the Regulator & other in the Power Transformer.
In Oil Cooled Model, Oil Level Indicator, 0il Filling & Oil Drain Facilities Provided with each unit.
Oil Cooled Unit Supplied without first filling of oil.
