We are offering vibro shifter. the shifter is a versatile sieving and grading machine for separation of solids, liquid from solids and production of graded materials in proportion to their size. The vibro shifter is designed on the principle of ‘gyratory motion’. The material is fed on to the centre of the screen and then travels on a spiral path to the periphery whilst the fine particles fall through. The material being screened is therefore drawn apart automatically and no additional force us exerted to separate coarser particles. The sieving is done gently and with little abrasion. The external vibrator is a three phase asynchronous motor which has eccentric weights mounted at the end of the rotor shafter. The rotating shaft causes centrifugal forces which can be adjusted by moving the weights. The motor is special designed with high stability m. S. Body special bearing with increased load capacity and vibration proof winding. features: · design as per stringent c’gmp requirements. · powerful vibration. · side outlet fines discharge · easy movable. · easy to clean · all contact parts of s. S. 304 quality · special vibro motor · noiseless machine technical specifications: single decker available in models: 30", 36" , 42", 48" dia

We are offering tray dryer. with the assistance of our expert engineers, we are engaged in manufacturing and supplying hot air oven / tray dryer. These are widely used in various in pharmaceutical industry. The fabricated unit is electrically heated drying chamber, which is suitable for drying granules. Further, these are attached with double walled body, housing and insulated with heavy fiber glass wool, with special u type heaters, air circulation fan. These products are made up of mid steel and are duly painted and finished inside with heat resistant aluminum paint. available in models: · 12 tray cap. With 6 kw heaters, 0. 5 hp/3 phase motor · 24 tray cap. With 6 kw heaters, 1 hp/3 phase motor · 48 tray cap. Machine with 9 kw heaters, 1 hp/3phase elec. Motor and all the 48 aluminum trays assembled on a vertical portable trolley. · 96 tray cap. Machine with 18 kw heaters, 1 hp x 2 motor / 3 phase elec. Motor, suitable to accommodate 2 no. Trolleys of 48 each optional accessories: · extra tray size 16”x 32” x 1 ¼”18 swg · aluminum made - for above tray dryer · s.s tray of 20 swg for above tray dryer · extra trolley for 48 tray dryer of m.s. · extra trolley for 48 tray dryer of s.s.

We are offering transfer pump (gear & centrifugal type). made out of stainless steel quality of material & provided with high quality of mechanical seal tc/tc. The unit is provided with motor and starter. The unit is mounted on s.s. Trolley. Capacity 1500 to 4000 ltrs./hr. available in three size : - size : ½" - size : ¾" . size : 1" .

We are offering stainless steel tank. we offer to our clients ms and ss tanks that are available in various shapes and models. These are widely available in various configurations that depend on the functional requirement such as operating temperature and strong medium. The usage of ss tanks is ideal in areas where the storage medium is caustic and less contamination is required. Our range is available as per the specifications stated by the clients at affordable prices. Some of the unique features are as follows: · hygienic · reduces risk of water borne diseases · could be shifted · easy to maintain · eco friendly · competitively priced (50% less expensive than fabricated tanks) · corrosion resistance capacity & gauge in swg: · 50 liters & 16 swg · 100 liters & 16 swg · 200 liters & 16 swg · 300 liters & 16 swg · 500 liters & 16 swg · 650 liters & 16 swg · 750 liters & 16 swg · 1000 liters & 14 swg · 1500 liters & 14 swg · 2000 liters & 12 swg base, 14 swg body · 3000 ltr. & 10 swg base, 12 swg body

Usage : Industrial

Size : Customize

Brand Name : Vtech

Material : Stainless Steel

Surface Finish : Polished

Shape : Rectangular

Material : Stainless Steel

Brand Name : Vtech

Shape : Rectangular

Material : Stainless Steel

Metal Type : Stainless Steel

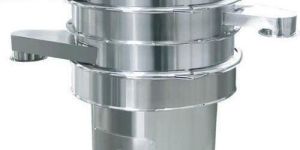

We are offering sieving machine. shifter/ vibro the shifter is a versatile sieving and grading machine for separation of solids, liquid from solids and production of graded materials in proportion to their size. The vibro shifter is designed on the principle of ‘gyratory motion’. The material is fed on to the centre of the screen and then travels on a spiral path to the periphery whilst the fine particles fall through. The material being screened is therefore drawn apart automatically and no additional force us exerted to separate coarser particles. The sieving is done gently and with little abrasion. The external vibrator is a three phase asynchronous motor which has eccentric weights mounted at the end of the rotor shafter. The rotating shaft causes centrifugal forces which can be adjusted by moving the weights. The motor is special designed with high stability m. S. Body special bearing with increased load capacity and vibration proof winding. features: · design as per stringent c’gmp requirements. · powerful vibration. · side outlet fines discharge · easy movable. · easy to clean · all contact parts of s. S. 304 quality · special vibro motor · noiseless machine technical specifications: single decker available in models: 30", 36" , 42", 48" dia

Country of Origin : 415 V

Application : Industrial

Application : Industrial

Brand Name : Vtech

Automatic Grade : Semi Automatic

We are offering semi automatic batch printing machine. it is electrically operated and foot switch is provided to 'on' or 'off' the machines as both the hands of the operator remain free in convenience of feeding and discharging the labels/cartons/bags. Printing area:85mm x 55mm or 154mm x 55mm printing speed:25, 36 & 48 stroke per min. drive motor:0.25 h.p., 1440 r.p.m., 1 phase. weight : 40 kg. accessories: ink tube, metal stereo box.

We are offering powder mixer. we are counted among one of the leading manufacturers and suppliers of powder & mass mixer, which is extensively used in various pharmaceutical industries. The mixers are designed and developed using optimum quality stainless steel and are high functional values and durability. specifications: â· contact parts are made out of ss-304/316 quality with two mechanical seal ends to prevent outside lubricants from entering into mixing chamber. â· paddles on the shaft are well arranged which uniform mixing. â· the unit is supplied with dust proof stainless steel cover, tilting and safety device, to prevent any accident. â· complete with motor, gear box and starter available in two models: â· routine model â· gmp model m.s body of the machine cladded with stainless steel sheet available in different capacities: â· 25 kg. Cap/2hp/3 phase/ 440 volts â· 50 kg.cap/3 hp/3 phase/ 440 volts â· 100 kg.cap/5 hp/3 phase/ 440 volts â· 150 kg.cap/5 hp/3 phase/ 440 volts â· 200 kg.cap/7.5 hp/3 phase/ 440 volts â· 250 kg.cap/10 hp/3 phase / 440 volt

Material : Stainless Steel

Load Capacity : 50-100 Kg

Usage : Industrial

We are offering octagonal blender. it is a very useful machinery for pharmaceutical industry where in gentle blending of dry granules or powder is to be done. it consists of octagon shaped body, rectangular central portion and top and bottom polygonal frustum. it is provided with baffles for fast and efficient mixing, charging port and outlet with butterfly valve. the entire until is mounted on a sturdy stand, complete with electric motor and gear box. It can be supplied with bin charging system and can be designed for vacuum for dust free charging & discharging of product (optional). The machine is provided with control panel board and safety railing salient features · it is a slow speed blender and has a removable baffle mounted through a rectangular open able lid. · easy for cleaning in place. · the power consumption is comparatively lower than the other similar type of blenders. · capacity available 100 ltrs. To 5000 ltrs.

We are offering multi mill. in our extensive range of industrial machines, we are also involved in manufacturing and supplying qualitative assortment of multi-mills. These products have found broad applications in carrying out various processes like granulation, pulverization and shredding due to their optimum productivity and easy operations. As these products are compatible for processing dry as well as wet granules, this range is extensively used in several industries such as food, chemical, pharmaceutical, cosmetic and dye.

We are offering liquid mixer. our 'liquid mixing-stirrer machine' is extensively useful for mixing of liquid syrups, and paste type substances. In it, the liquids and paste type substances are mixed thoroughly by blades and so the finished product can be taken out from the bottom very easily. Further, the jacketed arrangement for heating can be provided to stirrer vessel if necessary.

We are offering liquid filling machine. the unit mainly comprises of one or more positive displacement filling pumps actuated by an eccentric shaft which is driven by means of a electric motor through a reduction gear-box and v-belt pulley arrangement. The filling pump is made of stainless steel and is fitted with pumping plunger made of teflon rings. The main body is fabricated out of mild steel & covered through s. S. Sheet. All other important contact parts are of stainless steel. capacity output upto 30ml 35 fills per minute upto 250ml 25 fills per minute upto 450ml 17 fills per minute upto 1000ml 10 fills per minute

Brand Name : Vtech

Material : Stainless Steel

Shape : Round

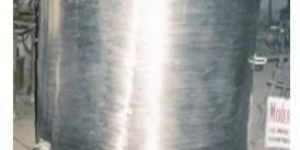

We are offering jacketed tank - double or triple walled (oil or water heated).  the jacketed tank , we are manufacturing and supplying a wide gamut of double walled jacketed heating tank (oil or water heated). Our quality inspectors are involved in the fabrication purpose to make sure that only quality raw material is used. Further, our clients can avail these at industry leading prices.    Specifications: the inner and outer jacket made from s.s. 304 quality sheet thickness 16 swg fitted with s.s frame legs mounted on wheels wheels provided are special type, with two ball bearing for efficiently working especially rounded from circumference for easy rotation vessels are with removable type lid at the top complete with ball valve for solution removal the vessels are given mirror finished polish complete with electric heater, thermometer, connector, panel etc with water inlet and outlet nozzle working capacity of various range:   Capacity & gauge in swg 100 liters & 16 swg 200 liters & 16 swg 300 liters & 16 swg 500 liters & 14/16 swg 650 liters & 14 swg 3 heater of 3 kw / 9 kw 750 liters & 14 swg 3 heater of 3 kw / 9 kw

We are offering homogenizer. Complete in all respect with all contact parts of s.s.-304 , mounted on heavy m.s. Angle frame hanger, arrangement for height adjustment, with impeller of specially designed to suit the hp of the drive, motor protected with four studs, rotor encaged with four studs & bars, complete with motor, starter and one classifying screen of any desired mesh. g.m.p. Model m.s. Body of the machine cladded with st. Steel sheet routine model mixing capacity - 50 lt. Mixing capacity , with 1hp/3 phase motor - 100 lt. Mixing capacity , with 1hp/3phase motor. - 200 lt. Mixing capacity , with 2hp/3 phase motor - 300 lt. Mixing capacity , with 3hp/3 phase motor - 500 lt. Mixing capacity , with 5hp/3 phase motor

We are offering hand operated batch printing machine. Hand operated batch printing machine this a small printing unit and is most suitable for overprinting lables cartoons (plastic made paper made or laminated )etc. For printing details like “mfg. Date, batch no. , expiry date, retail price, ingredients, logos ” etc. The unit is supplied with composing block where the printing matter is composed with printer’s types. The maximum printing area (size) of composing block is 5cm x 7cm. The unit is supplied with complete kit i. E. Printer’s type, ink etc. Output 20 to 30 impressions per minute depending on operator. This unit is useful for food, chemical, pharmacetical, automobile parts, redymade garments, electronics and other industries.

We are offering Foot Operated Liquid, Ointment Filling Machine. The foot operated all purpose filling machine is mounted on angle frame. The hopper fitted to this machine is of 15 l/kg capacity and the machine further consists of cylinder and nozzle all made of stainless steel-304. The base plate on which filled container rests is fabricated with stainless sheet. The machine is suitable for filling 5 ml/gm to 100ml/gm range, for all types of liquids/semi-solids, creams pests, inks in tubes, jars cans and bottles etc. Specific features: · Filling speed: 16 to 20 tubes or containers per minute. · Specification - as above - but fitted with 30ml to 100ml · Filling cylinder and hopper of 22 l capacity. · Extra liquid filling nozzle 5 ml -100 ml capacity. · Extra semi-solid filling nozzle for jars / tubes.

We are offering filter press. horizontal filter press applications the range of ss sparkler type filters ensures precisely the right filtration characteristics for all application in chemical, pharmaceutical, beverages, distilleries & food industries. Two types of horizontal ss filter press are presently manufactured. * sparkler type (standard! normal flow) * zero hold up type (reverse flow) zero hold up type - reverse flow operation the filtration process in this case is just the opposite of standard sparkler type in terms of the direction of flow. The subject liquid to be filtered enters filtration unit from the bottom into center channel and goes to the top of each plate. This technique ensures almost 100% filtration and is capable filtering up to 1 micron size. * complete filtration of the batch without any holdup due to reverse flow of liquid and hence large saving in time & cost.
