Agitated Thin Film Dryer Dealers

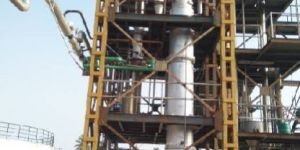

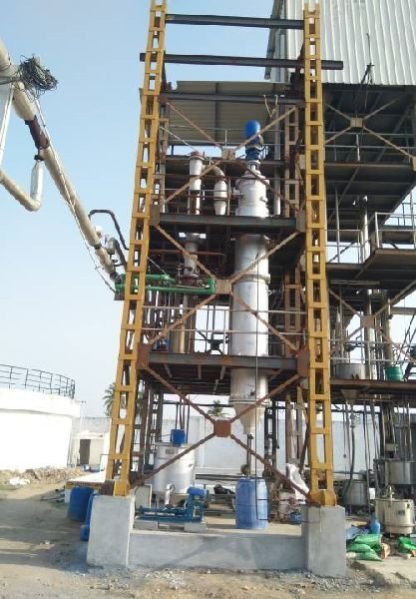

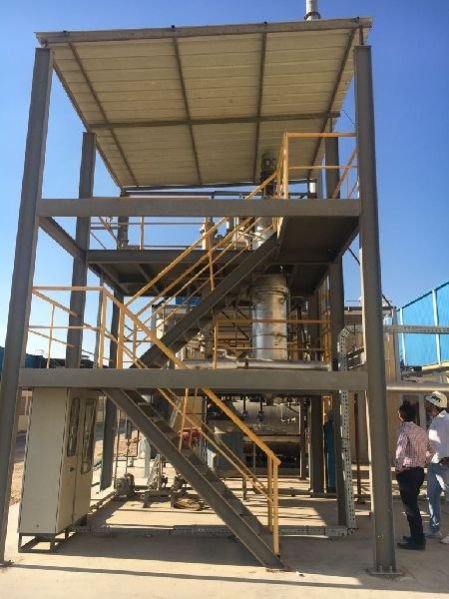

The Agitated Thin Film Dryer consists of a jacketed vertical cylinder withmulti-blade rotors at the centre. With rotor revolving at high speed, material is spreadover the jacketed surface in a thin film due to the centrifugal force. The film is agitated intensely as it travels down the cylindrical vessel rapidly. With the material traveling from top to the bottom it undergoes physical changes from solution to slurry, wet cake, wet powder and then dry powder as the final product. The vapour produced during the process travels upwards towards the entrainment separator,where the entrained droplets are separated from the vapour and the clean vapour is removed from the ATFD through a nozzle from the top.

Due to its inherent design features, it is ideal for thermal treatment of solutions and heat sensitive products, where reduced operating temperatures and vacuum operating pressures are desirable. The typical Agitated Thin Film Evaporator consists of a tubular heat transfer area with an external heating jacket and a fast-revolving, inner rotor with flexible or rigid wiper elements. The driving speed is adapted to the product being handled, its particular specifications and task. The feed product is evenly distributed by the rotor and its wipers over the heating surface, forming a thin liquid film of uniform thickness. Highly turbulent swirls are produced at the tip of the rotor blades and wipers with intensive mixing and agitation of the product, as it comes into contact with the heating surface. This assures excellent heat transfer combined with constant renewal of the product film and provides an even heating and short residence time of the product through the heated zone.   Key Advantages Good heat conductivity (k-value), even when working with highly viscous and contaminated products Minimal thermal stress, thanks to low operating capacity, therefore a short dwell time (10-20 seconds of mean dwell time) No dead zone, therefore overheating prevented and perpetual high product quality guaranteed Continuous mechanical cleaning of the heating surface prevents incrustations High evaporation rates, due to highly turbulent film and large difference in temperature Gentle evaporation, due to short residence times, rapid conveyance in the heated zone and the constant product film renewal, happens often Combined with suppressed boiling points due to operation under vacuum Reduced need for maintenance because of sophisticated bearings and shaft sealing parts Shorter downtime and assembly time for maintenance and inspection No corrosion as outside surface is usually made of stainless steel Evaporation in one pass, no circulation Small film thickness, no hydrostatic height High turndown ratio and high flexibility for variation in requirements Low operating pressure down to 1 micron to reduced boiling temperature Single step drying because of unique designed combination of vertical and horizontal dryers Effective evaporation of concentrated slurries, heat sensitive products, viscous and fouling fluids up to 99% in a single pass Simple installation as the equipment is supplied skid mounted with all inter connecting piping, condensers and vacuum system Single source responsibility for all project stages because of combined expertise in vacuum technology, heat transfer, evaporation, crystallization and drying – a design mix which gives optimal results   Applications Mainly used for difficult vaporization and heat exchange processes, especially where products to be handled are highly viscous and conventional plants can no longer meet user demands because heat transfer is insufficient. Due to the liquid film, mechanically generated on the heating surfaces, thin film equipment achieve much better heat transfer rates, even with highly viscous products containing solids. To concentrate highly viscous products, polluted liquids, salt solutions, oils, resins, etc As a sump evaporator for vacuum rectification columns Sludge drainage To continuously dry powdery residues Distillation of high-boiling substances under high vacuum Degassing and/or removal of volatile components of highly viscous products Heating or cooling of viscous solutions Improve product quality by removing colour bodies, minimizing impurities and eliminating thermal degradation Increase product recovery by reclaiming additional bottoms product from overhead and distillate products from bottoms Separation of close-boiling compounds Enhance product recovery Recovers additional bottoms product from overhead

Since their introduction more than 50 years ago by Luwa and Samesreuther, today KEP Engineering is manufacturing Thin film Evaporator, generally called as Agitated thin film dryer. Specifications : Operating pressure from atmosphere down to 1 Ton vacuum Operating temperature up to 300 oC Advantages : Suitable to high vacuum distillation with very low residence time. Narrow spread Avoid product re-circulation and possible degradation Apt for viscous products Ideal for hazardous applications Applications : Vacuum Distillation Drying Solvent Recovery Concentration of bulk drugs, enzymes, juice, milk product etc. Features v Agitated thin Film Evaporator differ in the following main technical features from other evaporator types: Continuous and trouble-free processing of viscous, fouling and contaminated fluids by high turbulence in the liquid film, which also reduces the required temperature difference across the heating surface; v Gentle product treatment because of the short residence time and the narrow residence time spectrum in the whole equipment; v High evaporation performance because of high surface heat flux; v High evaporation ratio in a single pass; v Minimum losses in case of product change because of the low hold-up.

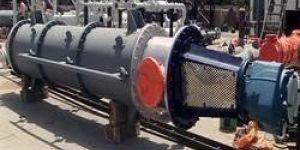

We are offering agitated thin film dryer. mechanically agitated thin film dryer is an indirectly heated continuous dryer. The feed can be in the form of a solution, slurry, wet cake or paste. If required it operates under vacuum. We offer both vertical and horizontal versions.

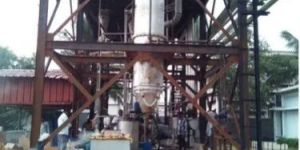

Agitated Thin Film Dryer is consist of cylindrical, vertical body with heating jacket and a rotor inside of the shell which is equipped with rows and pendulum blades all over the length of the dryer. The hinged blades spread the wet feed product in a thin film over the heated wall.

The typical Agitated Thin Film Evaporator consists of a tubular heat transfer area with an external heating jacket and a fast-revolving, inner rotor with flexible or rigid wiper elements. The driving speed is adapted to the product being handled, its particular specifications and task.   Key Advantages : Good heat conductivity (k-value), even when working with highly viscous and contaminated products Minimal thermal stress, thanks to low operating capacity, therefore a short dwell time (10-20 seconds of mean dwell time) No dead zone, therefore overheating prevented and perpetual high product quality guaranteed Continuous mechanical cleaning of the heating surface prevents incrustations High evaporation rates, due to highly turbulent film and large difference in temperature Gentle evaporation, due to short residence times, rapid conveyance in the heated zone and the constant product film renewal, happens often Combined with suppressed boiling points due to operation under vacuum Reduced need for maintenance because of sophisticated bearings and shaft sealing parts Shorter downtime and assembly time for maintenance and inspection No corrosion as outside surface is usually made of stainless steel Evaporation in one pass, no circulation Small film thickness, no hydrostatic height High turndown ratio and high flexibility for variation in requirements Low operating pressure down to 1 micron to reduced boiling temperature Single step drying because of unique designed combination of vertical and horizontal dryers Effective evaporation of concentrated slurries, heat sensitive products, viscous and fouling fluids up to 99% in a single pass Simple installation as the equipment is supplied skid mounted with all inter connecting piping, condensers and vacuum system

We are offering agitated thin film dryer. This type of dryer is used for converting concentrated material to solidsemi solid form. This is designed with vacuum system without vacuum system. Solventswater is collected through condenser.

We are a reputed organization engaged in manufacturing and supplying a wide range of ATFDare use at any concentration up to any desire degree of evaporation in single stage. ATFD can handle very viscous product in Food Industries like Puree and Syrup, Pharmaceuticals, etc We design and manufacture our offered range in adherence with the international quality parameters. Being manufactured all the products are stringently examined on the basis of varied quality parameters to ensure the following features: Excellent performance Longer service Study construction Compact design   Product Details : Minimum Order Quantity - 1 Unit Capacity - As Required Automatic Grade - Automatic, Semi-Automatic Design - Standard, Customized Price - Approx. Rs 20 Lakh Per Unit Note : Prices will be depend on capacity and specifications.

We Offer Agitated Thin Film Dryer (ATFD). Presenting Innovative technology developed by KEP Engineering for solid handling using Agitated Thin Film Dryer. Advantages Smooth & Trouble free operation Drying of solids Low steam consumption Effective Heat Transfer

Agitated thin film evaporator consists of a vertical steam-jacketed cylinder and the feed solution flows down as a film along the inner surface of large diameter jacket Liquid is distributed on the tube wall by a rotating assembly of blades mounted on shaft placed coaxially with the inner tube. The blades maintain a close clearance of around 1.5 mm or less from the inner tube wall. The main advantage is that rotating blades permits handling of extremely viscous solutions. The device is suitable to concentrate solutions having viscosity as high as up to 100 P.

ATFD is a modernized apparatus used for continuous processing of concentrated materials into dry solids. It consists of a shell with heatingjacket and a rotor centrally placed inside the shell equipped with rows and pendulum blades of length of the dryer.The wet feed is evenly distributed over the heated walls with the help of hinged blades of the rotor. The high turbulence evaporates the water/solvent only to convert the liquid into a slurry form, a cake, dry powder/ flex.The vapour rises upwards and collected as a condensate in a condenser. The system operates under vacuum for temperature sensitive products and at atmospheric temperature for natural drying.Features: Our ATFD are designed to suit heat sensitive products It can also be used as a Vacuum Dryer Effective for oxygen sensitive products Air free operation Excellent turndown capability Easy maintenance because of sophisticated bearings and shaft sealing parts Highly flexible to suit variation in industrial requirement Distillation of high-boiling substance under enhanced vacuum pressure To develop continuous dry powder material Removal of highly-volatile components from viscous products Enhance your product quality by reducing impurities and eliminating thermal degradation Improved product recovery

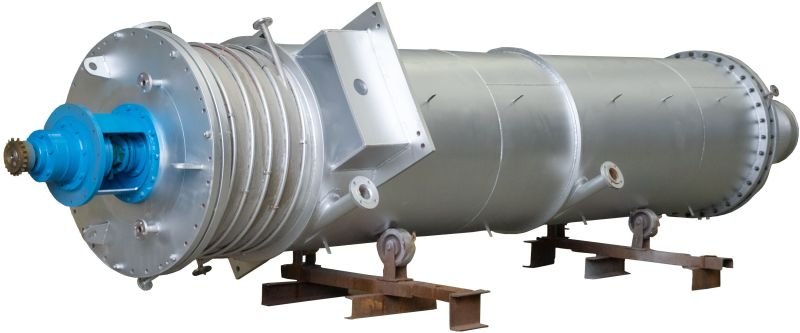

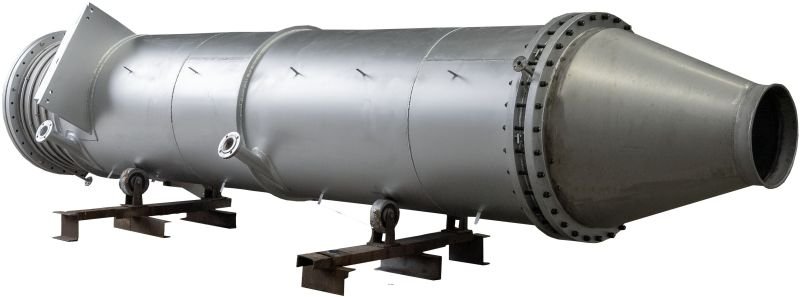

An Agitated Thin Film Dryer is also known as Thin Film Dryer, Thin Film dryer consists of a jacketed shell and a rotor having blades that maintain a close clearance from the shell. Thermostatically handled discharge air temperature gurantees accurate final moisture and great sensitivity to changing product conditions. A feed distributor at entry point distributes the liquid in a thin film dryer on the heated wall. The high speed rotor with gear box is provided for further spreads and intensely agitates the film as it flows down. The generated vapors flow countercurrently and get cleaned by an integrally mounted entrainment separator. Features Suitable for high vacuum applcation. Excellent turn down capability. Ideal for hazardous applications. Avoid product re-circulation and possible degradation. Economical and less utility consumption.

AGITATED THIN FLIM DRYER - ATFD   INTRODUCTION:    Welcome to the world of Agitated Thin Film Dryer (ATFD) and other heat transfer equipment. Meekaj Techno App Services leads by virtue of superior engineering design capabilities, manufacturing excellence and a project based approach committed to deliver high performance total evaporation solution customized to our client requirement.  Meekaj Techno App Services offer ATFD as a single point solution for all kind of drying application. Our ATFD’s are running smoothly production and effluent purpose in chemical Pharma, Textile, Food and Beverages Industries.          OPERATING PRINCIPLE:    ATFD is stands for evaporation of water/solvents to make concentrated liquid to dry power or flakes. Based on application either recover solvent or dry product in important.  ATFD is the ideal apparatus for continuous processing of concentrated material to dry solids. ATFD is consist of cylindrical, vertical body with heating jacket and a rotor inside of the shell which is equipped with rows and pendulum blades all over the length of the dryer. The hinged blades spread the wet feed product in a thin film over the heated wall.  Theturbulenceincrease as the product passes through the clearance before entering calming zone situated behind the blades as the heat will transfer from jacket to main shell the under the smooth agitation water/solvent will evaporate and liquid will convert to slurry, to cake or to dry power or flex    The vapors produced rise upward, counter-currently to the liquid and pass through Cyclone separator mounted of vapor outlet of ATFD.  Further these vapor will be condensed in condenser and recovered ascondensate.System will be operated under vacuum for temperature sensitive products and atmospheric condition for normal drying.          PRODUCT DETAILS:    Capacity - 375Kg/Hr  Max Temperature - 120'C  Automatic Grade - Semi-Automatic    Design - Customized  Agitated Thin Film Dryer is used to dry a solution of high TDS Water or Products. The outlet of ATFD will be in the Powder form having 10-15% moisture. This system will evaporate the solution by thin layer formation on the Surface. ATFD is stands for evaporation of water/solvents to make concentrated liquid to dry power or flakes. Based on application either recover solvent or dry product in important.  ATFD is the ideal apparatus for continuous processing of concentrated material to dry solids. ATFD is consist of cylindrical, vertical body with heating jacket and a rotor inside of the shell which is equipped with rows and pendulum blades all over the length of the dryer. The hinged blades spread the wet feed product in a thin film over the heated wall.  The turbulence increase as the product passes through the clearance before entering calming zone situated behind the blades as the heat will transfer from jacket to main shell the under the smooth agitation water/solvent will evaporate and liquid will convert to slurry, to cake or to dry power or flex.  The vapors produced rise upward, counter- currently to the liquid and pass through Cyclone separator mounted of vapor outlet of ATFD. Further these vapor will be condensed in condenser and recovered as condensate. System will be Operated under vacuum for temperature sensitive products and atmospheric condition for normal drying.          APPLICATION:    Pharma Industry: Drying of products for API and its intermediates to eliminate the conventional process of drying.  Recovery of important solvent from the feed.  Textile Industry: Drying of concentrated liquid for salt recovery to eliminate crystallizer and filtration system.  Agro Chemicals Dyers and pigments Industry: Drying of products for recovery of in organic product, to eliminate other conventional system.  Chemical and Petro Chemical Industry: Drying of chemical and petro chemical products to recover the powder of cakes.  Sugar Industry and Distilleries: Drying of concentrated effluent to make zero liquid Discharge System.  Treatment Plants: One stop solution for drying of effluent to make zero liquid discharge.          ADDITIONAL INFORMATION:    Port of Dispatch: By Road.  Production Capacity: 3 SqM.  Delivery Time: 15 days  Packaging Details: As per applicable at the time of dispatch.
