Economy Refrigeration Pvt Ltd Chembur, Mumbai, Maharashtra

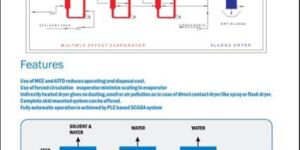

Use of Agitated Thin Film Dryer & Multiple Effect Evaporators reduces the operating and disposal cost. Use of Forced Circulation Evaporator minimize scalling effect.

Number Of Flower : Shell & Tube

Usage : Pharmaceutical industry

Material : SS, Hasteally, Titanium

Medium used : Water

Brand Name : Economy

Number Of Stages : Single stage

Max Flow Rate : 900 m3/hr

Brand Name : Economy

Below are the product details of Rotary Piston Vacuum Pump Models: KT-150C KT-300D KT-500D KT-850D Features: Full pumping speed down to 1 Torr Can operate continuously (at any pressure) up to 100 Torr Ultimate pressure 10 Microns (McLeod Gauge) Adjustable gas ballast permits handling of condensable vapors No metal to metal contact in pumping chamber Unequaled durability, even in dirty applications Compact footprint design Simple installation, no special preparations required Triplex piston design provides quiet, vibration-free operation

We offer liquid ring vacuum pump.

Model: fr1118p10 the sotera in-line digital meter is an economical choice for metering the transfer of water, diesel exhaust fluid (def), or detergents. It's easy to handle and easy to use. It can be installed in line or at the end of the hose. using a turbine measuring system, the fr1118p10 provides the ability to dispense liquids with convenience and accuracy, and the five-digit lcd readout is a consistent performer under the toughest conditions. when you need a value priced meter, look no further than the fr1118p10. features and benefits 3 - 26 gpm (11 - 98 lpm) 70 psi (4,8 bar) 1 in. Npt inlet and outlet five digit readout with resettable totalizer +- 1% accuracy turbine measuring system one year warranty install either in-line or at the end of the delivery hose made out of nylon 66 measures in gallons, liters, quarts and pints compatible with water, diesel exhaust fluid (def), or detergents documents

Dry vacuum pumps Simple, robust design can handle process by-products liquids, condensate, and even small particles No oil or water in contact with process No contact between operating components in the casing Full pumping speed from atmospheric pressure down to 1 Torr; ultimate pressure 0.1 Torr (.05 Torr on Model KDP-800) Quiet operation – less than 85 dB(A) Short gas path through the pump for quick discharge Extended shaft for either V-belt or direct drive Casing and rotors are made of ductile iron, PFA coated.

Specialities : Short gas path through the pump for quick discharge.

The dry screw pump design is based on the operating principle of screw but with twin screws to achieve the required compression. Two single-piece, parallel, twin screws contained in a pump body, compresses & transfers the gas by rotating twin screws. The pump body is cooled by water circulating through a jacket, cooling the compressed gas to discharge at low temperature. The temperature of the pump can be adjusted for process requirements by controlling the water flow rate and temperature. This will raise or lower the overall operating temperature of the gases being pumped. The compression ratio of the pump varies little over the operating pressure range, giving constant absorbed power. This enables the condition of the pump to be diagnosed by monitoring motor current.

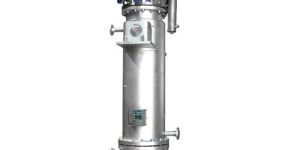

Short Path Distillation Unit Operating principle of short path distillation unit (SPDU) is similar to thin film except internal condenser. Here internal condenser is installed inside rotor cage assembly. The feed enters the unit at top and get distributed into a thin film on the inside surface of shell. Heating medium passing through the jacket evaporates volatile component in feed. The vapor generated flow across the rotor and condense on internal condenser. This short path of vapor eliminate pressure drop. hence evaporation can be done at high vacuum as 0.001 mbar. The distilled product and balance bottoms are taken out through separate outlets.

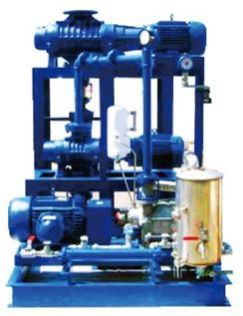

We offer booster dry screw vacuum pump system.

We offer agitated thin film dryer.
