Ring Vacuum Pumps Dealers in Mumbai

We are offering water ring vacuum pumps, vacuum compressors . max: vacuum attained-710 mm of mercury at 30 c inlet water – temperature, barometric pr of 760 mm of mercury.

OUTSTANDING FEATURES:   • Silent and considerably vibration free running • Needs no silencer. • Mechanical shaft seals on either end of shaft • Maximum vacuum using water as sealant at 300 Centigrade and at sea level conditions :   Single stage models will be 700 mm Hg.   Double stage models will be 720 mm Hg. • Negligible maintenance and easy overhauling procedures. • Modification for use as compressor possible. MATERIAL OF CONSTRUCTION :Bronze/Stainless steel impeller, Stainless steel shaft and all other contact parts in cast iron. Complete Stainless Steel Pumps are also offered.

True Vacc Water-ring vacuum pumps are rotary pumps using water as sealing fluid.  It basically consists of cylindrical casing with control disc on either sides.  Inside this consists an eccentrically located balanced impeller with curved blades.  The liquid introduced is set into rotary motion by impeller forming a water ring concentric with casing.  Cells formed between the blades and the ring vary in volume from maximum to minimum with each revolution.  The suction medium enters this space through the opening in control disc & are then compressed out through the exhaust pipe alongwith the sealing liquid. Unique Features It is mainly as vacuum pump but can also be used as compressor. Simple and trouble free operation. Moist Air, aggressive gases, vapors and dust laden gases can be handed. No metallic contact inside pump, no wear & tear. Construction in Cast Iron, Phosphorous Bronze, Gun Metal SS. 304, SS.316 Etc No contamination of medium passing through. Compact unit due to direct drive/belt drive Simple construction & easy maintenance Maximum Vacuum up to 710 mm Hg in Single stage.   Application

These pumps are positive displacement type. Service liquid is regulated and due to the eccentrically mounted impeller, the same is thrown towards the periphery of the stator, thus forming a sealant ring. Process gas is trapped in the space between the impeller blades, compressed and expelled in a continuous suction exhaust cycle.The pumps can be offered in different materials such as C.I.,Gun metal and Stainless steel. Smooth, running modest maintenance and exellent performance Mechanical shaft seals on either end of shaft Maximum vacuum using water as sealant at 30* C and at sea level condition.Use as compressor possible.

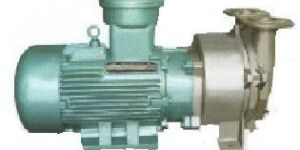

WSK Series liquid ring vacuum pump can be used to pump water vapour as well as ordinary gases.Because they own the features of constant temperature compressing, they can pump inflammable, explosive & corrosive gas. When suitable actuating medium or sometimes pumped medium can be choosen as actuating liquids, the series pumps almost can pump all industrial gases. They own the features of reposefully operation, low noise & less than 30% of energy consumption compared with water vapour jet vacuum pump.Application:It can be widely used for chemical, light, food, medicine, paper and electric utility industries etc.

We offer liquid ring vacuum pump.

Double Stage Liquid Ring Vacuum Pumps, Vacuum Pump

Liquid Ring Vacuum Pump, Mechanical Agitator, Nash Liquid Ring Compresso

Water Ring Vacuum Pump, Vacuum Equipment, Vacuum System Valve

Liquid Ring Vacuum Pumps, Rotary Oil Sealed Vacuum Pumps, Vaccum Equipment

Water Ring Vacuum Pump, Self Priming Centrifugal Pum

Liquid Ring Vacuum Pumps, Vacuum Pumps, Turbine Blower

Liquid Ring Vacuum Pumps, Mechanical Vacuum Gauge

Water Ring Vacuum Pumps, Air Cooled Twin Lobe Compressor

Water Ring Vacuum Pump, Chemical Process Pumps, Dry Vacuum Pump
