Vacuum Pumps Dealers in Mumbai

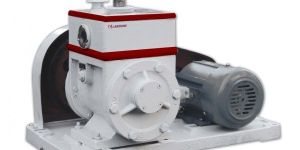

Labocon Belt Drive Vacuum Pump is used in vacuum coating,vacuum filtering, vacuum heat treatment, vacuum smelting, vacuum tube, refrigeration, packing etc.

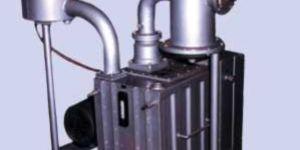

Oil sealed high vacuum pumps are used for different applications and are made from superior quality raw material.Oil Sealed High Vacuum Pump is widely accepted as the standard equipment in Chemical Industries, Laboratories, Pharmaceutical Plants, Research Institutions are using ‘VAIVEE’ High Vacuum pumps for different application such as Evacuation of Chambers, Vacuum coating, Brazing, Degassing, Distillations, Dehydration, Deaeration, Purification, Synthesizing Vacuum Evaporation, Drying, Ancentration, Deodoring, Filtration, Protective coating, Vacuum forming etc.

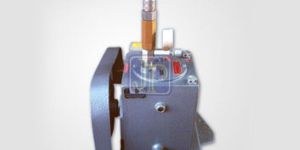

Turbo Vacuum Pumps are of the oil immersed rotary vane type V belt driven machine. A stator with an eccentrically mounted rotor within Turbo Vacuum Pump from the main assembly. The rotor has two vanes facing each other. There are springs in between the two vanes. As the rotor revolves these springs press the vanes against the inner wall of the stator and make them move in and out of the rotor as the rotor revolves by means of a driving shaft sweeping the air space twice per revolution. Material of construction is property chosen graded cast iron and all the parts are precisely machined micro finished and assembled to close tolerances for high efficiency   accessories for "turbo blower" vacuum pumps non return valve it is provided for preventing body leakages with the help of spring tensioned rubber diaphragm. The rubber diaphragm prevents back flow of oil when the pump is not in motion. Air vapor in the pump so that contamination of oil is avoided. Moisture trap available in c.i.al with detachable glass. The moisture in the air is absorbed by this trap before entering into the pump. Inlet dust filter vacuum gauge with regulator this filters dust particles down to 20 micron size. This is being used as to maintain any desired vacuum in the system. It is graduated from 0 to 30 inches in mercury. Guarantee service after sales with one year guarantee against manufacturing defects. Note models up to me-15 are air cooled type & provided with single phase motors. Models from me-16 onwards are provided with water cooling jackets and 3 phase motors.

Technical Features: Gas ballast valve 40 CFM Various inlet filters Filter pressure gauge Oil level switch Vacuum regulating unit Vacuum oils for all applications

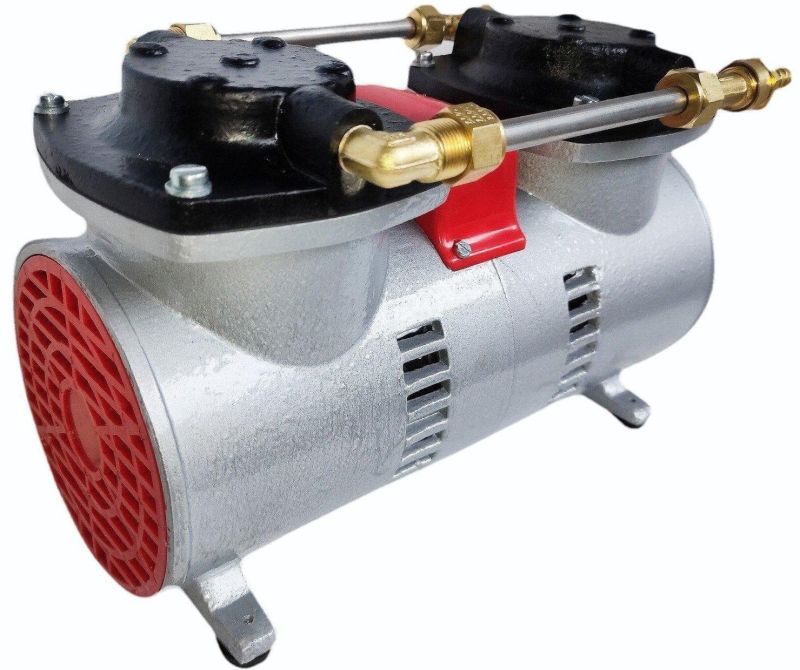

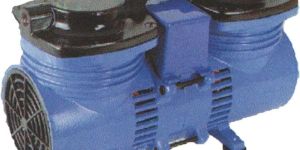

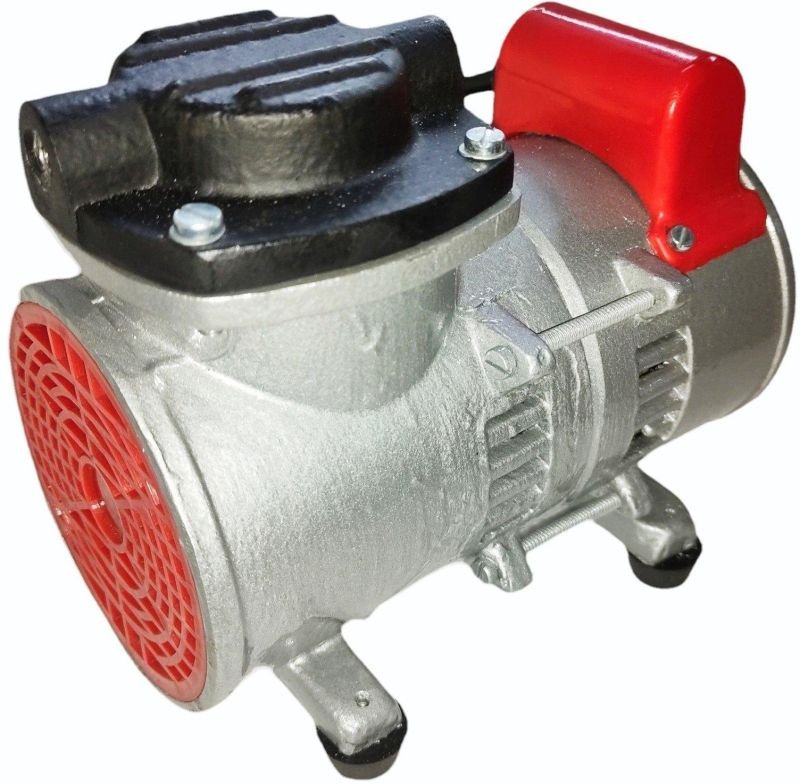

FEATURES : » Oil free Compressor Vacuum Pump. » Exclusive Oil free construction of Piston or diaphragm never requires lubrication. » Continuously rated with built - in rugged motor - std. Single phase, optional Three phase. » Most Versatile, Compact Compressor Vacuum Pump. » Permanently lubricated ball bearings. » Practically maintenance free. » Portable Light weight die - cast aluminium. » Low noise level. » Balanced eccentrics provide smooth, low vibration operation » Built - in micro air filter. » For acidic alkaline gas application compressor vacuum pumps offered with teflon coated wetted parts & teflon coated diaphragm.

Lab vacuum pump to be used in laboratories for filtration, suction & air mixing/separation of chemicals With maximum capacity 25ltrs. Minimum vacuum pressure 0.005mm Hg. Precision dial for vacuum pressure display. Latest design along with double stage filtration. Smooth precision-engineered components for exceptional performance. Complete with all accessories-2000ml Flask, Gear oil, PVC tubing etc. Supplied with calibration & inspection certificates. Weight: 41Kg (90.4 lbs) Dimension: Length     Depth       Height510 mm        380 mm      485 mm.20  inch         15  inch       19  inch

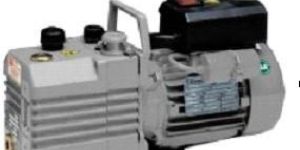

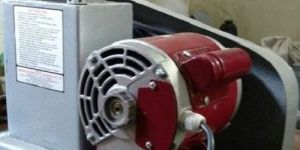

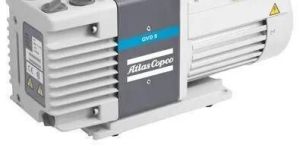

The motor is coupled to the pump by means of a flexible coupling, Special Construction of this coupling and the use of specially selected materials ensures smooth and quiet running of the pump.           The rotor is mounted eccentrically in the pump cylinders. The Three radilly sliding sliding vanes divide the pump chambers into three sections. Due to rapid rotation of the rotor the vanes are forced to slide against the cylender walls by means of centrifugal force. the pumping isbrought about by alternately increasing and decreasing the volume of the working spacewhich is of crescent shape in cross section. the component parts as the pump are sealed by Viton 'O' Rings. All parts are pinned to ensure easy disassembling and reassembling.

The pump consists of two figures "8" shaped rotors and two semicircular pump houses. The rotors rotate synchronously in opposite directions and high speeding. The pump cannot be separate used; it must be used as boosters combined with a backing pump such as rotary piston or a rotary vane pump, or a liquid ring vacuum pump. These vacuum systems can get higher vacuum, a stable, fairly high pumping speed can be gained in effective pressure range. The backing pump decides the ultimate pressure of roots pump. The data of the list is lowest ultimate pressure with the standard equipment (Equipped double stage oil mechanical vacuum pump)Application:The roots pumps are widely used in vacuum moulding, vacuum smelting, vacuum gas pumping, vacuum coating industry, vacuum distilling and vacuum drying of chemical and pharmaceutical industry etc. The dust cannot be pumped by roots pumps.Main features:• The lack of reciprocating parts allows a perfect dynamic balancing, because the rotors are processed by numerical control machine tools    and balanced carefully. It has perfect geometry symmetry. There is certain clearance between the two rotors. The pump house and end    cover is processed by especial machine tools. It has high precision. So the pump own feature of stable operation, low noise, vibration    and high ultimate pressure.• The robust drive of pump and operating parts balanced carefully permit that the pump be stably operated continuously under the    condition of high different pressure.• They can be started quickly and in short time ultimate pressure is reached.• Lubrication is unnecessary as there is no contact between rotors and house that avoid oil vapor from polluting vacuum system• Good reliability characteristic. Their inherent overflow valve play auto-protective role.• Compact structure, low footprint design. There are three gas outlet ports that are in left, right and under pump house. It is convenient    for consumer installing.

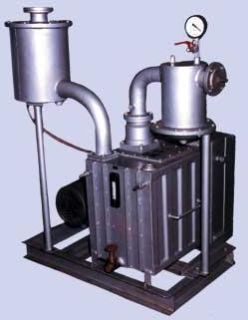

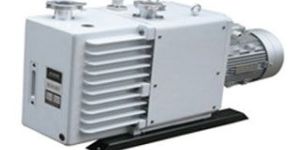

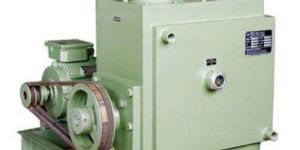

Rotary high vacuum pumps oil sealed, air cooled, v-belt driven and mounted on base plate with belt guard. Fitted with electric motor 220 volts a.c. single phase pump r.p.m. 500 displacement 50 ltrs / min   ACCESSORIES AT EXTRA COST• Non return valve - it is made of M.S. bar stock to prevent body leakages and is provided with a spring-tensioned rubber diaphragm. The diaphragm is pulled down due to suction of air when the pump starts and it blocks the port by spring tension and vacuum as soon as the pump and thereby prevents back flow of oil.• Vacuum gauge with regulator - gauge is of 2 inches(50 mm) diameter and graduated from 0 to 760 mm of mercury. The regulator is screw type which leaks atmospheric air into the pump and thereby maintains any desired vacuum in the system• Air filter• Moisture trap• Macleod gauge -very compact, range 10 mm to 0.01 mm hg. Pressure complete with mercury. range 10 mm to 0.01 mm hg.

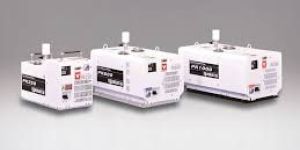

with the assistance of an experienced team, we bring forth high quality medical vacuum pump. Today, we are well reckoned as one of the prominent medical vacuum pump suppliers based in india. Our vacuum (suction) supply system is available with tefc electric motor of siemens or crompton that assures long lasting performance. Air cooled vacuum pump system offered by us is available at very affordable prices within the stipulated timeframe characteristics air cooled type free air delivery to suction - 70 % of p.d. Approx. Max working pressure -29” of hg or 730 mm of hg. single stage three cylinder fitted with ms channel frame, complete with v-belt drive, belt guard etc. Along with the following-114” bsp stainless steel ball valve with ptfe seat with suitable brass adapters and non return valve silencer at discharge end projecting (open to atmosphere) outside the plant room copper pipe interconnection up to receiver mounted of required capacity demanded by hospitals hospital architects hospital construction companies hospital consultant companies nursing homes

The high-speed pump has made this Water Ring Vacuum Pump a great buy. Also, the simple structure of this Water Ring Vacuum Pump complies with the set industrial standards. We are among the reliable Exporters and Suppliers of Water Ring Vacuum Pump. These Water Ring Vacuum Pumps can work for longer hours without any glitches. Maximum Vacuum Attained : 710 mm of mercury at 30 oC inlet water temperature, barometric pr of 760 mm of mercury

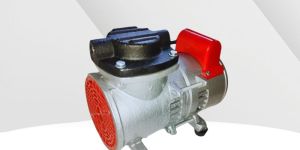

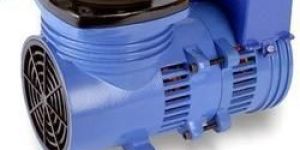

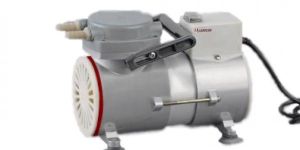

No lubricant required Noiseless performance Absolutely portable Totally oil-free construction Practically maintenance –free All parts made from special graded Aluminum die cast material for light weight and good strength Diaphragms are made of special 2-ply nylon reinforced neoprene rubber. Valves made of SS 316 material Built –in micro suction filter Extra large bearings for trouble-free and smooth running.

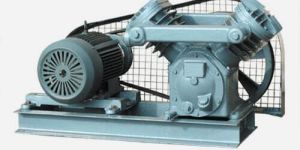

From the day of our establishment, we have come up with a wide assortment of Vacuum Pump. Features : Elevated life Precise design Smooth Finish Optimum functioning High efficiency Rugged construction

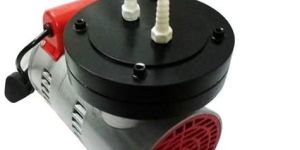

These Pumps are for Vacuum & Pressure applications. All parts made from special graded aluminium dye cast materials and Diaphragms are made of special 2 ply nylon reinforced neoprene rubber. Idealy suited for OEM machines Material Handling Equipments Medical InstrumentsDentist Gas charging in A.C. Photographic developing machinesplastic weldingPollution Control equipments Nebuliser Cement aration.
