TRUE VACC INDUSTRIES Jogeshwari, Mumbai, Maharashtra

True Vacc Water-ring vacuum pumps are rotary pumps using water as sealing fluid.  It basically consists of cylindrical casing with control disc on either sides.  Inside this consists an eccentrically located balanced impeller with curved blades.  The liquid introduced is set into rotary motion by impeller forming a water ring concentric with casing.  Cells formed between the blades and the ring vary in volume from maximum to minimum with each revolution.  The suction medium enters this space through the opening in control disc & are then compressed out through the exhaust pipe alongwith the sealing liquid. Unique Features It is mainly as vacuum pump but can also be used as compressor. Simple and trouble free operation. Moist Air, aggressive gases, vapors and dust laden gases can be handed. No metallic contact inside pump, no wear & tear. Construction in Cast Iron, Phosphorous Bronze, Gun Metal SS. 304, SS.316 Etc No contamination of medium passing through. Compact unit due to direct drive/belt drive Simple construction & easy maintenance Maximum Vacuum up to 710 mm Hg in Single stage.   Application

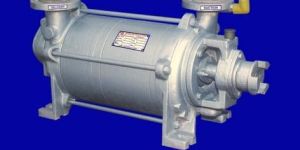

We are manufacturer of single stage water ring type vacuum pump.

true vacc oil lubricated rotary vane vacuum pumps feature ultimate vacuum and reliable operation.  tvol series vacuum pumps are proven performers in industrial, laboratory & jewellery industries applications where dependable performance, small footprint, and quiet operation are essential   unique features   high water vapour tolerance high pumping speed at complete vacuum range built in anti suck back system compact & simple design air cooled & direct drive quiet operation oil mist eliminator for oil free exhaust. .

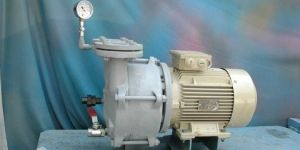

We are manufacturer of Mono-block Type Single Stage Water Ring Type vacuum Pump.

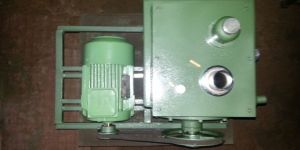

  True Vacc High Vacuum Pumps TVBD/TVBS Series consist of main causing with a rotor fitted eccentrically in it.  The vanes are fitted in the slots of rotor on opposite sides with springs between During rotation, the vans move in and out of the slots and sweeps the air space two times in a revolution.True Vacc Pump’s Belt Driven Rotary Vane Vacuum Pumps feature micron range ultimate vacuum, reliable operation best proven performers in industrial and laboratory applications where dependable performance, small footprint, and quiet operation are essential.  These pumps feature a Single Stage/Two-stage design and come standard with NW type inlet and outlet connections.  Compound stage design and adjustable gas ballast enable these pumps to operate at low noise levels. Unique Features   Rugged construction, compact design and low maintenance Inbuilt Air ballast Small Footprint, and Quiet Operation Ultimate Vacuum upto 0.005 Torr Reliable operation & Dependable Performance Application Vacuum Distillation Chemical Processing Coating Degassing Gold Casting Drying Chambers & AC Systems Jewellery Industries Heat Treatment Vacuum Furnaces Leak Detection Metals Processing PET Processing Pharmaceuticals Transformer Drying Light Bulb Manufacturing Silicon Crystal Growing All Types of Laboratories Evacuating Refrigeration

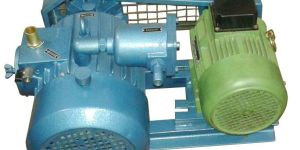

A rotary vane pump is a positive-displacement pump that consists of Carbon vanes mounted to a rotor that rotates inside of a cavity. In some cases these vanes can have variable length and kept in tensioned to maintain contact with the walls as the pump rotates. The simplest vane pump has a circular rotor rotating inside a larger circular cavity. The centers of these two circles are offset, causing eccentricity. Vanes are allowed to slide into and out of the rotor and seal on all edges, creating vane chambers that do the pumping work..    Unique Features:-   Rugged Construction Compact Design Low Maintenance Small Foot Print & Quiet Operation Reliable Operation & Dependable Performance Application:-   MilkingPaper Printing Industries. Low Vacuum Chambers Low Vacuum Oven Mechanical Testing Application. ETP Plant Packing Industries. Vacuum Foaming

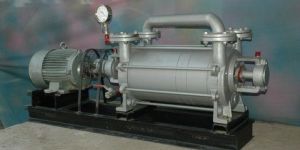

We are manufacturer of single double stage water ring type vacuum pump.

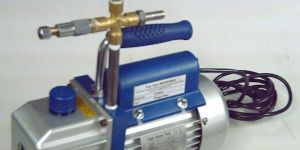

We are manufacturer of single double stage high vacuum pump. Kindly shre your enquiry ontruevacc@gmail.com / 9821414483

Country of Origin : India

Number Of Flower : High Vacuum Pumps

Brand Name : True Vacc

Certification : ISO 9001:2008 Certified

Material : Cast Iron

Shape : Rectangular

Operating Type : Semi Automatic

Total Carbohydrate : 1 Year

Fuel Type : electrical

Material Grade : ASTM A29

Phase : Single Phase

Mounting Type : Portable

Number Of Stages : Double Stage

Corrosion Resistance : Yes

Driven Type : Electric

Specialities : Durable, Rust Proof, High Performance, Easy To Operate

Packaging Type : Rigid Boxes

Head Size : 5-10 M

Dimension (LxWxH) : 395x280x275mm

Usage : Automotive, Marine, Laboratory

Overall Weight : 30-40kg

Power : 1-3kw

Finishing : Polished

Pressure : Vacuum

Frequency Range : 220v

Accuracy : 100%

Pumping Speed : 1440 RPM

Max Flow Rate : 12 Crm

Motor Speed : 1440

Oil Tank Capacity : 2

Fluid Temperature : 50

Cooling System : Air cooled

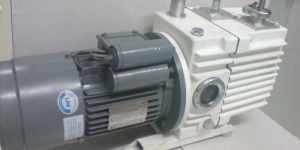

We are manufacturer of single double stage drive high vacuum pump.

TRUE VACC TVD Series diaphragm type Vacuum pumps & Compressor which are manufactured from special grade aluminum for light weight and good strength.  Diaphragms are made of 2 – ply nylon/PTFE reinforced neoprene, Viton rubber.  Valves are SS 316 while special sealed bearings are used hence no lubrication is required.   Unique Features   Noiseless performance Absolutely Portable Totally Oil-free construction Practically maintenance free Built – in micro suction filter Special diaphragms available (TEFLON/VITON wetc.) Extra large bearings for trouble-free and smooth running Pump available with chemical resistive parts PP/PVC/TEFLON/SS Contact parts) (Model TVD-45-CRP) Motors available in single as well as three phase construction

We are manufacturer of single double stage diaphragm type vacuum pump.

We are manufacturer of double single stage oil sealed high vacuum pump.
