Air Classifiers Dealers

Now procure Air Classifier at extremely reasonable prices from us. Our organization is its famous supplier. Positioned with leading names, we are an emerging name operating from Rajasthan(India).

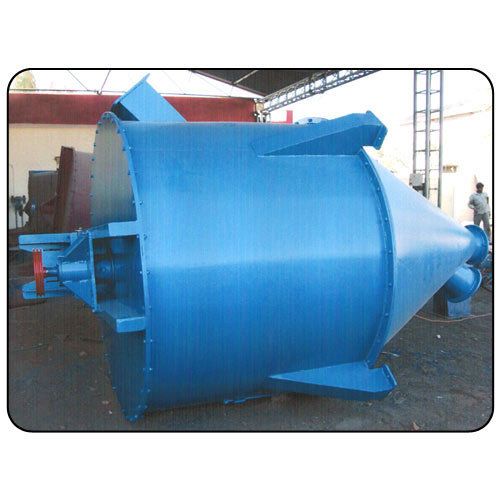

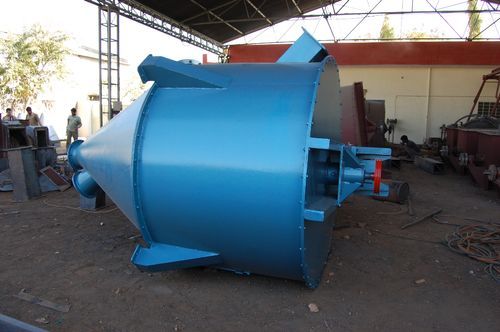

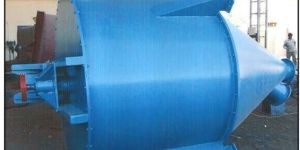

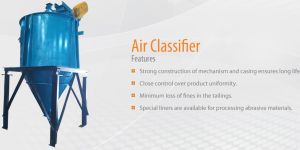

Air classifier, offered by us, is ideal for pigment colors, minerals, ores, chemicals and products like dyestuffs, fertilizer, insecticides and pesticides. Particle size produced by our air classifier is finer and more uniform than that obtained from machine using screen. Air classifier that we offer allows no dusting from feeding hopper as feeding is done under negative pressure. highlights less dusting on output side because of use of cyclone separator uses air classification which does require screen problems associated with screen like choking and painting and frequent replacement of screen do not arise easy to clean and wash manually fed as a normal practice can be supplied with automatic feeding also runs at low speed compared to machines using screen, less maintenance required

Whizzer type classifier fitted with distribution plates, coarse cone, fine cone, etc. offers classification of powders into array of different meshes.

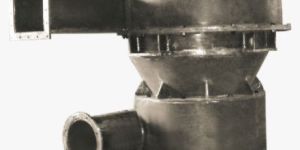

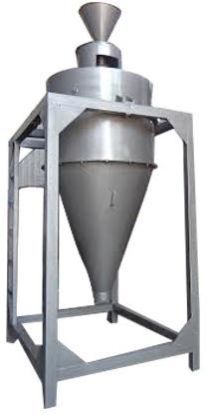

Powder feeding hopper mounted on the top of machine. Powder feeding tube is mounted co-axially inside the vertical hollow shaft. Hollow shaft is supported by heavy-duty bearing which is fitted in housing. Self-contained unit is consists one or two disc with whizzer blades rotate inside cone. Powder distributor disc is fitted bellow lower whizzer hub. Top chamber consists rotating deflector blades. Whizzer blades, Distributor plates, and Deflector blades are driven by motor and produce the internal air circuit. Bearing housing, outer & inner drum, damper, deflector vanes, Upper & lower whizzer cones and fine & tail cone are fixed on main body. Centrifugal type closed circuit Air Classifier is to separate dry powder into coarse & fine powder. Powder can be separated are from 60-350 mashes. It removes coarser particles like free iron, their oxides, grit, silica, heavy impurities. Alternatively, it can remove fine/light foreign material as to de-dust a product. Deflector blades produce centrifugal force and air current to separate particles and impurities on weight basis.Know Process of AIR CLASSIFIERMaterial fed into inner tube from inlet hopper. Rotating distributor plate distributes powder radilly outward into upward sweep of circulating air stream generated by deflector blades. Every particle is got downward gravity force and upward air stream force. Gravitational force is higher on grits and impurities due higher weight. Upward air stream force is not enough against gravity force. Particles prevails gravity force than flows downward force and pass it through tail cone. Light weight (fine) particles move upward because air stream force is more than gravity force on it. Both raw of Whizzer blades are provide to adjust resistance to particles by add/remove blades. It helps to reduce or increase the escape of particles towards deflector blades. Whatever Particles pass through both whizzers will discharged into circular space between inner and outer drum due to centrifugal force and discharged through center fine cone. Air after releasing fine in outer cone returns through the deflectors vanes to the inner cone, setting up a continuous air circuit. Thus heavy particle discharge through tail cone and fine are through fine cone. Fine and coarse grade separation ratio is varying from 95-5 to 60-40. Pattern of classification can be change by regulation and controlling air stream. Air stream can be reduced by closing air dampers and increase by opening. Dual purpose is removing heavier impurities for better quality and removes grit of particle for better size distribution.

Features:   Particles are reduced to finer and more uniform sizes. Use of cyclone separator leads to less dusting on output side. No dusting from feeding hopper because feeding is done under negative pressure. It runs at lower speed , hence it requires much less maintenance. They are easy to clean & wash. It is manually fed as normal practice & can be supplied with automatic feeding as well. It uses air classification which does not require screen. Hence, it is free from problems like conking, Printing & frequent replacement of screen do not arise.

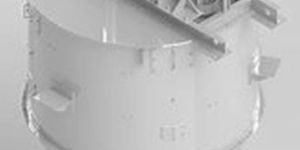

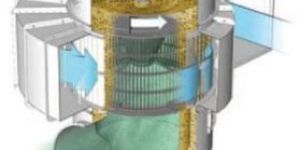

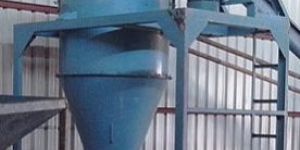

The VWC classifiers are efficient dynamic air classifiers with a vertical classification rotor. They are suitable for classifying material between 15 to 80 microns material. Operating with a low pressure drop makes these classifiers very economical in operation. Fewer parts in the classifier means this classifier is economical in terms of the initial investment as well. Adjustability of the secondary airstream and the rotor speed allows for a precise onstream control of the sharp cut-point, which allows you to obtain the particle size desired.

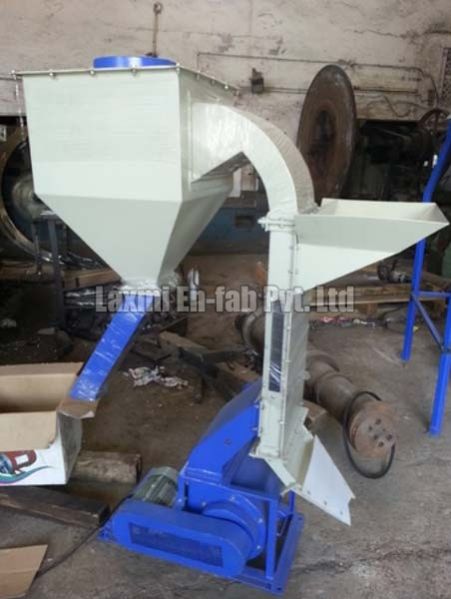

We are instrumental in manufacturing and supplying Air Classifier. The offered instrument is used for separating different sizes of particles from two and more kinds of powdered substances. It makes use of centrifugal force and air currents for separation on the basis of weight of the particles. This machine is built in adherence to the industrial standards.
