Automatic Filter Press Dealers

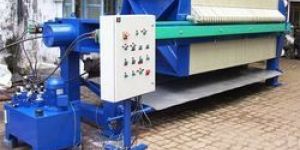

We are reputed for the comprehensive range of semi-automatic filter presses with electro mechanical plate shifting device. These presses are designed employing advanced technologies and equipped with a bomb door arrangement. The semi-automatic filter press is easy to install and operate. The range is resistant to wear and tear and offers lasting services. Materials of construction: structure: cast iron or mild steel operating pressure: 5 bar to max 20 bars moc of filter element: polypropylene there are two types of mechanism in this semi automatic filter press. They are side shifting mechanism and overhead plate shifting mechanism. Sizes available are: 500 x 500 mm , 610 x 610 mm 915 x 915 mm , 1000 x 1000 mm , 1200 x 1200 mm , 1500 x 1500 mm application: etp-plants, dewaxing, granites, marble & ceramic industries, gypsum, bentoite, crystalline salts, pigments, dry precipitates, sludges generated from galvanizing plants containing chromium, zinc, aluminum, copper, nickel or cadmium, . And many more.

  special features: • zero downtime• saves 96 % of labour cost• achieve final solid consistency at outlet upto 75%• short cycle time : 8 to 30 minutes• lower pollution control cost• improved process economy• fully automatic cycle• manual mode option• upto 1500 x 1500mm plate size• vibration system for cake drop• drip tray system• light curtain materials of construction: structure: mild steeloperating pressure: upto 7 to 20 bar max. Operating temp. : 90'cmoc of filter element: pp application: excellent for etp-plants, insulators industries, granites, marble & ceramic industries, gypsum, bentoite, china clay dewatering, crystalline salts, pigments, dry precipitates, and many more

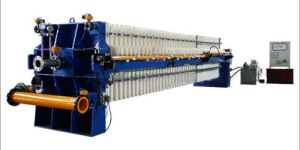

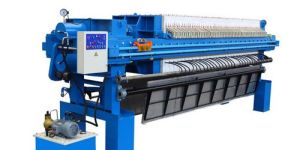

We manufacture fully automated advanced filter press with plate shifting & plate shaker for autocake discharge along with plc based electrical control panel & pneumatically opereated control valves, flow sensor and hydraulically operated door drip tray. In this filter press initial filtration process takes place with the push of a button. Operator initiates filtration. Slurry is pumped into all chambers and cakes are formed as filtrate begins to flow. The end of filtration phase is automated by flow meter which is located on filtrate discharge pipe. The flow meter indicates the minimum flow rate of filtrate which is strictly related to the end of a cycle, the opening of filter press and the discharging phase a plate vibrating device during the discharge phase ensures 100 pct release of the cake. A plc controls the phases and cycle times for all the filter press functions including operation of the ancillary equipment

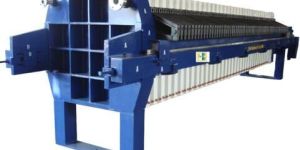

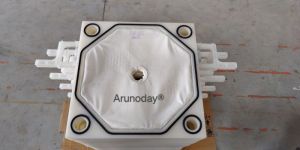

Automatic Filter Press System Company has designed advance featured fully automatic filter press machine which ensures high efficiency to meet all the requirements of industrial needs. This filter press machine is best suitable to dyes & pigments , pharmaceuticals.

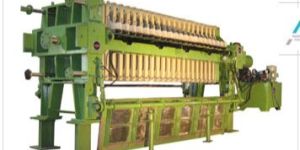

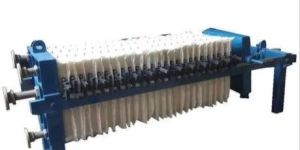

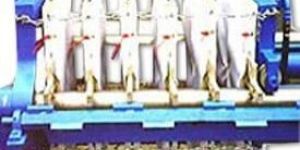

We are engaged in the manufacturing of high grade Automatic Filter Presses in various shapes and sizes. These Automatic Filter Presses are available with auto cake discharge having cake vibrating arrangement. We also provide customized designs of Automatic Filter Presses in accordance with the client’s specifications. Specifications Sizes : 800 onwardsOperating pressure range : 5 to 16 bar Components Belt conveyors for cake transportationAuto Pick & Place type plate shifting arrangementDrip trays made of PPFRP/SSPLC System Features Robust constructionHigh filtration capacityLow maintenanceAnti-corrosive Applications Chemical IndustryPharmaceutical Industry

The function of the plate shifter is to move the plates and allow rapid discharge of the filter cakes accumulated in between the plates. It also contains a diaphragm compressor in the filter plates which aids in optimizing the operating condition by further drying the filter cakes. Automatic Filter Press An automatic filter press has the same concept as the manual filter and frame filter, except that the whole process is fully automated. It consists of larger plates with mechanical “plate shifters

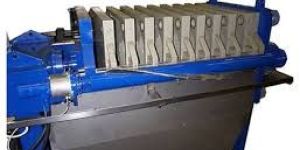

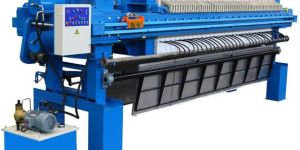

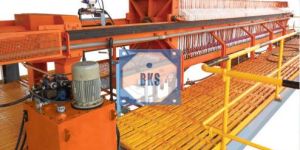

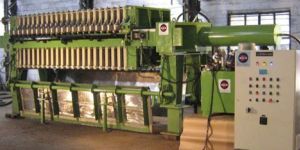

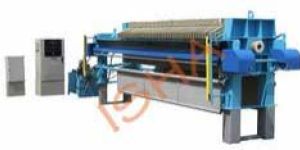

We are providing our clients with the best-in-class gamut Fully Automatic Filter Press. Fabricated by making use of supreme quality basic material and components, these offered presses conform to the defined parameters of the industry. Furthermore, these offered products are highly appreciated for their remarkable attributes such as longer service life, resistance against corrosion, performance and compressive strength. Our clients can avail the offered products in both customized and standard forms as per their requirement. These offered products are provided with conventional fixed-volume, recessed-chamber plate filter presses, programmable logic controller (PLC) and can be supplied with a local control panel, CRT and touch-screen panel. Features: Zero downtime Saves 95.7 % of labour cost. Achieve final solid consistency at outlet up to 76.2%. Short cycle time: 8 to 30 minutes Less capital expenditure Filter press & dryer can be planned smaller Lower pollution control cost Increased product Yield Improved process economy Reduced space requirement Fully automatic cycle Manual mode option PLC based controls Upto 2000 x 2000 mm plate size Vibration system for cake drop Drip tray system Application: ETP-Plants Granites, marble & ceramic industries Specifications: Filtration areas range from 5 Sq. Mts to 100 Sq Mts Capacities from 0-1 to 125 tonnes of dry solids per hour

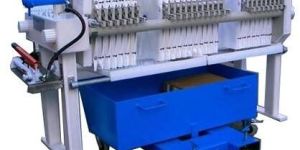

FILTER PRESS INDIA made full automation possible by incorporating corner feed plates into its filter press design. Eliminating center-feed eyes and stay bosses removed restrictions to membrane movement and consistently produces more uniformly squeezed cake. A more uniform cake, in combination with newly developed filter fabrics, allows easy discharge of the cake from the plate. Simple cake removal, never before available with conventional fixed-volume, recessed-chamber plate filter presses, allows FILTER PRESS INDIA to automate your filter press. An automated filter press includes a programmable logic controller (PLC) and may be supplemented with a local control panel, CRT, or touch-screen panel.

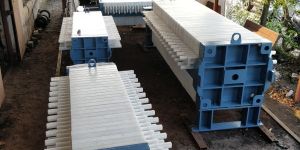

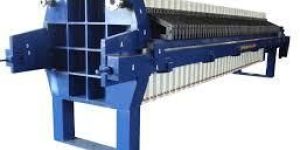

We manufacture Semi Automatic Filter Press with electro mechanical plate shifting device for individual Plate shifting with a Pick and Plate type Reciprocating shuttle. For shifting with total speed control, Hydraulic or electric motor is used. We offer the highly efficient Semi Automatic Filter Presses.

Avail from us precisely designed, high performance Semi Automatic Filter Press. We design and fabricate Semi Automatic Filter Press by using the latest techniques as per the industry set norms. The Semi Automatic Filter Press, offered by us, has manually controlled operation and requires least maintenance. Semi Automatic Filter Press can be availed at economical price from us. We are a well-known Semi Automatic Filter Press Manufacturer, Exporter and Supplier in Gujarat, India. Highlights Comes with single hydraulic CylinderMaximum number of plates is 100+ Hydraulic cylinder is automatically opened and closedInlet slurry is controlled with a Variable Frequency Drive
