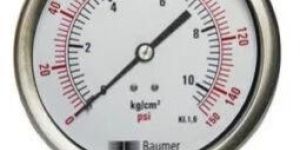

Baumer Pressure Gauge Dealers

Homogenizer Gauges are used in Food, Beverages, Dairy Industries etc.   How to Order / Inquiry: Please advise the below Dial Size Connection Mounting Pressure range Application media Or Any other special requirement   Application: Homogenizer Gauges are used in Food, Beverages, Dairy Industries etc.

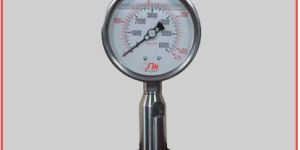

The ADARSH Homogenizer Gauge now lasts longer due to the new design feature incorporated inside the gauge. Generally homogenizer gauge is used in food, dairy industry on Homozenizer Machines. Since it is a hygenic application diaphragm seal is used. Further the presence of continuous pulsating media and that too at High Pressure causes failure of ordinary diaphragm gauges. At Adarsh a diaphragm seal has been specially designed to sustain this high pressure pulsation and vibration. Available upto ranges 700 kg/cm2, bar / 10000 psi. Specifications   4 100mm ( 4" )  & 150mm (6") Dial Sizes 4 Glycerin Filled 4 Bottom Direct Mount 4 SS304 Case & Ring IP65 4 SS316 Diaphragm 4 Available with Loose or Pre-installed 1-1/8" Flange 4 Pressure Range: 100 to 700kg/cm2 (other units bar, kpa, psi)   Options Available   4 1-1/8" Flange for Mounting 4 Custom Designed Dials 4 Electric Contacts 4 Accessories: Pulsation Dampner, Syphons, Gauge Cocks, Gauge Savers

Applications * intended for adverse service conditions where pulsating or vibration exists * suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts * hydraulics * compressors * shipbuilding industry special features * vibration and shock resistant * especially sturdy design * ns 60, 100 approved by german lloyd and gos standard * scale ranges up to 0 . 1000 bar description design en 837-1 nominal size 40, 50, 63, 80 and 100 mm accuracy class ns 40: 2.5 ns 50, 63: 1.6 ns 80, 100: 1.0 scale range ns 40, 50: 0 . 1 up to 0 . 600 bar ns 63, 80, 100: 0 ... 0.6 up to 0 ... 1000 bar or other equivalent units of pressure or vacuum. Working pressure ns 40, 50, 63: steady: ¾ of scale range fluctuating: b of scale range short time: full scale range ns 80, 100: steady: full scale range fluctuating: 0.9 x full scale range short time: 1.3 x full scale range operating temperature ambient: -20 ... +60 °c medium: +60 °c maximum temperature effect when temperature of the pressure element deviates from reference temperature (+20 °c): max. ±0.4 %10 k of the span. Ingress protection ip 65 (en 60 529 lec 529) pressure connection material: cu-alloy lower mount, centre back mount or lower back mount ns 40: g e b, 14 mm flats ns 50, 63: g ¼ b, 14 mm flats ns 80, 100: g ½ b, 22 mm flats
