Zebco Engineering LLP Sg Highway, Ahmedabad, Gujarat

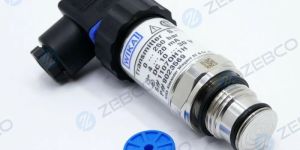

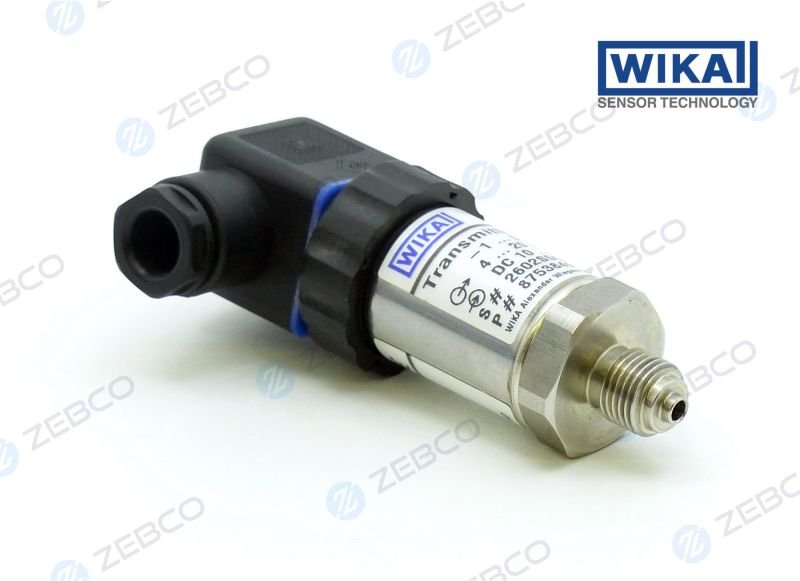

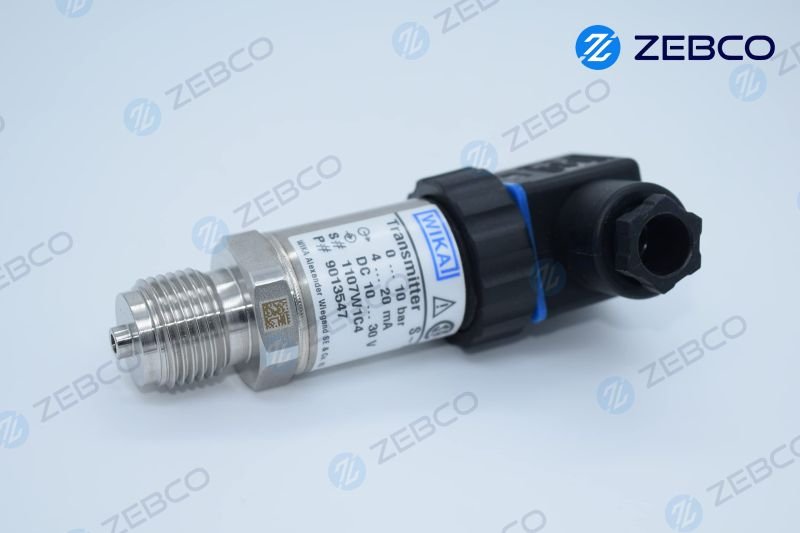

The field-proven model A-10 pressure transmitter (pressure sensor) is the all-rounder for pressure measurement in industrial environments. Compactly built, it can be integrated into a wide range of machine designs. The many measuring ranges, and special measuring ranges, contribute to its universal applicability.We are successfully meeting the varied requirements of our clients by providing the best quality range of Wika Pressure Transmitter. with without flush and threaded seal diaphragm and triclover.Expert for viscous and particle-laden media The model S-11 pressure transmitter with flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallising, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.Through its optimised design, the flush process connection enables cleanability with the wetted diaphragm integrated into the process. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with frequently changing media.High accuracy, a robust design, high-quality workmanship and the high flexibility of configuration are key features of the model S-11.All process connections of the flush pressure transmitter are made of stainless steel and are fully welded and isolate the medium from the pressure measuring instrument via a positive seal. A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured.For high medium the pressure transmitter is also available with an integrated cooling element.Specifically for the food and beverage industry, a version with internal system fill fluid in accordance with FDA 21 CFR 178.3750 can be chosen.Applications: General industrial applications Food and beverage industry Filling and packing machinery Dosing technology Level measurement   Special Features: High-quality product Many configurations possible Flush process connection Large stocks for short delivery times Vacuum-tight

Brand Name : Wika, Wika / Baumer

Material : Aluminium

Driven Type : Battery

Application : Industrial Use, Pressure Measurement

Certification : CE Certified

Feature : High Performance

Number Of Flower : Pressure Transmitter

Availability : 100-150g

Frequency : 50Hz

Country of Origin : India,India

Temperature : -25 +85deg C, -40 +70deg C, -45 +55deg C, -70 +40deg C

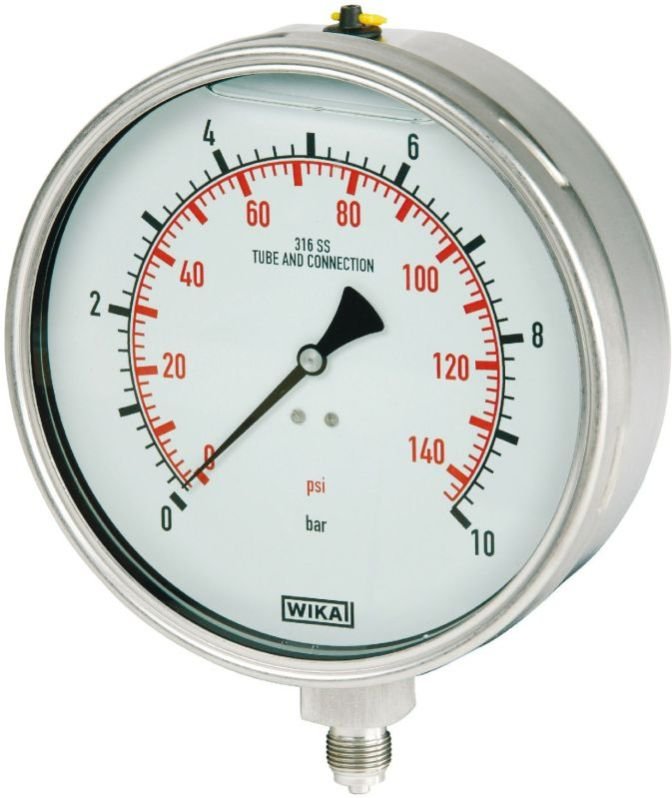

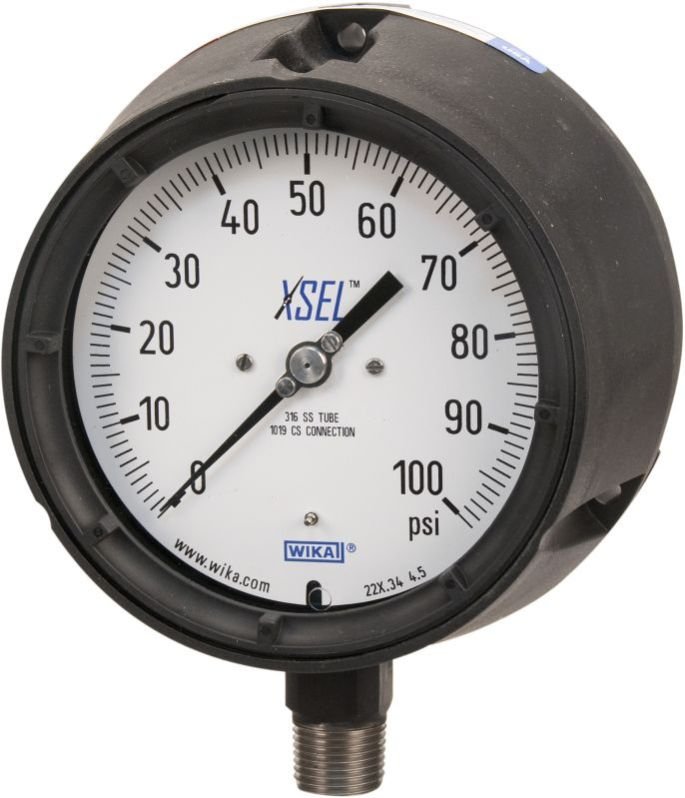

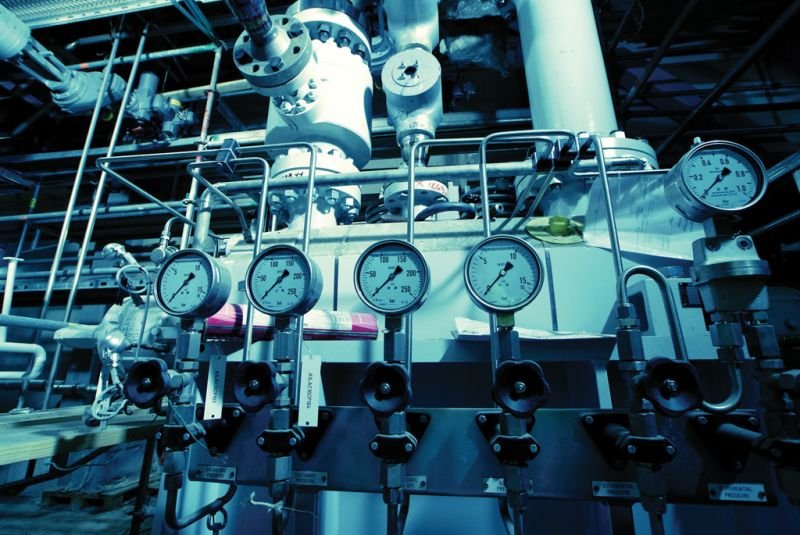

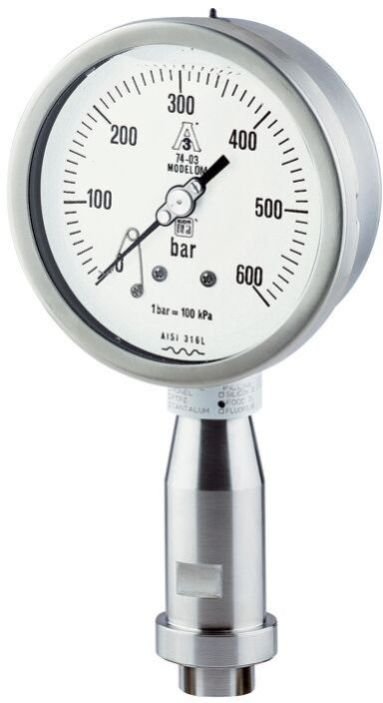

WIKA is a world leader in the manufacture of pressure gauges and offer you the right pressure measuring instrument for your application.   Pressure gauges are instruments for measuring and displaying the pressure of a medium. Pressure gauges are pressure measuring instruments with elastic pressure elements, which have been used millions of times in various industrial applications. Depending on the area of application of the pressure gauge, Bourdon tubes, diaphragm elements or capsule elements are used as pressure elements. Dial Size : 100 MM Accuracy : 1 %, MOC : Internal SS316, External SS304, Process Temp.: 0...300 Deg C, Protection : IP65, Connection : 1/2" BSP / NPT (M), Bottom Entry

Brand Name : WIKA,WIKA, Baumer

Material : Stainless Steel,SS 316

Shape : Round

Usage : Measuring Gas, Liquid Pressure, Air Compressor, Marine Engines

Certification : CE Certified

Display Type : Analog

Operating Temperature : 0...300 Deg C

Packaging Type : Paperboard Boxes

Connection : Bottom Connection, Back Connection

Dial Size : 2 Inch, 4 Inch, 6 Inch

Display Size : 1/2 Inch

Number Of Flower : Air Pressure Gauge

Total Carbohydrate : 1 Year

Accuracy : 1%

Country of Origin : India,India

Measuring Range : Bar, Kg/cm2 / PSI

Operating Mode : Manual

Pressure Range : 0 to 10 kg/cm2

Scale Range : PSI & kg / Bar

Thread Connection : 1/2" BSP / NPT (M)

Specialties : Rust Proof, Robust Construction, Perfect Strength, Measure Fast Reading, Easy To Fit, Accuracy

Diameter in mm : 40-60mm, 60-80mm, 80-100mm

Battery Included : No

Gas Pressure in Kg : 0-500 Kg, 500-1000 Kg, 1000-1500 Kg, 1500-2000 Kg

Liquid Pressure in Bar : 0-500 Bar, 500-1000 Bar, 1000-1500 Bar, 1500-2000 Bar

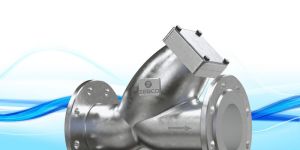

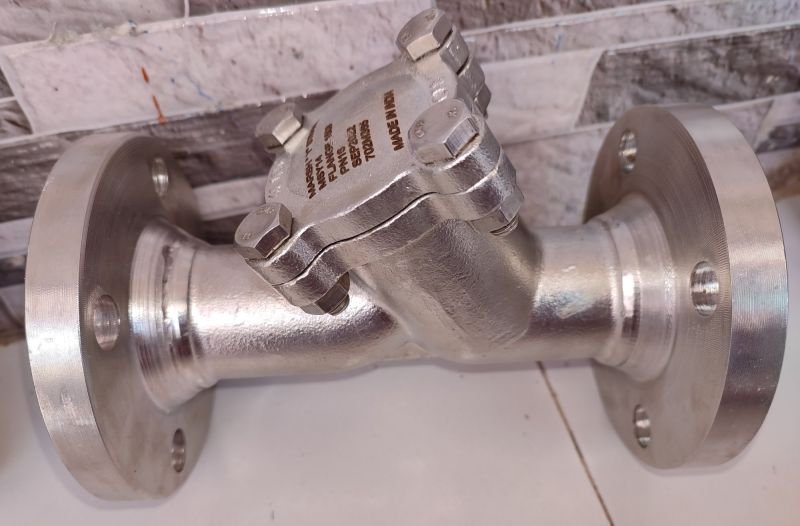

Design Forged or casted body and cover Bolted cover Stainless Steel Screen with different meshes Threaded plug or valve fitted on cover for drainingAdvantages Possibility of installation in any position Long service life Easy handling and maintenance

Application : Water

Brand Name : Zebco

Material : Cast Steel

Handle Material : Stainless Steel

Strainer Material : Stainless Steel

Operating Type : Manual

Application : Y Strainer

Certification : ISO 9001:2008 Certified

Mesh Size : 10-100cm

Grade : ASTM

Technics : White Zinc Plated

Packaging Type : Carton Box

Valve Type : Y Type

Strainer Size : 0-15 Inch, 15-30 Inch, 30-45 Inch, 45-60 Inch, 60-75 Inch

Number Of Flower : Y Type Strainer

Country of Origin : India

End Connection : Flange End

Process Connection : Screwed, Flanged

Industry In Use : Water

The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical.   When the plug is conically-tapered, the stem/handle is typically attached to the larger diameter end of the plug. Plug valves usually do not have bonnets but often have the end of the plug with the handle exposed or mostly exposed to the outside. In cases like that, there is usually not much of a stem. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism which retains the plug in the body.   The simplest and most common general type of plug valve is a 2-port valve, which has two positions, open to allow flow, and shut (closed) to stop flow. Ports are openings in the valve body through which fluid can enter or leave. The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve. There is often a mechanism limiting motion of the handle to a quarter turn, but not in glass stopcocks.

Brand Name : Zebco

Material : Cast Steel

Finishing : Coated

Condition : New

Automatic Grade : Manual

Usage : Water Fitting

Certification : ISO 9001:2008 Certified

Operating Temperature : Temperature up to 450

Packaging Type : Wooden Box

Valve Size : 1inch,1/2inch,1.1/2inch,2inch

Working Pressure : PN16/25/40 or CL150/300/600

Packaging Size : 1

Specialities : Investment Casting

Number Of Flower : Plug Valves

Total Carbohydrate : 1 Year

Country of Origin : India

End Connection : Flange End

Media : Water

Number Of Way : 3way

Temperature Pressure : Low Temperature Pressure

Threaded End : Flange End

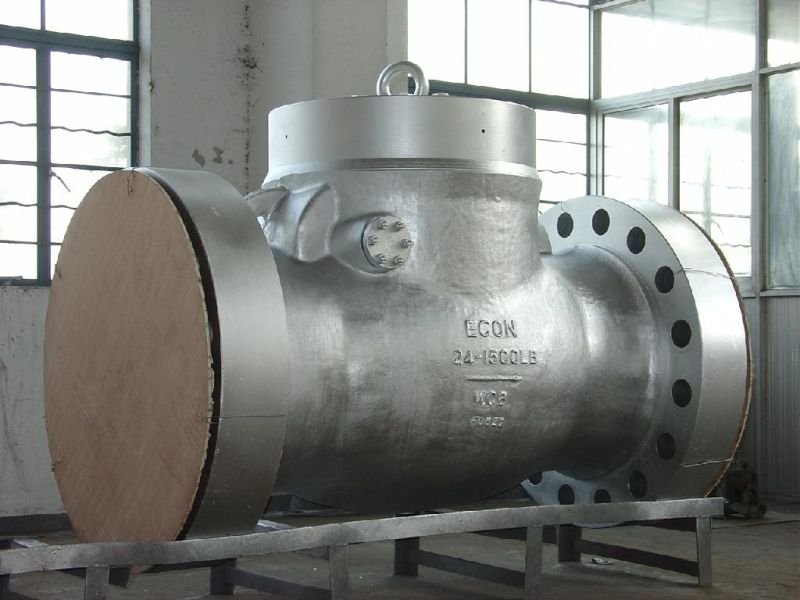

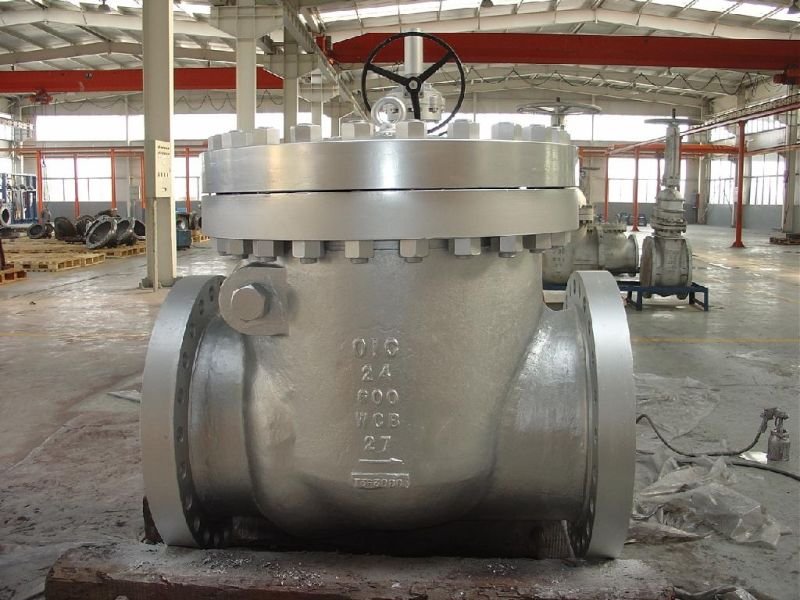

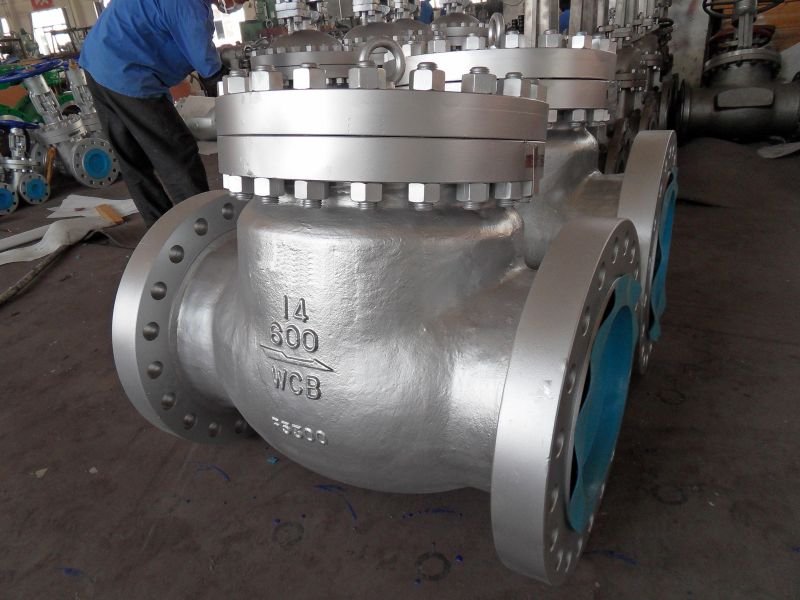

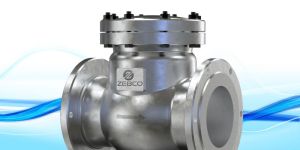

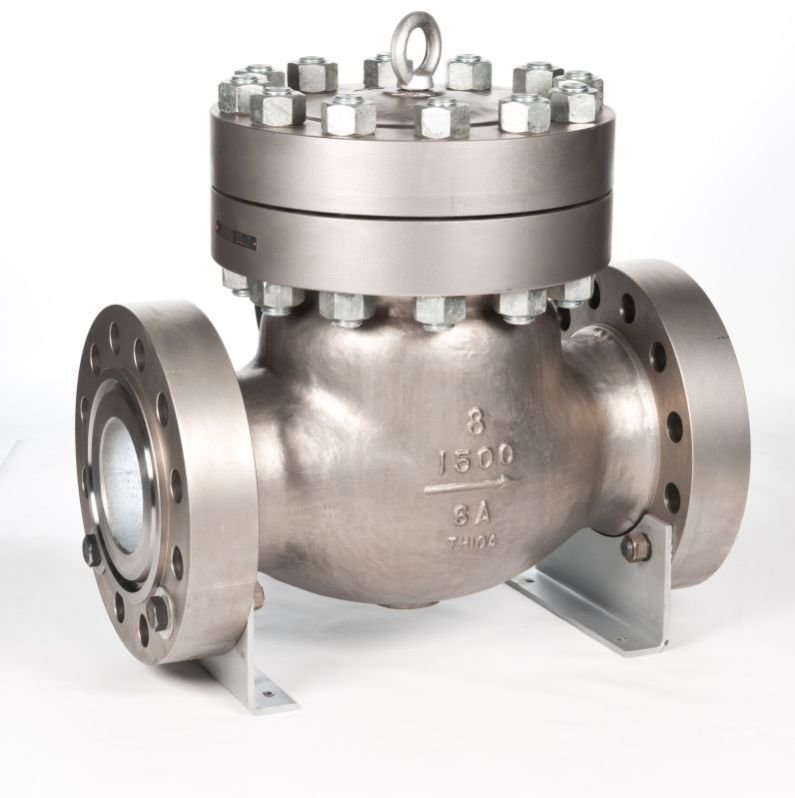

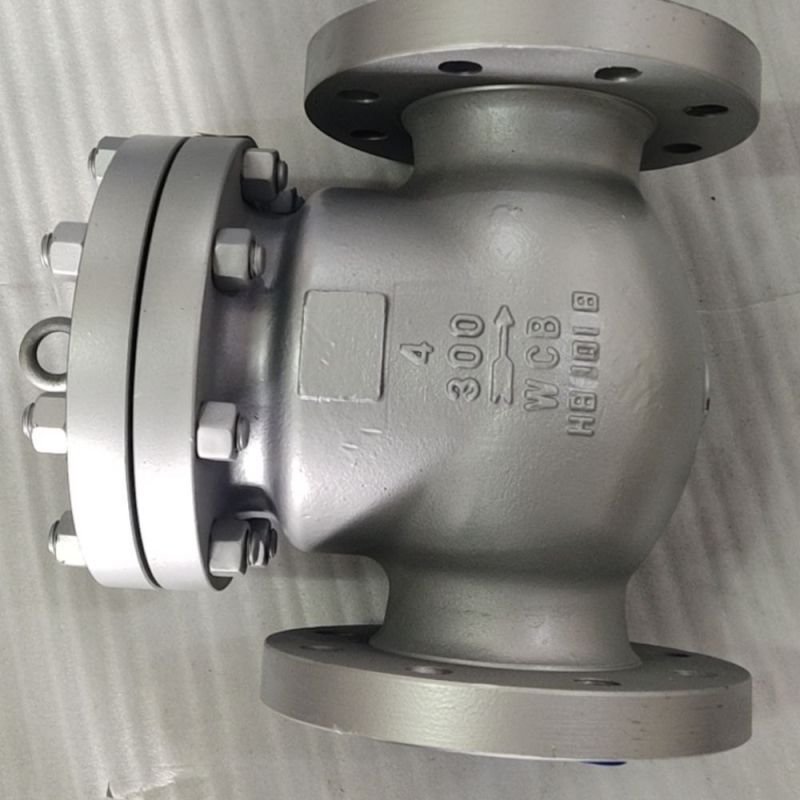

Check valves, or non-return valves, are installed in pipeline systems to allow flow in one direction only. They are operated entirely by reaction to the line fluid and therefore do not require any external actuation. In this text, the expected, or desired direction of flow is termed 'forward flow', flow in the opposite direction is 'reverse flow'.   There are a number of reasons for using check valves, which include: Protection of any item of equipment that can be affected by reverse flow, such as flow meters, strainers and control valves. To check the pressure surges associated with hydraulic forces, for example, water hammer. These hydraulic forces can cause a wave of pressure to run up and down pipe work until the energy is dissipated. Prevention of flooding. Prevention of reverse flow on system shutdown. Prevention of flow under gravity. Relief of vacuum conditions.   Construction of a NRV Check Valve The Swing Check Valve is a one-piece body, top entry design for reliable operation and extended seat seal life. Top entry construction allows field service and in-line maintenance if necessary. All major components of the check valve are normally made from cast and wrought forms, allowing the use of a variety of widely accepted materials. The full bore to API-6D assures unrestricted flow and allows pigging and hot tapping.

Temperature Pressure : Low Temperature Pressure

Media : Water

End Connection : Flange End

Country of Origin : India

Total Carbohydrate : 1 Year

Number Of Flower : Non Return Valve

Specialities : Non Breakable, Investment Casting, Casting Approved

Valve Size : 1inch, 1/2inch, 1.1/2inch, 1.1/4inch, 2inch, 3/4inch

Overall Length : 6-10 Inch, 20-30 Inch, 40-50 Inch

Mounting Type : Vertical

Packaging Type : Wooden Box

Certification : ISO 9001:2008 Certified

Application : Water Fitting

Automatic Grade : Manual

Condition : New

Finishing : Polished

Material : Stainless Steel

Brand Name : Zebco

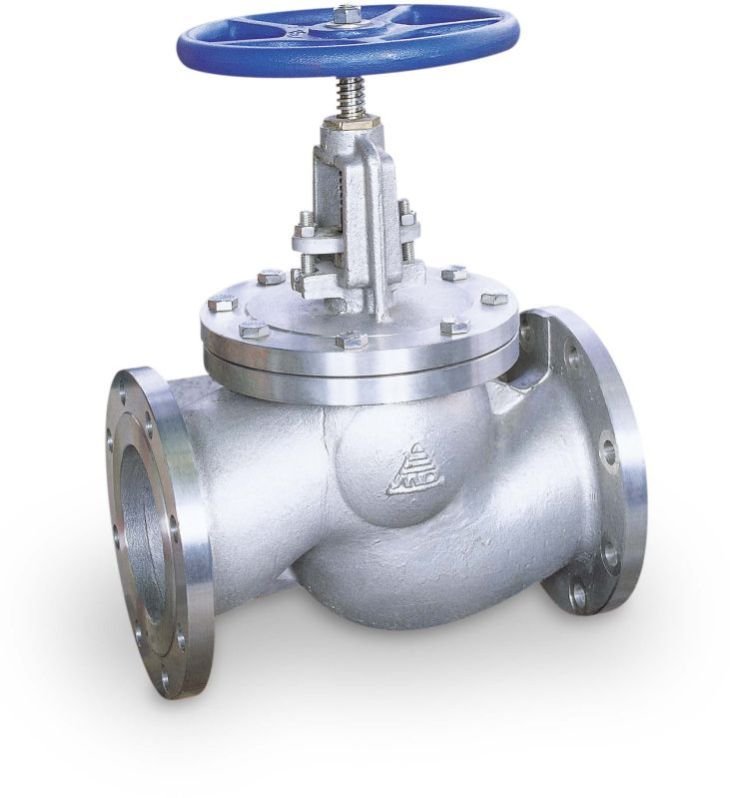

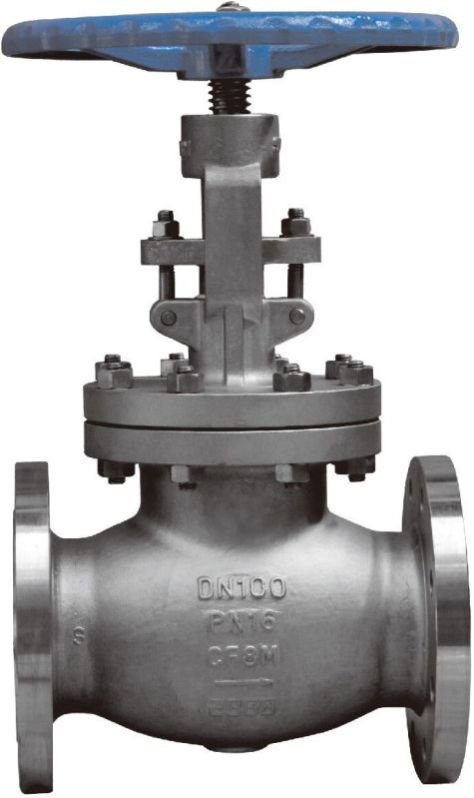

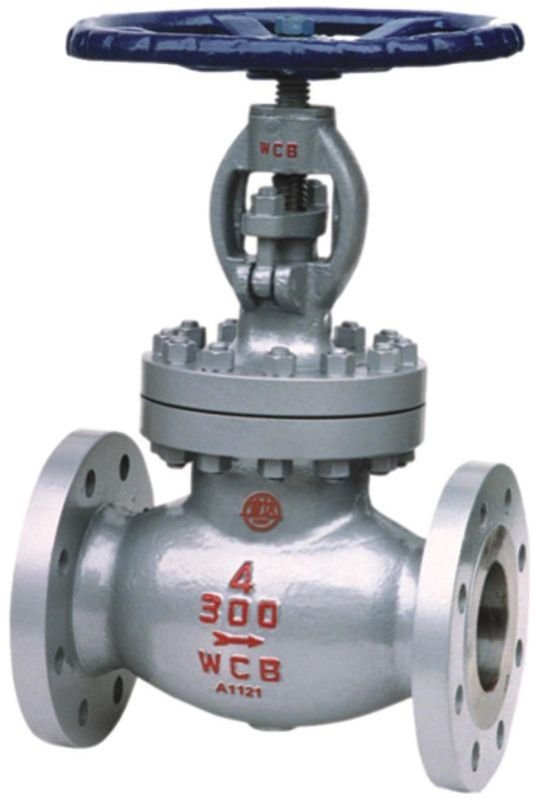

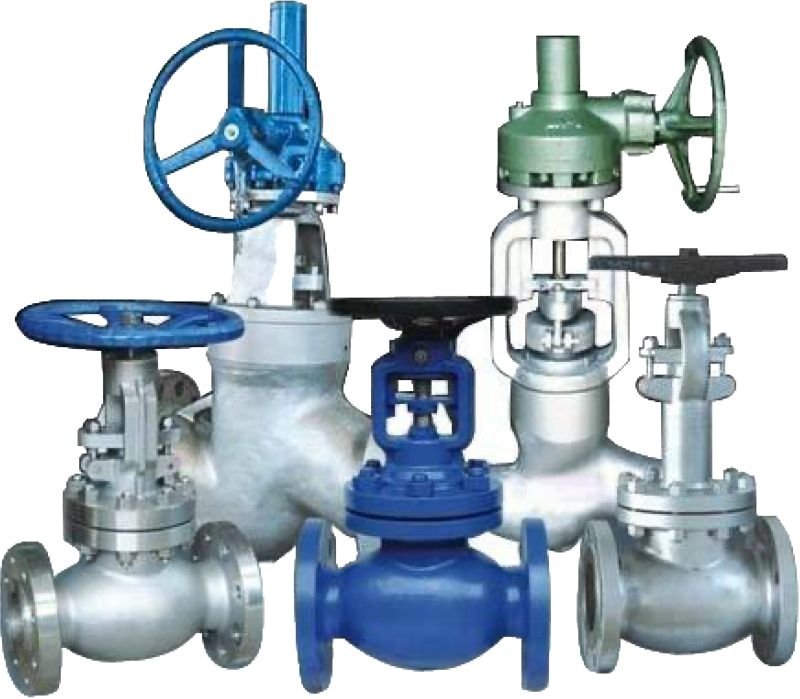

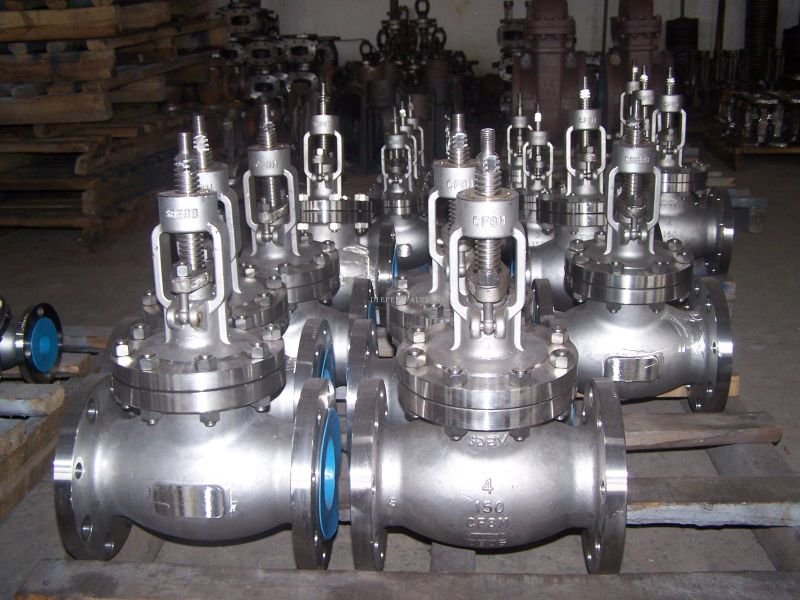

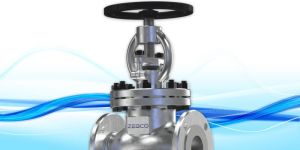

A Globe Valves is a linear motion Valve and are primarily designed to stop, start and regulate flow. The disk of a Globe Valve can be totally removed from the flow path or it can completely close the flow path.   The fundamental principle of the Globe Valve operation is the perpendicular motion of the disk away from the seat. This ensures that the ring-shaped space between the disk and seat ring gradually close as the Valve is closed. This property gives a Globe Valve reasonably good throttling capability. Therefore, the Globe Valve can be used for starting and stopping flow and to regulate flow.   Advantages of using Globe Valves:   Good shutoff capability Reasonably good throttling capability   Construction of a Globe Valve   Globe Valves consists of three main parts: body, Bonnet, and trim. The body is generally connected to other equipment by means of flanged, screwed or welded connections. The Bonnet, which containing the moving parts, is attached to the body, usually with bolts, to permit maintenance. The Valve trim consists of the stem, the disc and the seat rings.

Valve Size : 1/2 Inch

Material : Stainless Steel,Cast Steel,Stainless Steel, SS 304, SS 316, Duplex,Brass

End Connection Type : Flanged

Automation Grade : Manual

Temperature Pressure : Medium Temperature Pressure

Media : Oil Fitting

Brand Name : Zebco

Finishing : Polished

Certification : API 623

Packaging Type : Wooden Box

Country of Origin : India

Type : Automation, Manual

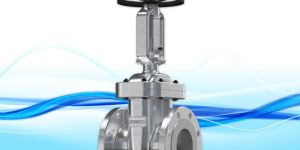

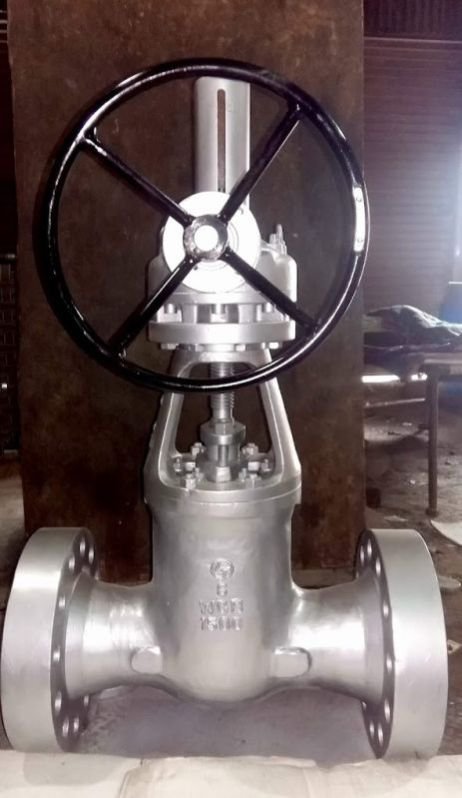

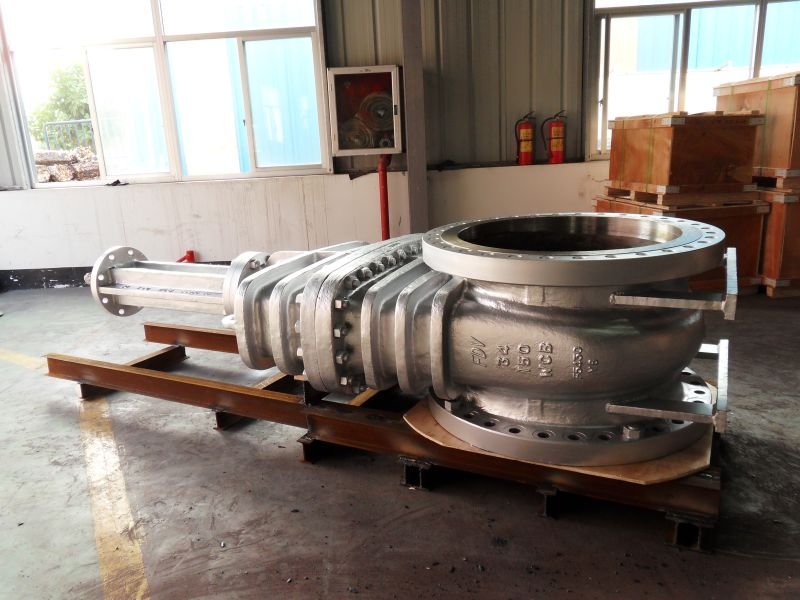

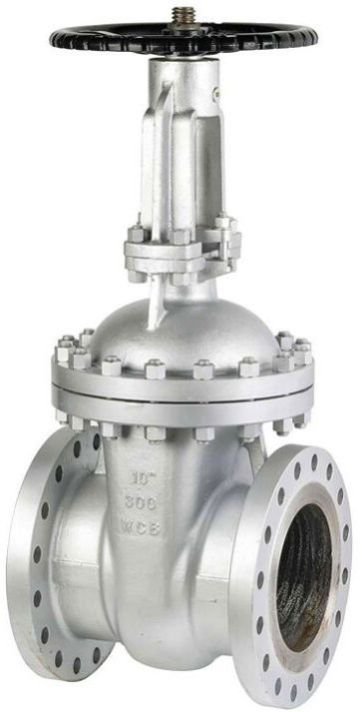

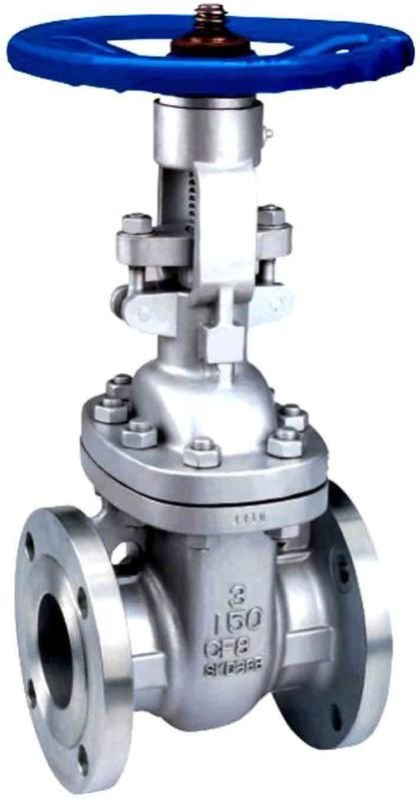

Gate Valves are primarily designed to start or stop flow, and when a straight line flow of fluid and minimum flow restriction are needed. In service, these Valves generally are either fully open or fully closed.The Gate (also called wedge) of a Gate Valve is completely removed when the Valve is fully open; the wedge is fully drawn up into the Valve Bonnet. This leaves an opening for flow through the Valve at the same inside diameter as the pipe system in which the Valve is installed.A Gate Valve can be used for a wide range of liquids and provides a tight seal when closed.   Advantages of using Gate Valves:   Good shutoff features Gate Valves are bidirectional and therefore they can be used in two directions Pressure loss through the Valve is minimal

Size : 1 inch to 48 inch

Number Of Flower : Gate Valve,Automation, Manual, Actuator

Brand Name : Zebco

Material : WCB, SS 304, SS 316,Cast Steel, Stainless Steel,Brass, Duplex

Other Names : L&T, Hawa, Oswal

Condition : New

Insulation Material : SS

Packaging Type : Wooden Box

Total Carbohydrate : 12 month

Country of Origin : Made in India

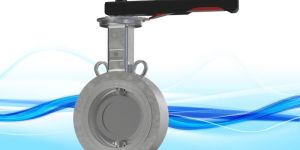

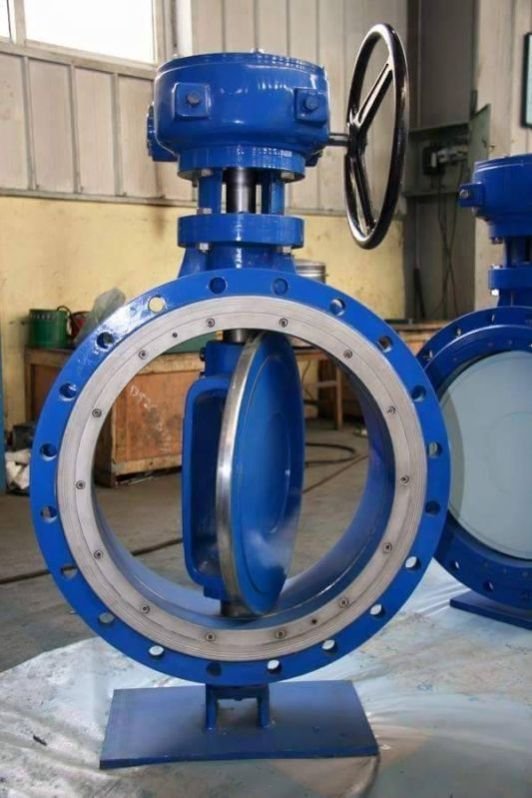

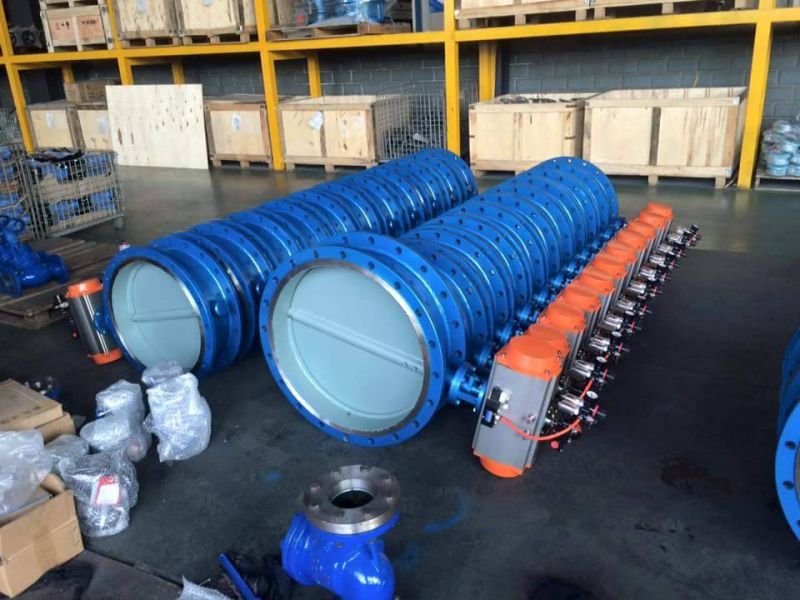

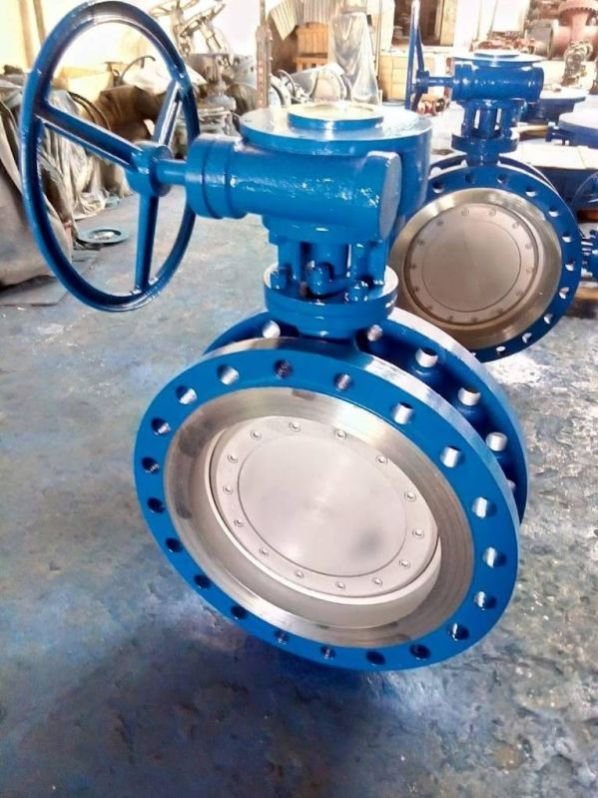

All valves shall meet API-609 MSS-SP-67 ISO 5272 face-to-face dimensions. Valve sizes from 2" to 12" are rated at 200 psig WOG service and valve sizes from 14" to 30" are rated at 150 psig WOG service. All valves are full rated on dead-end service. All bodies shall be ductile iron 65-45-12 and bi-directional tested in both directions and be bubble tight with zero leakage. Lug bodies shall be full lug rated and all bodies shall be suitable for ANSI 125/150 lb, JIS, DIN or B.S. Flanges. Secondary seals shall be self-adjusting. All elastomers, all internal bearings shall be non-corrosive and non-metallic. All seats shall be suitable for 250°F sustained high temperature and capable of 2000 PPM on chlorinated applications. Advantages of Butterfly Valves: Open and close easily and quickly, effort, fluid resistance is small, can operate frequently. Simple structure, small size and light weight. It can carry mud, with the least accumulation of fluid in the pipeline opening. Low pressure, it can achieve a good sealing. Good regulating performance.   Many different types of valves are used in flow control. They are used for a variety of reasons, such as phase (liquid or gases), pressure, piping restrictions and solids content. Other valves are chosen for their capability to open and close in a quarter turn. Of all the valve types, the butterfly valve is used as a control device for many reasons including some or all of the above.   This article explains the workings of a butterfly valve and its operation. The butterfly valve offers many advantages that include quarter-turn, openness for less plugging and good control capabilities. Both manual and control versions are used.

Valve Size : 1inch, 1/2inch, 1.1/2inch, 1.1/4inch, 2inch, 3/4inch

Material : Brass, Stainless Steel, Metal, Gun Metal, Cast Steel, Cast Iron, Carbon Steel, Carbon Steeel,WCB, SS 304

Number Of Way : 2way

Connection Type : Flanged

Disc Material : Stainless Steel

Brand Name : Zebco

Usage : Water Fitting

Certification : ISO 9001:2008 Certified

Actuator Type : Gearbox

Packaging Type : Wooden Box, Carton

Country of Origin : India

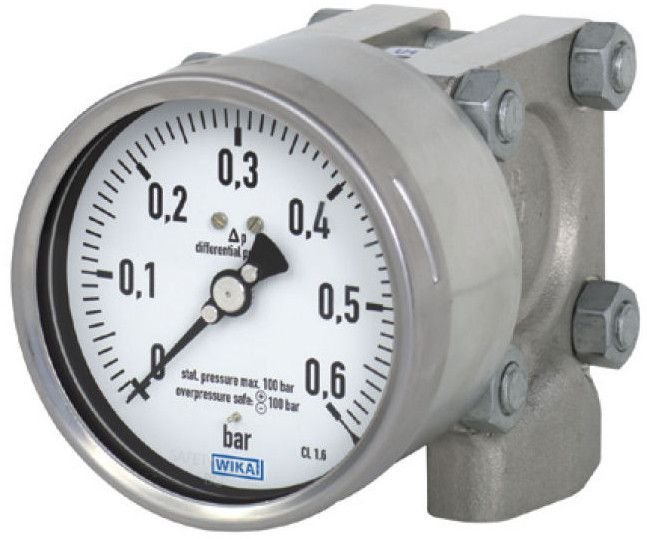

Pressure gauges are an essential instrument used by industry to measure the pressure in a system as a quality check measure and to ensure the consistency of products. For reasons of safety, pressure gauges monitor fluids, gases, and steam for leaks or a build up of pressure in a system. Dial Size : 100 MM Accuracy : 1 %, MOC : Internal SS316, External SS304, Process Temp.: 0...300 Deg C Protection : IP65, Connection : 1/2" BSP / NPT (M), Bottom

Brand Name : Baumer

Material : Stainless Steel

Shape : Round

Usage : Measuring Gas, Liquid Pressure, Air Compressor, Marine Engines

Certification : CE Certified

Display Type : Analog

Operating Temperature : 0...300 Deg C

Packaging Type : Corrugated Boxes, Paperboard Boxes, Rigid Boxes

Connection : Bottom Connection, Back Connection

Dial Size : 2 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch

Display Size : 1/2 Inch

Working Capacity : AV-F-2-3BM-(-760 mmHg to 4 Kg/Cm2), AL-F-2-4BM-0/4Kg/Cm2 with psi, AL-F-2-4BM-0/10 Kg/Cm2 with psi

Number Of Flower : Air Pressure Gauge,AV-F-2-3BM-(-760 mmHg to 4 Kg/Cm2),AL-F-2-4BM-0/4Kg/Cm2 with psi,AL-F-2-4BM-0/10 Kg/Cm2 with psi

Frequency : IP 65

Total Carbohydrate : 1 Year

Accuracy : 1%

Country of Origin : India,India

Measuring Range : AV-F-2-3BM-(-760 mmHg to 4 Kg/Cm2), AL-F-2-4BM-0/4Kg/Cm2 with psi, AL-F-2-4BM-0/10 Kg/Cm2 with psi

Operating Mode : Automatic

Pressure Range : 1 Kg To 1000 Kg, Vacuum

Scale Range : AV-F-2-3BM-(-760 mmHg to 4 Kg/Cm2), AL-F-2-4BM-0/4Kg/Cm2 with psi, AL-F-2-4BM-0/10 Kg/Cm2 with psi

Thread Connection : 1/2 Inch BSP / NPT (M)

Specialties : Rust Proof, Robust Construction, Perfect Strength, Measure Fast Reading, Easy To Fit, Accuracy

Diameter in mm : 20-40mm, 40-60mm, 60-80mm, 80-100mm

Battery Included : No

Gas Pressure in Kg : 0-500 Kg, 500-1000 Kg, 1000-1500 Kg, 1500-2000 Kg

Liquid Pressure in Bar : 0-500 Bar, 500-1000 Bar, 1000-1500 Bar, 1500-2000 Bar

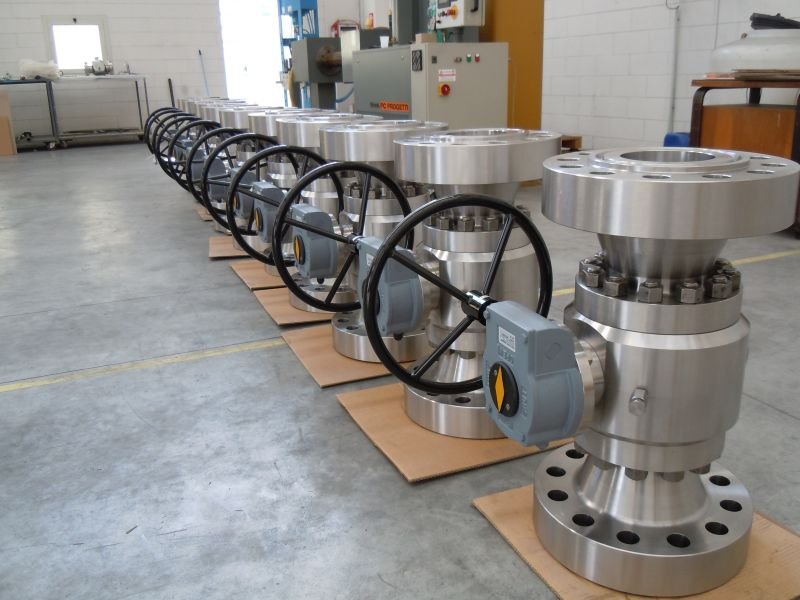

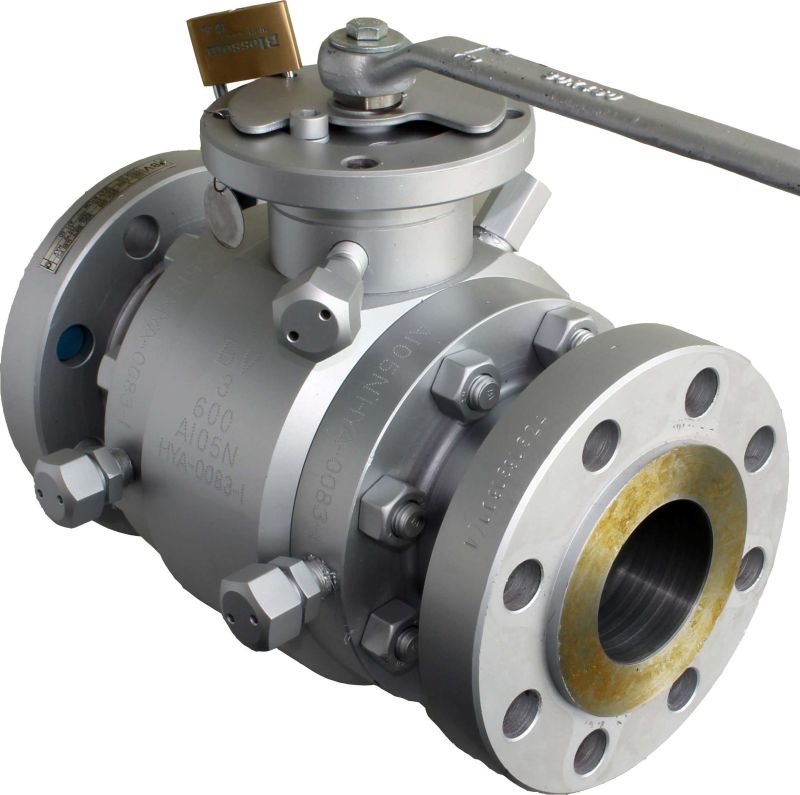

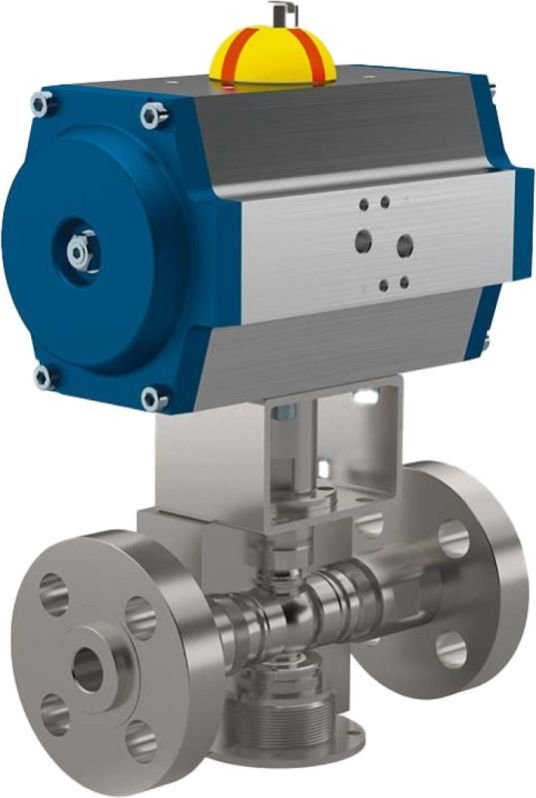

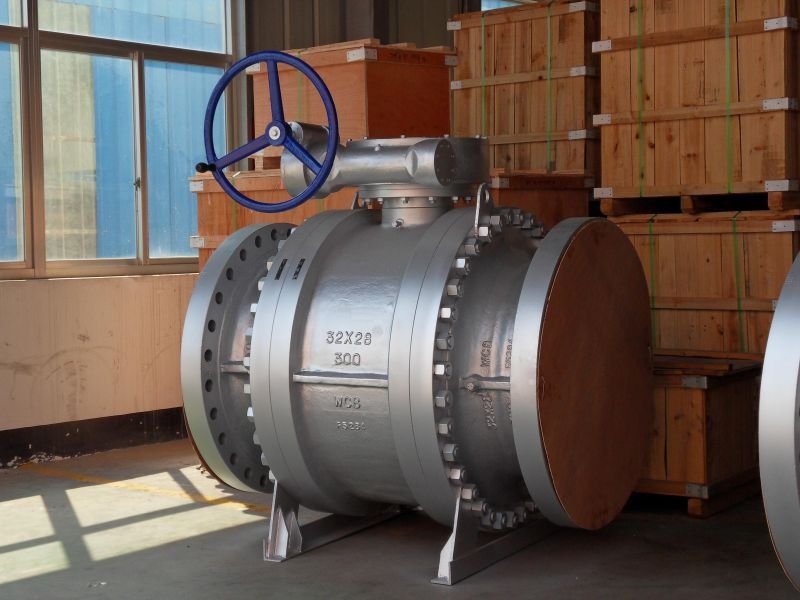

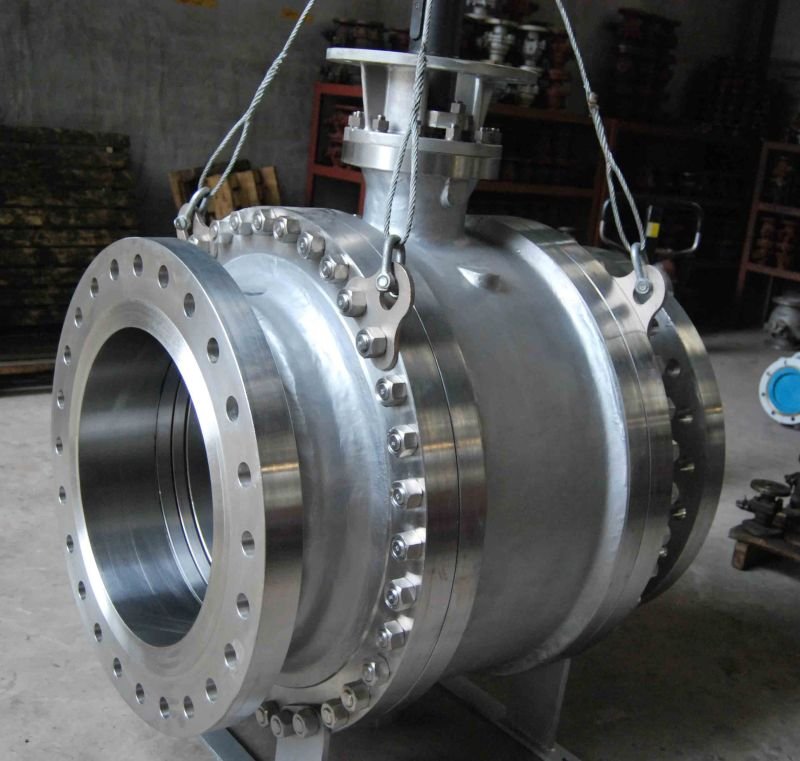

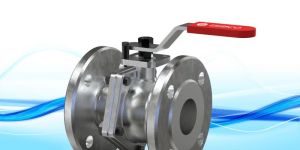

A ball valve is a valve that opens by turning a handle, gearbox or other actuation methods attached to a ball inside the valve. The ball has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. The handle or lever will be in line with the port position letting you "see" the valve's position, position indicators will be applied to gearbox or actuators when required. Ball valves are durable and usually work to achieve perfect shutoff even after years of disuse. They are therefore an excellent choice for shutoff applications. There are two type of ball valve based on the ball type, floating ball valve and trunnion mounted ball valve. Depends on the bore size, ball valve is separated into full port ball valve and reduced port ball valve. There are three types of body styles of ball valve: one-piece, two piece split, three piece split, top entry and welded, GVC ball valves are available in two piece split, three piece split and welded.   Advantages of using Ball Valves: Quick quarter turn on-off operation Tight sealing with low torque Smaller in size than most other Valves }         Types of Ball Valves Ball Valves are basically available in three versions: full port, venturi port and reduced port. The full-port Valve has an internal diameter equal to the inner diameter of the pipe. Venturi and reduced-port versions generally are one pipe size smaller than the line size.   Ball Valves are manufactured in different body configurations and the most common are: Top entry Ball Valves allow access to Valve internals for maintenance by removal of the Valve Bonnet-cover. It is not required to be removed Valve from the pipe system. Split body Ball Valves consists of a two parts, where one part is smaller as the other. The ball is inserted in the larger body part, and the smaller body part is assembled by a bolted connection.   The Valve ends are available as butt welding, socket welding, flanged, threaded and others.

Brand Name : Zebco

Material : Stainless Steel,Cast Steel,Stainless Steel, SS304, SS316,Brass

Connector Type : Flanged End

Material Grade : ASTM

Design : 1pc / 2pc / 3pc

Condition : New

Automation Grade : Manual, Automatic

Application : Water Fitting, Oil Fitting, Gas Fitting

Size : 1 inch to 48 inch

Certification : ISO 9001:2008

Feature : Investment Casting, Casting Approved

Packaging Type : Wooden Box

Flange Size : As per Standard

Number Of Flower : Water Ball Valves, Oil Ball Valves, Gas Ball Valves, Ball Valves

Country of Origin : India

Media : Water

Temperature Of Media : High Temperature, Low Temperature, Medium Temperature

Bore Type : Full Bore

Number Of Way : 4way, 3way, 2way

Wog Rating : 150, 300, 600

Lever Type : Handle / Actuator

Type Of Stem : SS
