Crawler Drill Machine Dealers

Hydraulically operated multi purpose Mini crawler Mounted Rigs are specially designed for fast & cost effective drilling by air, mud or foam drilling methods using down-the-hole hammers & bits, core barred and tools, rotary tricone bits and other conventional tools as per customer’s choice, Hydraulic system powered by Deck engine is operated by fixed displacement pump with proportional valve, which regulates track motors, rotary head speed, feed etc., Centralized control panel located close to the drilling point ensures convenience of operation, Getech Rigs require minimum maintenance and easy to operate.

DIG150 High Pressure Crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.

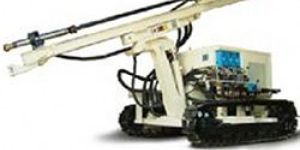

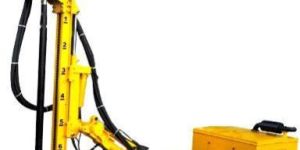

Our affluent industrial knowledge aids us in providing an extensive series of FMT 125HCD (Hydraulic Crawler Drill). Other Details: The FMT 125HCD (Hydraulic Crawler Drill) is called the compact solution, but this one-man operated drill rig, with its versatility, rugged construction and superior technical features, will give unmatched performance for most of your big jobs. It is ideal for blast-hole production drilling in quarries, or for surface mining or construction work. While the traction motors and oscillation system provide excellent maneuverability in the toughest terrain. Features And Benefit: Ergonomically Designed, Operator Cabin and Control Console On board Compressor. Joystick control for smooth tramming High ground clearance 578 mm Easy repair and maintenance with provision to access all control valves from outside of cabin Fire safety Emergency Stop Button, Large Rear Mirror, Music System, Tool box, Air cleaning system are standard fitments of machine

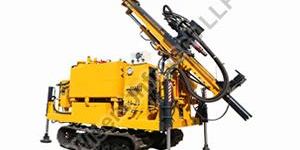

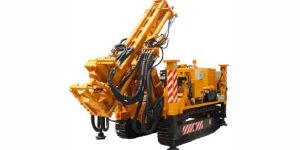

DESCRIPTION : Crawler Mounted Drill Rig JRD Model CD-360 DTH drilling Rig Hydraulically operated capable of handling 3 mtrs. (10ft) Drill pipe with following Technical specification. MAST & BOOM : Sturdy structural Channel Type Mast reinforced with suitable cross members strong enough to withstand high drilling loads. The Boom is provided with a heavy duty lift and swing cylinders to provide rigidity while drilling. The Boom lift , Boom Swing ,Guide Tilt, Guide swivel and Guide Dump arrangements are through hydraulic double acting cylinders allows the operator to achieve a wide range of vertical, horizontal and angle drilling positions. HYDRAULIC SYSTEM : The hydraulic system is designed for fuel efficient and high productive capacity. All hydraulic elements like Pumps, Motors, Valves and hydraulic cylinders are adequate capacity and of reputed make. Variable displacement Hydraulic Pump with proportional Control Valve (PVG 32 Make: Sauer Danfoss) are used for Rotation Unit, Feed Unit (for fast & micro feeding) and for Self Propulsion of the Rig. All hoses can withstand high pressure and high temperature. The Hydraulic oil is fine filtered during suction and return lines in operation. HYDRAULIC POWER PACK : Hydraulic Power pack is driven by Diesel Engine water cooled with Power 33H.P @1500 RPM to drive one main Hydraulic Pump.

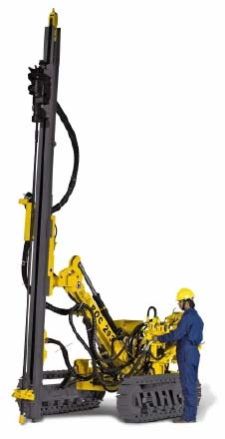

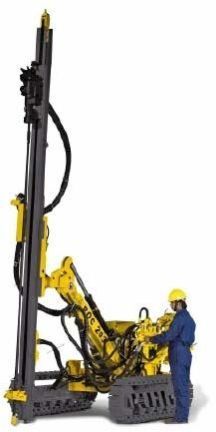

  Atlas Copco's range of surface crawlers raises the quality of rock drilling to a new level. The lowest cost per tonne of rock produced comes from the higher productivity; straighter holes and better overall economy are designed into the range.
