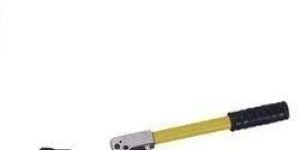

OMEGA’ HYDRAULIC WIRE ROPE/CABLE CUTTER. It works on Hydraulic principle, as the name suggests, and is meant to cut cleanly and easily, wire ropes/cables of various sizes. CONSTRUCTION: 'OMEGA' Wire Rope/Cable cutter consists of a hydraulic plunger pump which when actuated by the handle, release valve being in closed condition, pumps oil in the cylinder, forcing the ram out. The ram has a cutting blade attached to it and this pierces the wire rope or cable held against a pair of 'U' shaped blades housed in 'U' blade holder, which is hinged to the cutter body at the bottom and upper link (latch) at the top. This arrangement enables the cutter to be employed at any point of an endless wire rope or cable. Normal cutting time is about 4 to 5 minutes. Two types of plunger are provided, the smaller plunger makes the travel slow of the ram, and bigger plunger fastens the travel of ram thereby making the cutting operation faster. The release valve provided at the top enables the self retracting ram to return to its position. The air valve ensures smooth working of the ram. FEATURES: The cutter has steel construction with case hardened pins and hardened & ground tool steel cutting blades and 'U'blades. Being Compact & light weight makes it portable and convenient to employ in places with restricted floor space. Integral Pump and cutter Body does away with hose pipe, loose fittings, and costly maintenance, and gives ease of operation and handling. Interchangeability of parts facilitates replacement.

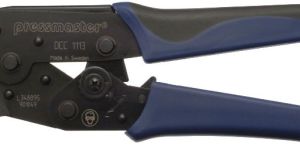

Features Ratchet mechanism Release after perfect crimpQuick interchangeable diesStorage system in handle   Specification Range0.5 to 6 sq mm for insulated cable lugs0.5 to 10 sq mm for non-insulated cable lugs0.5 to 10 sq mm for end sleevesLength: 220 mmWeight: 600 gCrimping Profile: Indent/Oval/Trapezold crimp

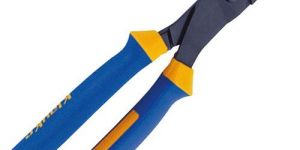

The Crimping Pliers are essentially used in different purposes of electrical engineering. The Hand Crimping Pliers are very comfortable to use. Manufactured from the best quality materials, the Wire Crimping Pliers are highly durable in nature. We are a well-known Exporter and among the prominent Suppliers of Crimping Pliers based in India.

We are a prominent Manufacturer, Exporter and Supplier of FT Series Hydraulic Crimping Tools. We offer FT Series Hydraulic Crimping Tools that are Heavy duty Foot operated and one of our unique designed tools with the sturdiest Foot operated pump, fitted over Heavy steel frame, for well balanced operation. We have designed FT Series Hydraulic Crimping Tools for crimping Copper and Aluminium Cable terminal ends and in-line Connectors upto 1200 Sq.mm. Our FT Series Hydraulic Crimping Tools are equipped with a Safety release valve to prevent the overloading than the pre-set pressure, thus protecting both Pump & Crimping Head. The FT Series Hydraulic Crimping Tools that we provide are suitable for any critical crimping applications, at critical positions. Available Models SAP-FT-400 - Capacity : 50.0 to 400.0 Sq.mm ( Supplied with set of 9 sizes of dies)SAP-FT-630 - Capacity : 240.0 to 630.0 Sq.mm ( Supplied with set of 5 sizes of dies)SAP-FT-1000 - Capacity : 500.0 to 1000.0 Sq.mm ( Supplied with set of 4 sizes of dies) SAP-FT-1200 - Capacity : 500.0 to 1200.0 Sq.mm ( Supplied with set of 5 sizes of dies)Extra Long Hydraulic Hoses can also be supplied on request, with the tools.

We also provide tool & tackles like – Hydraulic conductor cutter, clamps & connectors, hydraulic heavy press machine (crimping tool), Conductor decoiling device, conductor stringing rollers etc.

Amico Hydraulic Conductor cutter is manufactured in callobration with Taiwan based company. The cutter is suitable for cutting various ferrous/non ferrous metal rods, ASCR conductors, E Wires etc.The cutter is very handy weighs only 5Kgs (approx), requires minimum maintenance & requires no setup time. It cuts with speed and is easy to carry at site. Blades are easy replaceable. Flip top latch for easy insertion of cutting material. The conductor/ E wires can now be easily be cut on tower cross arm etc. without requiring a platform.

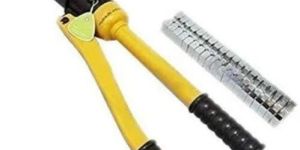

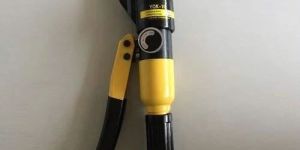

Hand hydraulic crimping tool (concealed) for crimping non insulated terminals / Lugs both light and heavy duty. The Tool has 17 tons output & weighs 14 kgs, head 9.5kgs. Available range from 16 MM2 to 400 MM2 giving hexagonal crimping shape. The tool is provided with nine sets of hexagonal dies as per DIN / JIS standards - 16 - 25, 35, 50 - 70, 95, 120, 150, 185 - 240, 300 and 400 SQ MM ( 9 sets of hexagonal dies ) The entire tool is set in a easy transportable acrylic carrying case. The tool has automatic cutoff system for perfect crimping which avoids excessive over crimping of joints. Easy and instant pressure releasing system. Head sleek to accommodate entry of cable at remote working areas.
