BHARAT TRADING CORPORATION Budhwar Peth, Pune, Maharashtra

  Self adjustable stripper cum cutter with adjustment of blade soft or hard sheaths.Tools has two functions as both a cutter and a stripper for electrical cables of 0.5mm2 to 6mm2 in diameter. Tool provided with adjustable stopper for consistency in wire strip lengths. The Stripper has the capacity to strip maximum 1" in length. The tool width is 3.2 inches and length is 6.5 inches.

  General :- "SURAJ" toggle switches employ rocker-type contact mechanism, housed in an anti-tracking molded case (Bakelite / Melamine) with dust free performance. ( They are available with single pole and double pole - two or three positions, having Stay Put and momentary contacts. ) Application of these switches include Electronic Instruments & Equipments Electro Medical Equipments, Computer & Engineer Machines, Elevators, Process Control, Rectifier Equipments, Telecommunication Equipments, Machine Tools, Instrumentation, Machine, Control Panel, Transport, Aircrafts, DOmestic Appliances, Cine Equipments, Automation. Case : PBT / Melamine Actuator : Brass with chrome Plating Panel Thickness : 5 mm ( max) Operating Range : SPST, SPDT ( ON-ON center-off ) & Momentry action DPST, DPDT ( ON-ON, Center off ) & Momentry action

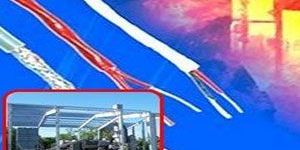

We offer quality PTFE Thermocouple Compensating Cables which are used to transmit signal from Thermocouple to control unit. These cables have outstanding mechanical & electrical properties. These are heat resistant and have resistance towards any type of chemicals. These are easy to install and water proof. These cables are suitable for diverse weather conditions. Specifications :- Conductor : NiCr-NiAI / Iron-Con / Cu-Con Temperature : - 65°C to + 200°C Temperature Measurement Range : Upto 1650°C Standard Applicable : DIN 43722 / ANSI MC 96.1 / Bs 1843 & 4937 / IS 8784 - 1987 Rated Voltage : 300 / 500 V Tensile Strength : 12.50 N / mm Material : PTFE

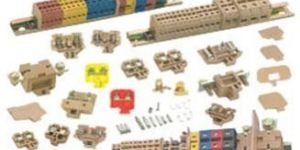

Description :- Manufacturing of JAINSON Brand Rail Mounted Terminal Blocks & Bakelite Strip Connector was established in the year 1986. The company has been constantly upgrading itself with the ever-growing demands of its valuable customers. These products meets the international quality norms and ensure better performance. Polyamide 6.6 Rail Mounted Terminal Block: Polyamide 6.6 Terminal Blocks provide maximum wiring efficiency and reliability. It has good electrical properties, for low voltage applications. It is resistant to surface discharge with CTI > 600 (IEC-60112). A specially designed flexible foot enables easy mounting & dismounting of terminal from the Din rail with the help of screw driver. Polyamide Terminal Blocks are the most versatile terminals in Control, Automation, Instrumentation and Power Distribution applications. These products conform to International Standard IEC 60947-7-1. Melamine Rail Mounted Terminal Blocks: Melamine has an excellent resistance to deformation, particular hardness and a very good surface brilliance. It has an optimum dimensional stability and a strong resistance to surface discharge with CTI > 600 (IEC-60112). It does not ignite and gets converted into char form in case of fire. It is abrasion and chemical resistant, waterproof and resists high and low temperatures within the limits of -40 ºC and 130 ºC. Melamine is particularly suited for unfavorable environmental conditions and is preferred for Circuit Breaker Panels, Refineries, Chemical Plants, potentially explosive installations and any other high risk environments in general. These products conform to International Standard IEC 60947-7-1

  SGI Telephone Cables Manufactured by using 99.9% Pure Electroltic Grade Solid Bare Copper Conductor. Mainly used for Telephone Wiring for indoor use, EPABX Systems, Telephone Exchanges etc. Insulated with Poly Ethylene / PVC materials. Sheathed with specially formulated PVC for long life. Low Attenuation and Low Crosstalk. Manufactured as per TEC specification G/WIR-06/02. Shielded with Polyester Tape to protect from Outside.

We are the main supplier of this product.

Certification : ISI Certified

Frequency : 50hz

Driven Type : Electric

Tensile Strength : 125-150Mpa

Phase : Single Phase, Three Phase

Total Carbohydrate : 1 Year

Country of Origin : 220 V

16A / 440V AC ON - OFF Switches 1 - 4 poles Specially used in Grinder

Application :- Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers. PVC 70°C cables suitable for general wiring in control cabinets, panels and power switchgear. FR PVC 70°C cables suitable for ambient wiring in control cabinets, panels and power switchgear for enhanced safety. HR PVC 70°C cables suitable for higher ambient wiring in control cabinets, panels and power switchgear. HR FR PVC 85°C cables suitable for higher ambient wiring in control cabinets, panels and power switchgear and enhanced safety. FR-LSH PVC cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas in industries and commercial infrastructure. HFFR cables, suitable for critical and dense wiring for utmost safety of public like schools, hospitals, theatres, etc. These are also suitable for fire prone areas. Technical Data :- Approvals : IS 694 marked, FIA / TAC Conductor : Electrolytic grade annealed copper Voltage : Up to and including 1100V Packing : Standard packing of 100 mtr. in coil. Longer length available on request Cable Design Parameters :- Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey. By adding the suffix (in place of ‘y’) for the insulation material required: 1 – PVC 70°C, 2 – PVC FR 70°C, 3 – PVC HR 85°C, 4 – PVC HR 85°C +FR, 5 – PVC FR-LSH, 7 – HFFR.

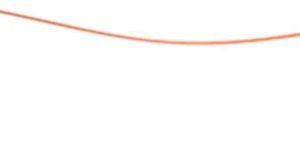

Applications :- Silicone single core cables are used in high as well as extremely low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories. These cables are halogen-free, especially suited for use in power stations. Standard :- Adapted to VDE 0250 part 1 and 502. Specifications :- Voltage Rating : U / U – 300 / 500V O Test Voltage : 2000V Temperature Range : -50°C to +180°C (up to + 200°C for short time with adequate ventilation) Minimum Bending Radius : Fixed installation: 6 x cable ø. One bend at end of core: 3 x cable ø Cable Construction :- Tinned copper conductor Cl. 5, to EN 60228. Silicone core insulation. Type SiFF : This variant is similar to SiF with high flexible copper strands. *SiF and SiFF is also available with polyester yarn over the cable. Cable Design Parameters :- Kindly complete the part numbers for SiF and SiFF by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 07 – white, 09 – brown, 10 – orange, 12 – grey.

Material : Soft P.V.C.

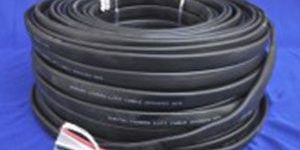

Today the world is moving towards greater planned security and visibility. CCTV cameras play a big part in security plans, remote monitoring and visibility, and their presence is increasing rapidly. The sensitive nature of CCTV use means that the cables and wires used have to be of the highest quality and reliability. It has become a trusted brand in this industry, by providing industry leading solutions for CCTV cabling in all kinds of environments.

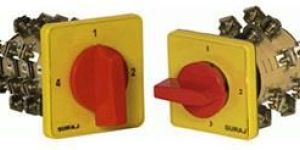

General :- "SURAJ" makes, hand operated, Rotary Switches, in open execution which incorporate rotary action, air break type Silver / Gold Plated wiping contacts, housed in an assembly of packets molded from anti-tracking thermosetting plastics. The stationary and moving contacts are operated by actuating mechanism to achieve desired switching action. Switch assembly is on packet principle giving choice of multi-position and multi-circuits, also makes complex switching combinations possible Switches are designed for ON LOAD switching and present range covers standard Rotary switches upto 100A/440 V.AC, upto 4 Poles & 8 position standard operations.Switches are used for make-break and isolation of power circuits and switching of auxiliary circuits. Technical Specification :- Rating: 16A,25A, 32A, 40A, 63A & 100A / 440 VAC Switching position: ON-OFF , 2 positions - 8 positions with and without OFF Specifications: Switches conform to IS 13947 (Part I & II) 1993 Mounting Arrangements :- Flush at the back of panel Flush at the front of panel (Base Mounting)

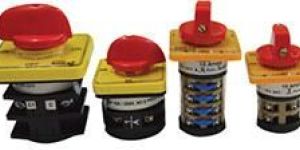

General :- SURAJ Cam Switches S Series are developed on world renown cam/butt contact design concept. S Series switches are manually operated, rotary action, air break type, rugged in construction, compact in size, assembled on modular construction and provide verstality with no compromise on quality and performence levels. These Unique design features permit many variety of switching arrangements in multiposition, thus making these preferred for control circuits and small motor loads in varied industrial, commercial, professional and defence applications. Rating :- 6, 10,16, 32 Amps Design :- Cam Switches S Series incorporate cam operated silver-alloy butt contacts with double-break feature. Switches have modular construction and operated by an easy grip knob. Modules moulded from selected engineering plastics of antitracking quality are stacked together to form an assembly and each module houses 2 sets of electrically independent, fixed and moving contacts. Terminal :- These are fixed contacts recessed type fitted with clamps and captive screws for easy wiring. Crimpping lugs of suitable size are recomended for wiring.

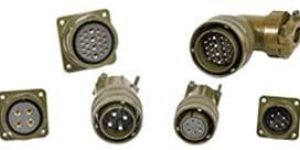

Reverse Bayonet Coupling connectors, are an improvement on the standard MIL-C-5015 connectors. The bayonet coupling arrangement provide for easy mating and unmating of the connectors, requiring only 120˚ rotation. This arrangement also provides for excellent vibration proof connection. Positive coupling is indicated by an audible snap. These connectors are intermateable with VG95234 and 121B Series connectors.
