Double Disc Grinding Machine Dealers

(20 products available)
  • Double Disc Grinding Machine

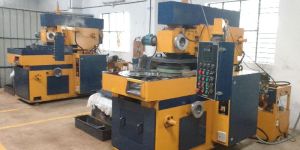

    Double Disc Grinding Machine

    700,000 - 1,100,000 / piece

    • MaterialCast Iron
    • Country of Origin440V
    • Availability1500 Kgs
    • Country of OriginIndia
    • Max Job DiameterMax. 100 mm, Min. 4 mm
    • Grindable WidthMax. 30 mm, Min. 0.50 mm
    • Grinding Wheel Size350 x 110x 52 mm
    • Power Required11.75 HP
    • Max. Error in Parallelism10 Microns
    • Max. Error in Flatness5 Microns
    • Double Disc Grinding Machine Vertical Spindle DDG 350
    www
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    1,200,000 / Piece

    • Brand NameAMW
    • MaterialMix
    • FinishingMix
    • Driven TypeElectric
    • ShapeOther
    • Packaging TypeAs Per Requirement
    • ConditionNew
    • PowerDepend
    • PressureNo
    • Operating TypeManual/PLC/CNC
    • Availability3.5 Ton Min.
    • Country of OriginIndia
    • Machine StructureBoth
    • TypeDouble Disc Grinding Machine
    • CertificationAs Per Requirement
    • ConditionNew
    • PowerAs Per Requirement
    • Warranty1 Year
    • Brand NameAMW
    • ApplicationFace Grinding Both Side
    • We are a Trustworthy Manufacturer & Supplier of a Superior Quality of Double Disc Grinding. A double disc grining grinds two sides of a work piece at the same time. This provides a high degree of flatness and parallelism. For parts like piston rings that need to be ground flat on facing sides, a double disc grinder will cut production time in half. There is no need to grind the same part twice; this also reduces stress on the part. Double disc grinding are a fine grinding process and can achieve extremely close tolerances, often similar to what lapping can achieve.
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    • Country of Origin220V
    • FeaturesDimensional accuracy, Optimum performance, Rugged design
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    4,000,000 / Piece

    • Automatic GradeAutomatic
    • Grinding Wheel Diameter400 mm
    • Automation GradeAutomatic
    • Net Weight4500 kg
    • Dimension200 x 200 mm
    • Max. Grinding Length160 mm
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    Double Disc Grinding” maintains an extremely high level of stock removal for grinding and the forces present are correspondingly high.The Double Disc Grinders manufactured by Nissei have the highest standards on rigidity, technology and precision compared to others in the Double Disc Grinder Duplex Grinder industry. Since its establishment in 1979, Nissei has been chasing pioneering technologie
    ...more
  • CNC Double Disc Grinding Machine

    CNC Double Disc Grinding Machine

    Get Price Quote

    • Country of OriginDelhi
    • Brand NameCNC Machine
    • ConditionNew, Good
    • TypeDouble Disc Grinding Machine
    • Item NameCnc Double Disc Grinding Machine
    • We offer double disc grinding machine.
  • Double Disc Duplex Grinding Machine

    Double Disc Duplex Grinding Machine

    Get Price Quote

    We are counted among the successful Machinery Indenting Agents & Exporters of Double Disc Duplex Grinding Machine. The Grinding Machines offered by us are manufactured using quality-tested components and the latest technology. Strict quality-tests ensure that only defect-free machines reach the buyers. Bulk orders of the Grinding Machines are processed by us as per the specific requirements of the buyers. One can obtain these at affordable rates from us.   Indicative List Of Components That Can Be Ground : Alnico Magnets Blanking Dies Bearing Rings / Rollers / Needles Brake Lining Bricks Carbide Tips.inserts Castings Ceramic Seals Connecting Rods Circlips Flat Ground Steel Or Metal Bars Ferrite Magnets Hammers Hss Toolbits Hard Disc Drive Components Hand Tools- Pliers,spanners Keys Machine Knives Piston Rings Propeller Shaft Fork     Indicative Components Circular Segmented Saws Circular Knives Clutch Plates Carbon Brushes Compressor Valves Crank Cases Ceramic Seals Cylinder Blocks Engine Valves Engineers' Files Piston Pins Pump Components / Valves Press Tool Dies Striker Forks Spring Ends Segmented Grinding Blocks Screw Driver Ends Thrust Washers Universal Joint Spiders Valve Plates
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    1,500,000 - 15,000,000 / piece

    • Automatic GradeAutomatic, Semi Automatic, Manual
    • Size125 Mm
    • Country of Origin440V
    • Availability2, 000 kg to 20,000 kg
    • Country of OriginIndia
    • We are offering On this machine Two opposite faces can be ground simultaneously with an accuracy of : Parallelism within 0.005mm , Tolerances within +-0.01 mm. Suitable for grinding Ferrous and Non-ferrous material. Suitable for Bearing Rings, Piston Rings, Connecting Rods, Piston Pins, Thrust washers, Bearing Rollers and Needles, Engrineers' Files Circlips, Valve Plates etc .Machine is available in Horizontal Axis and Vertical Axis. Three Feeding modes viz, Thru-feed, Rotary Feed, Reciprocating-feed and Oscillation feed. Minimum thickness ground with ease is 0.8 mm for dia upto 70 mm .
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    We are dealing in CNC Double Disc Grinding Machine Salient Features : » Ideal grinder for mass production of components having two flat and opposite parallel surfaces with higher geometrical accuracies. » Machines up to 4-axes CNC control » User-friendly grinding cycles by customised screen (picto programming). » Preloaded antifriction guideways for precise positioning and rigidity. » Super precision antifriction bearings for grinding spindles. » Direct driven ballscrews with AC digital servomotors for linear axes. » Hydraulic swing arm dresser. » Automatic centralised lubrication system. » Free-standing electrical panel and hydraulic power pack. » Pendant type operator panel. » Built-in safety interlocks. » Input resolution 0.0001 mm
    ...more
  • Vertical Double Disc Grinding Machine

    Vertical Double Disc Grinding Machine

    1,500,000 - 7,000,000 / No.

    • NameDouble Disc Grinding Machine
    • UsageSurface grinding from both sides simultaneously
    • ColourAs per specification
    • We serve the industry for double disc grinding of the components. It means the surface grinding of a component from both the sides simultaneously.
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    • Thickness+/- 0.0045 mm
    • ParallelismWithin 0.005 mm
    • Our Grinding shop consists of a state of art machines of all types including Vertical & Horizontal Double Disc Grinding, Fine Grinding machines using CBN wheels & Blanchard type grinding machines. In this facility we are able to produce millions of ground parts per month which require single digit micron level accuracy on Thickness control, Parallelism & Flatness.
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    We are offering double disc grinding machine, technical specification - double disc grinder duplex grinder grinding wheel dia. : 500 mm component thickness to be ground : 1 � 35 mm max. component width to be ground : 10 � 110 mm max quill infeed of the grinding wheels : 50 mm each. spindle power : 20 hp each hydraulic motor : 2 hp feeder motor : 2 hp coolant & filtration : 2 hp (optional) floor area (w x d x h) : 2.5 x 2.5 x2.5 mtrs. machine weight : 5500 kgs. note: these are the standard specification of the machine, however the machine features are customized according to component shape & size for optimizing the machine performance.
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    High-quality grinding discs from renowned manufacturers are being used. Tool life depends on material, premachining of work pieces, removal thickness, and required surface quality.Both ceramic and resinoid bonds aswell as abrasives made of ALU OXIDE are used, depending on theapplication.Work piece reception is a steep taper with bayonet fixing. A simple loosening of screws and easy accessibility of the work area allow for a grinding disc change within a very short time.With horizontally arranged spindles the change takes place from the top,with vertical machines from the sidevia a tool change support. A pivoted tool change gantry can be used optionally.
    ...more
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    Double Disc Grinding Machine, Vmc Machine Job Wor
  • Double Disc Surface Grinding Machine

    Double Disc Surface Grinding Machine

    Get Price Quote

    Double Disc Surface Grinding Machine, Grinder Machin
  • Double Disc Grinding Machines

    Double Disc Grinding Machines

    Get Price Quote

    Double Disc Grinding Machines, Drill Tap Centers, Rotary Transfer Line
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    Double Disc Grinding Machine, Single Disc Grinding Machin
  • Double Disc Grinding Machine

    Double Disc Grinding Machine

    Get Price Quote

    Double Disc Grinding Machine, Face Grinding Machin
  • Double Disc Grinder Machine

    Double Disc Grinder Machine

    Get Price Quote

    Double Disc Grinder Machin
  • Double Disc Grinder Machine

    Double Disc Grinder Machine

    Get Price Quote

    Double Disc Grinder Machine, Floor Grinder Machin
