Edible Oil Plant Dealers

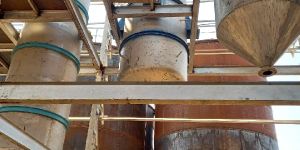

Edible Oil Refinery Plant completes the entire procedure in three basic processes. First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda. After the completion of this process, soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan. Then, neutralized oil is drawn into the second vessel called bleacher where color of oil is removed by bleaching process with aid of chemicals such as carbon black and bleaching earth. Bleached oil then goes to the filter press where bleaching earth and chemicals are separated and clean bleached oil is then drawn to deodorizer where oil is heated above 110°C through thermic fluid coils. The entire process is done under high vacuum. Edible Oil Refinery Plant comprises of Thermic Fluid Boiler, Vacuum Pump, Barometric Condenser, Catch0ls and Steam Generator.

We provide Edible Oil Refinery Plant that is based on modern technology to refine a variety of edible oils. We design & supply customized edible oil plants as per local conditions and quality of oil. We manufacture all the equipment using modern manufacturing facility, which is ISO 9001-2008 certified by International Accredited Agency and export these plants on a turnkey basis. Our Plants are Highly Energy Efficient, low processing cost and deliver best quality Refined Oil. We are specially known as leading Rice Bran Oil Plant Suppliers, for providing plants that produces quality refined Rice Bran Oil. BRISSUN PLANTS ADVANTAGES : Maximum reduction of FFA and colorCustomised & latest technologyLow Consumption of UtilitiesLower Maintenance CostBland Oil with Maximum Shelf LifeRefined Oil Accepted by Most Multinationals Suitable For Refining : Rice bran oilSunflower OilMustard OilRapeseed OilSoybean OilCotton Seed OilPalm oil Refining by : DegummingBleachingDe-waxingDeodorizationFractionation Capacity : 25 TPD - 500 Tons per day

Power tech V R Process design and manufacturing Consultants Pvt. Ltd. offering wide range of Edible Oil Plant for Food Industry. These plants are widely appreciated by our customers for their sturdy design and technology backing. The basic materials used in manufacturing these products are of premium grade and sourced from reliable vendors.   Features   Compact design Robustness Easy to Install

Edible Oil is An Important Primary Food and Requires Highest Degree of Product Quality. the Final Product Quality Depends On the Refining Method and the Nature of the Raw Oil. Fenix® Offers a Wide Range of Solutions Designed to Boost Value in this Respect. the Crude Oils are De-gummed and the Free Fatty Acids are Then Removed By Distillation in One Stage During Deodorizing. (some Oils like Cottonseed Oil or Fish Oil are Not Suitable for Physical Refining.) the Oil Discharged from Expeller Presses Has Certain Solid Content or Gum, the Level Varying On the Oil Seed, Which Must Be Removed. for Easier Separation, the Solids are Wetted with Hot Water and Separated Along with Hydrated Phosphatides in the Decanter/clarifier. the Solids are Returned to the Press for Recovery of Adhering Oil. the Clarified Oil is Then Either Refined Directly or Dried Under Vacuum for Storage or Consumption. fenix® “centrimix” Process for De-gumming, Neutralising and Washing is Designed to Handle a Multitude of Oil Feed Stocks. It is Followed By the Fenix Flexibleach Process Which Reduces the Bleaching Earth Consumption By 20 to 30%. We also have a Newly Developed Technology - Fenix Flexibleach with Pre Filtration – Based On the Reuse of the Spent Bleaching Earth Without Removing It from the Filters. Once the Spent Earth is Reused in the Filter, It is Discharged and Evacuated. the Final Step in Refining is the Innovative Fenix Eco2flex Deodorisation. Its Efficient Scrubbing System Minimises Fatty Matter Carry Over and Water Pollution. Efficient Plug Flow “hivac Heat Exchangers” Enhances Economy. It is Flexibile to Process High Ffa Oils By Physical Refining and Gives Vary High Stripping Efficiency Due to the Use of Cross Flow Column. Control for Optimizing Tocopherol and Minimizing Trans Acid Generation is Built-in. the Mechanical “free End” Prevents Thermal Fatigues in Heating/cooling Tubes. the Efficient Design Ensures 100% Draining and Cleaning. It is a New, Fully Integrated and Compact Deodorising System Including the Concept of Steam Injection in Which Deaeration, Heat Exchanging, Heating/stripping, Cooling and Scrubbing Take Place in a Controlled Environment. the Process is the Result of a Continuous Effort Based On the Experience of More Than 300 Deodorising Plants. in a Nutshell Fenix Edible Oil Refining Gives Very Short Payback Period Due To: ● Superior Product Quality ● Minimum Hydrolysis & Low Loss of Oil ● Highest Level of Heat Recovery ● Reduced Utilities (stem, Diesel/power, Water, Chemicals) ● Reduced Installation Cost ● Reduced Maintenance Cost, Limited & Easy Maintenance ● Easy Supervision

Edible Oil Refinery Plant requires precision of machinery while ensuring minimum addition of contaminants and odour producing agents. Next step in Edible Oil Refinery is the is the traditional method used in past centuries and widely practiced form of refining method by treatment of the fats and oils with an alkali solution. The free fatty acid are converted into water soluble soaps which are removed by separators. Phospholipids, carbohydrates and proteins additionally can be changed to water soluble substances with hydration. When the Alkali Refining treatment, the fats and oils area unit washed with water to get rid of residual water soluble soaps after that oil passes in vacuum Dryer to remove Moisture.

Edible Oil Plant, Vegetable Oil Processing Plan

Edible Oil Refinery Plant, Oil Mill Machinery, Animal Feed Machiner

Edible Oil Plant, Edible Oils, Edible Oil Transportatio

Edible Oil Plant, Bio Coal Plant, Bio Diesel Machinery, Bio Diesel Plan

Edible Oil Plants, Fatty Acid Plants, Palm Oil Mills, Soa

Edible Oil Plant, Ethanol, Fussil Oil, Liquid Carbon Dioxid

Edible Oil Refinery Plant, Oil Mill, Solvent Extraction, Agri West Bio Coa

Edible Oil Refinery Plant, Edible Oil Refinery Machin

Edible Oil Plants, Poultry Poultry Feed, FRP Bushing, FRP Epoxy Bloc

Edible Oil Plant, Refined Oi

Edible Oil Refinery Plant, Oil Mill Machiner
