Edible Oil Refinery Plant Dealers

The inherent harmful factors for human consumption like free fatty acids (ffa), gums, sediments, odoriferous and colouring materials present in crude oils are removed completely to make the oil edible.

We are listed among the most dependable Cooking Oil Refinery Manufacturers and Exporters from India. Various national as well as international clients are placing huge and repeated orders for the Edible Oil Refining Machine due to the unmatched quality and inexplicable performance exhibited at respective applications. Moreover, the materials used in the manufacturing of the Edible Oil Refinery are of premium quality that ensures high durability and resistivity to various corrosive attacks. The Edible Oil Refinery offered by us are also easy to install and required low maintenance cost. Additionally, these also require relatively less electricity and gives maximum output in comparison to the Edible Oil Refinery available in the market.

Edible Oil is An Important Primary Food and Requires Highest Degree of Product Quality. the Final Product Quality Depends On the Refining Method and the Nature of the Raw Oil. Fenix® Offers a Wide Range of Solutions Designed to Boost Value in this Respect. the Crude Oils are De-gummed and the Free Fatty Acids are Then Removed By Distillation in One Stage During Deodorizing. (some Oils like Cottonseed Oil or Fish Oil are Not Suitable for Physical Refining.) the Oil Discharged from Expeller Presses Has Certain Solid Content or Gum, the Level Varying On the Oil Seed, Which Must Be Removed. for Easier Separation, the Solids are Wetted with Hot Water and Separated Along with Hydrated Phosphatides in the Decanter/clarifier. the Solids are Returned to the Press for Recovery of Adhering Oil. the Clarified Oil is Then Either Refined Directly or Dried Under Vacuum for Storage or Consumption. fenix® “centrimix” Process for De-gumming, Neutralising and Washing is Designed to Handle a Multitude of Oil Feed Stocks. It is Followed By the Fenix Flexibleach Process Which Reduces the Bleaching Earth Consumption By 20 to 30%. We also have a Newly Developed Technology - Fenix Flexibleach with Pre Filtration – Based On the Reuse of the Spent Bleaching Earth Without Removing It from the Filters. Once the Spent Earth is Reused in the Filter, It is Discharged and Evacuated. the Final Step in Refining is the Innovative Fenix Eco2flex Deodorisation. Its Efficient Scrubbing System Minimises Fatty Matter Carry Over and Water Pollution. Efficient Plug Flow “hivac Heat Exchangers” Enhances Economy. It is Flexibile to Process High Ffa Oils By Physical Refining and Gives Vary High Stripping Efficiency Due to the Use of Cross Flow Column. Control for Optimizing Tocopherol and Minimizing Trans Acid Generation is Built-in. the Mechanical “free End” Prevents Thermal Fatigues in Heating/cooling Tubes. the Efficient Design Ensures 100% Draining and Cleaning. It is a New, Fully Integrated and Compact Deodorising System Including the Concept of Steam Injection in Which Deaeration, Heat Exchanging, Heating/stripping, Cooling and Scrubbing Take Place in a Controlled Environment. the Process is the Result of a Continuous Effort Based On the Experience of More Than 300 Deodorising Plants. in a Nutshell Fenix Edible Oil Refining Gives Very Short Payback Period Due To: ● Superior Product Quality ● Minimum Hydrolysis & Low Loss of Oil ● Highest Level of Heat Recovery ● Reduced Utilities (stem, Diesel/power, Water, Chemicals) ● Reduced Installation Cost ● Reduced Maintenance Cost, Limited & Easy Maintenance ● Easy Supervision

We provide Edible Oil Refinery Plant that is based on modern technology to refine a variety of edible oils. We design & supply customized edible oil plants as per local conditions and quality of oil. We manufacture all the equipment using modern manufacturing facility, which is ISO 9001-2008 certified by International Accredited Agency and export these plants on a turnkey basis. Our Plants are Highly Energy Efficient, low processing cost and deliver best quality Refined Oil. We are specially known as leading Rice Bran Oil Plant Suppliers, for providing plants that produces quality refined Rice Bran Oil. BRISSUN PLANTS ADVANTAGES : Maximum reduction of FFA and colorCustomised & latest technologyLow Consumption of UtilitiesLower Maintenance CostBland Oil with Maximum Shelf LifeRefined Oil Accepted by Most Multinationals Suitable For Refining : Rice bran oilSunflower OilMustard OilRapeseed OilSoybean OilCotton Seed OilPalm oil Refining by : DegummingBleachingDe-waxingDeodorizationFractionation Capacity : 25 TPD - 500 Tons per day

Edible Oil Refinery Plant requires precision of machinery while ensuring minimum addition of contaminants and odour producing agents.Water Degumming is first step in the Edible Oil Refinery Process. Oils contains Hydratable Phosphatide which absorb the water, that Hydratable Phosphatides are oil- insoluble which easily separated by centrifuge.

Refining is a process used for removal of undesirable elements like free fatty acids (FFA), gums, phosphatides etc. from oil and to improve its quality and ensure colour uniformity. The process involves degumming, neutralising, bleaching and deodorisation. For small capacity plants below 20-25 tons per day, batch process is recommended being low cost and easy to operate thus making the plant economically viable.

We are making Batch and Continuous process refineries for edible oils. Both types require mainly three steps of Unit Operation called Neutra-lization, Bleaching, and Deodorization. In addition to it, some oils like palm and rice bran oil requires additional step called Fractionation. Generally, selection of batch vs. continuous depends on refining capacity. Batch set-up is ideal for smaller refining capacities upto 30 Tons per day while larger refining capacities would efficiently operate under continuous process set up. We make wide range of refining capacity set-up from 10 Tons per day up to 1,000 Tons per day state of the art refinery complex. The sequence of the refining processes is always be 1. Neutralization - 2. Bleaching - 3. Deodorization. Each step of refining removes undesira-ble substances from the oil. Neutralization process step removes Free Fatty Acids from the oils, Bleaching can reduce the oil color and remove any residual impurities from the neutral oil while Deodorization can remove low molecular weight substances which are responsible for undesirable flavor. The first step of refining, Neutralization, can be perform by two methods called Physical and Chemical process. As their names indicate, in chemical process, it requires alkali, sodium hydroxide, to remove Free Fatty Acids from the neutral oil while physical refining can distilled off low boiling point Free Fatty Acids from the neutral oils at high temperature under high vacuum. The chemical process generate soap/soap-stock as a by-product while physical process generate fatty acids with low boiling point substances as by-products. The second step of refining, Bleaching, can be done under vacuum and requires bleaching earth and carbon as adsorbents to adsorb color bo-dies from the oils. Once the process done under these parameters, spent earth and carbon can be filtered off by means of Filter Press or Pressure Leaf Filter to obtain low color clear oil. The third step of refining, Deodorization, can be done at high temper-ature around 250 degree celsius and high vacuum by constantly sparging steam through the oil to distilled off low molecular weight substances from the Deodorizer vessel. Then, the oil can be cool off by incoming cold oil followed by coiled cold water circulation into cooling vessel. Palm and Rice bran oil requires one additional process step, Fractionation, due to both oil contains high percentages of saturated fatty acids. Fractionation can be done by controlled rate cooling of refined oil to form solid particles of saturated fatty acid triglycerides followed by filtering off such saturated triglycerides will produce two products - Saturated and Unsaturated fractions. Fractionation unit comprises of chiller, compressor, condenser and special polymer filter press. We fabricate and set up refineries which can process any oil efficiently with low maintain costs. We not only manufacture and set up refineries but also provide support to existing refineries to modify their process equipments to run at better efficiencies.

Linseed oil, raw and refined (second revision), Methods of sampling and test for oils and fats:Part 2 Purity tests: Sec 21 Test for detection of animals fat in vegetable oiland fats and vice-versa by GLC(fourth revision). Methods of sampling and test for oils and fats :Part 3 Analysis by gas liquid chromotography

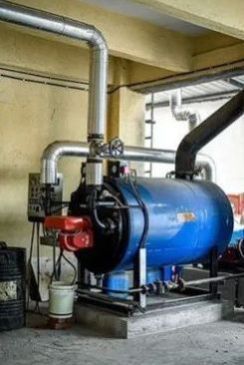

Edible Oil Refinery Plant completes the entire procedure in three basic processes. First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda. After the completion of this process, soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan. Then, neutralized oil is drawn into the second vessel called bleacher where color of oil is removed by bleaching process with aid of chemicals such as carbon black and bleaching earth. Bleached oil then goes to the filter press where bleaching earth and chemicals are separated and clean bleached oil is then drawn to deodorizer where oil is heated above 110°C through thermic fluid coils. The entire process is done under high vacuum. Edible Oil Refinery Plant comprises of Thermic Fluid Boiler, Vacuum Pump, Barometric Condenser, Catch0ls and Steam Generator.

Specifications premium quality raw materials handled by expert batch refining line chemical refining dewaxing section We provide vegetable oil refining plants that are manufactured from premium quality raw materials and the plants are handled by expert personnel. These plants are known for their robust construction as per international quality standards. We offer vegetable oil refining plants for batch refining line, vegetable oil refining / refinery, continuous refining line, physical refining, chemical refining, caustic refining, bleaching section, deodorization process, neutralizing section, dewaxing section, winterization and others.

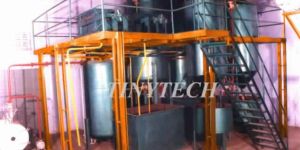

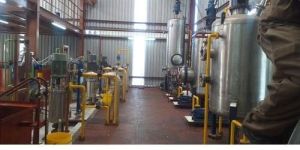

Edible Oil Refinery Plant: Edible Oil Refinery: Edible Oil RefiningTinytech Udyog has been in the edible oil industry since 20 years. We are designers, manufacturers and global exporters of Edible Oil Refinery Plants for the refining of almost all kinds of crude oils. We have carried out successful worldwide turnkey installations of edible oil refinery plants and oil mill projects. Kindly note that the below photograph has been copied by many other companies who have put up on their website. But in actual the below photograph is of TINYTECH EDIBLE OIL REFINERY PLANT which is erected at our Tinytech Showroom Office. Main Equipments of Edible Oil Refinery Plant include the following: Neturalizers Oil Filter Presses Bleacher Oil Storing Tanks Deodourizer Soap Pans Cooler Vacuum Equipments Thermic Fluid Boiler Valves, Motors, Pipelines   Vacuum Pump and the Steam Generators for the Edible Oil Refinery Plant cannot be seen in the above picture as they are on the back side. Moreover, the Catchalls with 40 Ft. tower and the Barometric Condenser are also not shown here.     The Process Description for Edible Oil Refining is stated as under: For refining any crude edible / non-edible oils, there are mainly three basic processes which are carried out in the refinery plant.   Neutralization Process   First process is neutralization in which the oil is neutralized in order to remove the Free Fatty Acids (FFA) by adding caustic soda. Oil is heated up to about 60°C by thermic fluid coils and oil is stirred by the stirrer. Soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into respective soap pans.   Bleaching Process   The neutralized oil is then transferred for the bleaching process where the color of the oil is removed. The bleaching process is carried out with the help of respective chemicals such as carbon black, bleaching earth etc. Oil is heated up to high temperature of around 100°C under vacuum with continuous stirring operation.   Deodorization Process   The bleached oil then goes to the filter press where the spent chemicals are separated and clean bleached oil is obtained. This oil goes to deodorizer where the oil is to be heated above 110°C and under vacuum by providing live steam from the bottom. The temperature of the oil is raised up to certain limits. The entire process of deodorization is very crucial for the quality of the oil. Finally, the smell and unpleasant odor from the oil is removed.   Cooling Process   The high temperature oil is to be cooled in the cooler where the water circulating coils take away the heat. The cooled oil is again allowed to pass through the filter press for the final filtration process. Finally, totally clean, filtered, refined transparent oil is obtained at the output.During entire refining operation, all the equipments such as thermic fluid boiler, vacuum pump, vacuum equipments, barometric condenser, catchalls, steam generators, oil filters, electric motors, oil pumps etc. play their respective role. So all these equipments are very important parts of the refinery and they are connected with the vessels through pipelines.   Dewaxing Process   Some oils such as corn oil / maize germ oil and sunflower oil contain considerable amounts of waxes in them. Sometimes these waxes give very hazy appearance to the oil and it is advisable to remove these waxes. In such cases separate dewaxing process is carried out. Our Tinytech refinery plants are equipped with dewaxing units in order to remove the waxes from the oil and making it more stable and palatable.   Fractionation Process   For refining the palm oil, the above method is carried out with slight process modifications. There is addition of few extra equipments in the refinery such as chilling plant, crystallizer etc and the fractionation method is performed. Tinytech Udyog possesses expertise in the palm oil refining and our palm oil refinery plant is most advanced giving ultimate palm oil refining results.

there are three basic processes in the edible oil refinery. First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda. Oil is heated upto about 60°C by thermic fluid coils and oil is stirred by stirrer. Then soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan

All Materials which are recovered through Solvent Extraction have an effect on Crude Oil Quality. In addition to these effect there are other Factors involving Crude Oil Storage, Handling and Transport.The process of Degumming is based on the process for removal Phosphatides, which is also called gums. The common usage refers to the array of Phosphatides present in mostly all Crude Oil, although all Crude Vegetable Oils contain Gums. Degumming of oil is done to prepare degummed oil for Caustic & Physical Refining.
