EDM Wire Cut Machine Dealers

Wire cut machine, make YCM, Taiwan, year 2011, Model W400, submerged type Max. Work Piece size 750x550x255mm Max. Work Piece weight 500 gms, Travel Table of XY 400x300mm, U & V Axis Travel 120x120mm, Z Axis Travel 260mm, Wire Diameter 0.15~0.3mm. For more details please contact us.

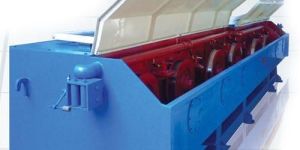

Rod Breakdown Machine is an intricately designed machine for cutting steel, carbon and other metal rods. These Wire Straightening & Cutting Machines are meant to be used in heavy-duty industry for the purpose of cutting rods. Configured with advanced components, Rod Breakdown Machine promises speedy and efficient performance.Features of Rod Breakdown Machines : Rod Breakdown Machine is available in single or multi-cone options There are ring type drawing capstans for convenience Option available to have hardened & ground gear drive or to have timing belt drive arrangement for better efficiency reduce sound level and zero vibration Low maintenance cost All the transmission gears and bearings are enforced with lubricants Offer customized designing and developing Rod Breakdown Machines Specifications : Designed for multi-die and multi-block operation Can work with spooling machine & coiler Power efficient Save floor space AC & DC drives

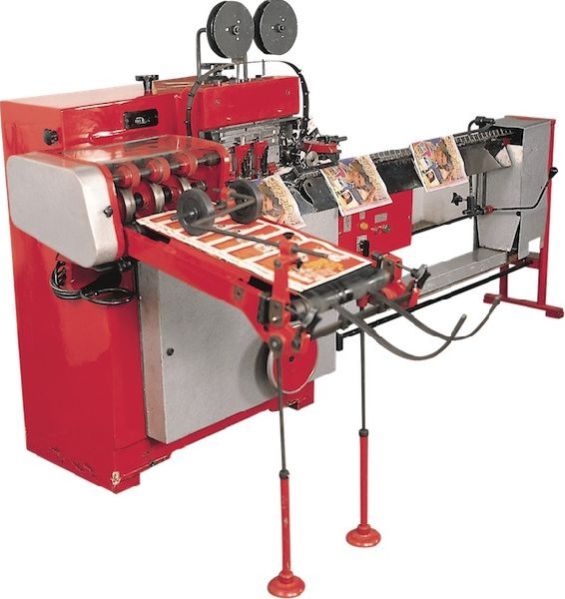

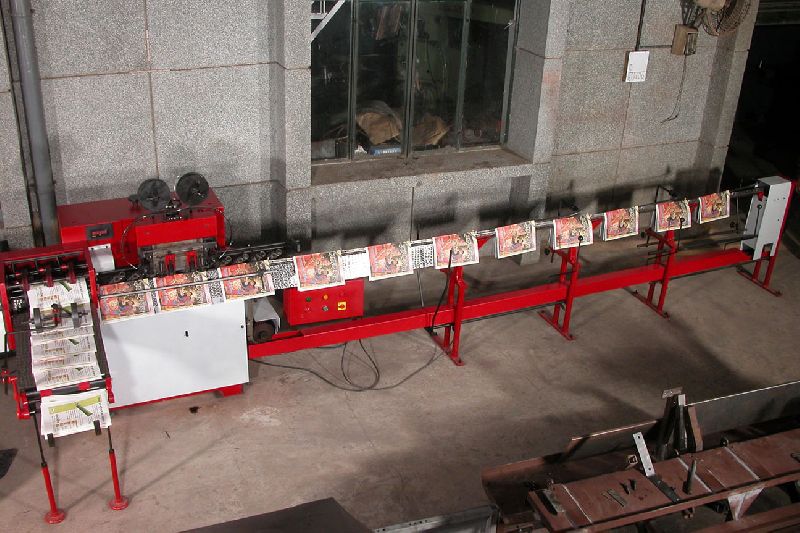

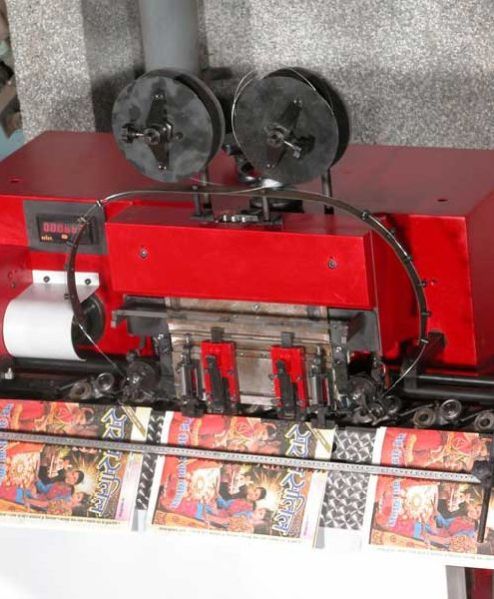

The Will ® high speed Wire Stitching Machines available in wide range of sizes & models with compact design, adjustable table are particularly designed for reliable, durable & production work. These machines are best suitable for variety of stitching & binding operations which includes wire stitching of Books, Exercise Note Books, Journals, Pamphlets, Periodicals, Magazines, Pictorials, Catalogs, etc These machines are also capable of loop Stabbing, center & side stitching. Salient Features Suitable for center, loop, side & stabbing stitch.High speed power operated machines for production work.Thickness of job adjustable by wheel.Compact & Efficient design requires min. floor placeReversible table for different type of stitching.All spare parts are standard & interchanageable.Provision for single, double, four head wire stitching & loop or normal stitching in different models of machines All sizes of Stitching wire is available in 1.4-kg ,2-kg, 4-kg packing

Gurinder brand Wire Pointing Machine is to make the Wire Point to pass from the Wire Drawing Die to draw wire. It consists of two Steel Rollers having different Grooves of various Gauges moved in Gun Metal Bushes Mounted on the frame. It has capacity from 8mm to 17 wire guage. It required 2 HP electric motor.

ELectronica SprintCut 734 WEDM Machine -(Indian Made) Fanuc ROBOCUT Alpha-0 IB WEDM Machine -(Fanuc Ltd.Japan) OSCARMAX EDM Drilling Machine SD-300-(Oscar EDM Co. Ltd,Taiwan) Makino S33 CNC Milling Machine- (Makino ,Singapore) Fanuc ROBOCUT Alpha-1 I ce WEDM Machine -(Fanuc Ltd.Japan)

Backed by the excellence of our prominent workforce, we offering our clients with clay extrude with wire cutting table. Owing to their compact designs, the mobility is increased, which has worked as additional advantage.

Our range of rod break down machine is manufactured as per the latest International usages. We also have facility to customize our range according to the client's requiremens. These are available in various specifications, some of them are designed 9/11/13 die for aluminium and copper wires aong with spooling machine and dead block coiler.

We bring to afore the CNC Wire Cut EDM Machine, which is robust, productive and long lasting. Also known as the Preciwirecut CNC Wire Cut EDM Machine, it’ll yield the users hassle free and accurate performance for the years to come, with negligible upkeep. Buy it from us in customized specifications, at nominal prices. We are the distinguished Manufacturer and Supplier of the CNC Wire Cut EDM Machine from Chennai, India.

We are amongst the well known manufacturers of highly efficient Wire Pointing Machine that is suitable for pointing materials like Mild Steel, High Carbon Steel, Copper etc. this machine is widely appreciated by the clients across the world, owing to its low maintenance cost and robust construction.

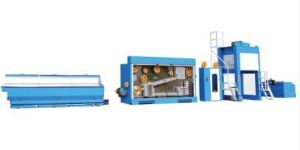

Zenith Rod break down machines are used to draw non-ferrous wire rods. Zenith machinery are noted for their durability and productivity. Numerous machines are in regular use around the globe, This machine was specifically designed for high speed production of wire where floor space is limited. The Zenith step cone type rbd is supplied with 4 three step drawing capstans, a finishing capstan and 13 die positions as standard. The use of AC inverter will give a wider finishing speeds. Drafting is at a constant 20.6%. The machine is constructed of a rigid fabricated housing comprising of four Drawing capstan shafts. The drawing capstan is supplied with three diameter steps. All pull-blocks including the capstan shaft assembly are completely enclosed. All dies are located inside the machine and spray lubrication of the wire and drawing capstan is employed, the dies being lubricated by jets at entry and exit. This is a product between Step cone type and tandem type rod break down machine. The Zenith step cone type rbd is supplied with 6 two step drawing capstans, a  finishing capstan and 13 die positions as standard. The use of AC inverter will give a wider finishing speeds. Drafting is at a constant 20.6%. The machine can also be supplied in configuration of 9Die and 11Die. Modular design enables this machine to be supplied with 7, 10, 13 or 16 dies, dependent on the required duty. . The drawing capstans can be fitted with replaceable HCHCR or Tungsten Carbide coated rings.Tandem type machines are ideal for the drawing of high quality copper, aluminium and aluminium alloy.The drawing and the finishing capstan have a diameter of 450mm.Each drawing capstan is offset progressively along the wire line to provide a nearly straight wire entry into each die.Die holders are fully adjustable to the natural arc of the wire. The finishing die holder is of the motorised revolving type. Facilities for driving a  Drive  arrangement for continuous annealer are provided at the rear of the capstan shaft.The motor is positioned behind the machine and is connected by flexible couplings to an internal gearbox. Spray lubrication of the die holder and drawing capstan is employed on this machine. Dies are being lubricated by jets at entry and exit. Feed and drain connections are provided for connection to a lubricant storage system (which is not supplied).Standard equipment includes an inching pedal stretching the length of the machine and a broken wire switch. The Trolley Rod Breakdown machine is available with 5/ 6 die positions for the production of  railway contact wire. The machine is versatile with die provision for a grooved attachment at the fifth and sixth die position to impart groove in the conductor. The drawing capstans are driven by individual gearboxes connected to the main drive motors.Drafting can be changed to suit round or trolley wire sections by changing the relative block speeds. The drawing capstans are each mounted on a reduction gearbox and the gearboxes are all supported on an individual single rigid baseframe. The  motor and gearbox are mounted separately.The main machine is enclosed with a steel guard and the access to the drawing capstans is by a   front guard. Specification Of Cone Type RBD • Maximum Entry• 9.5mm aluminium• 8.0mm copper• Finish Diameter• 1.5mm to 4.1mm diameter• Maximum Finishing Speed• 25 m.p.s• Motor power• 150Hp – 300Hp   Specification Of Double Tandem Type RBD • Maximum Entry• 9.5mm aluminium• 8.0mm copper• Finish Diameter• 1.5mm to 4.1mm diameter• Maximum Finishing Speed• 25 m.p.s• Motor power• 150Hp – 300Hp

Suitable for center and side stitching Run on single face motor Estimated life 25 years 2 Pages can be stitched All Spares available readily form ready stock Most dependable and reliable machine available in the market

We are offering wire stitching machine. Capacity (centre & side stitching) 4 sheets to 1" (25mm) wire sizes 24 to 20 gauge speed 160 (staples per minute) staple inside 12.5 mm (load) 12 h.p. Motor electrical (supply) 220 volts a.c. 50 hz 1 phase floor area 25 x 24" (635 x 610 mm) net weight 175 kg.

Indian Machine Mart is offering a suitable range of Wire Stitching Machine, which is designed for stitching books, notes, booklets and the likes. This machine basically has a simple mechanism that enables the user to operate it easily and have clean formation of staples. Moreover, this machine is highly appreciated for its higher efficiency rate and accuracy at highest speeds. Offered range of highly economical and durable wire stitching machines is available in varied sizes and models with us to fulfill the clients' need as per the application requirement.     Highlights of Wire Sticthing Machine:   Easy to operate and maintain Sturdy construction Simple mechanism High production in less time Provided with several optional accessories like cutter, oil can, screw driver etc.

Our Wire Pointing Machine are allied machinery widely used for wire drawing line applications. They come in different pointing ranges and different power installed. These machines are offered with high hardened adjustable rolls, sometimes with shearing attachment. These machines are used with wire drawing machines in wide range wire drawing and pointing applications.
