Electrical Upsetting Machine Dealers

• Automation Grade: Automatic
• Power: Electric
• Voltage: 415V
• Frequency: 50 Hz
• Usage/Application: Industrial
• Material: Copper
• No.Of Phase: 2Phase

Being a well-renowned entity, we are engaged in providing a distinguished range of Upset Butt Welding Machine. Features: • Abrasion resistance • Longer service life • Superior efficiency Other Details: • Widely demanded to weld shackles, chains, window frames, etc. • Power source: Electric

• Dimensions: 2.6 x 1.4 x 1.6 m,2.8 x 1.4 x 1.6 m
• Shipping Volume: 6.0 m3,6.5 m3

By employing Metal Gathering, many of the well known technical limitations and disadvantages of Mechanical Upsetting can be overcome, Simultaneous heating and forming in one machine, Almost unlimited gather in one operation. The mechanical upsetting limitation of about three times the diameter no longer applies. The modern engine valve has an upset length of up to 20 times diameter and lengths up to 40 times diameter are commonly electro-upset, No longitudinal flash is formed (of the kind which is unavoidable in Mechanical Upsetter), No waste of Heating Energy or Material. Outside of the upset volume can be precisely controlled to allow subsequent 'Flash-Less' forging in closed dies, Always ready for Instant Use. No warm-up period. Energy efficient, about 0.35 to 0.40 kwh kg. Minimal scaling because of simultaneous heating and gathering. Improved die life in subsequent forging operations. Noise Free and Environment Friendly as the machine does not emit heat, fume, exhaust gases or other pollutants. Free upsets can be finish forged without re-heating thus saving time and energy. Consistent heating temperature through the use of thyristor control.Optimal grain flow and fault free surface. The unheated bar length remains unchanged.

• Phase: 3 Phase
• Voltage: 380 - 450 V
• Power: 10KVA - 320KVA
• Usage/Application: Industrial
• Frequency: 50 Hz

We offer electrical dc upsetting machines. • heating transformer works on 3 phase 400vac. • dc heating. • no skin effect as in ac heating, thereby providing uniform heating across the cross section of the job. • heating power infinitely variable by thyristor. • auto indexing of anvil after every upsetting cycle. • bulb temperature measured by optical infrared pyrometer and controlled by hydraulic servo valve. • bulb shape is controlled without wrinkles by anvil speed control using another servo valve. • maximum upsetting force – 7000kgf.

We are offering Rebar Upsetting Machine. It is designed and manufactured specifically for setting up a connection of concrete reinforcement bars. The excellent performance and long performing life of our Rebar Upsetting Machine has given a boost to its demand in the global market. Attributes : Specifically designed for the connection of concrete reinforcement barsStronger than otherEnsures bar break under tensile strengthUpsets and thickens the end part of the rebarRaises the rebar areaUnmatched performanceSmooth and trouble free operation

• Voltage: 415 V
• Country of Origin: Made in India
• Frequency: 50 Hz
• Usage: Industrial

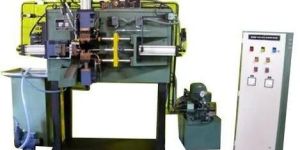

We offer electrical upsetting machine, upto 300kva; closed loop temperature control. Wrinkle-free bulb single head and twin head. Autoloading.

Electrical Upsetting Machine, metal gathering machinery

We are offering latest products of rebar upsetting machine for all age man & woman.

Electrical Upsetting Machine, ups equipment, InkTank Printer, Laser Printers

Electrical Upsetting Machine, ac synchronous motors
