Flame Photometer Dealers

Digital dual channel Flame Photometers with sodium and potassium filters, working on the principle of Flame Emission Spectroscopy (FES) or Flame Photometry049000 – With Na & K Filters

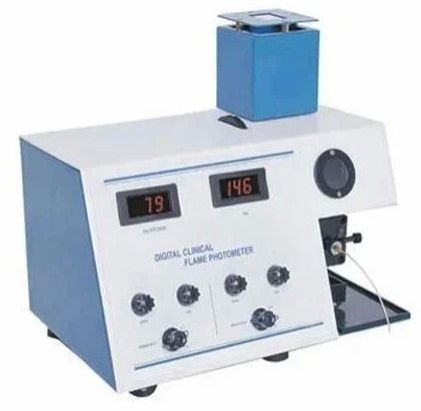

Digital Flame Photometer is a simple & easy to operated instrument for determination of sodium & Potassium Calcium & Lithium are optional filters. It is an ideal instrument for soil testing labs. It is a dual channel Flame Photometer used for simultaneous observation of NA & k in blood serum (Plasma), Urine & other type of biological fluids. The instruments are supplied in two units viz. Main unit and Compressor unit. The main unit comprised of digital, detector, filters and nebulizer. The compressor unit supplies the compressed air to the main unit.

Product Description     We are known in the industry for our expertise in manufacturing, wholesaling, exporting and supplying supreme quality Flame Photometer. The offered range is provided in various technical specifications based on the diverse requirements of the clients in different industry verticals. These products are specifically manufactured using quality assured components with the aid of cutting edge technologies by our expert professionals. Further, the team aids us in offering the range within the given time – frame at the client’s end.         Features:     Microprocessor Based with Printer Interface Auto Gas Cutoff Auto Flame Failure Detection Four Measurements in Single Aspiration Setup Storage Facility Sample Data Storage Facility Curve Calibration Programmability Using Maximum of 5 Standards Multiple Calibration Curve Saving Facility Data Processing Through Curve Fitting Techniques, Least Square, Quadratic Online Help Key Direct Results in ppm and meq Useful for Medical & Soil Testing

MICROPROCESSOR FLAMICROPROCESSOR FLAME PHOTOMETER is an ideal instrument for the determination of Sodium, Potassium, Calcium and Lithium. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. Lt has soft touch membrane keys for ease of operation. The solution is aspirated through an atomizer. Air, sample and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. The color of the flame is changed depending upon the concentration of elements present. A radiation from the flame passes through the sensing system and specific Narrow band interference filter which permits only the characteristic radiation to pass to the photo detector. The output of the Photo clerestory is then processed by the microcontroller and the final results are displayed on the digital display. The 5 point Calibration facility and non-linearly correction is provided through an automatic curve fitting software. Facility has been provided for Re-standardization with a single standard, thereby, eliminating the need of multiple standards once a calibration has been performed.

Digital Flame Photometer NFP 460: Display: LED.Measuring Parameter: Na( 0 to 100ppm),K( 0 to 100ppm),Ca( 15 to 100), Li ( 10 to 100) I.Accuracy; 2%.Filters: narrow band interference glass filters.Detector: Silicon photo diode.Ignition: External( Auto Ignition optional).Nebulizer; Black backelite, axial flow type.Complet with compressor unit.Mains: 230V AC.

sophisticated Flame Photometer from India. The Flame Photometers offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting. Flame-photometers are used for determination of Sodium, Potassium, Lithium and Calcium in blood and soil samples. Various type of Flame photometers such as Microprocessor Based and Digital Flamephotometers are available. The most advanced technology is used to manufacture these flame-photometers Advanced features like PC connectivity through RS232 serial port connection to the computers is also available. The simultaneous measurement of two or more elements is available with single aspiration of sample.

Flame photometer is a high accuracy and stability instrument. It reads simultaneously NaK in its double display, and Li or Ca in the K channel and it has a memory able to keep the last lecture.

Enables speedy and accurate estimation of minute quantities of Na, K, Ca & Li Display : 2 ½ Digit LED Minimum Sample Volume : 3.5 ml Result within 30 seconds (Approx.) Air compressor with built-in air regulator and air filter (SYSTRONICS Model 126)

MICROPROCESSOR FLAMICROPROCESSOR FLAME PHOTOMETER is an ideal instrument for the determination of Sodium, Potassium, Calcium and Lithium. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. Lt has soft touch membrane keys for ease of operation. The solution is aspirated through an atomizer. Air, sample and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. The color of the flame is changed depending upon the concentration of elements present. A radiation from the flame passes through the sensing system and specific Narrow band interference filter which permits only the characteristic radiation to pass to the photo detector. The output of the Photo clerestory is then processed by the microcontroller and the final results are displayed on the digital display. The 5 point Calibration facility and non-linearly correction is provided through an automatic curve fitting software. Facility has been provided for Re-standardization with a single standard, thereby, eliminating the need of multiple standards once a calibration has been performed.

A photoelectric flame photometer is a device used in inorganic chemical analysis to determine the concentration of certain metal ions, among them sodium, potassium, lithium, and calcium. Group 1 and Group 2 metals are quite sensitive to Flame Photometry due to their low excitation energies. Parts of a flame photometer 1. Source of flame: A burner that provides flame and can be maintained in a constant form and at a constant temperature. 2. Nebuliser and mixing chamber: Helps to transport the homogeneous solution of the substance into the flame at a steady rate. 3. Optical system (optical filter): The optical system comprises three parts: convex mirror, lens and filter. The convex mirror helps to transmit light emitted from the atoms and focus the emissions to the lens. The convex lens help to focus the light on a point called slit. The reflections from the mirror pass through the slit and reach the filters. This will isolate the wavelength to be measured from that of any other extraneous emissions. Hence it acts as interference type color filters. 4. Photo detector: Detect the emitted light and measure the intensity of radiation emitted by the flame. That is, the emitted radiation is converted to an electrical signal with the help of photo detector. The produced electrical signals are directly proportional to the intensity of light. Applications: Flame photometer has both quantitative and qualitative applications. Flame photometer with monochromators emits radiations of characteristic wavelengths which help to detect the presence of a particular metal in the sample. This help to determine the availability of alkali and alkaline earth metals which are critical for soil cultivation. In agriculture, the fertilizer requirement of the soil is analyzed by flame test analysis of the soil. In clinical field, Na+ and K+ ions in body fluids, muscles and heart can be determined by diluting the blood serum and aspiration into the flame. Analysis of soft drinks, fruit juices and alcoholic beverages can also be analyzed by using flame photometry. Advantages: 1.Simple quantitative analytical test based on the flame analysis. 2.Inexpensive. 3.The determination of elements such as alkali and alkaline earth metals is performed easily with most reliable and convenient methods. 4.Quite quick, convenient, and selective and sensitive to even parts per million (ppm) to parts per billion (ppb) range.

A photoelectric flame photometer is a device used in inorganic chemical analysis to determine the concentration of certain metal ions, among them sodium, potassium, lithium, and calcium.

1st Lab-65 - Digital Flame Photometer (Single Channel) with filter (NA & K) 3 1/2 digit LED display (PPm)along with compressor and other accessories Ca & Li filter can be provided on request.   1st Lab-66 : Digital Flame Photometer (Dual Channel) single aspirations,with filter (NA & K).Final result in ppm,2 1/2 digit dual LED display for simultaneos result along with compressor & accessories

Digital flame photometer with filters Na & K 2 ½ digit LED display along with compressor and other accessories. Medi flame photometer with Na & K filters. Results in meq/1 for medical use. 2 ½ digit LED display with compressor and other accessories. Accessories Additional filter such as Na, K, Li, Ca each for flame photometer.
