Flashback Arrestor Dealers

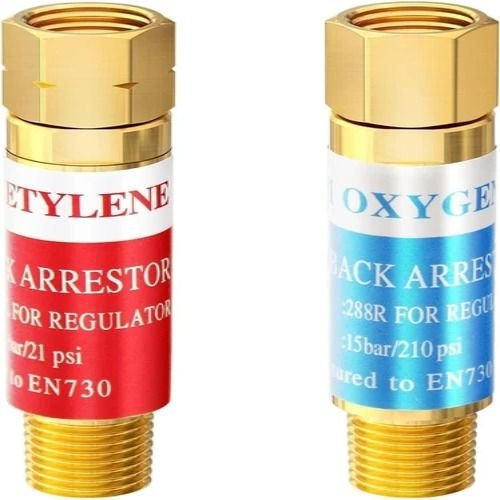

KING PROTECT R – FLASHBACK ARRESTOR FOR REGULATOR     Features and Specifications : Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against dangerous reverse gas flow and flashbacks. For pipeline outlets and single cylinders. The maximum ambient / working temperature is 70°C / 158°F. OPERATION / USAGE Standard Features : A large surface area flame arrestor of stainless steel construction extinguishes any dangerous flashback entering the device in any direction. A temperature sensitive cut-off valve extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level. A spring loaded non-return valve prevents slow or sudden reverse gas flow forming explosive mixtures in the gas supply. A filter at the gas inlet protects the arrestor against dirt contamination, extending the service life.

A Flash Back Arrestor is a system frequently found in oxy-fuel welding and chopping to prevent the fire from using the pipes to get right back up in to the apparatus and creating injury or explosions. Both major forms of these apparatus are dry and wet. Each has a unique benefit and disadvantage. At Axcel Gases one can find many popular Oxy-Fuel Flash Back Arrestors that would be dry. Dry Flash Back Arrestors usually use a variety of strategies to prevent flashback. This is the form that's usually within many workshops, houses and lightweight oxy-fuel packages because they perform in the same way successfully with any direction, require almost no preservation, and in many cases are little and mild enough to be mounted involving the flashlight and hoses. One important part is heat-triggered valves to prevent the gasoline movement completely. Since it depends on removing temperature from the flashback to prevent it from going on, many arrestors have a temperature-controlled device that may take off the gasoline movement when the system reaches about 90°C, till possibly the system cools or the reset switch is pushed. Fluid Close Fire Arrestors are water barriers following concept of a siphon where in actuality the water prevents the entering deflagration and/or detonation and extinguishes the flame. They perform by facilitating the gasoline via non-flammable and preferably non-gas-absorbing water, which can be usually water. They end the relationship by stopping it from achieving the absorbed intake. These units are commonly very efficient at ending flashbacks from achieving the secured part of the system. They've the drawbacks of just one direction and are generally significantly bigger than dried form arrestors. That makes them primarily just ideal for big or set installations and the water stage must be continually checked. These Wet Flash Back Arrestors are mainly used in industrial scenarios as opposed to the former.

The company share glorious credentials with the eminent Suppliers of Flashback Arrestors from Mumbai, Maharashtra, India. Our quality assurance experts scrutinize these on different parameters before the final dispatch.  Courtesy our brilliant logistics network, we are capable of delivering bulk orders of these within the promised timeframe. One can obtain these at market-leading prices from us.   Details Prevent reverse flow of gases with built-in check valve. Extinguish flashback fire with sintered metal fitter. Thermal cut-off which positively shuts off the gas in case of hose fire, burn or repeated flashback (only T version). Pressure operated cut-off which positively shuts off the gas when pressure exceeds (only 3T version).

  Available for oxygen and fuel gases (LPG/D.A). Special sintered flame Arrestor helps prevent flashback from the gas outlet side and cools downs the flame, to below the ignition temperature. Non-return valve prevents the reverse flow of gases.

We offer high-end Flashback Arrestors that are used to prevent flashbacks and help in protecting the equipment from flashbacks of flame. The Gravity Flashback Arrestors provided by us have a special flame arresting element that stops the flames from spreading any further and offer uninterrupted services as these have a high grade �O� ring that stays stable even at the highest temperatures. Model : FRO001 Brands Gravity Other Brands :AshaHMP ApprovalsCEISO 9001ESSAR Salient FeaturesAutomatic reset non-return valveMetal flame arresting elementPressure sensitive cutt off valveBrass costruction enhances service lifeLight weight & robust construction Easily Fitted inWelding TorchesCutting TorchesGas Pressure Regulators Finds Application inOxy-fuel weldingCutting

Equipped with the most up-to-date inventory control and management system, we cater to the seasonal demand to a continuous one as well. We keep records of the products to make sure that the range is kept safe in our spacious warehouse. We have different payment options to choose from as per the convenience of the clients. In the type of operation processed online, the procedure depends on the gateway or processor model; both of them ensure complete security. Features : Sturdy construction Corrosion resistant Dimensionally accurate

A flashback arrestor or flame arrestor is a device most commonly used in oxy-fuel welding and cutting to stop the flamefrom burning back up into the equipment and causing damage or explosions. Flashback arrestors typically use a combination of methods to stop flashback. This is the type that is typically found in most workshops, homes and portable oxy-fuel kits as they work just as effectively with any orientation, need very little maintenance, and are often small and light enough to be installed between the torch and hoses.

These arrestors have high capacity flame arresting capacity which effectively puts out the flame in case of full flashback. Available for both welding and cutting outfits i.e. for both regulators and cutters.

A advanced design unables safe usage of fuel gas includung propane, lpg, butane, hydrogen, acetylene gases etc. These flash back arrestors are avalable in two broad versions that is in wet and dry type.

Safety devices which are used with pressure regulators and gas cutter to prevent backfire. Stops the flame from burning back into the equipment causing damage or explosion.

We are one of the leading suppliers, traders and distributors of optimum quality Flashback Arrestor. These flashback arrestors are used for protecting single gas cylinders from flashbacks and backfires. With our wide and well-connected distribution network, these arrestors are delivered within the stipulated time frame at the customers end. Features: * Compact design * Easy installation

Flashback may occur on any flammable gas whether used in cutting, welding, heating, firing, soldering, melting or used for any purpose in any application. The flammable gas may return back quickly and reach the source or tank or cylinder creating a havoc. Paarth Flashback Arrestors and Anti Return Flow stop the return flow, stop the Flashback and cut off the supply.   Paarth Flashback Arrestors and Anti Return Flow are made in many different combinations of materials, sizes and thread connections. But to meet your standards of safety each one is created with unmistakable superiority to make you more safer than ever before. Superior Engineering: This has resulted in design, manufacturing, operational features and safety not found in like product. Superior Performance: Each Paarth Flashback Arrestors and Anti Return Flow is made to exacting quality standards, undergoes 100% rigorous production tests. This unwavering attention is to assure the best safety feature and performance from every “ARTH” Flashback Arrestors and Anti Return Flow. Superior Selection: Paarth Flashback Arrestors and Anti Return Flow is ideal for every process where safety is a single most priority and everybody’s business.

As we are counted among the reliable names in the industry, we are involved in carrying out a secured payment processing method. We undertake both online and offline methods for the convenience of the clients. Our establishment in Kolkata(India) is well connected by varied modes of transport. Thus, we are capable of reaching patrons with ease. Features : Longevity Reliability Perfect finishing

Flashback may occur on any flammable gas whether used in cutting, welding, heating, firing, soldering, melting, etc. The flammable gas may return back quickly and reach the source or tank or cylinder creating havoc. Our Flashback Arrestors along with and Anti Return Flow stop the return flow: stop the Flashback and cut off the supply. Flashback Arrestors are made in many different combinations of materials, size and thread connections. We are dependable Manufacturer and Supplier of Flashback Arrestor from Vadodara (Gujarat). Features Superior Engineering. Superior Performance. Superior Selection. Superior Manufacturing. Material Varieties of Non-Corrosive Materials. All Materials Confirm to IS Specifications. Compatible to Fluids & Environment Friendly. Connections : Wide range of external, internal as well combinations of threads. Design Advantages Leak Tight Integrity. No Gas Contamination. Compact in Size. Test : 100% Factory Tested with Certificate.
