BFV 100 Ball Float Valve
Get Price Quote
1 Piece (MOQ)
These are straight type with simple construction.As the float rises the piston in the body closes the valve drip-tight.

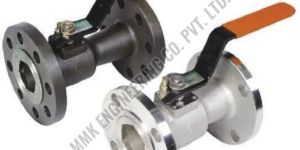

Cast Steel Floating Ball Valve
Get Price Quote
We offer Cast Steel Floating Ball Valve that is made in compliance with high quality standards of the industry. Our Floating Ball Valve is required in diverse industrial units. We have excellent manufacturing facilities owing to which our Floating Ball Valve has sturdy construction and higher durability. Features Low operating Torque. Design Std.EN ISO17292 / BS 5351. Blowout Proof Stem Design & Antistatic Device. Face to Face Dimension as per ANSI B 16.10. Testing as per EN ISO 12266-1. Fire safe tested design API 607/API 6FA. Flange Drilling as per ANSI B16.5 RF Serrated Full Bore / Reduced Bore On Request NACE as per MR-01-75. Locking arrangement. Gear/Pneumatic Actuator / Electrical Actuator. Emergency sealant injection. For low temp & Cryogenic Service as per BS 6364. Jacketed valves. Other Types of Ends & Drilling . Metal Seated valves
Best Deals from Float Ball Valve
Flush Tank Float Ball
10 - 20 Per piece
100 piece (MOQ)
AV-269 Cast Iron Ball Float Steam Trap Valve
Get Price Quote
20 piece (MOQ)
float valve for Water
5,000 Per Piece
1 Piece(s) (MOQ)
we are manufacturer and exporter of float valve, ball float valve it will be used in the power plants, water treatment plants, waster water plant, de-salination plants, fuel handling systems. Sizes from : 15nb to 300 nb our ball float valves are perfect finish. ball float valves can control the overflow of the liquid-water as well as maintain the water level in the tanks. export enquiry and orders are much expected.
Floating Type Ball Valve
Get Price Quote
Perfect Engineers is one of the leading Manufacturers, Supplier of Floating Type Ball valves. We provide superior quality products made according to Indian and international standards and specifications at offer the premium Quality to all our clients at a competitive and reasonable price. In a floating type ball valve, the ball is suspended in the flowing fluid and is retained in location by the compression of two elastomeric seats counter to it. The shaft is linked at the top of the ball and permits the switch from an open to a closed position with a quarter turn movement i.e. 90 degrees. When the shaft is moved, a load which is applied to the ball gets hard-pressed against its seats. This design of floating type ball valve is lightweight and economic, which matches bore sizes upto 10 inches: above this bore size, the seats of the valve will not be able to endure weightier and heavier balls and the valve would not work or operate securely and efficiently. Floating type ball valve provides a bi-directional shut-off of the liquid flow (as the trunnion ball valve type). Every Floating Type Ball valves we sell is sturdy, reliable, and will endure years of use or disuse. Floating Type Ball valves are resistant to corrosion and chemical abrasion. Floating Type Ball valves is 100% tested and quality checked. Our Floating Type Ball valves are known for tough make, durable and break proof. Floating Type Ball valves are available in material different types such as Stainless steel, Monel, brass and bronze.
Floating Ball Valve
Get Price Quote
10 Piece (MOQ)
Poultry Ball Float Valve
50 Per Piece
1000 Piece (MOQ)
Flush Tank Ball Float Valve
70 Per Piece
100 Piece (MOQ)
Brass Ball Float Valve
150 Per Piece
Oil Floating Ball Valves
Get Price Quote
Eries f 2 piece bolted body, fullreduced bore, flanged ends floating ball valve valve type floating ball valve with fire-safe seat design & mfg api 6d en 17292 nace mr0175-2009 inspection & testing api 598en 12266-1 size range dn 50- dn 200 (2â�³ to 8â�³) end connection flanged to rfrtj or butt weld pressure rating asme class 150300600 operating temp. (-) 46â°c to 200â°c body material wcblcbcf8cf8m ball material cf8cf8mf316 stem material ss316 duplex ss s31803 seat material rptfedelrinultrapeek operation levergear boxpneumatic actr.
Floating Ball Valves
Get Price Quote
We are one of the most loved manufacturers, suppliers as well as exporters of Floating Ball Valves. They are available with us in three different types- socket weld, butt weld and screwed end. We manufacture them under the supervision and guidance of a team of qualified experts who ensure that only the finest quality of goods is delivered. Our rates are relatively lower than that of most other similar products.
Floating Ball Valve
Get Price Quote
Ball Float Valve
150 Per Piece
Ball Float Valve
Get Price Quote
10 Set(s) (MOQ)
We offer Ball Float Valve.
Float Ball Valve
Get Price Quote
Lever Gear Operated Double ActingSpring Return Actuated Electrical actuated Gas Over Oil Actuated,Flanged Butt Weld.
Ball Valve FLOATING
200 - 20,000 Per 1 PER UNIT
1 Box (MOQ)
Floating Ball Valves
Get Price Quote
Floating Ball Type Pressure Relief Valve
Get Price Quote
We are offering floating ball type pressure relief valve. Pvc pressure relief valve floating ball type use in-take water channel, fore-way, reservoir, water treatment plant etc.
Floating Ball Valve
Get Price Quote
Ball Valves Manufacturers and Exporter in India. We offer high-quality Floating Ball Valves that are reliable and provide effective sealing with a simple construction. The ball moves along the axis of the pipeline and offers effective downstream sealing. By applying line pressure to the closed ball, it starts moving slightly (or floats) downstream for maintaining contact with the downstream seat where primary sealing occurs.
Floating Ball Valve
Get Price Quote
There are many different Starline models to cover the range of floating valves: STANDARD, MASTERSTAR, SUPERSTAR, SPLITSTAR, MEGASTAR, THREADEDSTAR With a size range starting from ¼" - 8" and pressure ratings from 150 to 2500lbs** (**class 900/1500 up to 2" class 2500 up to 1"). Within this range Starline offers all kinds of end connections (screwed, welded - long and short - flanged ASME or DIN) and soft seat/seals material (Virgin or Reinforced PTFE, Nylon, Delrin, Peek, Kel'f, Vespel, UHMWPE - O-rings in VITON (Aed,Glt) - Elast-o-lion, Chemraz, Kalrez, Aflas etc.). Starline also has a special line of Metal seated valves for abrasive and high temperature applications and one line of Cryogenic valves.
Ball Float Valve
Get Price Quote
Situated at Howrah(Kolkata) West Bengal in India Joy Krishna Engineering Works is leading S.S.I. unit of Howrah having ISO: 9001:2008 certifications from D.N.V and NSIC registered unit.We are one of the prominent manufacturers & suppliers of Ball Float Valve. Our range of valves and valve equipment offers international quality standards with unbeatable performance. These products are widely used in various industries. Features: All dimensions are in mm Flanges STD: IS:1538 (part IV & V)/76 Valve as per g & k Max. Working pressure 3.5 to 7 kg f/cm2. Test pressure 15 kg f/cm2
Floating Ball Valve
Get Price Quote
10 Pieces (MOQ)
Floating Ball Valve
Get Price Quote
Ball Float Valve
5,000 Per Piece
1 Piece (MOQ)
Floating Ball Valve
200 - 1,000 Per Piece
100 Piece (MOQ)
Brass Float Valve with PVC Ball
Get Price Quote
Floating Ball Valves
Get Price Quote
L&T Ball Valves are available in single-piece, two-piece and three-piece constructions. In these valves, line pressure forces the floating ball against the downstream seat to effect bubble-tight sealing. Blowout Proof Stem. The side-entry stem of L&T Ball Valves has a shoulder that bears against a matching shoulder in the body to make it blowout proof - the higher the line pressure, the better the sealing to atmosphere. High Integrity Stem Sealing. Sealing to atmosphere is further enhanced by stem thrust seals and stem packing rings. To compensate for wear and thermal expansions, Belleville springs are used. Mirror-finished Solid Stainless Steel Balls. To obtain bubble-tight sealing and lower operating torques, mirror-finished SS balls are used as a standard. The solid construction of the balls guarantees higher structural strength. Seats with Pressure-relieving Slots. Seats with fine grain structure are used to ensure better strength and longer life. Pressure-relieving slots are a unique feature of L&T Ball Valves. The slots relieve upstream pressure when the valve is in closed position and prevent seat damage. Actuator Mounting Flange. L&T single-piece and two-piece Ball Valves are provided with an integral actuator mounting flange conforming to ISO 5211. Please note that full bore valves in sizes DN 15 to DN 25 would be supplied with mounting arrangement as per L&T's manufacturing standard. Fire-Safe Feature. L&T fire-safe Ball Valves feature secondary metal seats. In the event of a fire, after the soft-seat totally sublimates, the ball moves and abuts the downstream metal seat to form a leak-tight seal. Cavity Pressure Relief Mechanism. A slight increase in temperature of fluid entrapped in ball cavity can cause a rapid increase of pressure and damage the ball and seats. To prevent this, L&T Ball Valves are equipped with automatic cavity relief mechanisms. When the valve is in open position, a hole provided on the ball connects the body cavity to the ball port and thereby ensure that cavity pressure does not build up. In the closed condition, when the cavity pressure rises above a designated level, the seat lip deflects to relieve pressure to the upstream side. Antistatic Feature. Static electricity builds up inside a valve when the ball rubs against non-metallic seats. This is a fire hazard, especially in flammable fluid pipelines. L&T Ball Valves have inbuilt antistatic mechanisms to provide electrical continuity. Stems of full bore valves of size 65 mm and above and regular bore valves of size 80 mm and above are equipped with spring-loaded plungers. In valves of smaller sizes, electrical continuity is achieved by using Carbon-filled PTFE thrust seal and graphite stem packings. On-line Service. Three-piece Ball Valves are designed for easy on-line service. To access the valve internals, remove three connector bolts and swing the body out using the fourth bolt as a pivot.
Floating Ball Valve
650 - 150,000 Per 1no
As a dependable name, based in Ahmedabad(India), we make available qualitative lot to every nook and corner ensuring maximum client satisfaction. Reckoned as outstanding Supplier & Manufacturer of Floating Ball Valve; we are a reliable choice amidst the customers. Our floating ball valves are designed with high strength, superior corrosion resistance and high surface finishing.
ball float type air vent valves
Get Price Quote
Air Release Valves BEP Ball Float vents are designed for automatic removal of air & non-condensable gases from liquid lines. The gas accumulated in the upper part of the valve installed at the highest point creates the pressure and thereby lowers the float which opens the outlet orifice & discharge the gas to the atmosphere. The plug valve type discharge orifice of vent valve ensures efficient & maintenance free operation with zero leakage. BEP vents are very much suitable for venting of Water/oil pipelines, storage tanks & process equipment.
