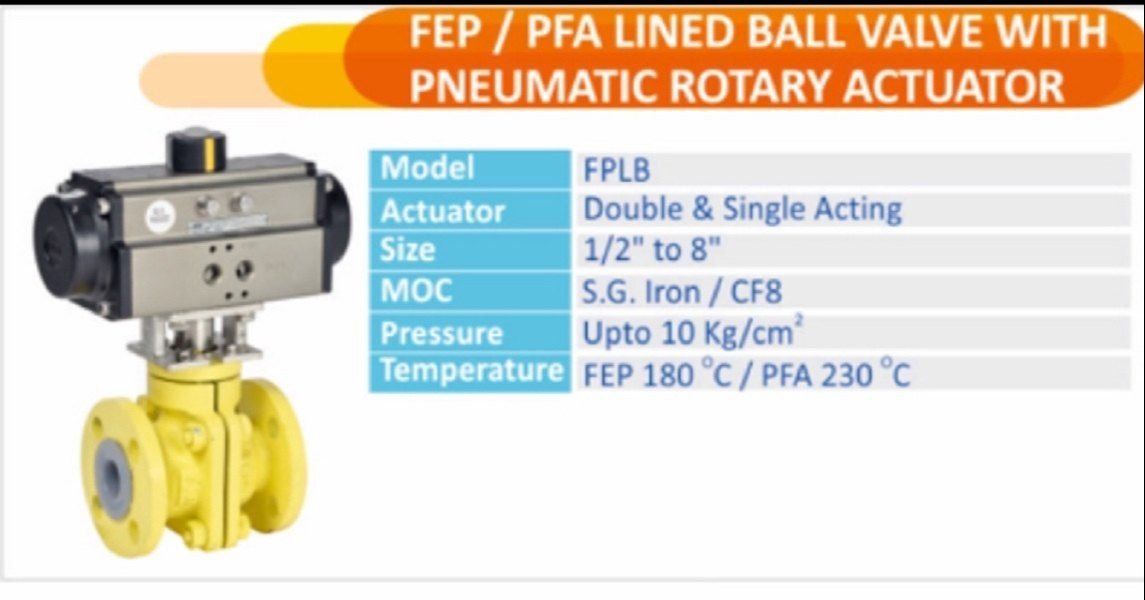

Features
Economical Solution
All wetted parts completely lined with Non permeable high grade virgin FEP / PFA
Direct actuator mounting with out use of adaptor for longer lasting performance
Successfully used in Hydrochloric Acid, Phosphoric Acid, Nitric Acid, Sulfuric Acid, Acetic Acid, Sea Water, Clorine, Bromine, Brine
Dove tail bonding grooves for superior bonding on FEP / PFA resisting shrinkage and collapse.
MOC : WCB / CF8 / CF8M / CF3M (ASTM A 351 Gr.) Cast Iron / S. G. Iron / Ductile Iron / Duplex / Hast Alloys
Size : 1/2" to 8"
Pressure : Upto 8 Kgs/cm2
Temperature : FEP : Upto 180 °C / PFA : Upto 230 °C
Ends : Flanged 150#
Single source manufacturing and supplying of Actuator, Accessories & Automation Parts
ApplicationGas Fitting, Oil Fitting, Water Fitting
FeatureDurable
Brand NameIPC
TypeFloating Ball Valve
PatternPlain
PressureHigh, Low, Medium
Structurestd
MediaLiquid / Gases
Port Size15mm to 600mm
Temperature Of Media( -29 to 480 )Deg Centigrade
Pressure Rating Class#150, #300, #600
Sizes15mm to 600mm
Mfg StandardsAPI 6D / ISO 17292 / ASME B16.34
Testing StandardsAPI 598 / API-6D
End DetailsASME B165 / ASME B1625
Fire SafeAPI 607 / API 6FA
End ComConnector, Flanged - Spection
Low torque design of ball valves make them very easy to operate with minimum effort
Sturdy Construction, easy to assemble and Install
MOC - WCB, CF8, CF81X, CF3, CF3M, WGC, wCG, Class II 400 & Class #8
We are offering ball float type air vent valves.
One of the suppliers of industrial products, providing various types of products such as ball float type air vent valves.
