Fluid Heater Dealers

We manufactures of steam boilers, thermic fluid heaters, hot water boilers, hot air generators, incinerators, supplier of burners, synthetic thermic fluid oil and its all spares, non ibr & ibr boilers service, and amc’s, aocs and all fabrication works.

In this ,the waste heat recoverd from flue gases is used for heating thermic fluids .Thermic fluid can be used as secondary medium which can transfer and exchange recovered waste heat for various applications like - water heating, steam generation, air heating, raw material pre heating etc.

JATINDERA BOILER COMPANY is the one name, which you can count on for the manufacturing and exporting of Thermic Fluid Heater. These Thermic Fluid Heaters are, fabricated by engineers with utmost precision to provide a helping hand in industrial applications. Range : Diesel Fired Thermic Fluid Heater Wood Fired Thermic Fluid Heater Characteristics : High performance Robust construction Non corrosive Easy to use Applications : Milk Industries Food Processing Industries Thermocole manufacturing Industries Pharmaceuticals Industries Textile Industries Chemicals Industries Plastic & Rubber Industries Timber Industries Metal Finishing Industries

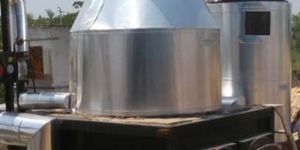

We are offering bagasse wood fire thermic fluid heater. Thermic fluid heater capacity 1,00,000 to 20,00,000 kcalhr thermic fluid heater (pro-therm): it consists of three pass helical concentric coil fabricated out of bq seamless tubes as per. Bs 3059 part ii. Schedule 40. One no. Of coil covering shell assembly made out of mild steel crc. And insulate outer surface with mineral wool and al cladding furnace: the fuel burns on the grate bars & grate bars fitted in the furnace chamber. Adequate grate area is providing for complete combustion. Boiler furnace is designed on induced draft phenomenon the draft helps in rate of firing. Adequate fire door and ash door are provided to feed the fuel. The fire bricks, castable cement, ceramic board are used to construct the furnace refractory. Radiant coil: the radiant coil is single pass and mounted on the top of furnace to transfer maximum heat to thermic fluid.

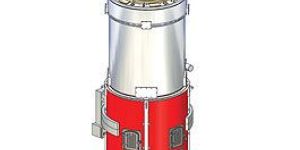

Being prominent name in the industry, we are offering technologically advanced Vertical Thermic Fluid Heater. Due to its salient features such as anti corrosive body and rugged construction, users greatly rely on Vertical Thermic Fluid Heater. Our experts monitor every single part of Vertical Thermic Fluid Heater on the basis of functionality and durability. We are prime Manufacturer, Exporter and Supplier of Vertical Thermic Fluid Heater in Maharashtra.

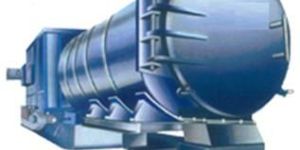

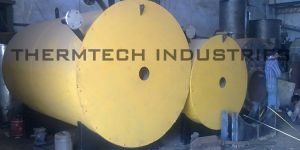

We offer highly efficient Thermic Fluid Heater that smoothly operates on a wide range of fuels. Our Thermic Fluid Heater is available in versions, i.e., solid fuel firing and oil or gas firing so that the user can reap the advantage of economically available fuels. All Thermic Fluid Heaters are made by using a coil type design that ensures instant heat. To run Thermic Fluid Heater, we provide various fuel options like light oil, heavy oil, dual fuel, gas, coal, wood, bagasse, husk, and other agro-waste fuels. Highlights : Sturdy construction Highly durable Smooth performance Low maintenance Special Features : High capacity heating system Multi-fuel option – heavy oils, light oils and gases Rugged - requires very little maintenance Over-bed & under-bed fuel firing systems can be incorporated Large in-bed and convective heat transfer area Product Range : Capacities : From 0.1 million kcal/hr to 12.0 million kcal/hr Temperature : Up to 3850C Firing fuels : Heavy oils, light oils and gases Efficiency : Overall efficiency of 85 % + 2% on NCV Solid fuel fired Thermic fluid heaters

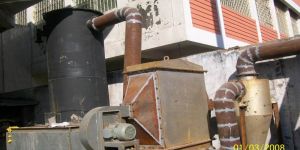

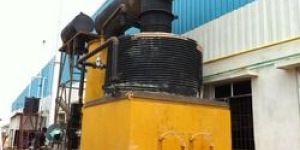

We are Leading Manufacturer, Supplier, Dealer & Exporter of Wood Fired Boilers. We are engaged in supplying of high quality Vertical Type Wood Fired Thermic Fluid Boilers, which are renowned for top quality and durability.

delta - solid fuel fired thermic fluid heaters solid fuel fired thermic fluid heaters are available in capacities from 1,00,000 kcals/hr up to 40,00,000 kcals/hr. The vertical design with integral furnace assures rated output on any solid fuel like coal, wood & bagasse. The well planned design of the delta ensures thermal expansion with low stress. the basic advantages of the delta arc, low operating cost reliable operation safety against low thermic fluid flow precise thermic fluid temperature control expansion cum dearator tank the expansion chamber cum deaerator tank is designed to ensure long fluid life. The combined tank has a unique design & offers significant protection against oxidation of thermic fluid. Tangenitial thermic fluid entry in the deaerator tank ensures good deaeration.

We are manufactures and supplyers Industrial Steam Boilers, Thermic Fluid Boiler, Hot Water Boilers, Hot air Generators, Incinerators, Synthetic thermic FLuid Oil, Industrial Diessel / Gas Burners, and all Its Spare Parts Available , More...

This system is forced circulation fully automatic thermic fluid heater where thermic fluid is circulated in a closed loop through heater and user equipment circuit where the heat is dissipated to process. The same thermic fluid is re-circulated through heater for heating. The thermic fluid heater gives high temperature upto 300 oC using thermic fluid oil at near atmospheric pressure as compared to steam heating which requires 85 Kg/Cm2 pressure. FEATURES   MULTIFUEL CONCEPT Guaranted output on low grade coal and lignite with GCV upto 3800 Kcal/Kg. Agricultural Wastes such as rice Husk, Bagasse, Groundnut shell, Saw Dust etc. HIGHEST EFFICIENCY The combustion chamber dimension and grate area are suitably designed for maximum combustion efficiency on low grade fuel. This system is easily accessible and large heating surface of Thermo Energy Systems heater and air pre-heater assures on unmatched efficiency f 76% (on GCV of coal having 5000 Kcal/Kg.) LOW POWER CONSUMPTION Unique design of Thermo Energy Systems heater ensures lowest power consumption over any other competing system available today. ABSOLUTE SAFETY External Combustion chamber ensures longer life of heater coil and thermic fluid. No radiation energy is transferred to heater coil in case of power failure ensuring complete safety. Diesel engine driven pump is not required for Fluid tech heater as compared to vertical systems. EXTERNAL FURNACE Coal/Lignite is burnt in an external furnace which results in an elimination of any possible hazard to the thermic fluid heater coil. A flue by-pass system is attached for the protection against power failure. The entire furnace is provided with steel casing and the combustion chamber is constructed with best quality high heat duty fire bricks and insulation bricks. Mineral wool insulating panels help minimum heat loss. THERMIC FLUID HEATER Here a nest of concentric helical tube coils is placed within sturdy mild steel shell. The special arrangement of concentric coils ensures optimum heat transfer. The system along with the standard accessories is conveniently mounted on the sturdy steel skid for easy installation.   SAFETY CONTROLES AND INSTRUMENTATION  Digital Electronic indicator cum controller forward/return temperature for ID fan off. Electronic stack temperature controller shuts of the unit in case of abnormally low temperature. Electronic low level controller in expansion cum deareated tank shuts off the unit in case of low thermic fluid level in tank. Electronic forward high temperature safety controllers shuts off the unit case forward temperature exceeds than minimum recommended temperature. Differential pressure switch shuts of in case of abnormal fluid flow conditions. Pressure gauge for inlet pressure measurement. Pressure gauge for circuit pressure measurement. Audio visual alarm for abnormal operating conditions.   OPTIONAL FEATURES  Coal cum oil firing system to change over from one fuel to another with minimum down time, Automatic by-pass damper with electromagnetic or pneumatic device. Modulating damper or variable speed drive to control combustion under all operating conditions.

We make available 4 Pass Thermic Fluid Heater which is reckoned for its robust make and high durability. We maintain proper schedules for the delivery of bulk or urgent consignments so as to deliver the range in set time and gain utmost customer satisfaction. Our complete range of product is wrapped in strong, nontoxic, and superior-grade packs that protect the contents inside from damage, moisture, logistic movement, etc. Furthermore, the packaging has product details printed on it.

We offer thermic fluid heater.we are manufacturer of steam boiler/ incinerator/ hot air/water generator/ thermic fluid heater/ autoclave / bio medical waste shredder / burner/boiler & its spares/supplying of synthetic thermic fluid oil.

fluidtherm or commonly known as thermic fluid heater is the most efficient and highly effective in process heating equipmentwhich uses high viscous oil as a heating medium. these are generally used in a system where the pressure is not desired in a process and temperature requirement is higher and using the boiler for high-temperature services may increase the cost of a project. it can improve process consistency and reduce downtime leading to further increase in profitability. thermodyne engineering systemsmanufacture thermic fluid heaters that can be used to heat various fluids such as thermal oil, petroleum oil, therminol, and even water. application of thermic fluid heater: they can be used in various process industries such as:- food processing industries rubber and plastics industries publishing and print industries metal fabrication and finishing plants paper industries textile industries natural gas processing plants crude oil extraction and processing industries. chemical industries plywood and laminates confectionery working and construction of fluidtherm: the thermic fluid heater consists of a specially designed high pressure and temperaturethermic fluid pump which circulates thermic fluid into the coil. it consists of two concentric coils in which inner coil acts as a radiation zone and outer coil act as convection zone. Flue gas velocity is generally higher between the 2 coils and between the coil and the outer shell, so higher the velocity higher will be the convective heat transfer between the flue gas and fluid. it can be made either 3 pass or 4 pass depending on the design of thermic fluid heater and the type of fuels to be burnt. The efficiency of the heater increases with increase in the number of passes. the maximum temperature of 350℃ of thermal fluid can be achieved in a fluidtherm although the higher temperature of the thermal fluid can be achieved provided the temperature of fluid does not exceed the autoignition temperature. thermodyne, fluidtherm – thermic fluid heater also consists of deaerator and expansion tank. The density of fluid decreases with increase in the temperature of fluid so a tank is generally installed in a process to help accommodate the extra volume of fluid which is increased due to increase in the fluid temperature. For every 100℃ rise in the fluid temperature, the volume of fluid increases by 7% so expansion tank is added to take care of that extra volume. deaerator tank is combined with the expansion tank and is generally used to vent out air from the fluid which acts as resistance in transferring heat to the fluid. thermodyne, fluidtherm can be used to burn the different type of fuels such as:- solid fuels – wood, coal, petcoke, rice husk, etc. liquid fuels – light diesel oils, heavy oils, etc. gaseous fuels – natural gas, liquified petroleum gas, etc. advantages high capacity heating system fully automatic unit – maintains the desired temperature of the thermic fluid high system efficiency – reduced operating cost. best applicable for high-temperature heating can attain temperatures upto 300 o c minimum site work and ease of installation can operate on the variety of fuels as per local availability failsafe design and dependable safety instruments rugged design and superior construction high flow rate ensures the higher life of thermic fluid and heater coil backed by prompt and efficient after sales service deaerator/expansion tank integral arrangement type capacity fluidtherm is available in capacities from 1 lac kcal/hr to 25 lac kcal/hr

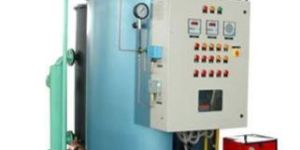

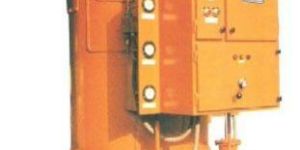

clients can avail from us, highly efficient 3 pass liquid phase thermic fluid heater. Our 3 pass liquid phase thermic fluid heater is a compact, rigid, noiseless & fully automatic hot air heater / furnace. These 3 pass liquid phase thermic fluid heaters have user- friendly features and are very easy to operate. our 3 pass liquid phase thermic fluid heaters operate automatically on pre set temperature. applications chemicals : reaction kettles, evaporators, distillation columns, tray dryerstextile : polymerizers, curing machines stenters, winches, dryers etcplastic & rubber : bounding and curing vulcanizing-heating for extrusion presses impregnation process moulding and laminating pressingtimber : veneering presses plywood manufacture and timber dryingmetal finishing : heating plating picking anodising and photphating bates, drying ovens degreasing plants food industry: refining process, fruit & vegetable canning, dehydrationpackaging : rotogravure, flexography, metallsing etcrubber : hydraulic presses chambersconfectionery : dryers, mixersmiscellaneous : insulation drying sealing batteries, perfume manufacture and printing ink drying, heating of bulk storage tanks, bitumen heating spaces heatingbesides the above, thermic fluid heater can also be used for a number of other applications designed and constructionil burner & electricals the internal combustion chamber is used to accommodate concentric helical tube machine wound coil, (fabricated out of erw) boiler tube as bs 3059) this coil is placed in a double shell of mild steel construction. This of design helps in economizing the space and simultaneously ensures optimum rate of heat release due to elimination of extensive use of refractory, it permits rapit start up and operational and maintenance flexibility. combustion a fuel automising pressure - jet burner fitted with fuel oil nozzle from "monarch" (usa) is placed vertically download for combustion a drynamically balanced blower fan pushes combustion air through the annular space between the inner and outer shell where air is pre-heated for efficient combustion and higher efficiency the air acts as an effective thermal insulator eliminating the need for conventional insulation near the tip of burner air is swirled through astainless steel diffuser plate and mixes with automised fuel which achieve total combustion in the furnace. burner and fuel system from fuel tank the oil goes to a fuel filter then into a fuel pump through the fuel pump it is passed into an electrically heated oil pre-heating tank (this is in case of l.d.o) and them forced to burner the thermic fluid heater is supplied with pressure-jet burner of highly compact rugged and simple design the burner is fully automatic in operation and switches on and off as per the process heat requirements. no steam - no indian boiler regulations the amco therm is outside the purview of indian boiler regulations since no steam is generated no statutory inspections are required eliminating the need for a shut-down of the process there is no need for a separate boiler houses or even a qualified boiler attendant. no corrosion no scale formation the heat transfer fluids used in the anco therm thermic fluids heater are of mineral origin and do not contain any dissolved solids which cause corrosion of scale formation which is prevalent in case of steam boiler because of this thermal efficiency remains uniformly high, and this is sustained over a long period. instrumentation control and safeties amco therm is a fully automatic thermic fluid heater fitted with safety devices like high fluid temperature switch pressure switch low level switch in expansion tank spring loaded safety valve high stack temperature switch, flame sensor low fuel oil temperature switch and circulating pump motor interlock. The unblended operation is possible due to efficient design and highly reliable instruments from manufacturers like : landis & gyr (germany) monarch (usa) danfoss (denmark),larsen & slemen , ngef, crompton, kirioskar saizer, finolex, bells, indfoss ,tata/ti,toubro,k.s.b -auro etc. Adust proof pre wired control panel housing mcbs, overload relay ,contractors safety alarms, temperature controllers, temperature indicator and sequence controller has audio-visual alarms for abnormal working conditions. after sales services each thermic fluid heater is rigidly tested before delivery and commissioned by our trained engineers we have efficientand attentive after-sale-services network including servicing and supply of spare parts. All our general spares are readily available with us and local market also. technical specifications detailsmodelat – 0.5at – 01at-0.2at-04at-06at-10at-15heat output kcal/hrs500001,00,0002,00,0004,00,0006,00,00010,00,00015,00,000fuel consumption (approx.)l.d.okg/hrs5.711.422.945.768.6114.4171.6h.s.d.5.611.2522.54567.6112.7169.1thermal efficiency87% + 1% on nett calorific value (ncv)electrical supply415 + 6% 560 hz + 3%, ac – 3 phase, 4 wirecirculating pump motorhp2.05.07.512.515.020.025.0kw1.53.75.59.411.2515.018.8fuel pump motorhp♦♦♦♦0.51.01.0burner motorhp0.51.02.03.05.010.015.0kw0.370.751.52.23.73.711.0burner controlon – off0-50% on-off 60 – 100% low high0-33% on-off 33-100% mcoulationtotal connected loadkw2.05.08.012.015.023.030.75dry height (approx.)kg75093013001350300036004100overall dimensions (meters)length1.21.501.591.852.142.403.0width0.790.841.031.831.902.302.50height0.792.102.262.803.263.504.30 note fuel oil consumption is based on nett calorific value of (hsd)10200 kcal/kg ldo 10050 kcal/kgwe reserve the right to change any specification without prior notice
