Forged Steel Gate Valve Dealers

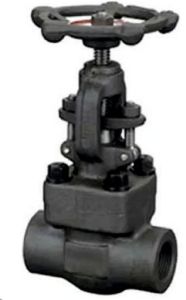

J. D. Controls Forged Steel Gate Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction Body and bonnet made from high quality forgings. J. D. manufacturing Forged Steel Gate Valves in size 1/2 (DN15) to 2 (DN50) to suit various critical, non-critical applications and pressure rating up to 1500 class in Regular (Reduce) bore & Standard (Full bore) design. DESIGN & TESTING INTERNATIONAL STANDARD:  Valve Design                           : API 602 / BS 5352 Pressure Testing                     : API 598 / BS 5146 Face To Face                         : ANSI B 16.10 Butt Weld End                         : ANSI B 16.25 Socket Weld End                    : ANSI B 16.11 Screwed End                          : ANSI B 1.20.1(BSP/NPT)   SALIENT FEATURES: Body & Bonnet made from high quality forging. The Forgings are precision machined for high performance Leak Proof Body-Bonnet Joint With Spiral Wound Gasket Bi-Directional Shut-Off Ground Finish Stem Self Aligning Two Piece Gland Die moulded Graphite (Grafoil) Packing Rings, controlled clearance between stem, gland and bonnet bushing for guaranteed low emissions and also suitable for higher temperature. Deep stuffing box is providing for tightness and maximum long packing life. Swinging Eye Bolts facilitate easy access to the stuffing box. Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position. Stellited Wedge (Gate), Seat Ring & Back Seat can also be offered on special request.

Forged Steel Valves Forged Steel GateGlobeNon-Return Valves are for high pressure applications have compact design and are manufactured as per API 602 and are perfect for small Pipelines up to 50NB. They come with a choice of Threaded or Socket Weld ends. The Hard Faced Trim material guarantees faultless Sealing and durability. They are perfectly machined and are provided with a Lapped Back Seat in case of Gate and Globe types so that the Gland Packing in stream can be replaced andor repacked; when the Valve is in full open position so that it is highly safe, and cost-effective.

Specification & Features:Conforming To API 602 BS EN - 15761 Screwed female ends to NPT / Socket Welded Ends To ANSI B 16.11Bolted bonnet, outside screw, yoke type, rising steamHandwheel Operated, Sturdy in design & superb in quality. Pressure / Temperature ratings:
