Forged Steel Gate Valve Dealers in Ahmedabad

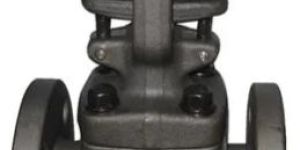

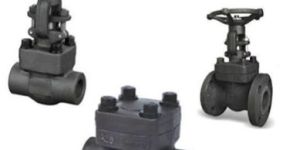

Forged Steel Valves Forged Steel GateGlobeNon-Return Valves are for high pressure applications have compact design and are manufactured as per API 602 and are perfect for small Pipelines up to 50NB. They come with a choice of Threaded or Socket Weld ends. The Hard Faced Trim material guarantees faultless Sealing and durability. They are perfectly machined and are provided with a Lapped Back Seat in case of Gate and Globe types so that the Gland Packing in stream can be replaced andor repacked; when the Valve is in full open position so that it is highly safe, and cost-effective.

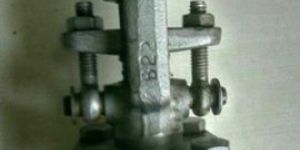

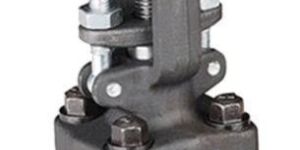

Nivz Valves Forged Steel Gate Valves are Bolted Bonnet, outside screw and yoke type, rising spindle & non rising hand wheel construction. Nivz Forged Valves Body and bonnet made from high quality forgings. Nivz Valves & Automation manufacturer and exporter Forged Steel Gate Valves in size 1/2” (DN15) to 2” (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 1500 class. Nivz make Forged Steel Gate Valve manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port gate valves have fast delivery or ready stock, for Standard Port gate valve do manufactuing on order basis. Nivz manufacture Forged Steel Gate Valve in wide range of Body Materials like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L - Forged Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22 - Alloy Steel to suit high temperature and pressure industrial application. Forged Steel Gate Valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Gate Valve available in Threaded End (BSP / NPT Female), Socket Weld End, Butt Weld End, Weld Neck End and Flanged End Connection. For flanged end connection Forged Steel Gate Valve flanges will be a fabricated / welded with a valve body, flanges are not integral forged with body. Wide range of Forged Steel Gate Valve Manufacturer, A 105, F11, F22, F304L, F316L Material Forged Valve Exporter, Stockist, Supplier, Importer. Application Power Plants & Process Industries Petrochemical Plants & Refineries Fertilizers Plants Cement & Steel Industries Process & General Industries Sugar Industries & Distillery Plants Water, Steam, Gas, Oil & other Non-aggressive media Other application on request Salient Features of Gate Valve Body & Bonnet made from high quality forging. The Forgings are precision machined for high performance Leak Proof Body-Bonnet Joint With Spiral Wound Gasket Ground Finish Stem Self Aligning Two Piece Gland Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.

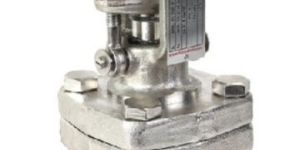

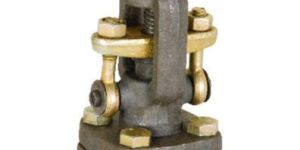

J. D. Controls Forged Steel Gate Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction Body and bonnet made from high quality forgings. J. D. manufacturing Forged Steel Gate Valves in size 1/2 (DN15) to 2 (DN50) to suit various critical, non-critical applications and pressure rating up to 1500 class in Regular (Reduce) bore & Standard (Full bore) design. DESIGN & TESTING INTERNATIONAL STANDARD:  Valve Design                           : API 602 / BS 5352 Pressure Testing                     : API 598 / BS 5146 Face To Face                         : ANSI B 16.10 Butt Weld End                         : ANSI B 16.25 Socket Weld End                    : ANSI B 16.11 Screwed End                          : ANSI B 1.20.1(BSP/NPT)   SALIENT FEATURES: Body & Bonnet made from high quality forging. The Forgings are precision machined for high performance Leak Proof Body-Bonnet Joint With Spiral Wound Gasket Bi-Directional Shut-Off Ground Finish Stem Self Aligning Two Piece Gland Die moulded Graphite (Grafoil) Packing Rings, controlled clearance between stem, gland and bonnet bushing for guaranteed low emissions and also suitable for higher temperature. Deep stuffing box is providing for tightness and maximum long packing life. Swinging Eye Bolts facilitate easy access to the stuffing box. Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position. Stellited Wedge (Gate), Seat Ring & Back Seat can also be offered on special request.

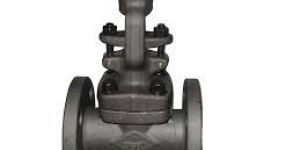

Design Features : Design & Manufacturing : API602/ISO 15761 for Class 800 & 1500, ASME B 16.34 for Class 2500 Inspection and Testing : API 598, BSEN 12266 Part – 1 & 2 End Dimension : ASME B 16.11 for Socket Weld & ASME B 1.20.1 for Screwed End BW End Dimension : ASME B 16.25 Face to Face & End to End Dimension : Manufacturer Standard Gasket Design : ASME B 16.20 Plug/Disc Design : Parabolic, Regulating, Soft seated Wedge Design : Solid wedge

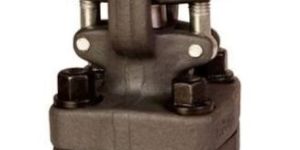

Highly praised for presenting high-grade quality Forged Steel Gate Valve, we are a celebrated Supplier in the market. We are supported by a well-managed and automated warehouse system wherein we store the entire lot in a secured manner. The automatic handling, storage and distribution of the goods thus become an ease.

BODY ASTM A 105 BALL AISI 304 | ASTM A 351 Gr CF8 STEM AISI 304 SEAT & SEALS PTFE MFG STD BS 5351 | BS 5159 INSP & TEST STD BS 6755 PORT FULL BORE | REDUCE BORE ENDS SCREWED TO BSP | BSPT | NPT

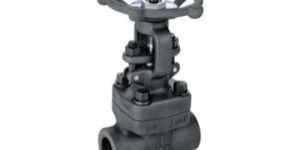

We are offering forged steel gate valve, jupiter controls valves forged steel gate valves are bolted bonnet, outside screw and yoke type, rising stem design. Jupiter controls forged valves body and bonnet made from high quality forgings. Jupiter controls offer forged steel gate valves in size 12” (dn15) to 2” (dn50) to suit various critical, non-critical applications and pressure rating in 800 class. Jupiter controls forged steel gate valve manufacturing range covers regular port and standard port both types of valve. Regular port gate valves have fast delivery or ready stock, for standard port gate valve do manufactuing on order basis. jupiter controls offer forged steel gate valve in wide range of body materials like astm a 105 - forged carbon steel, astm a 182 f 304304l316316l - forged stainless steel 304304l316316l, astm a 182 f 1122 - alloy steel to suit industrial application. Jupiter controls forged steel gate valves are available under any third party inspection also. For high pressure & temperature application stellited f6 face seat & gate available. Forged gate valve available is threaded end, socket weld end, butt weld end and flanged end connection. For flanged end forged gate valve flanges will be a welded with a valve body not integral forged. In haryana manufacturer trading & exporter of wide range of industrial forged steel gate valves rising stem forged steel gate valve (regular port) non-rising hand wheel, bolted bonnet forged gate valve (regular port)

Technical Data:   Manufacturing Std : BS 5352 / API 602 Face to Face : ASME B16.10 End Connection : Flanged Ends to ASME B16.5, RF Inspection and Testing Std : BS 6755 (Part-1) / API 598

Forged Steel Gate Valves, Ball Valves, Butterfly Valves, Check Valve
