Gravity Limit Switch Dealers

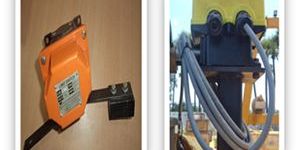

Speedage” make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current. The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54). WE HAVE TWO TYPE OF HOUSING OF GRAVITY LIMIT SWITCH.

For additional protection of operator, hoist, and load. Positive acting, momentarily reverses the hoisting motion if lower block drifts too high. Rotary type limit switches for safety purpose & control the upper limit & lower limit of Hooks.

The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cyclessec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action. The Limit Switches are made in IP 54 enclosure. The housing is made of Cast Iron Cast Aluminium. The base and cover have machined surface to protect against dirt and dust.

We are offering gravity limit switch are used for heavy duty e.o.t. Cranes, wagon shunting devices etc to prevent over travel. Our engineers manufacture these switches using cast iron or cast aluminum, so as to ensure that these possess sturdy design and work for longer duration. The offered range is tested on various parameters of quality in order to deliver flawless range at the client's end. specifications: body material : powder coated aluminum die cast degree of protection : ip-55 mounting position : floor cable entries : 2, 3/4" conduit no. Of contact : 2/3/4 rated voltage insulation : 500 v.a.c thermal test current : 10/40 amps operation : 720/hour

Counter weight Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists to prevent over travel of hoisting motion on power and control circuit up to 500 V and 40 Amps. continuous current. The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Counter Weight limit switch operates when it reaches a predetermined position when the weights rest on the surface of the limit switch. Supplier of Counter weight Limit Switches and manufacturer of Counter weight Limit Switches. Pethe Industrial Marketing Company Pvt. Ltd. is the leading manufacturer of Counter weight Limit Switches in India. Pethe Industrial is the leading supplier of Counter weight Limit Switches in Mumbai, Maharashtra, Gujarat, Delhi, and all over India.

Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current. The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).

We have uniquely positioned ourselves as a dependable firm, engaged in manufacturing and supplying Gravity Limit Switch. It is used for EOT cranes steel mills, metallurgical plants, mining equipments, mobile equipments & machines tools. To manufacture this switch, our dexterous manpower uses quality grade materials and components. It comes with a dust proof housing made of cast iron. Gravity Limit Switch is used on control or power circuit of reversing drive to limit its rotation and movement within a predetermined position.

Gravity Limit Switch, Automation Products, Weight Operated Limit Switche

Gravity Limit Switches, Cable Carriers, Cable Trolle

Gravity Limit Switche

Counter Weight Gravity Limit Switc

Gravity Limit Switches, Brake Liner, Festoon Trolle

Manufactured with the modern age technology using high grade material, these Manual Impulse Sealers is offered to our clients in varied specifications. It is used for heavy duty E.O.T. cranes, hoists, cable trolleys and winches to prevent over travel of hoisting motion on power and to stop the mechanism of closinghosting motors. This switch is highly acknowledged in the market for its features like less power consumption, high operational fluency and minimal maintenance. Tested in accordance with industry standards, it ensures long service life.

Gravity Limit Switch, Break Liner Thyristor, Flameproof Limit Switc

Gravity Limit Switch, Electro Hydraulic Thrustor Brak

Gravity Type Limit Switch, Instrumentation Panel, Weighing Instrument Pane

Gravity Limit Switch, Electro Hydraulic Thruster Brak

Gravity Limit Switch, A.C. Electromagnetic Brake, Wire Wound Resistance Bo

Weight Operated Gravity Limit Switch, Anti Collision Devic

Gravity Limit Switch, AC Disc Brake, EOT Crane Repair Servic

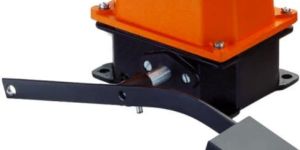

We are offering gravity limit switch. Weight operated limit switches introduction : weight operated limit switches are used on control / power circuit of reversing drives so as to limit their rotation / movement within a predetermined position. operation : when the snatch block of the crane reaches its top position the snatch block pushes a plate which is hanging from one end of the lever of the limit switch. Due to the weight placed on the other end of the lever this lever is pushed up. when the lever is pushed up the shaft to which this lever is connected rotates there by rotating the cams which eventually open the contacts and disconnect the motor the limit switch contacts are automatically reset when the lever returns to zero position due to gravitational force. technical data: body material : powder coated aluminum die cast degree of protection : ip-55 mounting position : floor cable entries : 2, 3/4" conduit no. Of contact : 2/3/4 contact : double break silver cadmium wire connection : screw terminal rated voltage insulation : 500 v.a.c. thermal test current : 10/40 amps. operation : 720/hour

Gravity Limit Switch, Electro Hydraulic Thrusters for Cran

Gravity Limit Switch, Electro Hydraulic Thruster, Anti Collision Devic

Gravity Weight Limit Switch, Electro Hydraulic Thruster Brak
