The new range of Limit Switch has been designed and manufactured for use on reversing drives such as hoists, winches, rolling mills etc. It is compact in design and can be easily accommodated and installed on electric hoists, where space constrains are there.
The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastics. The rotational movements are transmitted to switches by adjustable cams.
These Limit Switches come with worm gear drive ratio of 1:12.5, 1:50, 1:100, and 1:200. Specific worm gear drive ratios can also be supplied on request, as per the customer’s requirement.
These Limit Switches are supplied with IP65 degree of protection.
The contacts of the limit switches are 10 amps. rated at 500 V a.c.
The new range of Limit Switch has been designed and manufactured for use on reversing drives such as hoists, winches, rolling mills etc. It is compact in design and can be easily accommodated and installed on electric hoists, where space constrains are there.
The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastics. The rotational movements are transmitted to switches by adjustable cams.
These Limit Switches come with worm gear drive ratio of 1:12.5, 1:50, 1:100, and 1:200. Specific worm gear drive ratios can also be supplied on request, as per the customer’s requirement.
These Limit Switches are supplied with IP65 degree of protection.
The contacts of the limit switches are 10 amps. rated at 500 V a.c.
We are Leading Manufacturer & exporter of Electro hydraulic Thruster Brake. Thruster Brakes is a device used to retard the speed of moving machinery and to stop it accurately to the desired position. The braking force is applied to the brake shoes by a per-stressed comprising spring. The shoes press on the rotating brake drum retarding its speed and finally stop it. The releasing of the brake drum and compressing of the spring is done by thruster.
We are Leading Manufacturer & exporter of Electro hydraulic Thruster Brake. Thruster Brakes is a device used to retard the speed of moving machinery and to stop it accurately to the desired position. The braking force is applied to the brake shoes by a per-stressed comprising spring. The shoes press on the rotating brake drum retarding its speed and finally stop it. The releasing of the brake drum and compressing of the spring is done by thruster.

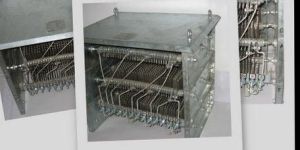

Stainless Steel Wire Grid Type Resistors
These Resistances Consist of corrosion resistant Stainless Steel Wire or Strips in the form of Grids. The Current rating generally ranges form 7 Amps. to 80 Amps. continuous. Higher ratings ate possible by using multiple parallel paths.
The main advantages of these resistances are reliability, compactness, light weight and relatively low cost
The terminals are easily accessible and cable box fitted as required. The terminals are made of heavily plated metal and each one is securely clamped between the grids
Stainless Steel Wire Grid Type Resistors
These Resistances Consist of corrosion resistant Stainless Steel Wire or Strips in the form of Grids. The Current rating generally ranges form 7 Amps. to 80 Amps. continuous. Higher ratings ate possible by using multiple parallel paths.
The main advantages of these resistances are reliability, compactness, light weight and relatively low cost
The terminals are easily accessible and cable box fitted as required. The terminals are made of heavily plated metal and each one is securely clamped between the grids

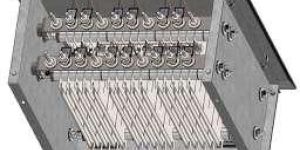

Stainless Steel Punched Grid Type Resistors
“Speedage” Punched grid resistors consists of grids punched from corrosion resisting Nickel Chromium alloy sheet steels. The inherent strength of the steel itself is very high and owing to the pressed and reinforced construction the rigidity of the grids are completely immune to shock and vibration.
These resistors are available in a wide range of current ratings form 15 Amps. to 234 Amps. continuous and the fixing dimensions and weight of various type of grids are identical, which means the different type of grids required for various steps of resistance would have identical size and mounting dimensions
To order a resistor assembly, simply obtain the motor information required for your particular requirements and contact the engineering department at the “Speedage Engineers” factory to design a resistor assembly for your application.
Data Requirements: • Motion (Hoist or Travel) • Secondary Voltage and Current (Rotor Voltage/RV and Rotor Current/RA)• Duty: Indoor / Outdoor• Horsepower • Type of Control Scheme (Pendent Push Button / Master Controller / Drum Controller) • Number of Speeds
Stainless Steel Punched Grid Type Resistors
“Speedage” Punched grid resistors consists of grids punched from corrosion resisting Nickel Chromium alloy sheet steels. The inherent strength of the steel itself is very high and owing to the pressed and reinforced construction the rigidity of the grids are completely immune to shock and vibration.
These resistors are available in a wide range of current ratings form 15 Amps. to 234 Amps. continuous and the fixing dimensions and weight of various type of grids are identical, which means the different type of grids required for various steps of resistance would have identical size and mounting dimensions
To order a resistor assembly, simply obtain the motor information required for your particular requirements and contact the engineering department at the “Speedage Engineers” factory to design a resistor assembly for your application.
Data Requirements: • Motion (Hoist or Travel) • Secondary Voltage and Current (Rotor Voltage/RV and Rotor Current/RA)• Duty: Indoor / Outdoor• Horsepower • Type of Control Scheme (Pendent Push Button / Master Controller / Drum Controller) • Number of Speeds
This range of Limit Switch is suitable for reversing drives, such as Hoists, Cranes, Winches, Rolling Mills etc
MECHANICAL FEATURES OF LIMIT SWITCH
Aluminium Die casted main body and thermoplasic cover
Protection - IP 65
Maximum number of operating contacts - 6
Cable entry - 2 Nos.
Operating Temperature -Â Â -100 C to + 700 C
Cams & micrometic adjustments screws allows precise setting of cams as per requirement
Cams shaft and worm gear with ball bearing
Gear ratio -     1:50 , 1:100
ELECTRICAL FEATURES OF CONTACT ELEMENTS
Snap action contacts - 1NO + 1NC change over switches
Silver cadmium Contacts
Test Voltage - 2000 V AC
Operating Current - 10 A rated at 415 V AC
Mechanical life - 1 X 106 operations
This range of Limit Switch is suitable for reversing drives, such as Hoists, Cranes, Winches, Rolling Mills etc
MECHANICAL FEATURES OF LIMIT SWITCH
Aluminium Die casted main body and thermoplasic cover
Protection - IP 65
Maximum number of operating contacts - 6
Cable entry - 2 Nos.
Operating Temperature -Â Â -100 C to + 700 C
Cams & micrometic adjustments screws allows precise setting of cams as per requirement
Cams shaft and worm gear with ball bearing
Gear ratio -     1:50 , 1:100
ELECTRICAL FEATURES OF CONTACT ELEMENTS
Snap action contacts - 1NO + 1NC change over switches
Silver cadmium Contacts
Test Voltage - 2000 V AC
Operating Current - 10 A rated at 415 V AC
Mechanical life - 1 X 106 operations
Speedage” make Rotary geared type Limit Switches are used on control and power circuit of reversing drives so as to limit their rotation/movement within a predetermined position. The function of the Limit Switch is to stop the mechanism or drive at the extreme forward / reverse position.
The limit switches are particularly suited for use on reversing drives such as hoist, winches, rolling mechanisms used in steel plants such as coke ovens, feeding machinery, valve drives etc.
The Geared type Rotary Limit Switch basically consists of heavy duty worm gear drive with a ratio of 48:1 or 60:1. the worm gear unit is built in a sturdy cast aluminium housing which is fitted on the main body of the Limit Switch, covered with dust tight gasket in cast aluminium enclosure.
The limit switches are made in IP 54 enclosure with cast Aluminium cover duly machined surfaces to protect against dust and dirt.
Speedage” make Rotary geared type Limit Switches are used on control and power circuit of reversing drives so as to limit their rotation/movement within a predetermined position. The function of the Limit Switch is to stop the mechanism or drive at the extreme forward / reverse position.
The limit switches are particularly suited for use on reversing drives such as hoist, winches, rolling mechanisms used in steel plants such as coke ovens, feeding machinery, valve drives etc.
The Geared type Rotary Limit Switch basically consists of heavy duty worm gear drive with a ratio of 48:1 or 60:1. the worm gear unit is built in a sturdy cast aluminium housing which is fitted on the main body of the Limit Switch, covered with dust tight gasket in cast aluminium enclosure.
The limit switches are made in IP 54 enclosure with cast Aluminium cover duly machined surfaces to protect against dust and dirt.
The Receiver of the system contains 9 potential free contact relays (7 + Start + Alarm) which can be configured as per the requirement. The Receiver also contains a feedback module which continuously monitors the internal circuitry and enables the user to check the Receiver status via LED on the Receiver.
Operated with 2AA size batteries and modular design of the system makes it easy to maintain.
The Receiver of the system contains 9 potential free contact relays (7 + Start + Alarm) which can be configured as per the requirement. The Receiver also contains a feedback module which continuously monitors the internal circuitry and enables the user to check the Receiver status via LED on the Receiver.
Operated with 2AA size batteries and modular design of the system makes it easy to maintain.
Compact light weight and ergonomic design.
Made of high impact ABS resin
High visibility –safety yellow colour
Variable diameter cable bushing with clamp accommodates a wide range of cables size.
Easy to push pressure switches.
Compact light weight and ergonomic design.
Made of high impact ABS resin
High visibility –safety yellow colour
Variable diameter cable bushing with clamp accommodates a wide range of cables size.
Easy to push pressure switches.
Neutral Grounding Resistors are used to protect power transformers, power generators and other associated equipment in your power systems against 50/60 Hz faults (short circuit) and transient phenomena (lightning).SPECIFICATIONSThere are three parameters needed to specify the neutral grounding resistor.1. Rated voltage line to neutral or system voltage2. Rated fault current.3. Rated “time on” of the line to neutral voltage not exceeding the allowable temperature rise.
Neutral Grounding Resistors are used to protect power transformers, power generators and other associated equipment in your power systems against 50/60 Hz faults (short circuit) and transient phenomena (lightning).SPECIFICATIONSThere are three parameters needed to specify the neutral grounding resistor.1. Rated voltage line to neutral or system voltage2. Rated fault current.3. Rated “time on” of the line to neutral voltage not exceeding the allowable temperature rise.
“Speedage” make Limit switches are used for heavy duty E.O.T. Cranes, Wagon shunting devices etc to prevent over travel.
The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cycles/sec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.
The Limit Switches are made in IP 54 enclosure. The housing is made of cast Iron / cast Aluminium. The base and cover have machined surface to protect against dirt and dust.
“Speedage” make Limit switches are used for heavy duty E.O.T. Cranes, Wagon shunting devices etc to prevent over travel.
The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cycles/sec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.
The Limit Switches are made in IP 54 enclosure. The housing is made of cast Iron / cast Aluminium. The base and cover have machined surface to protect against dirt and dust.
Speedage” make Limit switches are used for heavy duty E.O.T. Cranes, Wagon shunting devices etc to prevent over travel.
The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cycles/sec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.
The Limit Switches are made in IP 54 enclosure. The housing is made of cast Iron / cast Aluminium. The base and cover have machined surface to protect against dirt and dust.
Speedage” make Limit switches are used for heavy duty E.O.T. Cranes, Wagon shunting devices etc to prevent over travel.
The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cycles/sec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.
The Limit Switches are made in IP 54 enclosure. The housing is made of cast Iron / cast Aluminium. The base and cover have machined surface to protect against dirt and dust.

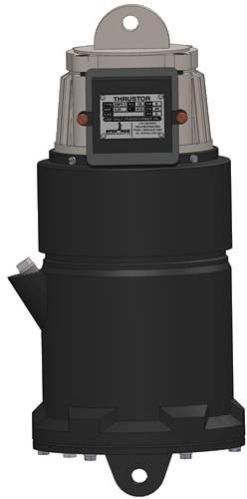

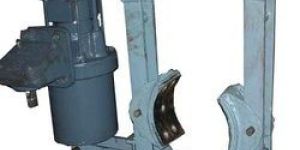

The Speedageâ thrustor is electro hydraulic device to apply pressure or actuate lever mechanism of brake arrangement.
An Electro-hydraulic thrustor is an independent mechanism which requires neither clutches nor external piping. The thrustor cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thrustor cover and transmitting effort to the brake
The robust design Thrustor unit is compact and has long life and is easy to maintain.
Main components used are of high quality cast iron and steel.
The Thrustor is operated by an integral three phase squirrel cage motor.
The Speedageâ thrustor is electro hydraulic device to apply pressure or actuate lever mechanism of brake arrangement.
An Electro-hydraulic thrustor is an independent mechanism which requires neither clutches nor external piping. The thrustor cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thrustor cover and transmitting effort to the brake
The robust design Thrustor unit is compact and has long life and is easy to maintain.
Main components used are of high quality cast iron and steel.
The Thrustor is operated by an integral three phase squirrel cage motor.

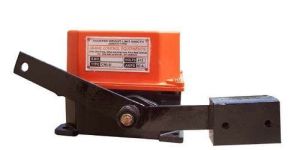

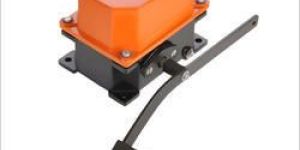

Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
Speedage” make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cycles/sec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron / Cast aluminium (IP 54).
WE HAVE TWO TYPE OF HOUSING OF GRAVITY LIMIT SWITCH.
Speedage” make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cycles/sec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron / Cast aluminium (IP 54).
WE HAVE TWO TYPE OF HOUSING OF GRAVITY LIMIT SWITCH.
A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power
Gear couplings are torsionally rigid and are supplied to two designs:-
Download Drawing PDF
The gear couplings are selected based on.
Horesepower or Torque
Running RPM
Physical Space limitations
Shaft diameter
Shaft gaps
Special bore or finish information and type of fit.
Service factor
Application or type of equipment to be connected
Based on the application the appropriate service factor needs to be determined.
The maximum degree of misalignment permissible in gear couplings is from 0.5 Degrees to 1.5 Degrees. This varies with the size of the coupling being used.
A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power
Gear couplings are torsionally rigid and are supplied to two designs:-
Download Drawing PDF
The gear couplings are selected based on.
Horesepower or Torque
Running RPM
Physical Space limitations
Shaft diameter
Shaft gaps
Special bore or finish information and type of fit.
Service factor
Application or type of equipment to be connected
Based on the application the appropriate service factor needs to be determined.
The maximum degree of misalignment permissible in gear couplings is from 0.5 Degrees to 1.5 Degrees. This varies with the size of the coupling being used.

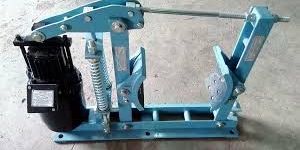

Speedage mill duty Thrustor Brakes are suitable for 400440 Volts, 3 Phase A.C. supply for a wide range of drum sizes, from 100mm to 600 mm dia. Higher sizes can also be supplied against specific requirements.
The brake is applied by the tension of the compressed springs mounted vertically between the thrustor and brake lever. The thrustor rods are connected with the brake by means of an angle lever. As the piston travels upwards the angle lever turns, pushes the brake rod and compresses the brake spring. Simultaneously, the brake lever on the other side of the wheel (Brake Drum) is retracted. The brake lever at the thrustor begins to move when the first lever reaches the stop on the brake base member
Speedage mill duty Thrustor Brakes are suitable for 400440 Volts, 3 Phase A.C. supply for a wide range of drum sizes, from 100mm to 600 mm dia. Higher sizes can also be supplied against specific requirements.
The brake is applied by the tension of the compressed springs mounted vertically between the thrustor and brake lever. The thrustor rods are connected with the brake by means of an angle lever. As the piston travels upwards the angle lever turns, pushes the brake rod and compresses the brake spring. Simultaneously, the brake lever on the other side of the wheel (Brake Drum) is retracted. The brake lever at the thrustor begins to move when the first lever reaches the stop on the brake base member
Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current. The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current. The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
DYNAMIC BRAKING RESISTORS FOR VARIABLE FREQUENCY DRIVES
Dynamic braking resistors are used to absorb energy that is being regenerated back into a drive unit by a freewheeling motor and will release that energy in the form of heat
DYNAMIC BRAKING RESISTORS FOR VARIABLE FREQUENCY DRIVES
Dynamic braking resistors are used to absorb energy that is being regenerated back into a drive unit by a freewheeling motor and will release that energy in the form of heat
Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
Speedage make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current.
The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54).
