High Pressure Ball Valves Dealers

HYDAC 22-way ball valves are, according to DIN-ISO 1219, components which are used to shut-off a pressure flow in both directions. HYDAC 22-way ball valves are available in 2 models. From the nominal diameter of 04 mm to 25 mm in block-type and starting with the nominal diameter of 32 mm up to 50 mm in sleeve-type. The stainless steel version always appears in sleeve-type due to materials considerations. Advantages : - no glands, therefore no manual readjustment of seals required - sealing principle with floating ball seals on both sides - full-flow passage to ensure unrestricted flow of the medium. - surface protection phosphate-plated or yellow zinc-plated On request we can supply other models to cover nearly all applications, e.g. for aggressive or gaseous media. If required, test certificates for material tests to EN-10204 and quality test certificates to DIN 55350 Part 18 can be supplied.

Model : KHB2 Series     This series of high pressure valves offer full port 700bars rated valves in sizes up to 2" and are suitable for steam, hydraulics, oil and gas media and all high pressure fluid applications. This series valves are used quite extensively in areas requiring a full port high pressure rated valve in large sizes.     Features   Full passage for unrestricted flow of medium Floating ball provides positive seal Valve positioning controlled by a stop pin and limit washer No sudden pressure drop Best flow characteristics Size range : ¼” to 2” Pressure range up to 700bar Temp. rating 20°C to 250°C End connection : BSP / NPT / METRIC / SAE

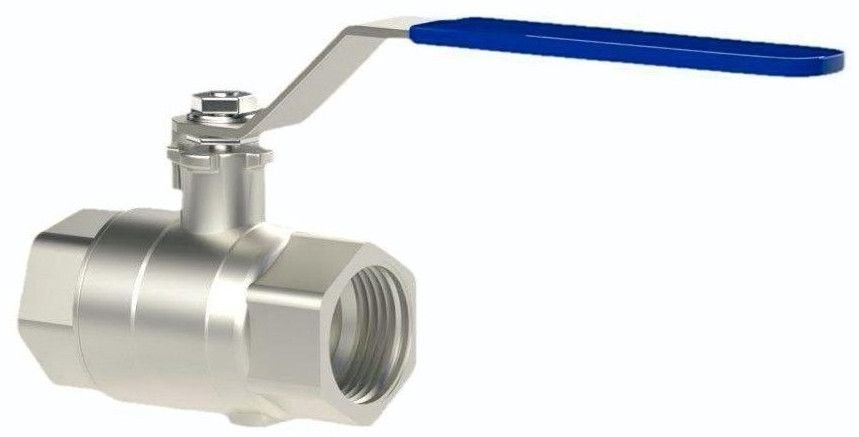

2-Way High Pressure Ball Valve Technical Specification : Materials-Carbon Steel/Stainless Steel Ball Seat- POM/PEEK/PTFE/GFT/CFT Body & Stem Seals-PTFE /NBR/FPM Size - 1/4" Pressure Range-up to 1000Bar Temp. Range -40°C +200°C End Conn. Screwed-BSP (ISO-228 T1) NPT Male/Female Extended Nipple, Male threads DIN2353 U DIN-2353 S Accessories: Actuators, locking device, limit switches proximity switches (for position indication and remote controls)

Buy optimum quality High Pressure Ball Valves at competitive rates from us. We are trusted Stockist, Suppliers & Retailers of High Pressure Ball Valve in Gujarat. Designed for reliable performance, our High Pressure Ball Valves have long functional life. We source these High Pressure Ball Valves from trusted vendors only. Owing to our reliable sourcing network, we are capable of delivering bulk orders of the Ball Valves within stipulated time.

Offered range is specially designed at our well-equipped infrastructure to meet the industry requirement of a safe, durable and reliable shut off valves. Our range of valves is available in different specifications to suit the versatile requirements of the clients.

  Lines operating under high pressure, typically around 300 bar, require high pressure ball valves for ON/OFF application. These valves are specially designed to withstand continuous use under these severe conditions. The Material of Construction is CS and Stainless Steel. The Ball Valves are made from bar stock with special seats. Low operating torque and excellent finish are some of the outstanding features of this valve.   HIGH INTEGRITY BAR STOCK BODY 100% FACTORY TESTED LONG SERVICE LIFE SPARES EASILY AVAILABLE AND INTERCHANGEABLE LOW TORQUE DESIGN POSITIVE MATERIAL IDENTIFICATION

MOC : ASTM A 216 WCB / 304 / 316 CL : 600# / 900# / 1500# / 2500# Size : 40 mm to 300 mm

Being a distinguished Manufacturer and Supplier of High Pressure Ball Valves, we endeavor to achieve 100% customer satisfaction. Their optimum performance, efficient design and longer service life are available for economical prices. Our wide range is manufactured using first-rate raw material. We meet the highest standards and parameters of quality set by the industry. Designs are made keeping different specifications in mind.    Additional Description:  High Pressure Ball Valve with a superior Shutoff Simple to Maintain High Pressure Ball Valve is easy to turn on All Seats are Preloaded Self-adjusting stem seals automatically High Pressure Ball Valve with a High surface Finish High Pressure Ball Valve Features: 2way & 3way 3PC High pressure Ball Valves, Full Port  End Connection: Thread End / Socket Weld / Butt Weld / Flanged End Materials: SS304 /SS316/CS.  Seat: Delrin, Peek, PTFE  Working Pressure (CWP):3000 /6000 PSI
