Image Analysis Software

The Biovis Material Plus software uses a high resolution camera which captures and previews Live Image. The software comes standard with tools which can be used to extract size, shape and streological information from the sample. Functions include image transformation, image operations, pixel operatons, image arithmetic, image processing (Binary, gray scale, color), background subtractions, shading correction, image filtering, image enhancements, image segmentation etc. Binary masks bit plane support with 16 Bit panes. Complies with ASTM, DIN, JIS and GOST standards.

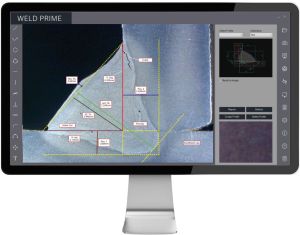

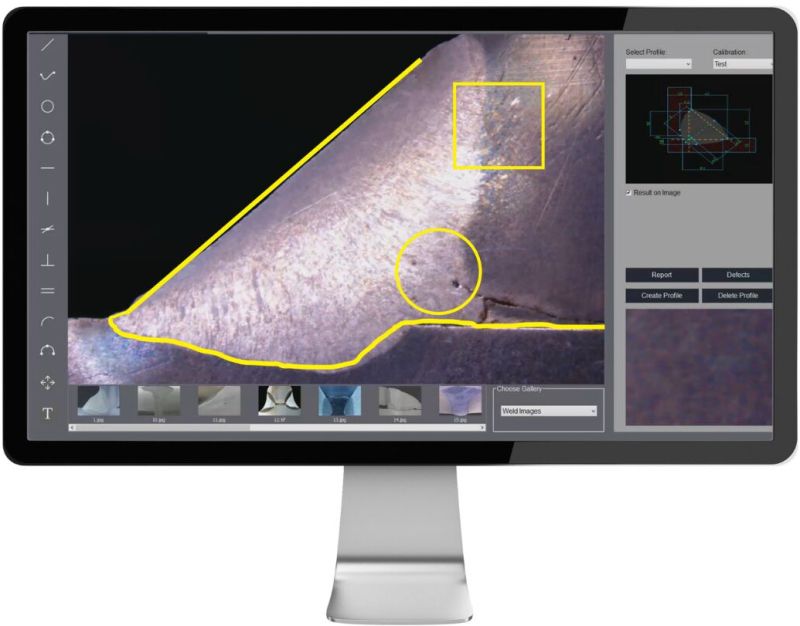

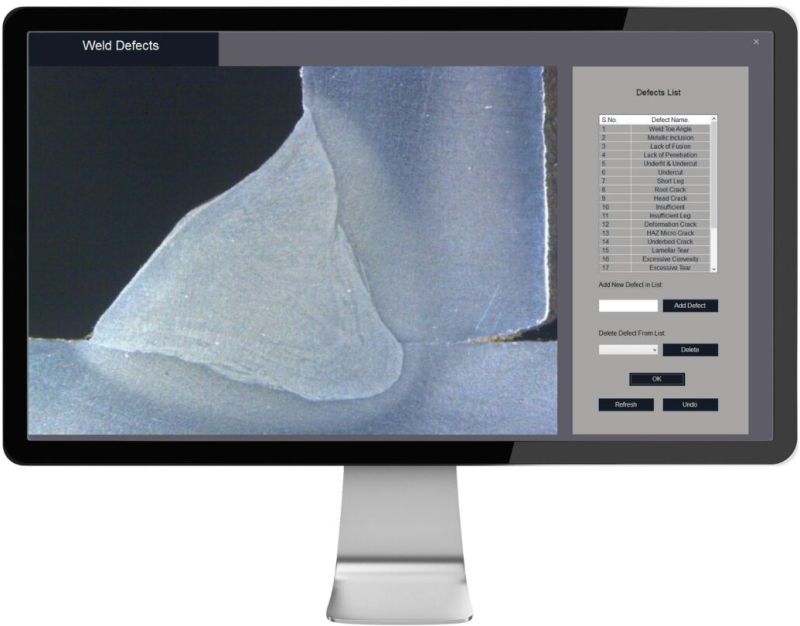

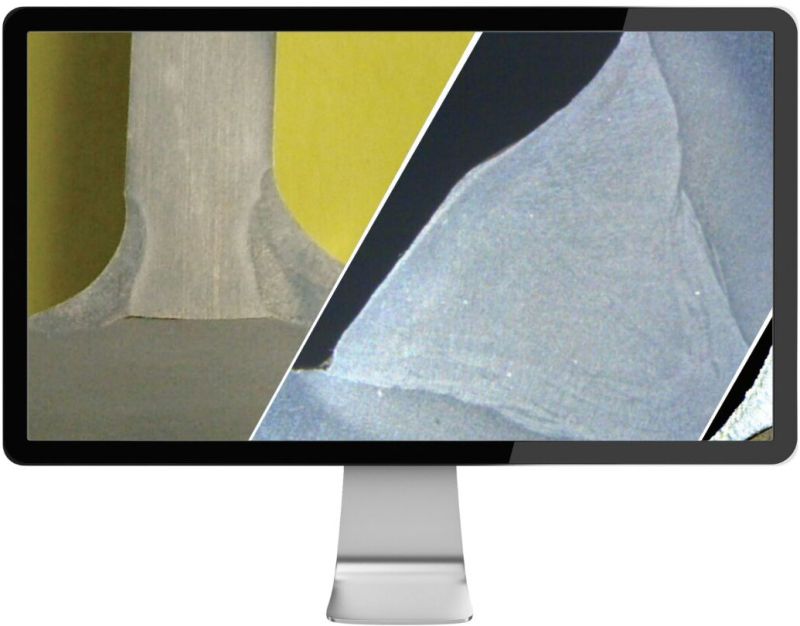

Weld Prime is a state-of-the-art image analysis software developed for welding inspectors, metallurgists, quality control engineers, and material scientists who need accurate, reliable, and user-friendly tools for weld measurement and defect detection. From live image capture to automated measurement and detailed reporting, Weld Prime brings efficiency and precision to every stage of your weld inspection process. Whether you work in heavy fabrication, manufacturing, or research, Weld Prime helps you maintain the highest welding quality standards with ease. Key Highligths:Versatile Image Handling: Supports both grey monochrome (8-bit) and full color (24-bit) images. Open, view, and analyze multiple images of any resolution at once, making comparison and documentation effortless.Wide Format Support: Compatible with standard image formats including BMP, JPEG, TIFF, PNG, GIF, and PSD — no conversion hassles.Live Image Capture & Adjustment: Connect your digital camera and capture live images with complete control over display size, white balance, brightness, contrast, hue, and saturation. Save images instantly to organized folders for analysis.Precision Annotation: Mark your images with a comprehensive range of tools — lines, angles, circles, squares, grids, cross lines, scale bars, arrows, and custom text. Highlight areas of interest, add notes, and define dimensions with adjustable colors and line thickness.Accurate Calibration: Ensure measurement consistency by calibrating each microscope objective and camera setup. Easy recalibration whenever hardware is adjusted or replaced guarantees ongoing accuracy.Automated Measurements: Save time and reduce errors with programmable measurement tools that automatically detect edges and capture key weld quality parameters.Reliable Defect Detection: Identify critical weld defects such as cracking and porosity to ensure weld strength, durability, and safety compliance.Seamless Reporting: Instantly generate professional graphs, charts, and reports. Export data to MS Word, Excel, or any Windows-based software for presentations, client reports, or quality documentation.

We are offering image analysis software. This image analysis software can be used in the field of pathology, histo-pathology, botany, zoology, microbiology, fnac reporting, hematology, anatomy etc. This package is highly useful where ever there is a usage of medical microscope (in laboratories, clinics and hospitals, for pathologists). This informative bundle is also interactive to report the findings to patient's consulting physician, along with his comments. measurement tools calibration length curved length angle area radius perimeter counting segmentation particle measurement density

Microhardness image analysis software is a flexible yet affordable software solution that enables you to acquire, measure and even analyze the results of your Vickers hardness test. The automatic image analysis software measures the size of your indentation and calculates the Vickers hardness of your...

Backed by a team of professionals, we are offering a broad assortment of Metallurgical Image Analysis Software to our customers. These are used for conducting calculation, automatic analysis, and submission of metallurgical reports. Our offered analysis software is developed using the latest technology in adherence with industry norms. Other Details: Low complexity User friendly Compatible Easy to install Software modules are: Grain Size Porosity Graphite Flakes Inclusion Nodularity Percentage of Peryite Ferrite Martensite RA Carbides Hardness(Micro) Case depth Decarburization Depth Measurements like length, width, angle, area etc

SIMULIA offers an advanced product portfolio of engineering software with industry-leading technology in powerful, user-friendly environments. The SIMULIA technology range covers 3D simulation software for disciplines such as structural mechanics, computational fluid dynamics, multibody dynamics and electromagnetic field simulation for a true multiphysics simulation approach. The SIMULIA simulation software portfolio also includes tools for process integration, system design and optimization.

Our capture pro image analysis software is effectively used with medical microscope, zoom stero microscope or laboratory microscope. The capture pro image analysis software is highly demanded in the soft ware industry owing to its reliable performance.

For Measurements & Calibrations of Images. Many features such as length, Area, Angle, Radius, etc. A) Capture Pro B) Hardness Pro C) Material Wiz D) Measure Pro E) Medical Plus F) Metallurgy Plus

Image Analysis & Micro-Measurement Software   Introduction - Ver. 4.0 is A new generation Image analysis Software meant for Metallurgist to do analysis in the simplest way. This is a single screen window based system. The System is flexible, independent to adopt any capture card, camera and Microscope.   Ver. 4.0 can handle monochrome, gray (8 bits) and colour (24 bits) images. Multiple images of any size can be opened and displayed on the screen for analysis or comparison. The software support most common formats like BMP. JPEG, TIFF, PNG, GIF & PSD. The live image can be observed and captured on the same platform. Since the system is made in window environment, graphs and charts displayed on the monitor can be quickly transferred into other window based program like MS Word, MS Excel or any other commercial window based software for the use in reports and presentation   Ver 4.0 Image Analysis software can be used in Steel plants, Metal forging industry, Oil & gas industry, Material Science, Mineralogy metal and metal strength analysis Cement (Klincker) quality control and where ever Metallurgical microscope are used in. This Package is very useful Educational Institutions and All Material Science Technocrats And Metallurgists.   Measurement Tools. Calibration Length Angle Perimeter Width Radius Area Color Counting Flakes Draw Free Circle   Metallographic Tools Grain Size Phase - ASTM E 566 1245 Decarburization - ASTM E 1077 Coating Thickness - ASTM B 487 Nodularity - ASTM A 247 Porosity -  ASTM 276 Inclusion - ASTM E 454 – E 1245 Particle Measurement: Density Filters Invert Annotation Back Ground Removal Amalgamation Phase on Rectangular Area Amalgamation   Some more Features from Main Menu: Save & Save As Report Preview Zoom Inclusion DIN DIN PER Gallery Company Name Delete Calibration: Open Image & Convert Show Capture Modify or Comparison Gray Scale Resize Picture Options Capture

This software can be used in steel plants, metal forging industry, oil & gas industry ,material science,mineralogy - metal and metal strength analysis cement (klincker) quality control and where ever metallurgical microscope are used in . This package is very useful educational institutions and all material science technocrats and metallurgists. metallography tools grain size decarbization coating thickness phase nodularity porosity inclusion particle measurement inclusion din hardness testing. It Has two Main tool bars- Measurement Tool-Length, Width, Angle, Radius, Area, Perimeter, Calibration etc Metallography Tools- Grain Size Percentage and distribution of phase Decarbization Coating Thickness Decarb Depth Nodularity in SG iron Porosity Inclusion rating in steel Particle Measurement Hardness Testing Welding Penetration

Metallurgical Image Analysis Software, Indentation Hardness Teste

Metallurgical Image Analysis Software, Emery Sheet

Nano Technology Microstructural Image AnalysisThe application of Nano Technology is vast. We bring to industrial clients the ease of quantitative micro structural analysis applicable in metallurgy, Pharmacy and other areas.Our company is one of the few companies in India developing software̢۪s for Quantitative Image Analysis and Vision Inspection Systems as well as giving solutions to companies for application software development.Our company understands that imaging needs are rapidly growing and changing. One software user may need an easy image capture and enhancement solution, while another may need a more robust package that allows for application-specific development and modules. This is why with our imaging software experience we have developed the Product Family. Based on the Product Engine, the Product Family offers four unique Product packages to accommodate a variety of imaging needs. Regardless of the Metallurgist working in research, production or quality control he has the absolute need to quantify the Image for Microscopic analysis to get objective results.Available as Fully-Integrated Hardware KitsDon't risk your time and money by attempting to use poorly integrated software and hardware components. We offer a complete Workstation and Microscope with variety of cameras and Frame grabber cards that are already bundled with your choice of Product software. Also complete support is provided to integrate your existing Microscope and Camera.Complete Support by Email and on PhoneProduct software is more than just an application, as a Product user you will have access to support by email and phone with free life time upgrade support for OS platform change. All upgrades are given free of charge to existing users.Solution Variants in Image Analysis Solutions catering the Total Image Analysis needs for Quantitative Metallurgical Microstructure analysisImage BasePerfect for basic imaging, image capture station and Image. Documentation with direct reporting in MS Word. Product offers single as well as multiple capture. Product is easily upgradeable to Product and Product Pro.Image ProA Modular software for Microstructure Analysis with feature of upgrading as you need. offers Modules for different analytical need like Phase Analysis, Grain Analysis etc. You can get the complete list of modules available on request. Modular software includes an easy upgrade path to Product PlusImage Collect Bundled software for Image Analysis and Microstructure Analysis Product offers average tools for analytical need like Phase Analysis, Grain Analysis etc.Image Collect PlusThe ultimate imaging software package developed to specific requirements of the client for any type of image / microstructure analysis for Metallurgy as well as different fields like Pharmacy, Gemology etc. Product Plus includes all of the functionality of Product and Product also Product Pro along with added analysis tools and the availability of on demand development of modules for analysis. Nodularity of C.I - ASTM E-247 for Size and nodule count. Grain size analysis ASTM E112. Banding for Avg. ASTM E 1268. Graphite Flake length and Percentage ASTM A247-67. Direct reporting in MS Word format. Completely Customizable report format. Software development carried out in-house at Pune. Customized software applications developed for different needs of metallurgical applications. Complete integration of Microscope as well as Stereo Microscope with the applications simultaneously. Numbers of modules to choose from. Grain Size Analysis based on ASTM E1382-91 / ASTM E112 (Intercept Methods) Inclusion Rating in Steels based on ASTM E45 (METHOD A) / E1122 Percentage, volume and area fraction and distribution of Phase(s) as per ASTM E 562. Nodularity or spherocity of nodules in C.I. as per ASTM E 247, Shape, distribution and nodule count Porosity in terms of size and distribution analysis with Particle size and distribution analysis Measurement of Pearlite Banding with avg., max, min bandwidth and length as per ASTM E 1268 Inter Lamellaer spacing in Pearlite and thickness of Cementite plates in Pearlite Percentage of Phase versus distance from the edge in heat treated products. Carbide Banding Rating in Tool and other steels. Decarb Depth, Plating thickness (multiple coatings). Graphite Flake length, width, distribution and percentage as per ASTM A-247-67 (Re approved 1990)General Purpose Image Analysis SoftwareLeave your need for the critical and tedious quantitative analysis of image microstructure to technology. Spend more time on qualitative findings and enhance productivity of your metallurgical, pharmaceutical, Biochemical labs. Bring your exact needs of microstructural image analysis and let us devise the best custom tool for you. Exploit the years of expertise through a proven, time-tested product in Image Analysis field.This generalized module allows the user to analyze the images of various microstructures. Analytical features include measurement of: Length, Area, Perimeter calculation. Diameter, Equivalent circle diameter etc. Particle size distribution etc. Area / volume fraction etc. Aspect ratio, Shape factor etc. Various filters like Sharpen, Smoothen, Skeletonize, Dilate, Erode etc. Logical Operations of images like AND, OR etc. Statistical calculations for all parameters. Printing of near photo quality Microphotographs on plain paper.

Metallurgical Image Analysis Software, Calibration Service
