Industrial Microscope Dealers

We are offering industrial microscope. With an aim to stand tall on the expectations of patrons, we are offering sustainable quality industrial microscope to our esteemed patrons. These quality-approved products have great strength and ability to perform everlasting optimum services. Apart from this, these are available at the most competitive range. types: se microscopes 01: indian imported inverted type se microscopes 02: zoom stereo trinocolur features: co-axial and fine focusing system quadruple ball bearing nose-piece binocular type inclined at 45° triple plate for x and y movement of work stage slot for drop filters anti-fungal coated objectives specifications: objectives - m 10x, m 20x, m 40x eye piece - wf 10x and h 15x camera - ccd or digital camera provision smart accessories - vinyl cover, duster and colored filters illumination - light attachment magnification - 100 to 900x accessories: ccddigital usb camera metallurgical image analyzer software supplementary lenses dark field attachments for gems and diamond testing, 10x grain size eyepiece 80 x objective software: developed as an import substitute demanded for critical metallography and high magnification applications

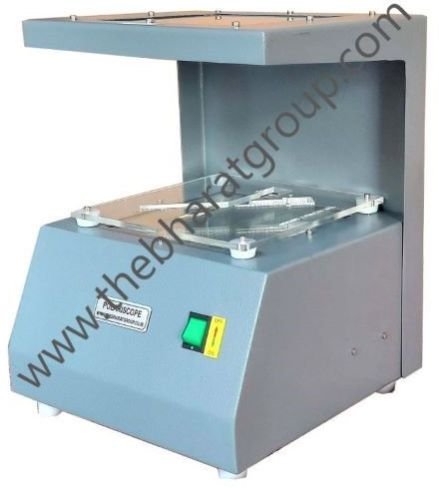

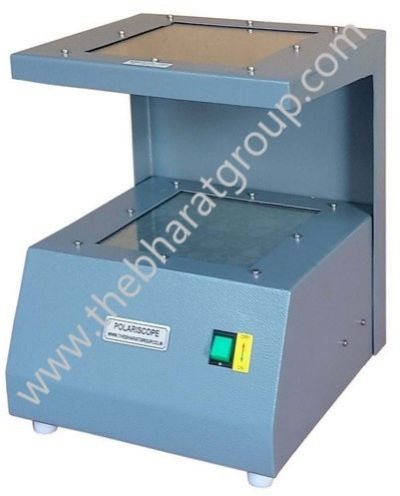

Polariscope is an optical device and used for the defect identification in PET preforms. Preforms develop internal defects due to external strain. These defects might create weak points when blown moulded into bottle. To avoid this, the preforms are tested prior mass production. The device has an incident light and polaroid lenses. The incident light passes completely through the test medium without any refraction. As a light encounter a defect, it changes its path doubly and create different patterns of light. Due to polaroid nature of lenses, the birefringence of light forms. This birefringence creates different patterns depending upon the type of the defect. The pattern can be matched with the defect chart to identify the defect. The sample is tested at two different angles, 45° and 90°. The strain viewer can be used for PET preforms and glasses also. It is equipped with two types of incident light Monochromatic and Sodium. The device can be connected with the computer for defect identification and report generation.   The Polariscope computerized model is supplied complete with: Viewing Area: 260 * 240 mm Display: Pictorial through Inbuilt Software Power: 220V, Single phase, 50 Hz Lights: CFL Light Sodium Light Standard Template Measuring Angle: 45º and 90º

We Offer Mv-l3030 Metallurgical Microscope, with Plan Achromatic Objectives with Long Working Distance (no Cover Glass) and Wide-field Eyepieces, Can Get Clear Pictures and Wide View Field. -coaxial Coarsefine Focus System, with Tensional Adjustable and Up Stop, Minimum Division of fine Focusing: 2μm. -with Vertical Illuminator and Transmitted Illuminator, Can Observe Surfaces of Non-transparent Object or Transparent Object. -6v 20w Halogen Lamp, Adjustable Brightness. -trinocular, Can Switch to Observe Normally or to Observe the Polarize, Can Send 100% of Light to the Binocular Eyepieces or to the Top Port. Please Contact Us.

Body: A most modern microscope for study of metal micro structure and grain sizes of metal. Head: Binocular observation head inclined at 45 degree, moveable to 360 degree, bright field light through illuminator with centering provision having an iris diaphragm and a slot for filters. Nose piece: Quadruple revolving nose piece & a fixed co axle mechanical stage for movement of specimen. Illumination: Illumination by 6V-20W built in base transformer with continues sly variable intensity control. Supplied with Blue & green filter mounted in frame. Completed with eye guard, and other accessories. Objectives: 5x , 10x , 20x , 45x all achromatic and suitable for metallurgical microscopy. Eyepieces: coated 10x Wide field.

It is used for inspecting, identifying, measuring microscopic metal grain structures.Metallurgical microscope is the optical microscope, differing from other microscopes in the method of the specimen illumination.   Product Code : SAMS MET - 007

We are offering fe 20m metallurgical upright compound microscope. Fe20m, ergonomically designed sturdy stand of anti rust material trinocular, 45° inclined, 360° rotatable, ipd 55-75mm. Wide field eyepiece hkw 10x18mm paired wide field eyepiece wf 15x16mm paired nosepiece (ball bearing type) mwd series, true color, din semi plan achromatic objectives 10x, 20x, 40x and 60x. Magnification:100x – 900x coaxial focusing system, with slides traveling on ball bearing guide ways, for frictionless motion. Compact size mechanical stage, for convenient specimen scanning. Epi- illumination system 6v-20w halogen with intensity control. Solid state transformer power supply 220v ac

An advanced versatile projection microscope for measurement of specimens, different types of yarns in textile industries and research institutes. It is equipped with Halogen bulb of 24V150 watt workable through a solid state built in transformer working on 220V AC mains. 200mm.

Advanced technocracy inc. Is manufacturer, exporter & supplier of trinocular metallurgical microscope. Fitted with trinocular head assembled from hard coated prisms. Bright field horizontal illumination with centering provision, iris diaphragm and slots for dropping filters. Quadruple revolving nose piece, special graduated mechanical stage, variable light control transformer built in the large sturdy base, with plywood carrying cabinet. Objectives m10x and m45x (sl) eye pieces wf 10x and 15x (paired)

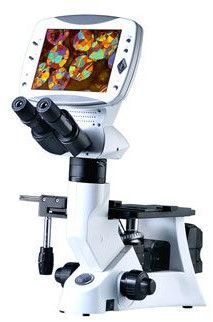

Inverted Metallurgical Microscopes are equipped with excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is uniform. The instrument designe very compact in structure, to make the operation easy and a f f o r d a b l e . T h i s i s
