Leaf Filters Dealers

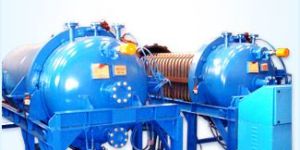

Horizontal Pressure Leaf Filter also known as shell retraction or bundle retraction comes with various features that make it preferred choice of the customers. The special add-ons offered with Horizontal Pressure Leaf Filter increases its efficiency and ensure reliable performance. Filtration Area 2m2 to 200m2 Materials of Construction Stainless steelCarbon steel with rubberPPPVDF liningMonelInconel, etc. 'O' Ring Sealing Available In BUNA-NVitonEPDMNitrileSilicon, etc. Special Features Horizontal pressure vesselFilter leavesPneumatic vibrator assemblyBottom structure housingHydraulic power pack for bonnet ring opening / closingShell or bundle retractionCentral outlet manifold mounted filter leavesPerfect 'O' ring sealingDry cake discharge or wet cake discharge

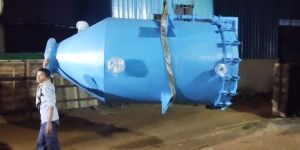

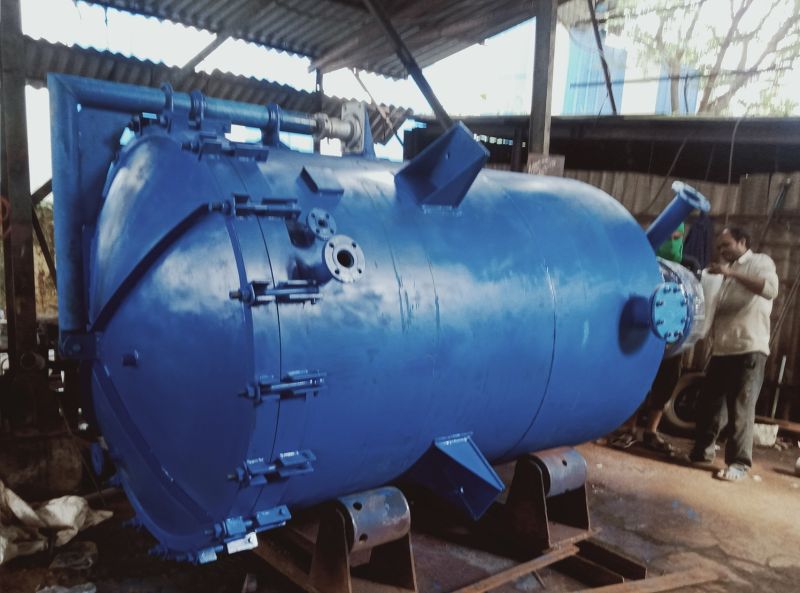

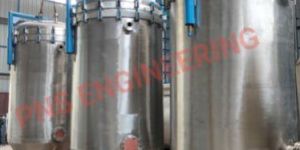

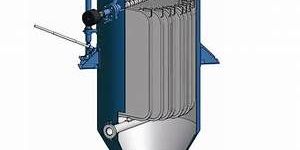

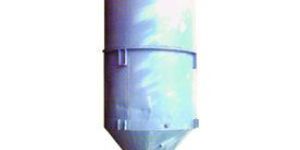

The Pressure leaf filters is a vertical steel vessel where many vertically mounted S.S. filter leaves are housed inside with the help of properly designed manifold. The Pressure Leaf filters are suitable for filter aid (pre-coat) type of filtration, i.e. filter aid bleaching earth fuller earth etc. has to be added for filtration. The filter leaves, filter on both sides due to which gross leaf filtration area obtained is more in relatively small sized vessel. The required oil slurry is pumped into the filter vessel, clear filtration starts as the sufficient cake is built over the leaf surfaces and filtered oil comes out through the manifold. The solid keeps getting accumulated on the filter leaves and a thick cake is formed. Once the pressure reaches 3.5 Kgcm2, the cake is dried with hot airsteam and relived from the leaves by pneumatically operated piston vibrator and drops through a large size bottom outlet. The design pressure is 4Kgcm2 & design temperature is 120deg.C

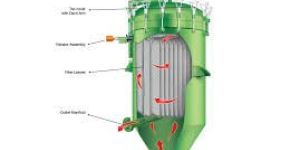

The Pressure Leaf Filter is a MSSS Vertical Vessel with Filter Leaves inside. The leaves are mounted vertically on a common manifold pipe, through which the filtered liquid flows out. On the top, the leaves are held by a vibrating shaft . A mechanical vibrator driven by electric motorpneumatic vibrator is provided for vibrating the leaf shaft for cake discharge. Jacket for hot filtration can be offered if desired Over flow, ventsteamair charging, pressure gauge & safety valve are provided on the top.

We are considered as prominent names of Leaf Filter in this industry. To meet with the quality standards and norms of this industry, we engineer these leaf filters by using superior quality raw materials and state-of-art technologies under the supervision of our experienced and skilled manpower. We offer these leaf filters in various capacities to cater the specific demands of our highly valuable patrons. Leaf Filter is incorporated with a vibrator and a butterfly valve with leaves made of stainless steel. Available in horizontal and vertical cylindrical vessels, these filters are of great use in oil mills for filtration of liquids and especially edible oil. This is best suited for the applications where there is a risk of environmental hazard due to flammable, toxic or volatile cakes. Other than this, from this leak filter the cake may be discharged either dry or as a thickened slurry. Features: Precisely designed Effective filtration Dimensionally stable Long functional life Reliable

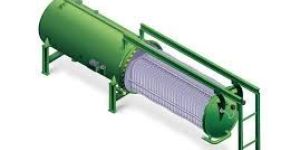

Horizontal leaf filters are another type of highly standardized and retractable shell design leaf filters that are user friendly and eco-friendly at the same time.Standard MaterialHorizontal filter vessel is available in CS/SS 304/SS 316 with a Wedge lock closure and standard seal in Neoprene/Viton/Nitrile.   In these horizontal pressure leaf filter Jacketting and cloth enveloped filters are optional. There are 2 hydraulic cylinders to open and close the special bayonet wedge lock closure, which is provided at the lid. The retractable filtered shell is mounted on four external wheels and all nozzle connections are mounted on fixed head of filter vessel. Appropriate inter-locking (preventing opening under pressure) is also a key feature of this type of horizontal pressure leaf filter. Process RequirementsThe Horizontal leaf filter is required for filtration of slurry and to separate the filtrate and the filtered cake. RangeAvailable in 5 sq. m to 250 sq. m.

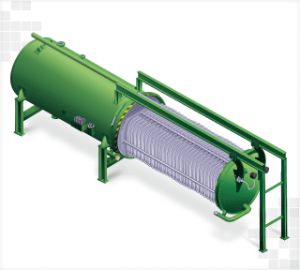

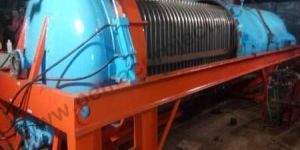

A Horizontal Pressure Leaf Filter consists of a horizontal pressure tank with filter leaves mounted on a central outlet manifold A hydraulic jack is provided to open and retract the horizontal shell cover and or pull out the leaf assembly, thereby enabling easy access and manual cleaning of the filter leaves Fastening of the horizontal shell cover can be designed with a manual eye-bolt and nut arrangement or with an automatic quick acting Wedge Lock device

As compared to other continuous filtration processes, Horizontal Pressure Leaf Filter offer simplicity of process, easy operation and maintenance, modest space requirement low energy consumption and low capital outlay.

These filters are used for solids separation processes having applications in the mining industry. We are regularly manufacturing and supplying these equipments along with horizontal belt filters, vacuum boxes, primary/secondary receivers, manifolds etc., to various industries having these applications.

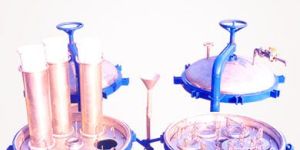

Sharplex Level Leaf Filters are used for polishing filtration in post filtration stage to trap the fine particles from the filtrate of main filter. The filter elements have filter surface at both the sides and hence this filter becomes very compact even at higher filtration areas. The filter medium can be cloth or paper. The filters are available from 2m2 upto 15m2.

For filtration of liquids with suspended solid contents upto 7%. No filter cloth requirement. Automatic dislodging of filtered cake by pneumatic vibrator or oscillating sluice header. Dry or wet cake discharge is possible. Filtration area upto 120m2.

Pressure Leaf Filters are available in horizontal & vertical cylindrical vessels with leafs made of Stainless Steel. It is provided with a Vibrator & a butterfly valve. These filters are also used in Oil Mills.

Vertical pressure leaf filters delhi ncr gurgaon india asia world horizontal pressure leaf filters delhi ncr gurgaon india asia world pulse jet candle filters delhi ncr gurgaon india asia world brush strainer delhi ncr gurgaon india asia world safety filters cartidge filters delhi ncr gurgaon india asia world filters delhi ncr gurgaon india asia world filltration delhi ncr gurgaon india asia world edible oil filtration delhi ncr gurgaon india asia world.

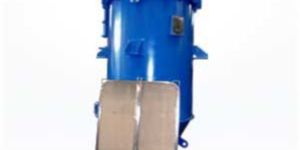

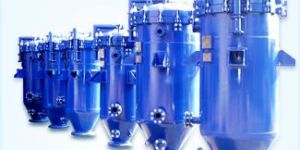

We are offering vertical pressure leaf filter. Or filtration of liquids with suspended solid contents upto 7%. No filter cloth requirement. Automatic dislodging of filtered cake by pneumatic vibrator or oscillating sluice header. Dry or wet cake discharge is possible. Filtration area upto 120m2.

We offer horizontal pressure leaf filters. Horizontal Pressure Leaf Filters are typically used in applications where filter cake is sticky and difficult to remove.

Leaf Filter is designed from Stainless Steel Coarse mesh acting a main support & Hollander Mesh for filtering. Meshes are held together in a tubular leak proof frame by help Stainless Steel frame. Basic used in Chemical & Oil Industries.

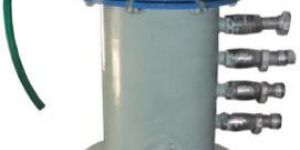

Gyro-leaf filter is a new revolutionary concept introduced by JVC SEPARATION ENGINEERS PRIVATE LIMITED. It combines the essentials of a stationary pressure leaf filter & adds advantages of a Gyro screen to enhance filtering efficiency.

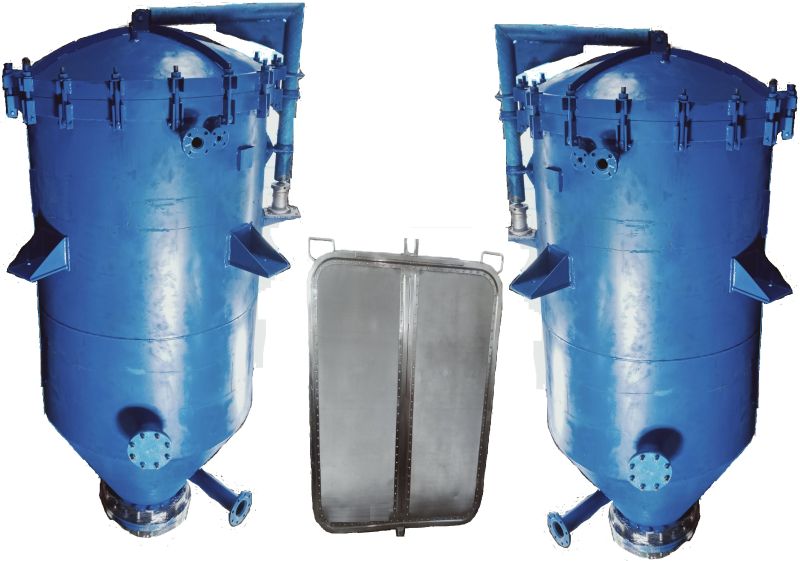

We Manufacture Niagra Type Vertical & Horizontal Pressure Leaf Filter in different dimensions and also with customized specific area as per the requirement of the process. This filter is provided with vertical stainless steel leaves and a cylindrical tank with conical bottom. Made using different carbon steel grades and also available with rubber lining / glass lining etc. The filter element in stainless steel SS316L or special steel and exotic material of woven wire mesh imported from the best mills in Finland and Switzerland. The Filter is provided with pneumatically operated butterfly valve at bottom to discharge the spent earth. At the top, leaves are provided with vibrator bar assembly and pneumatically operated vibrator for easy discharge of spent bleaching earth cake from the surface of leaves. The bleaching earth can be collected in a hopper on the ground floor for hygienic disposal. Filter Element : The filter element which is the heart of the pressure leaf filter has a 5-layer construction and the screens are held together rigidly by a heavy duty channel and drain port. Large size filter leaves are provided with additional reinforcement channels to ensure long trouble free service. The filter screens of the pressure leaf filter are made of SS-316L to ensure corrosion resistance. Availability : Sizes : 2m2 � 80m2 Material of Construction : Shell : CS, SS304/316/410/202 and special alloys as per the process requirementLeaves : SS316L or as per your requirementsFilter Element : Holander Weaves Plain Dutch wire mesh in SS 316L Advantges of Leaf Filters : Low Oil Loss with the Bleaching EarthPV and PDF coatingsLowest Volume to Area RatioLow Pressure Drop Across Filter Elements Applications : Edible OilFood (Sugar, Salt)Alumina (Green Liquor)Pharmaceuticals (Silica Filtration)Molten sulphurc

Cake discharge outlet is provided with a Butterfly valve that can be pneumatically controlled from a remote location, or with a wedge lock full opening valve with heel leaf, The entire filtration cycle can be easily automated by using a PLC to switch between the priming, filtration, and cleaning steps at regularly timed intervals or based on pressure readings inside the filter.

Leveraging on our vast industrial knowledge in this domain, we are committed towards offering wide assortment of Leaves for Pressure Leaf Filter. to design different outfits for both men and women.

We are offering pressure leaf filters. Pressure leaf filters are used for filter aid type of filteration of edible / non-edible, castor, vegetable, palm, oils, sulphur, dewaxing, catalyst & various chemicals. They find very wide application in all oil & chemical industries to separate solid particles upto 5 microns size. It is an ideal replacement for old out dated plate & frame fitters & best proposal for new filtering / refining plants. sr. No. description standard 1. M.o.c shell carbon steel, stainless steel (304, 316, 316l). 2. Leaves 5 ply type with outer filtering mesh of ss-316 & others of ss-304 or ss-316 (optional). Pp cloth is provided on the leaves. 3. Vibrator (i) mechanical for vertical. Or (ii) pneumatic (optional) for vertical & horizontal for dry cake discharge. 4. Bottom outlet only for vertical plf (i) simple ( swing opening type ) or (ii) manual / hydraulically / pneumatically actuated type butterfly valve (optional). Jacket type filters & filters with spray nozzles for wet cake discharges are also offered. 5. Sizes 1m2 - 60 m2 for vertical and 5m2-100m2 for horizontal.

We are one of the leading Manufacturers, Exporters & Suppliers of Leaf Filter. The Leaf Filter we supply is accurately designed and manufactured by our team using superior quality parts and components. The Leaf Filter offered by us is known for its efficiency, superior performance, rigid construction and high functionality. Features : Capacity : 50ltrs to 500 ltrs, MOC : SS-316, SS-304 & IS-2062, Type : Trolley mounted or fixed, jacketed or non- jacketed

Leaf Filters are most commonly used in Filter Devices of high Viscosity Melt for Removing of hard Impurities. An Important Feature of Leaf Filters is that thease Can be Repeatedly used and Repeatdly Cleaned Vision will design and supply Leaf Filters as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from 25 Liters-500Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical (Dishend/Cylindrical Shell Type)
