Vacuum Traps are most commonly used in capture vapors and gases, whereas, the former captures or reduces particulates, dust, smoke, and aerosols.. Vision will design and supply Vacuum Traps as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L& MILD STEEL.CARBON STEEL  Normal Capacity from 50 Liters-2000Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical, Horizontal (Dishend/Cylindrical Shell Type)

Vaccum Chambers are most commonly used in Testing of Aerospace and Defence systems,AirBorne Systems,Air Craft Systems& Land Systems& Navel Systems Vision will design and supply Vaccum Chambers as per process/client's requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from or suiting to client's requirement     Operating range, Pressure-6.05Ksc     Maximum Vaccum Level-8.25*10-3Torre  Types: Vertical (Dishend/Cylindrical Shell Type)

Storage Tanks are most commonly used equipment for storing Raw Materials, Intermediates and Finished Products in almost every industry. Vision will design and supply Storage Tanks, along with MS Platform and Stairs as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2 Codes & Standard  Material of Construction: SS304, SS304L, SS316, SS316L,MILD STEEL& CARBON STEEL  Could be with Heating & Cooling arrangement, Flanged or Welded construction with required Nozzles, Manholes and instrumentation as per process need  Types: Horizontal Cylindrical Dished / Flat Ends, Vertical Cylindrical Dished / Flat Ends, High Capacity Tanks with Flat Bottom & Conical Top Roof

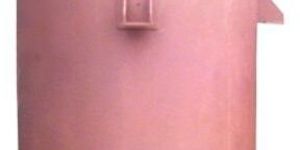

Receivers are most commonly used equipment for Receiving Raw Materials, Intermediates and Finished Products in almost every industry. Vision will design and supply Receivers as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2 Codes & Standard  Material of Construction: SS304, SS304L, SS316, SS316L& MILD STEEL  Could be with Heating & Cooling arrangement, Flanged or Welded construction with required Nozzles, Manholes and instrumentation as per process need  Types: Horizontal Cylindrical Disheds & Vertical Cylindrical Disheds and High Capacity Tanks

In some of the chemical reactors, there will be tremendous build up of pressure associated with increase in temperature. Vision specializes in such pressure vessels of high volume. Vision has designed and supplied Pressure Vessel for a working pressure of greater than 100 kg/cm2 Pressure Vessels are used in Process Industries like including Chemical, Pharmaceuticals, Paint & Coatings, Resin Plants, Biotech industries etc. Our design department will study customer's special process requirements, and then design them. We then manufacture and supply the vessels. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Codes & Standard  Material of Construction: SS304, SS304L, SS316, SS316L, MILD STEEL& CARBON STEEL  Normal Capacity from 5 Litres-20 KL or suiting to client's requirement  Operating range, Pressure-full vacuum Up to 120 Kg/cm2  Heating / cooling-jacketed and limpet coil

Nutch Filters are most commonly used in such filters is to carry out filtration under vacuum or pressure in closed vessels. This also helps in discharging solids straightaway into dryer. Vision will design and supply Nutch Filters as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from 20 Liters-2000Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical (Dishend/Cylindrical Shell Type)& Square Type

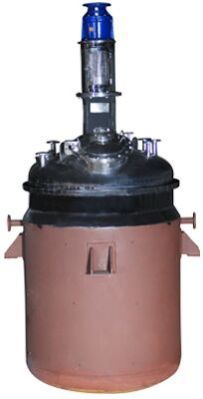

All chemical processes require Reactors of different types and capacities. We, at Vision will discuss with the customers about their specific needs and carryout designing, manufacturing and supplying of Chemical Reactors with Agitators / Mixers. Vision’s Chemical Reactors are widely used for chemical process like Polymerization, Esterification, Hydrolysis, Hydrogenation and Reduction; and cater to industries like Resin manufacturing, Chemical Process Plant, Paints & Coating, Pharmaceuticals, Biotech Industries food and oil industries etc. Vision can work with any third party inspection for design, construction / stage inspection for final documentations. Each Reactors with Agitators / Mixers will be designed and built individually according to the requirements of process and customers. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Codes & Standard   Material of Construction: SS304, SS304L, SS316, SS316L& MILD STEEL  Normal Capacity from 5 Litres – 15 KL, or can meet customers special requirement  Normal Operating range, Pressure – up to 120 kg / cm² and or full vacuum, and temperature -22° to 250°C : for requirements other than this, it can be custom built  Heating / Cooling – jacketed, limpet and / or internal coils  Agitators - Anchor, Turbine, Paddle, Propeller, Disperser or Multiple Agitators as per clients / process requirement  Sealing – Single / Double Mech Seal or Stuffing Box arrangement  The Cleanliness: The demands of the pharmaceutics, cosmetic and food industry on clean ability and surface quality will be taken into account by different measures. GMP and FDA fulfilled construction.  The Flexibility: Agitators are adaptable to changing characteristics of products and parameters.  Applications: Evaporation, Crystallization, Polymerization, Blending, Dispersion, Gas absorption, Batch distillation etc.

Leaf Filters are most commonly used in Filter Devices of high Viscosity Melt for Removing of hard Impurities. An Important Feature of Leaf Filters is that thease Can be Repeatedly used and Repeatdly Cleaned Vision will design and supply Leaf Filters as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from 25 Liters-500Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical (Dishend/Cylindrical Shell Type)

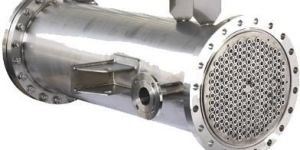

Heat Exchangers are used for change of status of materials, such as liquid to gas and gas to liquid. They are used in majority of Process Industries including Chemical, Pharmaceutical, Paint & Coating, Resin Plants, Biotech industries, Power Plants, Petroleum Industries etc. Vision’s designs and supplies Heat Exchangers as per Processes/Clients' requirements. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, TEMA Codes & Standards  Material of Construction: SS304, SS304L, SS316, SS316L& MILD STEEL  Capacity: Heat Transfer 1m2-100m2 or as per clients requirement  Operating range, Pressure-full vacuum to 10 Kg/cm2  Types: Fixed Tube, U-Tube, Single Pass, Multiple Pass, Floating Head, Vertical or Horizontal Shell & Tube Heat Exchanger

We are into the business of manufacturing the latest GMP Reactors that are applicable in various chemical and pharmaceutical industries for the production of life saving drugs, chemical bulk drugs, food herbal & ayurvedic medicines and others. These are produced according to clients' requirements. We offer, these Reactors with mechanical or electro-polishing to avoid contamination.

Evaporators are used for concentrating various kinds of Liquid Food, Organic / Inorganic Solutions, Industrial effluents and other liquid products using Thermal Energy. Evaporators can be of Single Effect or Multiple Effect for additional components for heating and cooling. Evaporators are used in industries like Chemical Process, Pharmaceuticals, Bio-tech, Herbal Extraction Plant etc. Vision will design and supply Evaporators as per process / clients' requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as Per ASME Sec VIII Div 1 & 2 and TEMA Codes & Standards  Material of Construction: SS304, SS304L, SS316, SS316L & MILD STEEL  Operating range, Pressure-6 Kg/sq cm2  Comprises of: Vessel, Tube Bundle, required Nozzles, Manholes and instrumentation etc  Types: Circulation, Forced Circulation, Falling Film, Single Effect, Multi Effect etc

Distillation Columns are tall metallic cylinder internally fitted with trays and baffle plates to attain the process of distillation more efficiently. It is used widely for the purification process and separation in a mixture of liquids by application and removal of heat in all process industries like Chemical Process, Petroleum, Paints & Coatings, Pharmaceuticals, Bio-tech etc. Vision can design and supply Distillation Columns as per process / client's requirement. We can also meet all PED requirements. Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2 Codes & Standards  Material of Construction: SS304, SS304L, SS316, SS316L& MILD STEEL  Comprises of: Main Column, Internal Packing / Trays, Spray system, required Nozzles, Manholes and instrumentation, Reboiler, Reflux System etc  Types-Batch Distillation Column and Continuous Distillation Column

Candy Filters are most commonly used in such filters is to carry out filtration under vacuum or pressure in closed vessels. This also helps in discharging solids straightaway into dryer. Vision will design and supply Nutch Filters as per process / client's requirement. We can also meet all PED requirements Salient Features:  Designed and Fabricated as per ASME Sec VIII Div 1 & 2, Standards  Material of Construction: SS304, SS304L, SS316, SS316L  Normal Capacity from 5 Liters-50Litres or suiting to client's requirement  Operating range, Pressure-full vacuum to 4Kg/cm2  Types: Vertical (Dishend/Cylindrical Shell Type)
