The Load Break Switch is a disconnect switch that has been designed to provide making or breaking of specified currents. Load Break Switch is accomplished by addition of equipment that increases the operating speed of the disconnect switch blade and the addition of some type of equipment to alter the arcing phenomena and allow the safe interruption of the arc resulting when switching load currents. Disconnect Load Break Switches can be supplied with equipment to provide a limited load switching capability. Arcing horns, whips, and spring actuators are typical at lower voltages.

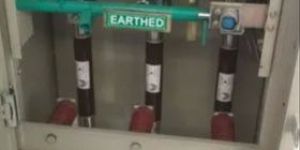

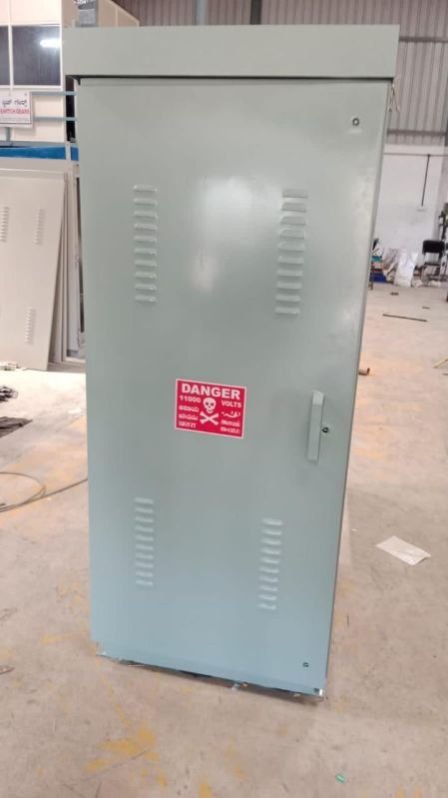

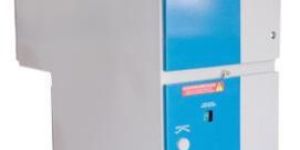

We manufacture Load Break Switches (LBS) in three pole, manual / motorised operated upto 33KV range. Our LBS is simple but robust design with trouble free mechanism. These are used in application like transformer switching, ring main gears (RMG), condensers, etc. We offer LBS that can be make / break the normal rated current and make the short circuit current. The design of Load Break Switch is user friendly and easy in operation reliable function. Load Break Switches are manufactured in accordance with IS 9920 / IEC 265.         Available in both Indoor / Outdoor version and Extensible Metal clad hence no access to live parts No arc chute hence minimal maintenance Maintenance free mechanism Separate HT / LT Compartments Compact design with aesthetic look   Rated Voltage Rated Current Permissible Service Voltage Rated Short Time Current Rated Making Peak Type of Break Rated Insulation Level / Peak Rated Frequency No. of Poles No. of Breaks / Pole Width x Depth (mm) Height (mm) - Indoor Height (mm) - Outdoor   12 KV 400/630 A 10-12 KV 26.3 kA 65 kA Air Break 28KV/75KV 50 Hz 3 Single 600 x 1100 1600 1825   24 KV 400/630 A 22-24 KV 26.3 kA 65 kA Air Break 50KV/125KV 50 Hz 3 Single 1000 x 1500 2200 2425   36 KV 400/630 A 33-36 KV 26.3 kA 65 kA Air Break 70KV/170KV 50 Hz 3 Single 1500 x 1600 2500 2725       Load Break Switch + Earth Switch(LBS+ES) Load Break Switch + Earth Switch with CBCT& Earth Leakage Relay (LBS+ES+ELR) Load Break Switch + HT HRC Fuse+ Earth Switch (LBS+FT+ES) Ring Feeder orIncomer Ring Feeder orIncomer with Earth Leakage Relay Tee-Off Feeder orOutgoing Feeder

1112 kV to 3336 kV 630 Amps to 1600 Amps Load Break Switch (Outdoor Type) Features: 1 - SCADA Ready 2. SF6 Free Air Break Technology 3. Arching Chamber for Full Load Operation 4. Seamless Integration with Existing SCADA Networks

We manufacture high performing 11 KV to 33 kV three pole load break switches which are manually or motorized operated. Fabricated in simple but robust design. Application : These load break switches are widely used in a number of applications as follows: Transformer switching Ring main gears (RMG) Condensers Features : Various features of our load break switches are: Feasible design User friendly Easy in operation Reliable function

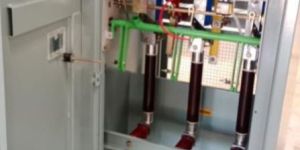

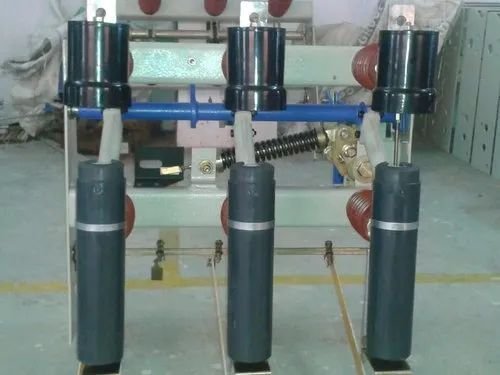

 Load break switch 630Amp/1250Amp, 26.3KA. IS 9920/IEC 60265  HT HRC fuses of suitable rating  The insulation level is 12/28/85KV  Auxiliary switch In Built  Earth and Fuse Trip In Built  Shunt trip Coil In Built  Tamper Proof

We hold expertise in supplying of Load Break Switch at nominal price. Load Break Switch, which is provided by us, is known for its excellent performance, durability, minimum maintenance cost, corrosion resistance, simple installation and fine finishing. This Electrical Switch has wide applications in transmitter switching. Before the final dispatch, this Electrical Switch is examined by our expert team on various aspects in order to provide faultless switches to buyers. One can obtain our Electrical Load Break Switch at nominal price.   Specification : 11 kv HT

Siemens systemhouse for 11&33kv.drawout mcc upto 4000a.inteligent pmcc ,load brak switches,single &double front fixed&drawout pcc&mcc,33/11outdoor loadbrakswitches.

The Load Break Switches, we offer, are safe to use and smoothly make & break a specified current. We have tie-ups with well-known vendors, from whom we procure these Load Break Switches after testing them on several parameters. Customers are free to place medium as well as bulk orders with us. Owing to our vast distribution network, we are capable of handling all the orders within the promised time period. From Noida, we are the reputed Supplier and Distributor of Load Break Switch.

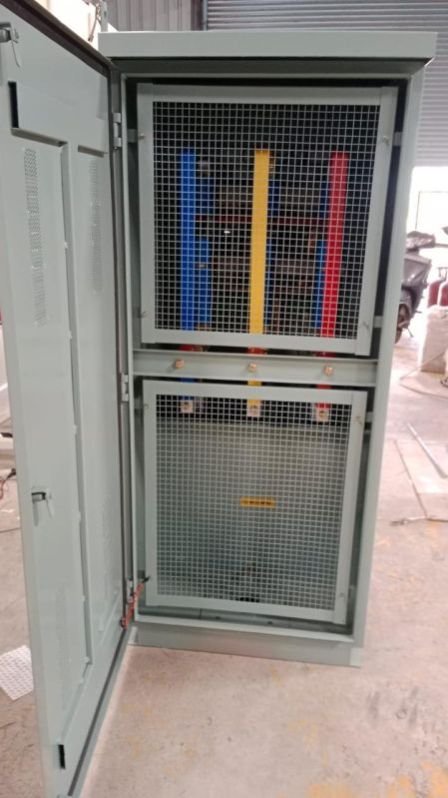

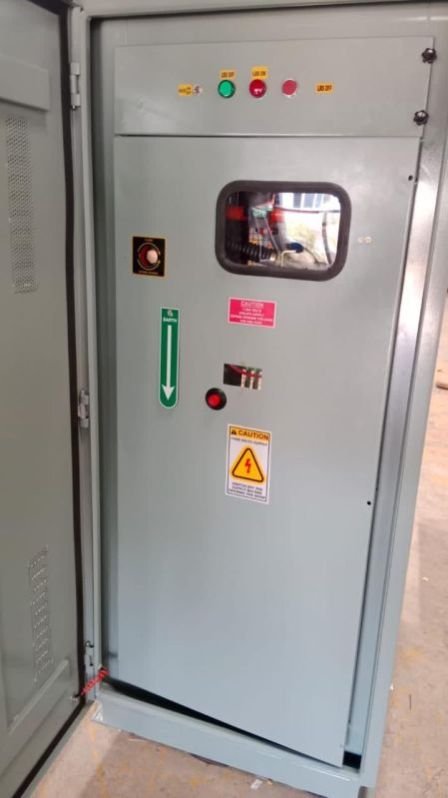

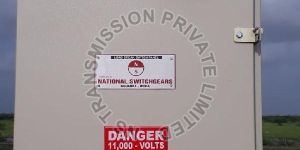

We are leading manufacturer of HTMC PANEL, RMU LOAD BREAK SWITCH, METERING CUBICLE, METERING PANEL We have a remarkable name for our product Switchgear. Since Last 44 year’s Marketed under the brand name of National Power Industries

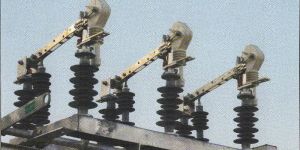

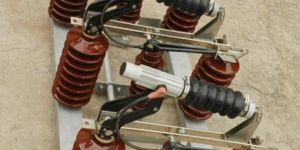

The Gang operated load break switches are meant for outdoor application and are suitable for horizontal or vertical mounting. They are designed for satisfactory performance in harsh atmospheric conditions of high/low temperatures & humidity. Their primary function is to isolate a 33kV, 3 Phase network.  FEATURES * Single break type with 2/3 post insulators per pole. Quick make & break manual operation. * Suitable for operation upto a altitude of 3000 m. * Suitable for mounting at the top of a single or double steel pole. * Used for single / three phase applications and suitable for operation on structures 6 meters or more above ground level with a pad lock facility.  * Robust sturdy design with bottom MS channel of adequate dimensions which imparts requisite strength. * Copper contacts are made of ETP grade high conductivity copper and are spring loaded for adequate contact pressure. The contacts are duly plated to improve resistance to corrosion and offers a low resistance current path.  * All MS parts and Hardware are duly hot dip galvanized as per standard specifications which imparts long life to the switch. * The Isolator is capable of withstanding the electrical & mechanical stresses induced during unlikely event of a short circuit. * Sturdy operating mechanism is provided allowing easy operation 6 meters or above ground level with simultaneous operation of all the three poles making perfect electrical contact. Mechanical locking facility is provided for closed & open positions as required.  * The Post insulators are with min. creepage distance of 1150 mm suitable for heavily polluted atmosphere and meets the stringent requirements of IEC.  * The operating GI pipe provided along with the switch conforms to Medium Class as per IS 1239-1/ Eqvl and is 6000 mm in length. * A choice of terminations can be provided to suit individual customer requirements.

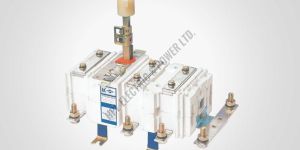

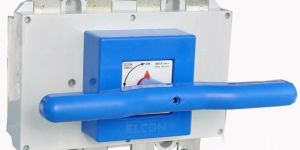

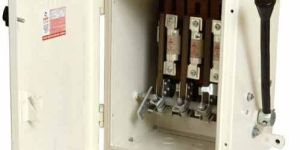

We are offering load break switch - switch disconnector 125a to 300a dumeco. Type : dumeco specification:- 125a, 200a, 250a & 300a conform as per is: 13947-1993 available in 2p, 3p, 3p+n & 4p version available in open as well as in sheet steel enclosure paneldoor mounting front operated two breaks per phase positive switching mechanism and quick make quick break mechanism. Auxiliary contacts upto 2no+2nc optional.

Load Break Switch Indoor Load Break Switch - 11/22/33 kv Outdoor Load Break Switch- 11/22/33 kv Pole Mounted Load Break switch - 11/22/33 kv Pole Mounted Load Break switch - 11/22/33 kv

We are a credible Load Break Switch Manufacture and Supplier. We offer Load Break Switch, which is designed for high performance. The Load Break Switch, which we provide, is designed to efficiently connect or break circuits. The Load Break Switch is tested against several quality parameters. The Load Break Switch, which we make available, can work in extreme weather conditions. Highlights Reliable performance Durable construction Made by complying with safety standards Competitive price

We are engaged in supplying the best Load Break Switch to a broad clientele. The Load Break Switch, provided by us, is durable and safe to use. Our Load Break Switch smoothly makes and breaks a specified current. We source the Load Break Switch from quality vendors in the industry. The Load Break Switch is a disconnect switch, which is designed with technological accuracy. Why Our Load Break Switch? High performanceDurableReliableSafe to use
