Ring Main Unit (RMU) SafeRing is a SF6 insulated ring main unit for the secondary distribution network. SafeRing can be supplied in a number of different configurations suitable for most switching applications in 12/24 kV distribution networks. The RMU has a completely sealed system with a stainless steel tank containing all the live parts and switching functions.A sealed steel tank with constant atmospheric conditions ensures a high level of reliability as well as personnel safety and a virtually maintenance-free system. The RMU offers a choice of either a switch fuse combination or a circuit breaker with relay for protection of the transformer. SafeRing can be supplied with an integral remote control and monitoring unit

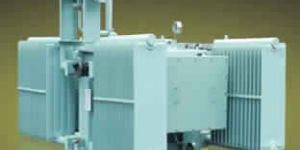

Power & Distribution Transformers Oil Type Transformers Distribution Transformers Power Transformers Unitised Substation Reactors Rectifier Transformers Vee & Scott Connected Transformers Low Tension Feeder Pillar Dry Type Transformers Water Cooled Transformers Isolation Transformers Furnace Transformers Auto Transformers Earthing Transformers Automatic Power Factor Correction Panel (APFC Panel)

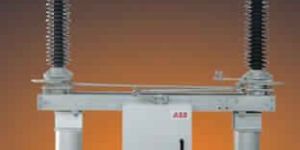

Indoor Railway Circuit Breakers (GSH II, GSR II, GSR+)Indoor Vacuum Circuit Breakers (ADVAC, AMVAC, VD4, eVD4, VD4/R, VM1, VMax) Outdoor Live Tank Circuit Breakers(OHB, OVB-SDB, VBF) Indoor Gas Insulated Circuit Breakers (HD4, HD4/R) Outdoor Dead Tank Circuit Breakers(R-Breaker, R-MAG, V-Breaker) Outdoor Railway Circuit Breakers & Load Break Switches(FSGII, FSKII +, GSLII, IT25) GSx II(Indoor single-phase breakers with magnetic actuator, up to 40.5 kV, 2500 A) ADVAC (primary distribution spring mechanism 5 - 15 kV (ANSI) eVD4(primary distribution with sensors, protection, control unit 12 - 17,5 kV (IEC) VM1 high duty (primary distribution magnetic actuator 12 - 24 kV (IEC) VMAX(primary distribution spring mechanism 12 - 17.5 kV (IEC); 15 kV (ANSI) AMVAC(primary distribution magnetic actuator 5 - 27 kV (ANSI) VD4 (primary distribution spring mechanism 12-36 kV (IEC) VD4/R/S(secondary distribution spring mechanism 12 - 24 kV (IEC) VM1 low/mid duty (primary distribution magnetic actuator 12 - 24 kV (IEC) OHB(SF6 (IEC)24 - 40.5 kV1250 - 2500 A) VBF Vacuum (IEC) 36 kV 1600 A OVB-SDB Vacuum (IEC / ANSI) 15 kV 1600 A

Load Break Switch Indoor Load Break Switch - 11/22/33 kv Outdoor Load Break Switch- 11/22/33 kv Pole Mounted Load Break switch - 11/22/33 kv Pole Mounted Load Break switch - 11/22/33 kv

- High performance noise enclosure guarantees the noise of the set is less than 80dB(A)/m.- Famous brand AC alternator; choose from Stamford, Marathon or Leroy Somer brand alternators- Elegant design and easy operation- Each AOSIF unit is produced based on the most advanced technology and strict quality control- Options: ATS (automatic transfer switch), Canbus, RS232/RS485, mobile trailer, PC remote control Alternator performance:- Original AVR (automatic voltage regulator) ensures steady output voltage- 2/3 winding pitch enables the generator to reach optimal operating performance- Optional PMG (permanent magnet generator) can separately provide the power supply for the excitation system - Protection class: IP21-23 (optional)- Insulation class: H Specifications:- Rated power: 50Hz (60Hz optional)- Rated speed: 1,500rpm (1,800rpm optional)- Phases: 3-phase, 4-wires- Power factor: 0.8 (lag)- 5) Voltage fluctuation: ≤ 0.5%- Frequency fluctuation: ≤ 0.5%- Surge Arresters /Surge Protection Devices

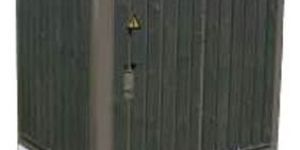

Compact Substations (CSS) CSS is a type tested assembly comprising an enclosure containing Medium Voltage (MV) switchgear, Distribution transformers, Low Voltage (LV) switchboards, connections and auxiliary equipment. CSS is for energy transformation in secondary distribution network from MV to LV or LV to MV systems. These substations are typically installed in locations accessible to the public and should ensure protection for all people according to specified service conditions All CSS components shall be type and routine tested per their relevant product standards

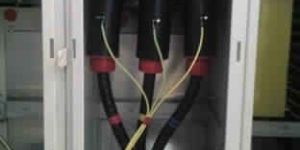

Chirag Techno Electricals Company is one of the world’s most experienced cable suppliers with the capability and expertise to offer the full scope of supply in high voltage cable solutions, from system studies and design to manufacture, installation and commissioning. We offer High Voltage and Medium Voltage Cable kits and onsite cable jointing services. Our offering CSS is a type tested assembly comprising an enclosure containing Medium Voltage (MV) switchgear, Distribution transformers, Low Voltage (LV) switchboards, connections and auxiliary equipment. CSS is for energy transformation in secondary distribution network from MV to LV or LV to MV systems. These substations are typically installed in locations accessible to the public and should ensure protection for all people according to specified service conditions All CSS components shall be type and routine tested per their relevant product standards XLPE cable systems up to 420 kV AC HVDC Light cable systems up to 320 kV DC 33Kv and above - Extra High Voltage - EHV - Substation Kits 11/22/33 Kv Touchproof End Termination Kit
