Magnetic Gauge Dealers

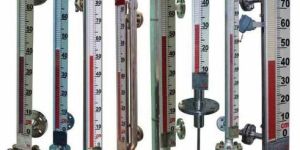

Backed by an efficient network and trustworthy resources, we have emerged as a dominant supplier of Level Gauge in the market. The complete assortment of raw material sourced undergoes stern examinations by the professionals to keep the quality standards high. Owing to this, we are capable of bringing forth exceptional quality products.

SPECIFICATIONS : Installation : Side / Top Range (CC Dist) : Max. 5000mm (Bi-colour rotating flappers) Level Indication : a) Bi-coloured Rotating Flappers - 250C (White & Red) c) Bi-coloured Rotating Flappers - 400C (Silver & Golden) Fitted externally to the float chamber Float Chamber : 60 mm in SS304 / SS316 / PP Float : 50mm in SS316 Titanium/ PP (for side mtd) & 100mm is SS316 / PP (for top Mtd) Calibrated Scale : Black Anodized Aluminum / SS ( LC=10mm) Isolation Valves : 20 NB Ball / Globe Valves Vent x Drain : Threaded Plugs / Valves Process Conn. : 15NB / 50 NB (Side mtd) & 100 NB (top mtd) flanges to ASA (BS / DIN std/ ANSI ) Max. Temp. : 80C (PP) / 400C (Metallic) Max. Test Pressure (at amb. temp.) : 5 kg/cm2 (PP) /50 kg/cm2 (Metallic) Min. Liquid Sp.Gr. : 0.6 (Lower Sp. Gravity on demand)

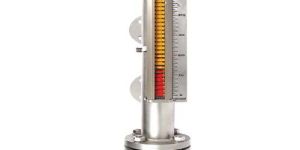

SIGMA's Magnetic Level Gauge provides level indication in a range of operating conditions. It offers maintenance- free, preventive security against leakage, environmental safety, sure and trouble free application against chemically aggressive, harmful or poisonous, inflammable or explosive, pollutants or optically similar fluid interface.Sigma magnetic level gauge consists of a float chamber, a float, and an external indication device. An engineered float travels inside the gauge and follows the vessel level. The float carries an internal magnet that simply "flips" the flags thus indicating the level. The flags remain flipped until the float returns in the other direction. The magnetic level gauge is unique in that if the flag display is hit nothing will leak as they are magnetically coupled to the float. The float type is determined by the process fluid specific gravity, pressure and temperature. The materials of construction must be compatible with the process fluid. Each float is engineered for proper buoyancy for each particular application for level or interface measurement.

DK's Float operated contents gauges are designed for mounting directly onto tanks to provide continuous indication of tank contents or fluid level. Every gauge incorporates a magnetic coupling through the gauge body preventing fluid leakage into the Dial Chamber. Contents gauges are of a modular construction to suit a variety of applications. Side mounting and top mounting versions are available with material options to suit the fluid to be measured. Dial sizes from 100mm to 150mm can be supplied

We make available Magnetic Level Gauges which are known for their make and long service life. Our strong association with the renowned vendors in the market helps us in fetching the outstanding array of raw materials and that too after complete inspection. We keep our standards high to maintain quality throughout. We make available a huge product basket that our quality auditors check closely to maintain the set standards.

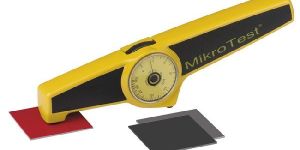

Non-magnetic coatings, e.g. phosphate, paint, plastic on steel, Non-wearing permanent magnet, Measuring without power supply, No calibration required, Measurement of coatings up to 20 mm, High accuracy.

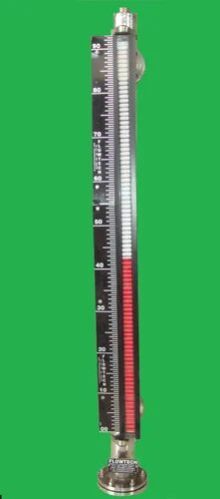

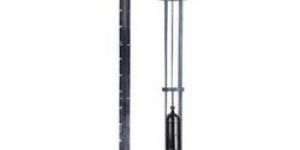

Magnetic level gauge to measure the level of fluids. Fabricated using superior quality basic material by employing advanced machinery and sophisticated tools, these products compiled to the defined parameters of the industry in an efficient manner. These magnetic level indicators are mainly used in the hazardous pressurized vessels. Therefore, customers can avail these offered products from us in multifarious sizes and specifications as per their requirement.

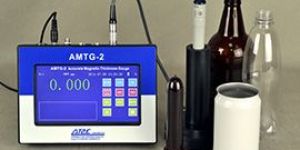

The “AMGT-2” is a portable feeler gauge. It is used to measure the thickness of non-magnetic materials, such as plastic, glass, ceramic, aluminium, copper etc…The accuracy of the measurements is not affected by the shape of the sample.It’s designed by basing on the method of the Hall Effect. Simple and rapid as below: Place the steel ball on the side of the sample and the probe on the opposite side. Move the sample and let the probe to be the tested position. The steel ball will be drawn by the probe automatically. The Hall Effect sensor on the probe measure the distance between probe tip and the steel ball. Non-destructive measure High resolution 7* touching screen Dynamic display: measuring value/ graph/ date/ hour/ battery Full aluminium frame Fast and accurate measurement of the thickness Achieving accurate thickness measurement in corners, small radius and some irregular shape Display real-time measurement value Max and Min Mode: Automatic capture of the maximum or minimum value Value difference function: Display the value difference between preset value and actual measured value “CYCLE” function: Record the Max, Min, Average value & Graph during the predefined time.”Delayed start and Auto-stop” function frees the hands of operator and it’s convenient for large-size sample measuring. Alarm function: Programmable, warns the high or low preset value by sound or visual indication Password function enables the safety of the calibration data and measuring data Can store 9999 measuring data

Used for observing almost all fluid which is poisonous gas or liquid tank and boiler drum with lower and higher pressure and it's have weight with outstanding safety from its damage or breakage and to be of low price.

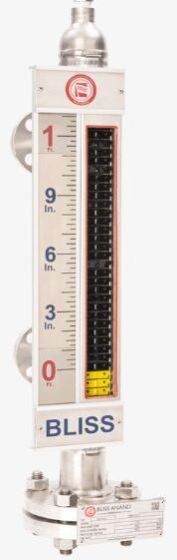

Second unit fixed on mounting flange. The magnet assembly moves up & down in the main S.S. pipe chamber. The float magnet is operated by magnetically coupled to the follower red magnet outside chamber which is mounted on front side of the main S.S. pipe, Simple principles of mechanics and magnetism harnessed to offer an absolutely safe, reliable and trustworthy level indicator for dangerous and toxic liquids under high pressure and Temperatures.

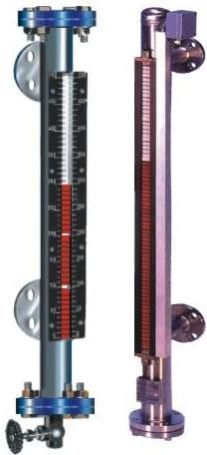

We are the leading manufacturer, exporter and suppliers of Magnetic Liquid Level Gauges in Maharashtra, India. This Glandless gauge comes a with magnetic coupling for visual level indication of Inflammable, Hazardous or Toxic Liquids, where glass is unsafe and dilute caustics where glass is unsuitable. The offered range of level gauges find applications in textile dyeing, Sewage Water Processing, Power Generation, Chemical Processing, Heat Transfer Petrochemical and Pharmaceuticals. We are capable of handling bulk orders as per specifications of the client.   Details : Glandless gauge with magnetic coupling for visual level indication of Inflammable, Hazardous or Toxic Liquids, where glass is unsafe and dilute caustics where glass is unsuitable. Range - 300 to 5000mm Density - ≥0.5 g/cm3 Wetted Parts - SS304/316,PP, PTFE or PVDF Indication - Bicolored Flappers or Follower Capsule Max Temp - 400oC Max Pressure - 20 Kg/cm2 Options - Alarm Switches, X’mitters , HART, Steam Jktg, Electrical Heat Tracing, High Temp. Insulation Applications : Textile Dyeing, Sewage Water Processing, Power Generation, Chemical Processing, Heat Transfer Petrochemical & Pharmaceuticals.

It has a simple leveling adjustment of +- 3° Housed in a durable , non-magnetic case with a magnetic head that attaches firmly to rotors or spindles. Timemoney saving device Return a strut to its original camber after repair or replacement. Measure camber change before reinstalling alignment heads during camber kit installation. Check the amount of camber change before reinstalling tire and wheel assemblies on trucks receiving offset alignment bushings

Â�¢ used with boring bar for presetting of cutting tool â�¢ change in setting of the tool measures variation in bore dimension. Â�¢ powerful magnet without on-off facility. Â�¢ â��vâ�� is hardened & ground within 5 micron. Â�¢ the included angle of v is 120âº. Â�¢ hardness 52 - 56 rc. Â�¢ also manufactured as per customer's requirement sr.no. Cat no size (mm) range (mm) 1. Ul - 50601 100 l x 50 h x25 t ã� 20 - ã� 90 2. Ul - 50602 110 l x 45 h x 22 t ã�20 - ã� 75 3. Ul - 50603 90 l x 40 h x 22 t ã� 45 - ã� 100
