Meat Cutting Machine Dealers

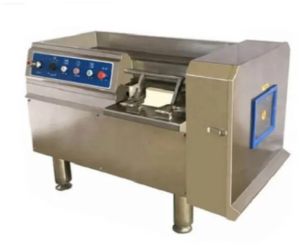

TBG machine for cutting frozen blocks of meat or other products at -20oc. The clean cut and size of the pieces obtained from the block make them suitable for subsequent processing in the mincer, thereby reducing the time and effort required by these machines. The TBG cuts the blocks with a guillotine-type blade operated by an extremely powerful hydraulic system. The standard machine is equipped with 1 horizontal blade and 4 vertical blades, so produces 4-centimetre- thick by 10/12- centimeter-width slices. The block loading is carry out by an incorporated loader with a loading capacity of 100 kg. The cut product is un-loaded directly onto standard 200-litres trolleys. The TBG 480 can work with E2 block measures (480x250 mm). It achieves a production of 3000 kg/hour. The TBG 630 can work with E3 block measures (630x300 mm). in its transverse position. It achieves a production of 7000 kg/hour. Machines designed and manufactured in accordance with CE hygiene and safety standards. Hygiene: ·         Completely stainless machines. ·         Lines and smooth surfaces to facilitate cleaning. Safety: ·         Emergency stop. ·         Motors protected against heat and over-intense operation ·         Operating voltage: 24 V. ·         Pres-button controls with IP66 protection.

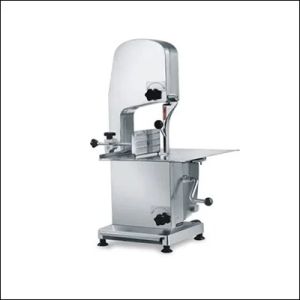

Specially designed for use in Anatomy & Meat Cutting requirement for preparing big size specimens.The large working table and extension table opearte on ball bearing rollers.Table is made of thick stainless steel sheet with heavy axles for rigidity and firm movement.FEATURES:-1. Fitted with large moving table made from stainless steel 2. Extension table operated on four ball-bearing rollers 3. Special heavy axles for easy and firm movement 4. Power consumption - 220 v 5. Fitted with premium blade, starter, cord and plug1. Size of cutting table  :  123x42cm.2. Extension table     :     61x42cm.3. Total table travel   :     120x42cm.4. Height                  :     213cm.5. Motor Heavy Duty  : 2 H.P. SinglePhase,starterComplete unit supplied with one blade,starter,cord and plug.To work on 220/230 volts AC supply.Optional:- Spare cutting Blade
