Mechanical Plate Rolling Machine Dealers

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom rolls are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple & robust design machine suitable for light to medium jobs. The PBM Series 3 Roll Pyramid Type Hydro Mechanical Plate Bending Machines are designed with top roll UP & DOWN movement by hydraulic cylinder. This saves time & labor to adjust top roll. This feature makes the machine more productive and suitable for handling heavy jobs. Dropper end movement is done by hydraulic cylinder. Bottom roll are fixed and driven by Gears and warm Reduction Gear Box. Top Roll rotates in fixed positions andean be adjusted up & down manually by adjustable screws.

Mechanical Plate Rolling Machine fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.

The company holds specialization in offering to the clients Mechanical Plate Rolling Machine as per international quality standards. This machine is operated manually and its working is based on screw-nut principle. High-end performance and easy functioning are some of special features of the Mechanical Plate Rolling Machine that we offer to the clients. Components : Comprises of working parts and two drive system parts Working parts consistsRight and left bearing plateOne upper rollTwo down rolls (material of rolls is EN8 / Forge Steel / Steamer Shaft.)Lifting screw Working Principle : Pressing of top roll is driven through fine threaded screw equipped at both ends of TOP-roll by Tommy bar (provided with machine)Down rolls causes upper rolls to rotateUpper rolls can be adjusted up and down by rotating screw equipped at both the endsDrive system consists of main motor, main speed reducer gearbox and other accessory parts.Down rolls are driven through the main motor and main speed reducer gearMain speed reducer spindle drive two down rolls by one group gears Direction can be adjusted by the main motorDevice that is unloaded is used to bend the circle type for removing the work pieceUnloading of the upper rolls for moving till the limit positionBalance device on upper rolls ends strikes upper rolls for removing the work pie Bending Operations : If the thickness of the plate is half its capacity, then it can be bent on the machine by hammering Thicker plates are positioned outside the machineSet the plate between top rolls and bottom by manually adjustments of the top roll Place the top roll downwards and provide pressure on the platesClock wise turn the main motor until one end of the plate comes over the first bottom roll Reverse the motor and get second end on the second bottomContinue the process till you get the desired results

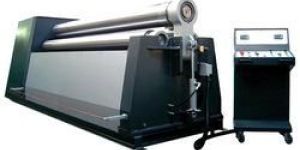

We are offering highly efficient hydro mechanical plate rolling machines which are widely used in various industries. Our manufactured plate rolling machines are of precision designed and can be available at market leading prices. Our range contains plate rolling machine without pre bending and plate rolling machine with pre bending.

The features of our machine which ensures durability and a good output : The rollers are made of solid forged Class IV material and are chemically tested. Ultrasonic Testing is carried out to check for the internal flaws.Benefit: Rollers are the backbone of the machine. Rollers with lesser Carbon % in due course of time results in surface indentation and tends to bend Gun Metral bushes are fitted which have a better load bearing capacity as compared to Cast Iron Bushes.Benefit: Increases the life of the machine eliminating breakdown.

Size : 3mm X 1250mm            25mm X 3000mm

Mechanical Plate Rolling Machine, Plate Bending Machine, Pipe Bendin

Our range of products include Siddhapura Mechanical Plate Rolling Bending Machine and Siddhapura 3 Roll Mechanical Plate Rolling Bending Mc.

Our company is a reputed Manufacturer & Exporter of highly efficient Mechanical Plate Rolling Machine. The Mechanical Plate Rolling Machine is manufactured using high-grade parts and components. The Mechanical Plate Rolling Machine is appreciated for its durability and excellent output. The Mechanical Plate Rolling Machine is available at competitive prices. Technical Features : Bottom roll are fixed and driven by gears and warm reduction gear box Top roll rotates in fixed positions and can be adjusted up & down manually by adjustable screws Housing are made from M.S. Plate of suitable strength and mounted on heavy base frame Rolls are made from forged steel and perfectly machined for accurate result For longer life and smooth working of machine, gun metal bushes are provide and given sufficient lubrication system Bending Process : Place the plate between bottom and top rolls by adjusting top roll manually Down the top roll and give pressure on the plate Then start main motor in clock wise direction till one end of the plate comes over first bottom roll reserve the motors and get second end on second bottom Continue above process until you ET desired as shown in picture
