Mechanical Power Press Dealers

Bajaj Press Brakes have been designed & developed for continuous production & accuracy. The rigid frames are fabricated with tested plates, its interlocked construction with the bed directly supported on the side walls ensures consistent. accuracy & perfect alignment. A high Torque - Low Inertia Friction cone Clutch linked with heavy duty Brake arrangement ensure max. transmission of torque and power. It is designed for easy control of the Ram speed and for frequent starting and stopping. The clutch is readily accessible and adjustable easily. Gun Metal Bushes are provided in all running parts.

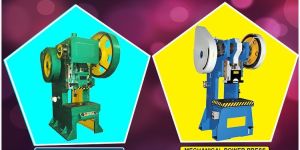

We are offering mechanical power press machine. Capacity 100 ton stroke adjustment 13-127 depth of throat 320mm dist bed to ram 450mm length & width of bed 900x640 mm hole in bed 190 mm hole in ram 50mm crank shaft diameter 127mm fly wheel diameter 813mm stroke per minute 30 motor (siemens company) 10 hp weight approx in kgs. 5400

It is used in mechanic shops, basement shops and machine shops or garage. It can pressure in range of 1 to 30 tons which is depended on the expense and size. Multiple separate strands of wire are fed into the machine. Power press machine use a multi-piece metal part or tool. In the working of Power press India it includes crimping, folding, embossing, imprinting, stamping, rolling, casting, bending, forming, drawing, extruding, coining, swaging etc. Main parts of a typical power press

The leading Mechanical Power Press manufacturers and suppliers, based in India. In addition to this, the below mentioned are the USPs of the company that have helped in the fast and steady growth in the tough growing market competition.

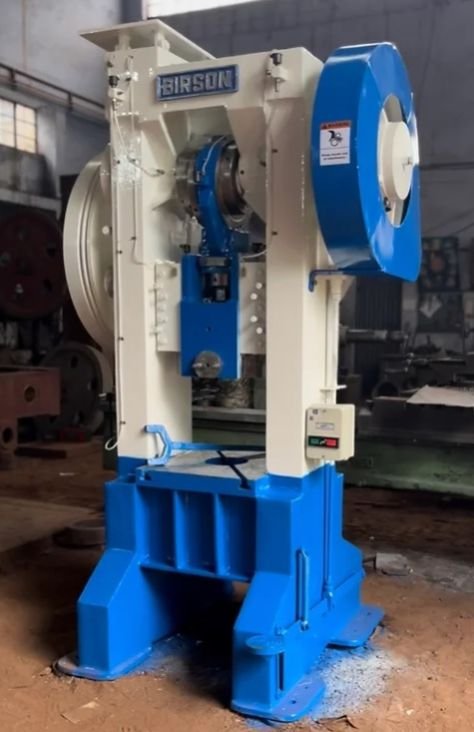

We are renowned Manufacturer and Exporter of H Frame Mechanical Power Press, which is made from optimum quality raw materials that ensure high durability. Moreover, with the help of our state-of-the-art manufacturing unit, we are able to develop our range of H Frame Mechanical Power Press with utmost precision. Demanded for Rugged constructionSimple operationsLonger working lifeLow maintenance cost Widely Used at Engineering industryAutomobile industry Technical Specifications Capacity in Tons 10 20 30 50 75 100 150 200 250 300 Bed Size 280X330 330X406 381x431 457x508 560x560 585x635 685x735 785x810 865x915 915x1015 Bed to Ram Bottom 200 228 228 305 330 380 455 508 610 660 Stroke Length 50 55 63 80 90 100 145 150 150 175 Crank Shaft Dia out of 75 80 100 110 130 156 170 205 230 256 Gear Dia 430 560 610 660 765 865 965 1066 1170 1220 Fly Wheel Dia 540 570 685 765 835 965 1095 1200 1320 1420 Hole in Ram for Die Clamping 25.4 31.75 31.75 38.1 44.45 50.8 50.8 63.5 76.2 76.2 Floor to top of bed 710 740 740 765 820 825 840 840 855 915 No.'s of strokes per minutem 65 60 60 50 45 35 30 30 25 22 Overall Height without motor 1520 1765 1790 2000 2160 2340 2540 2900 3160 3430 Approx. Floor area required 762x635 762x686 838x686 1016x762 1016x762 1067x863 1600x1040 1600x1140 1750x1220 1900x1270 Power required 2 H.P. 2 H.P. 3 H.P. 5 H.P. 7.5 H.P. 10 H.P. 15 H.P. 20 H.P. 25 H.P. 30 H.P.

To cater to varied industrial requirements of diverse industries, Press & Press Tools are engaged in manufacturing Mechanical Power Press. The precision-made Mechanical Power Press, we offer, successfully serves the requirements of the clients and is greatly demanded for its excellent features. The Mechanical Power Press is loaded with varied advanced specifications that make us assure their easy low cost workability and smooth handling of material. The well-researched compact design of the Mechanical Power Press, we provide, has made it much suitable for varied industries. Standard Feature Of Mechanical Power Press To conveniently eject the material from top, the Knock-out bar stands are adjustable from left & rightReachard system is used for Quick & easier setting of diesAdditional bed plate stands are provided with center hole for convenient Setting of various die as per requirement in ‘T’ slotTo bear the load efficiently & for easy operation, a jack for inclining the machine is providedFitted with double & hardened rolling Key Optional Feature Of Mechanical Power Press Auto Lubrication pump‘T’ Slot size in slide & bed PlateStroke Length and Shut height other then the Standard if requiredElectric Stroke Counter Specifications ModelUnit PPT-20 PPT-30 PPT-40 PPT-50 PPT-75 PPT-100 PPT-150 PPT-200 Capacity at before BDC Ton 20 30 40 50 75 100 150 200 Bed to Ram mm 270 270 280 320 350 440 490 500 Throat mm 150 180 200 220 245 280 300 355 Bed Size mm 480 X 380 560 X 420 585 X 465 630 X 555 760 X 560 800 X 600 900 X 700 1120 X 710 Bed Plate Thickness mm 60 70 75 75 80 90 100 120 Strock Length mm 0 to 60 0 to 60 0 to 70 1 to 80 1 to 90 1 to 100 2 to 120 2 to 125 Crank Shaft Dia mm 108 121 130 145 164 175 210 240 Gear Dia mm 406 510 561 612.5 757.5 865 900 1100 Hole in Ram mm 30 35 40 50 60 70 80 90 No. of Strokes Minutes 65 60 50 50 45 40 35 30 Motor HP/RPM 02/01/40 03/01/40 03/01/40 05/01/40 07/01/40 10/01/40 15/1440 20/1440 Approx Weight kg 850 1250 1800 2750 3800 5100 6500 7500

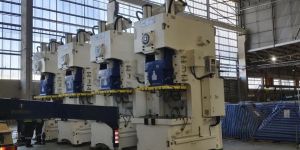

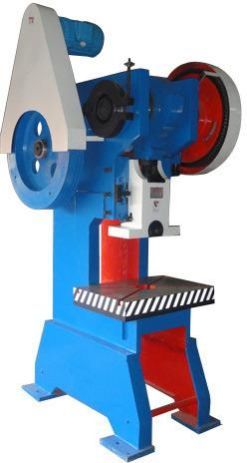

This is a standard work horse machine for every press shop and supplied complete with electric motor This is a C frame, single point suspension, non-inclinable single action press having Steel Plate construction duly stress relieved, with rolling key clutch mechanism. This is a standard work horse machine for every press shop and supplied complete with electric motor, starter, gear and fly wheel guards, one shot lubrication device. Its available in various models from 03 Tons capacity to 100 Tons. If required, inclining mechanism and motorized automatic lubrication system is offered at extra cost. Kindly ask for details.

our company is a reckoned entity devotedly engaged in offering an extensive assortment of mechanical c type power press. our offered range is manufactured by our skilled workforce following all the quality guidelines defined by industry in tandem with the set international standards. In order to cater the diverse needs of our clients, this power press is provided in various models and specifications. Moreover, clients can avail the entire range at industry leading prices within promised time frame. tonnage capacity: 3 ton to 250 ton   salient features :   gear teeth are generated by imported hobbing it has sliding surfaces and moving parts without wastage of oil its fly wheel is made of high grade steel iron specifications all dimensions are in mm power supply 400/440 volts, 3 phase 50 cycles geared machines 1440 rpm un geared machines 960 rpm stringent quality checks for easy and smooth operation options geared drive n geared drive pneumatic drive stroke length charge

Mechanical power press c type 5 to 200 ton capacity capacity 50 ton crank shaft dia. 95 mm stroke adjustment 13 to 100 punch hole in ram 51 length & width of bed 650x400 dist.between bed to ram 350 fly wheel diameter 560 stroke per minute 50 h.p. Required 5 gear type ( std.model *) double weight ( approx.) 2300kg

HPSM’ providing the best quality Mechanical power presses to our clients. Our company is generally known for the manufacturing of wide range of power press. The quality of these presses is generally checked by highly qualified and experienced technicians. The life time of American power press is very long. The raw material present in this very kind of press is very advanced than other type of presses.

Ultimate and latest solution for make component like circle, blanking, embossing, bending, cutting of sized or coil sheet, We offer C & H type Presses from 50 Ton to 600 Ton with optional of Mechanical, Pneumatic Clutch. Presses are required by all industries like Automobile, Railways, Defence, House Hold appliance, Infrastructure, Power & telecommunication etc.

Friction Screw Presses with energy control with in 2%, Down Stroking, High Energy Presses. As per specifications, machine complete with electricals suitable for operation on 415V+-6%, 3Phase, 50Cycles, AC Mains Complete with PLC and Electronic Energy Metering.

Single Point Suspension Non-Inclinable Single Action Press having Steel Plate Fabricated Construction Duly Stress Relieved with 6 Point Gibbing of Slide, Fitted with Pneumatically Operated Combined Single Disc. Friction Clutch & Brake, Minimal Frame Gapping, Low Angular Deflection < 1.5 minutes, Hi-Torque Pneumatically Operated Single Disc Combined Clutch & Brake Unit.
