J. P. Machine Tools Pvt. Ltd. Dholewal, Ludhiana, Punjab

Our Vertical Milling Machine is designed to meet the requirements of various industries. These Vertical Milling Machines are widely used for shaping the metals with utmost accuracy. We are a reliable Manufacturer and Exporter of Vertical Milling Machine from India. Known for Robust constructionHigh performanceLonger working lifeLow maintenance cost Used to Shape metals Technical Specifications MODEL JP-0A JP-M1 JP-M1.5 JP-M2 JP-M3 JP-M4 Working Surface900x2101000x2251050x2501250x2751350x3001600x350 Number & Size of T-Slots3x133x133x133x133x153x15 Distance between T-Slots455055657580 Cross Feeds150160200228279305 Vertical Feeds300325375432507610 Longitudinal425475525625675810 Arbor25.425.425.425.425.425.4 Number Of Speeds6(50-1000)6(50-1000)6(50-750)6(50-950)6(50-950)6(50-950) TaperISO-30ISO-30ISO-40ISO-40ISO-40ISO-40 Distance from Spindle to top (min-max)10/01/7510/01/0010/01/5010/01/0010/01/0010/01/00 Spindle2 H.P. 1440 RPM2 H.P. 1440 RPM2 H.P. 1440 RPM2 H.P. 1440 RPM3 H.P. 1440 RPM5 H.P. 1440 RPM Coolant0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM0.10 H.P. 2800 RPM Net Weight9000 Kg.1100 Kg.1400 Kg.2500 Kg.3500 Kg.4000 Kg. Gross Weight1100 Kg.1350 Kg.1600 Kg.3000 Kg.4000 Kg.4500 Kg. Cross110-225125-275125-350135-425135-400135-535 Vertical75-300125-350150-435100-500100-575100-625 Speeds for vertical Head (Ram Type)3(380-960)3(380-960)6(160-425)6(95-550)6(95-550)6(50-450)

We are engaged in Manufacturing and Exporting of Universal Milling Machine that is appreciated by clients not only for strong construction but also for long service life. Manufactured using latest technology, our range of Universal Milling Machine is available in different specifications. Appreciated for Sturdy constructionHigh performanceLonger working lifeLow maintenance cost Used to Shape metals Technical Specifications MODEL JP-0A JP-M1 JP-M1.5 JP-M2 JP-M3 JP-M4 Working Surface 900x210 1000x225 1050x250 1250x275 1350x300 1600x350 Number & Size of T-Slots 3x13 3x13 3x13 3x13 3x15 3x15 Distance between T-Slots 45 50 55 65 75 80 Cross Feeds 150 160 200 228 279 305 Vertical Feeds 300 325 375 432 507 610 Longitudinal 425 475 525 625 675 810 Arbor 25.4 25.4 25.4 25.4 25.4 25.4 Number Of Speeds 6(50-1000) 6(50-1000) 6(50-750) 6(50-950) 6(50-950) 6(50-950) Taper ISO-30 ISO-30 ISO-40 ISO-40 ISO-40 ISO-40 Distance from Spindle to top (min-max) 10/01/75 10/01/00 10/01/50 10/01/00 10/01/00 10/01/00 Spindle 2 H.P. 1440 RPM 2 H.P. 1440 RPM 2 H.P. 1440 RPM 2 H.P. 1440 RPM 3 H.P. 1440 RPM 5 H.P. 1440 RPM Coolant 0.10 H.P. 2800 RPM 0.10 H.P. 2800 RPM 0.10 H.P. 2800 RPM 0.10 H.P. 2800 RPM 0.10 H.P. 2800 RPM 0.10 H.P. 2800 RPM Net Weight 9000 Kg. 1100 Kg. 1400 Kg. 2500 Kg. 3500 Kg. 4000 Kg. Gross Weight 1100 Kg. 1350 Kg. 1600 Kg. 3000 Kg. 4000 Kg. 4500 Kg. Cross 110-225 125-275 125-350 135-425 135-400 135-535 Vertical 75-300 125-350 150-435 100-500 100-575 100-625 Speeds for vertical Head (Ram Type) 3(380-960) 3(380-960) 6(160-425) 6(95-550) 6(95-550) 6(50-450)

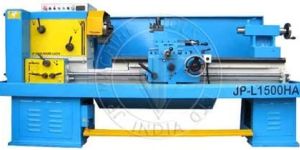

We are a trusted Manufacturer and Exporter of Tool Room Lathes that are known for their high performance and longer working life among the clients. The -Series Tool room Lathes are available with distinctive features that make it suitable for complex operations with high productivity level. Known for Accurate constructionSimple operationsLonger working lifeLow maintenance cost Application Engineering industry

We offer best quality Surface Grinder that is widely used in various industries for grinding purposes. These Surface Grinders are known for their distinctive features among the clients and have attracted them to place repeated orders. Characteristics Low maintenanceHigh enduranceHigh efficiencyLonger working life Designed for Squaring of materialSharpening cutting toolsTruing flat metal stockSharpening die sets and punches Technical Specifications Specifications JP-SG 8x18 JP-SG 10x20 JP-SG 12x24 JP-SG 12x36  mmmmmmmm Working Surface of Table225x675255x510325x825325x1050 Grinding Capacity 200x460250x500300x600300x900 Longitudinal Traverse of Table225275325325 Cross Traverse215250315315 Vertical Traverse200200250250 Grinding Wheel Dia and Width150x12177x12177x12200x12 Spindle Speed2800280028002800 Cross Feed Graduation 0.050.050.050.05 Vertical Feed Graduation0.030.030.030.03 Floor Space Required1200x7501625x8001800x10002200x1000 Net Weight650 kg750 kg900 kg1100 kg Gross Weight900 kg1000 kg1100 kg1300 kg Electric Motor1 H.P. 2800 rpm1 H.P. 2800 rpm1 H.P. 2800 rpm1 H.P. 2800 rpm

We are a prominent Manufacturer and Exporter of Slotting Machine that is designed to be used for slotting operations. Our range of Slotting Machines is known for its robust construction and longer working life among the clients. We offer Slotting Machine in different specifications to meet the demands of the clients. Features Rugged constructionPrecision designLow maintenance costDrum clutch for stopping ram at any poising Equipped With One shot lubricationSensor switchesIndexing unitDust & Chip protection for slidesTool boxTest chart and high endurance certificateInstruction and maintenance manual Technical Specifications MODEL SLA-150  SLA-250  SLA-300 SLA-450  Length of stroke Max.  175  250  325 475 Working Stroke   150  225   300  450 Ram adjustment   125  200  250   325   Length of Ram Bearing    500  550  625 875 Throat Adjustment    300 350 500 675 Max. Accommodate Diameter when Machine At center  500  750 850 1500 Height between Table & Head    300   375 450 700 Longitudinal Feed Manual   200 325 450 625 Longitudinal Feed Auto 175 300 425 575 Cross Feed Manual 225 250  400 550 Cross Feed Auto 200 225 375  500 Dimension of Table   275  375  600 900 No. & Range of Speeds   2 (30-50) 3 (30-60-90) 3 (25-40-65) 6 (10-15-35-50-70) Motor (960 RPM) 1.5 HP 2 HP 3 HP 5 HP Net Weight    850 Kg. 1200 Kg. 1750 Kg. 4000Kg. Gross Weight   975 Kg. 1400 Kg. 1925 Kg.  4500Kg.

We are into Manufacturing and Exporting of Radial Drills Machine that is fabricated as per set industrial standards. This Radial Drills Machine is intended for massive & heaving duty operation and finds application in various industries. These machines can be accessed at market leading prices. Salient Features Rugged constructionUser friendly operationHigh tensile strengthLonger service lifeLow maintenance cost Comes with Coolant systemWork lightChip guardT-Slotted work tableTool boxTest chart and high endurance certificateInstruction and maintenance manual Technical Specifications Item Model JP-R40 JP-R50 JP-R65 JP-R75 JP-R100 JP-R125 JP-R150 Max. Drilling Diameter mm 40 50 65 75 100 125 150 Distance between spindle axis column (min-max) mm 320-320 350-1100 350-1600 450-2000 500-2500 570-3150 600-4000 Distance between spindle nose and working surface of base plate mm 90-350 320-1220 320-1220 400-1600 550-2000 750-2000 750-2500 Vertical travel of radial arm mm 500 550 580 800 1000 1250 1250 Travel of spindle head along arm mm 500 900 1250 1550 2000 2580 3400 Column diameter mm 200 310 350 450 550 700 800 Spindle diameter mm 60 75 79 85 104 112 142 Spindle travel mm 240 225 315 400 450 500 560 Spindle taper Morse No. 4 Morse No. 5 Morse No. 5 Morse No. 5 Morse No. 6 Morse No. 6 Metric 80 Range of spindle speed (step) RPM 75-1220 (6) 40-1220 (9) 25-2000 (16) 20-1600 (16) 16-1250 (16) 8-1000 (22) 63-800 (22) Range of spindle feed (step) mm/r 0.10-0.25 (3) 0.05-0.125 (3) 0.04-3.20 (16) 0.04-3.20 (16) 0.04-3.20 (16) 0.06-3.20 (16) 0.06-3.20 (16) Size of worktable 400x350 400x400 500x630 630x800 800x1000 800-1250 800-1250 Main motor/arm elevation kw 1.5/.5 2.2/1.5 03/01/05 5.5/1.5 7.5/2.2 15/3 18.5/3 Net weight of machine kg 1800 2500 3500 7000 11000 20000 28500

We bring forth proven range of Metal Shaping Machine that is widely used for metal shaping operations in different industries. These machines are appreciated for their universality and superior performance in the international markets. Moreover, Metal Shaping Machine is duly checked on different parameters of quality by our quality controllers on each stages of production process. Highlighting Features Large T-slotted work TableExtensive lubrication by Automatic Lubrication systemEasy interchangeabilityHeavy duty ribbed cast iron structureHigh performanceLonger service life Consists of Automatic lubricationSensor switchesTool boxTest chart and high endurance certificateInstruction and maintenance manual Technical Specifications Model JP-S12 JP-S18 JP-S24 & 26 JP-S30 JP-S32 JP-S36 JP-S42 JP-S48 mm mm mm mm mm mm mm mm Length of Ram Stroke 305 457 660 762 815 915 1070 1215 Length of Ram 660 914 1325 1400 1536 1640 2135 2285 Length x Width of Ram Bearing 660x178 711x245 995x280 995x280 1145x300 1145x300 1600X405 1650x430 Max/min Distance of Table from Ram 257/41 406/89 485/109 485/109 521/340 521/140 521/140 521/140 Working Surface from Table 300x228 381/279 610x330 762x370 810x387 915x387 1050X562 1200x570 Max. Horizontal Table Travel 419 457 665 670 762 865 1070 1215 Max. Vertical Table Travel 140 305 332 435 381 381 457 460 Angular movement of Table +60 DEG +60 DEG +60 DEG +60 DEG FIX FIX FIX Fix Max Tool Shank Size 16x22 30x16 38x21 38x21 38x21 38x21 38X25 40x27 Max. Vertical Travel of Tool Slide 140 152 152 152 152 228 305 330 Max. Swivel of Tool Head +-60 DEG +-60 DEG +-60 DEG +-60 DEG +-60 DEG +-60 DEG +-60 DEG +-60 DEG Diameter of Clutch Pulley 235 311 311 311 405 405 405 405 Number of Ram Speed/Strokes 3 4 4 4 4 4 4 4 Range of Ram Stroke per min. 30 to 90 17 to 75 12 to 72 12 to 72 12 to 67 12 to 67 10 to 60 10 to 60 Diameter of Motor Pulley 76 89 89 89 100 100 100 100 Range of Table Feed/StrokeM 0.22 0.88 0.22 0.88 0.22 0.88 0.22 0.88 0.22 0.88 0.22 0.88 0.22 0.88 0.22 0.88 Tool Head Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Main Motor Drive 960 Rpm 1.5 H.P. 2 H.P. 3 H.P. 3 H.P. 5 H.P. 5 H.P. 7.5 H.P. 7.5 H.P. V-Belt Section B-35 B-55 B-60 B-60 B-72 B-72 B-85 B-92 Motor Starter 3.5 Amp 3.5 Amp 5 AMP 5 AMP 15 AMP 15 AMP 03:00:00 PM 15 AMP Length 1290 1580 1980 2080 2100 2200 2400 2600 Width 838 948 1067 1117 1500 1650 1900 2100

We have specialized in the Manufacturing and Exporting of Hydraulic Shearing Machine, which is manufactured using latest technology that ensure better performance. Avail our range of Hydraulic Shearing Machines in different specification to cater the needs of the clients. Salient Features Less power consumptionLow wear and tearMinimum maintenanceNoiseless, vibration free operationUnlimited service lifeHigh productivity Specifications Cutting Capacity : 4 mm to 30 mm.Lengths : 2500 mm to 6000 mm. Suitable for Metallic and non-metallic materialsOn-line shearing applications such as cut to length line, roll forming line, coil built up line, galvanizing line etc.

We are a trusted Manufacturer and Exporter of Hydraulic Press Brake Machine that is used by different industries and is well-acknowledged for its high performance and durability. Our range of Hydraulic Press Brake Machine can be availed at market leading prices. Advantages High chip cutting capabilityRugged constructionHardened & ground gear & shaftLonger service lifeHustle free operations. Applications WheelsCouplingsGearsBearings

We are a leading Manufacturer and Exporter of Hydraulic Power Press that serve the demands of different industries. This Hydraulic Power Press is ideally used in process of transferring of hydraulic fluids under high pressure. We offer Hydraulic Power Press at most competitive prices. Features DurableAvailable in different capacitiesEasy to operateHigh performance Used at Engineering industryAutomobile industry Technical Specifications TONS Between Column Length mm X Breadth mm Between Ram to Bed Min mm x Max. mm Travel of RAM  in mm Motor H.P. 5500 x 12575 x 6001003 10600 x 15075 x 6001253 15650 x 15075 x 6001503 25850 x 300180 x 9101803 40950 x 350180 x 9101903 501000 x 400180 x 9502005 601050 x 450180 x 9752005 751150 x 500180 x 9752105 1001200 x 600180 x 9752255 1501300 x 625180 X 97524010 2001325 X 650180 X 97524015 2501350 X 650180 X 97525020

Hydraulic Hacksaw Machine offered by us, is constructed using advanced technology that enables in maximum output and smooth functioning. This Hydraulic Hacksaw Machine is designed by our experts, keeping in mind the requirements of the industries. Equipped with In-built coolant systemAuto-cut off stopSensor switchesTool boxTest chart and high endurance certificateInstruction and maintenance manual Features High chip cutting capabilityRugged constructionHardened & ground gear & shaftLonger service lifeHustle free operations.

We offer optimum quality Horizontal Boring Machine is constructed from high quality raw materials. Known for efficient working, our Horizontal Boring Machine caters to the varied requirements of different industries. Avail our range of Horizontal Boring Machines in different capacities. Advantages High chip cutting capabilityRugged constructionHardened & ground gear & shaftLonger service lifeHustle free operations. Capacity 50mm to 125mm Comprises of In-built coolant pump and pipingBacklash eliminatorUniversal tableArbor supportArborTool boxTest chartHigh endurance certificateInstruction & Maintenance manual Technical Specifications ModelsJP-HB65JP-HB80JP-HB100JP-HB110JP-HB125 SPINDLE DIAMETER6580100110125 MORSE TAPER45666 RANGE OF SPINDLE SPEED20 - 30015 - 30015 - 30015 - 25015 - 250 LONGITUDINAL WORK SPINDLE FEEDS NO.99999 MAX. HIEGHT OF SPINDLE AXIS FROM TABLE SURFACE800925100011001200 MIN. HIEGHT OF SPINDLE AXIS FROM TABLE SURFACE2025303030 ROTARY TABLE DIMENSIONS840 X 1050900 X 11051030 X 13751100 X 14501220 X 1675 LONGITUDINAL TABLE TRAVERSE15001625177519252050 FACING HEAD DIAMETER450505555600650 NETT WEIGHT7000850095001100013500

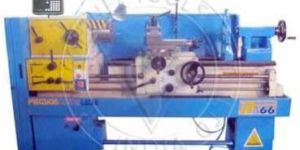

Centre heightCentre distanceSpindle boreSpeed rangeThreads 175mm to 480 mm750mm to 4000mm50mm to 250mm35 to 2000 RpmMetric-Module-Diametric-Whitworth JP Brand Tool room lathes are combination of accuracy, simplicity and affordability to its users. H-Series lathe have just the right amount of engineering to afford simplicity of operation, coupled with plain and simple rugged reliability. JP Brand H-Series Tool room Lathes comes with a package of features which make the machine to perform even the most complex turning operation with higher level of accuracy and rigidity. Fast FactsStandard FeaturesHeavily ribbed single piece bed which is hardened and precision groundThread dials Extra wide bed ways for rigidity and stability in operation Steady rest Dynamically balanced components Follow rest Quick change gearbox for cutting Metric-Module-Diametric-Whitworth Threads and most of them can be cut without changing gears Chuck guard Fully geared headstock provides a wide range of spindle speeds Removable gap Spindle is mounted on a set of precision angular taper bearings Work light High chip cutting power with accuracy and stability makes it a complete solution for tool room turning problems Splash guard Tool box Test chart and high endurance certificate Instruction and maintenance manual Optional FeaturesQuick change tool postCoolant system4-Jaw chuckForced lubrication3-Jaw chuckBall screw for cross traverseFace plateRear chuckElectronic DROTool post protectionHydraulic tracerTwin saddleTaper turning attachmentAuto movement of tailstockKey cutting attachmentSpecific speed rangeTool post grinder attachmentSpecific speed range4-Way rapid traverse systemAdditional steady restFoot brakeRevolving centre

We are renowned Manufacturer and Exporter of H Frame Mechanical Power Press, which is made from optimum quality raw materials that ensure high durability. Moreover, with the help of our state-of-the-art manufacturing unit, we are able to develop our range of H Frame Mechanical Power Press with utmost precision. Demanded for Rugged constructionSimple operationsLonger working lifeLow maintenance cost Widely Used at Engineering industryAutomobile industry Technical Specifications Capacity in Tons 10 20 30 50 75 100 150 200 250 300 Bed Size 280X330 330X406 381x431 457x508 560x560 585x635 685x735 785x810 865x915 915x1015 Bed to Ram Bottom 200 228 228 305 330 380 455 508 610 660 Stroke Length 50 55 63 80 90 100 145 150 150 175 Crank Shaft Dia out of 75 80 100 110 130 156 170 205 230 256 Gear Dia 430 560 610 660 765 865 965 1066 1170 1220 Fly Wheel Dia 540 570 685 765 835 965 1095 1200 1320 1420 Hole in Ram for Die Clamping 25.4 31.75 31.75 38.1 44.45 50.8 50.8 63.5 76.2 76.2 Floor to top of bed 710 740 740 765 820 825 840 840 855 915 No.'s of strokes per minutem 65 60 60 50 45 35 30 30 25 22 Overall Height without motor 1520 1765 1790 2000 2160 2340 2540 2900 3160 3430 Approx. Floor area required 762x635 762x686 838x686 1016x762 1016x762 1067x863 1600x1040 1600x1140 1750x1220 1900x1270 Power required 2 H.P. 2 H.P. 3 H.P. 5 H.P. 7.5 H.P. 10 H.P. 15 H.P. 20 H.P. 25 H.P. 30 H.P.

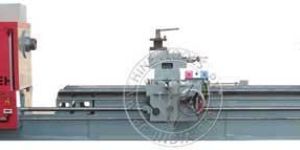

We are a prominent Manufacturer and Exporter of EH Series Machine that is widely used in different applications. Our range of EH Series Machine is apprecaited for features such as precision design and universality among the international clients. Ideally designed for massive jobs with higher efficiency and effectively, our machines can be avalaied in different specifications. Features Reliable performanceLonger service lifeOptimum functionalityEnergy efficient Applications Oil countrySteel & paper millsPower plantsShip buildingMining industryTextile industry Technical Specifications Model JP-L160EH JP-L161EHJP-L162EHJP-L163EHJP-L180EHJP-L181EHJP-L182EHJP-L183EHJP-L200EHJP-L300EHJP-L400EHJP-L500EHJP-L600EH Height of Centre mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 900mm 1000mm 1100mm 1200mm 1350mm 1500mm inch 20" 22" 24" 26" 28" 30" 32" 36" 40" 44" 48" 54" 60" Distance between Centre mm 3000mm120" , 4000mm160" ,5000mm200" ,6000mm240" ,7000mm280" ,8000mm320" ,9000mm340" ,10000mm380" , 11000mm420" ,12000mm460" ,13000mm500" inch 14000mm540" ,15000mm580" ,16000mm620", 17000mm660" , 18000mm700" ,19000mm740" ,20000mm780" Swing over Bed mm 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1600mm 1800mm 2000mm 2200mm 2400mm 2700mm 3000mm inch 40" 44" 48" 52" 56" 60" 64" 72" 80" 88" 96" 108" 120" Swing in Gas mm 1600mm 1700mm 1800mm 1900mm 2000mm 2100mm 2200mm 2400mm 2600mm 2800mm 3000mm 3300mm 3600mm inch 64" 68" 72" 76" 80" 84" 88" 96" 104" 112" 120" 132" 144" Swing over Cross Slide mm 650mm 750mm 800mm 850mm 1000mm 1100mm 1200mm 1400mm1550mm 1750 1950mm 2150mm 2350mm inch 26" 30" 32" 34" 40" 44" 48" 56"62" 70" 78" 86" 94" Width of Bed mm 550mm 650mm 700mm 750mm 800mm 850mm 900mm 1000mm1100mm 1200mm 1350mm 1500mm 1625mm inch 22" 26" 28" 30" 32" 34" 36" 40"44" 48" 54" 60" 65" Hole through Spindle mm127mm - 625 mm inch5" - 25" Range of Spindle Speeds Selection1-1000 Rpm Whitworth Threads- 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 Metric Threads- 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 Cross Slide Travel mm 550mm 650mm 700mm 750mm 800mm 850mm 900mm 1000mm 1100mm 1200mm 1350mm 1500mm 1625mm inch 22" 26" 28" 30" 32" 34" 36" 40" 44" 48" 54" 60" 65" Top Slide Travel mm 250mm 250mm 250mm 250mm 250mm 250mm 250mm 250mm 300mm 300mm 300mm 300mm 300mm inch 10" 10" 10" 10" 10" 10" 10" 10" 12" 12" 12" 12" 12" Morse Taper of Sleeve MT5 MT5 MT5 MT5 MT5 MT6 MT6 MT6 MT6 MT6 MT6 MT6 Mt Main PowerM 10 HP 10 HP 10 HP 10 HP 15HP 15HP 15HP 15HP 20 HP 30HP 40HP 50HP 50HP Lubrication Power .5HP .5HP .5HP .5HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP Rapid Power 1HP 1HP 1HP 1HP 2HP 2HP 2HP 2HP 3HP 3HP 3HP 3HP 3HP Tailstock Power .75HP .75HP .75HP .75HP 1HP 1HP 1HP 1HP 2HP 2HP 2HP 3HP 3HP

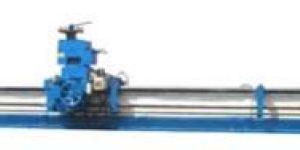

Our wide array of EEH Series Machine is manufactured using high grade quality components that ensure durability and high strength. The EEH Series Machine offered by us, can be accessed in most competitive prices. We are counted as one of the leading Manufacturers and Suppliers of EEH Series Machine. Characteristics Optimum performanceLonger service lifeExcellent functionalityEnergy efficient Applications Steel & paper millPower plantsShip buildingMining industryTextile industryOil industry Specifications Centre heightCentre distanceSpindle boreSpeed rangeThreads175mm to 480 mm750mm to 4000mm50mm to 250mm35 to 2000 RpmMetric-Module-Diametric-Whitworth Technical Specifications Model JP-L160EEH JP-L161EEHJP-L162EEHJP-L163EEHJP-L180EEHJP-L181EEHJP-L182EEHJP-L183EEHJP-L200EEHJP-L300EEHJP-L400EEHJP-L500EEHJP-L600EEH Height of Centre mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 900mm 1000mm 1100mm 1200mm 1350mm 1500mm inch 20" 22" 24" 26" 28" 30" 32" 36" 40" 44" 48" 54" 60" Distance between Centre mm 3000mm120" , 4000mm160" ,5000mm200" ,6000mm240" ,7000mm280" ,8000mm320" ,9000mm340" ,10000mm380" , 11000mm420" ,12000mm460" ,13000mm500" inch 14000mm540" ,15000mm580" ,16000mm620", 17000mm660" , 18000mm700" ,19000mm740" ,20000mm780" Swing over Bed mm 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1600mm 1800mm 2000mm 2200mm 2400mm 2700mm 3000mm inch 40" 44" 48" 52" 56" 60" 64" 72" 80" 88" 96" 108" 120" Swing in Gas mm 1600mm 1700mm 1800mm 1900mm 2000mm 2100mm 2200mm 2400mm 2600mm 2800mm 3000mm 3300mm 3600mm inch 64" 68" 72" 76" 80" 84" 88" 96" 104" 112" 120" 132" 144" Swing over Cross Slide mm 650mm 750mm 800mm 850mm 1000mm 1100mm 1200mm 1400mm1550mm 1750 1950mm 2150mm 2350mm inch 26" 30" 32" 34" 40" 44" 48" 56"62" 70" 78" 86" 94" Width of Bed mm 550mm 650mm 700mm 750mm 800mm 850mm 900mm 1000mm1100mm 1200mm 1350mm 1500mm 1625mm inch 22" 26" 28" 30" 32" 34" 36" 40"44" 48" 54" 60" 65" Hole through Spindle mm127mm - 625 mm inch5" - 25" Range of Spindle Speeds Selection1-1000 Rpm Whitworth Threads- 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 48 , 1-16 Metric Threads- 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 48, 2-30 Cross Slide Travel mm 550mm 650mm 700mm 750mm 800mm 850mm 900mm 1000mm 1100mm 1200mm 1350mm 1500mm 1625mm inch 22" 26" 28" 30" 32" 34" 36" 40" 44" 48" 54" 60" 65" Top Slide Travel mm 250mm 250mm 250mm 250mm 250mm 250mm 250mm 250mm 300mm 300mm 300mm 300mm 300mm inch 10" 10" 10" 10" 10" 10" 10" 10" 12" 12" 12" 12" 12" Morse Taper of Sleeve MT5 MT5 MT5 MT5 MT5 MT6 MT6 MT6 MT6 MT6 MT6 MT6 Mt Main PowerM 10 HP 10 HP 10 HP 10 HP 15HP 15HP 15HP 15HP 20 HP 30HP 40HP 50HP 50HP Lubrication Power .5HP .5HP .5HP .5HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP 1HP Rapid Power 1HP 1HP 1HP 1HP 2HP 2HP 2HP 2HP 3HP 3HP 3HP 3HP 3HP Tailstock Power .75HP .75HP .75HP .75HP 1HP 1HP 1HP 1HP 2HP 2HP 2HP 3HP 3HP

We are into Manufacturing and Exporting of Cylindrical Grinder that is widely demanded due to its high performance & better accuracy. By offering the clients with best quality Cylindrical Grinder, we have carved distinct position in the international market. Features High productivityAccurate resultsLonger working lifeLow maintenance cost Used for Die makingTool makingSpine grindingBroach making. Technical Specifications MODELJP-CYG-12JP-CYG-18JP-CYG-24JP-CYG-30JP-CYG-40 MAXIMUM GRINDING LENGTH3054576097601000 MAXIMUM HEIGHT OF CENTER5:"51/2"51/2"51/2"61/2 MAXIMUM SWING OVER TABLE10"1 1"1 1"1 1"1 1" MAXIMUM GRINDING DIAMETER40 MM76101101101 NO. OF TABLE FEEDS333 RANGE OF TABLE FEEDS PER MINUTES100-175-275100-175-275100-175-275 MAXIMUM TABLE SWIVEL7Ã…Ÿ7Ã…Ÿ7Ã…Ÿ7Ã…Ÿ ELECTRIC MOTOR FOR TABLE DRIVE1H.P. 14400 RPM1H.P.1440 RPM1 H.P. 1440 RPM1 H.P. 1440 RPM1440RPM. WORK HEAD SWIVEL ON EITHER SIDE9090909090 WORK SPINDLE SPEEDS33333 WORK SPINDLE SEEDS RANGE60-90-11060-90-11060-90-110 WORK HEAD MOTOR WITH 1440 RPM.0.5 H.P.0.5 H.P.0.75H.P.1H.P.1H.P. MORSE TAPERMT-3MT-3MT-3MT-3MT-3 TRAVERSE MOVEMENT OF WHEEL HEAD MAX.8888888888 SIZE OF GRINDING WHEEL355X38X127355X38X27355X38X27406X38X127406X38X127

Our extensive range of Cutter Grinders is manufactured in compliance with international standards. Cutter Grinders offered by us are check for quality right from the procurement of raw materials to manufacturing and till the final dispatch. Our dexterity lies in developing these Cutter Grinders in different specifications. Specialty Robust constructionHigh performanceAccurate resultsLonger working lifeLow maintenance cost Used for Rapid Sharpening of H.S.S. milling cutters spiral millsMetal slitting saws sideFace cutter reamersEnd mills formed cutters Technical Specifications Tool Grinder Specification JP-TC 80 JP-TC 87 JP-TC 92 Swing over table (Dia)230 mm305 mm350 mm Maximum distance between centres305 mm560 mm660 mm Table longitudinal traverse305 mm510 mm610 mm Table Cross travarse200 mm205 mm255 mm Table Dimensions530x142 mm805x156 mm1015x156 mm Tee Slots width10 mm12 mm12 mm Centre of wheel above table280 mm330 mm350 mm Table Swivel90o90o90o Head Swivel360o360o360o Grinding Spindle Speed2800 rpm2800 rpm2800 rpm H.P. of Motor1 HP1 HP1 HP Floor area occupied900x750 mm1120x920 mm1500x950 mm Height to the machine1500 mm1680 mm1500 mm Weight of the machine with standard accessories500 kg.670 kg.822 kg.

Avail from us, the high performing range of C Frame Mechanical Power Presses that is manufactured as per international standards that ensure better performance. This specially designed C Frame Press is available in different specifications to fulfill the demands of the clients. Attributes Dimensionally accurateEasy to operateHigh performanceLonger service life Application Automotive industry Technical Specifications Capacity in Tons JP-CP5 JP-CP10 JP-CP20 JP-CP30 JP-CP50 JP-CP75 JP-CP100 JP-CP150 JP-CP200 Bed size 220x330 325x435 355x510 432x585 510x760 600x850 660x915 720x980 900x1100 Bed of RAM bottom 220 230 255 275 385 400 450 500 550 Stroke length 40 50 55 63 80 90 100 145 150 Crank shaft DIA out of 70 75 90 100 110 130 156 170 205 Gear DIA 356 430 560 610 660 765 865 965 1066 Fly wheel DIA 480 540 570 685 765 835 965 1095 1200 Hole in RAM for DIA clamping 25.4 25.4 31.75 31.75 38.1 44.45 50.8 50.8 63.5 Floor to top of bed 610 680 740 840 840 840 840 863 863 No. of strokes per min 70 65 60 60 50 45 35 30 30 Overall height without motor 1320 1525 1730 1930 2135 2290 2500 2670 2950 Approx. floor area required 533x685 619x762 711x1116 762x1143 813x1219 914x1272 965x1397 1143x1425 1525x2006 Power required 1 H.P. 2 H.P. 3 H.P. 3 H.P. 5 H.P. 7.5 H.P. 10 H.P. 15 H.P. 20 H.P.
