We build hardware platforms that are easy to connect to your systems. With standards like Modbus RTU and Modbus TCPIP , wide variety of PLCs. energy meters and data loggers can connected to our Nodes easily. Our GPRS based node, can be configured remotely and you start logging your data within hours.

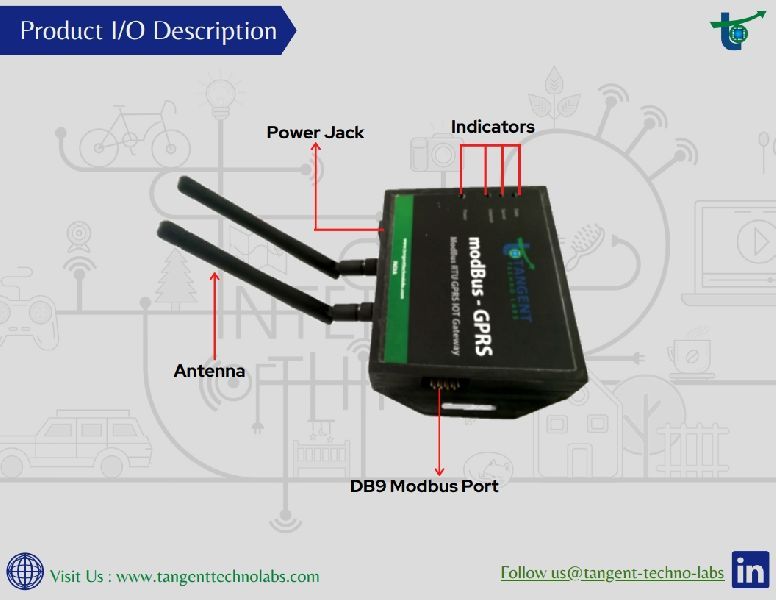

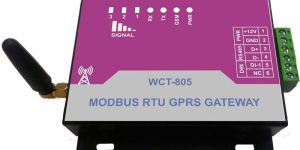

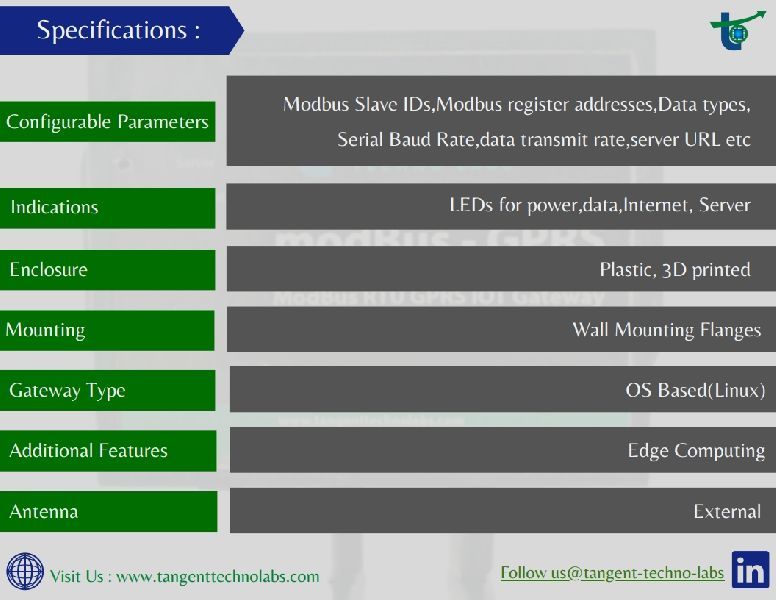

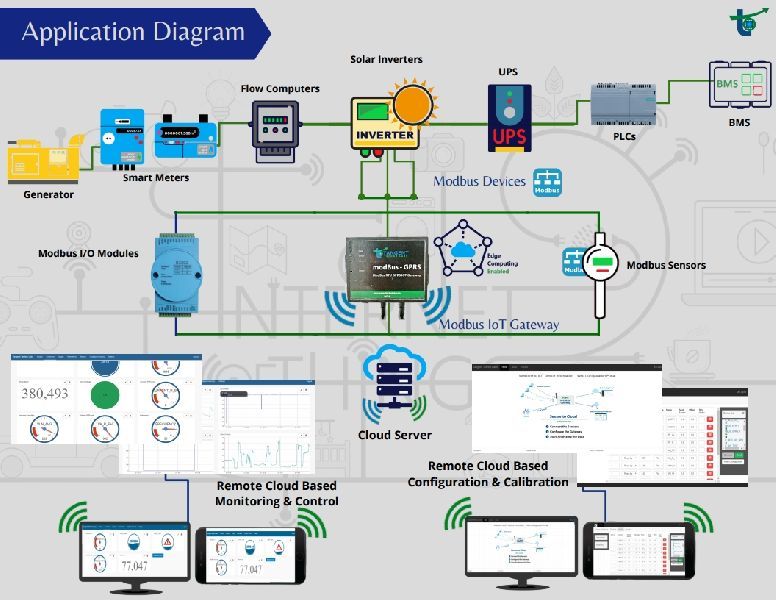

The ModBus RTU GPRS IOT Gateway is a fully plug and play IOT device which enables any ModBus slave device(s) to be connected to cloud server in minutes. There is no coding needed. It comes with inbuilt ModBus master capability and also other intelligence needed to communicate with any cloud server. It is remotely configurable via our Web configuration portal for user settings such as slave id, register addresses, data type, server url, data transfer rate etc. Even a technician can configure and get the automation running in minutes. If Tangent Cloud IOT platform is selected as the server, the user can visualise the modbus data in Tangent cloud dashboard in form of graphs, widgets, alerts etc.

GW1102-2D(RS-485) is an industrial Ethernet Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII protocols. It provides 2 port RS-485/422 serial (5 bit terminal block) and 1 port 10/100M Ethernet.Modbus TCP, Modbus RTU and Modbus ASCII protocol are integrated in the products, users can easily realize the seamless integration of Modbus Ethernet devices and Modbus serial devices and even multi master and slave hybrid networks. At the same time, the user can be set up by Web or Telnet. The simple design can not only realize the fast application, but also guarantee the application of the entire real industrial environment.The products using EMC protection design, can work in rugged environment.   1.Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS protocol2.Support 1 port 10/100M Ethernet3.Support 2 Port RS-485/4224.Support WEB and Telnet configuration5.Convert between Modbus TCP and Modbus RTU/ASCII6.Support RTU Slave, RTU Master, ASCII Slave, ASCII Master four operating modes7.Support ID mapping function, to achieve the management of the host ID8.300bps~115200bps baud rate and nonblocking communication9.Support IP address and MAC address filtering function10.Slave mode support 16 TCP master connections11.Master mode support 32 slave TCP connection requests12.Support Response Timeout and Interval Timeout setting13.Support cross-gateway and cross-router communication14.IP30 protection grade, metal shell, wall mounted installation15.No fan, low consumption design16.Working temperature: -40～75℃   Ethernet portStandard: 10Base-T, 100Base-TXProtocol: Support Modbus TCP, Modbus RTU, Modbus ASCII, IP, APR, ICMP, DNS and DHCPSignal: Rx+, Rx-, Tx+, Tx-Speed: 10/100MbpsWorking: Full-duplex and half duplexTransfer distance: 100mConnector: RJ45Serial portSerial port number: 2 ports RS-485/422RS-485 signal: D+ (A), D- (B)RS-422 signal: T+, T-, R+, R-Parity bit: None, Even, Odd, Space, MarkData bit; 7bit, 8bitStop bit: 1bit, 2bitBaud rate: 300bps～115200bpsRS-485/422 transfer distance: 1200mRS-485/422 connector: 5 bits terminal blockProtection: class 3 staticMaster mode: 32 TCP slaves Slave mode: 16 TCP mastersWork mode: RTU Slave, RTU Master, ASCII Slave, and ASCII MasterLED IndicatorPower (PWR)Ethernet port connect status (Link)Serial port data indicator: TX1~TX2, RX1~RX2;Power requirementsInput voltage: 9~48VDCNo-load consumption: 0.90W@9VDCFull-load consumption: 1.25W@9VDCEnvironment limitsWorking temperature: -40~75℃Storage temperature: -40~85℃Relative humidity: 5%~95%（non-condensing）MechanicalShell: IP30 protection, metal shellInstallation: Wall mountingWeight: 250gSize (L×W×H): 100mm×69mm×22mmStandardEMI: EN 55022 Class A, FCC Part 15 Subpart B Class AEMS: EN 61000-4-2 (ESD), Level 3Shock: IEC 60068-2-27Free fall: IEC 60068-2-32Vibration: IEC 60068-2-6 WarrantyWarranty time: 3 yearsCertificatesCE, FCC, RoHS, UL508 (pending)Packing List1. GW1102-2D(RS-485)-P(9~48VDC) ×12. User manual ×13. Straight network cable ×14. Power adapter ×15. CD ×1 6. Warranty card ×17. Certificate of quality×1Optional accessories:DIN-Rail Mounting Kit (35mm) ×1

Arctic Modbus Gateway effectively integrates serial Modbus devices to IP based management systems via Ethernet, GPRS and EDGE. This is achieved by protocol conversion from Modbus serial protocols to Modbus TCP protocol and vice versa. Combining this to many other Modbus specific features Arctic Modbus Gateway is powerful and flexible building block for industrial Modbus communication, Also mobile operator independent systems (when GPRSEDGE is used) can be built with Viola M2M Gateway which provides virtual static IP addresses and VPN connections for Arctic devices.

We are offering ethernet modbus gateway. The ethernet modbus gateway allows serial modbus rtus to communicate and interoperate with modbus/tcp based controllers. The modbus standard protocol is an asynchronous protocol designed to connect directly to computer asynchronous ports. Modbus has been extended to operate over ethernet using the ip protocol suite. This gateway converts between the modbus tcp/ip protocol and modbus ascii/rtu protocols transparently. the emg-01 can operate in four different modes viz, modbus rtu slave, modbus rtu master, modbus ascii slave or modbus ascii master. Depending up on the mode the modbus tcpip connection is emulated. the emg-01 is powered by powerfull 32bit controller and can support multiple socket connections. Emg-01 has built in web server which servers web pages to monitor the status of the device and also to set the various device configurations. multi mode operation configuration via browser protocol aware: minimum configuration needed two serial ports that each support rs-232, rs-485 2 or 4 wire 10 or 100 mbps ethernet rs-232 interface speeds to 230 kbps
