Gauranga Soft Tech Pvt. Ltd. Belapur, Navi Mumbai, Maharashtra

Wind Turbine Data Logger version 1.0 will send all the required energy meter information to the web/intranet. It has real time clock and data will be stored with time stamp. Device also runs a web server for configuring the device parameters. Features: 1. User can configure the device. 2. Whole setup operates independent of any desktop. 3. Data will be inserted to the DB server via http server. 4. No other service or application is required. 5. There is no need for wiring hassles 6. Low maintenance cost, because of lack of wires. 7. Low turnaround time, because of better and reliable communication. 8. Easy to operate the system. 9. Easily expandable. 10. User based tracking. 11. High system life because of the wire free approach.

Smart sms alert version 1.0 will send all the required information about the battery box and the battery to the authorized users through sms. features: user can configure the device with the authorized number. cost effective. less power consumption. ability to prevent theft. additional features such as: low battery alert, door status etc. alert of the communication cable if gets cut, which is laid underground. low running cost. network based communication which will help the user to pin point the pole and its location. each network can have maximum 100 poles can be cover up to 1.5km distance.

We are offering call alert device. isms-01 is innovative product which supports the industry standard protocol to gather the information from the existing control system and sends sms alerts based on the configuration settings. Isms-01 supports industry standard modbus tcp/ip and modbus rtu (rs485) protocol. Isms-01 can operate in two modes: (i) monitor mode and (ii) trigger mode. Monitor mode in this mode i-sms can monitor different tag parameters as per the configurations. If the tag value exceeds certain threshold values then the module will trigger the preconfigured sms message to the respective users. Trigger mode in this mode isms-01 will not read any tags or other systems information. Isms-01 will act as modbus slave device and will provide sms service to the control network.

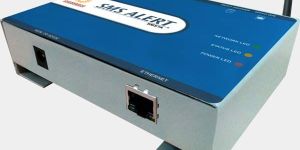

SMS alert module sends out alerts to industrial automation, building automation, fire safety and similar applications, where the timely alert to multiple people are important. SMS alert module has standard Modbus TCP/IP interface which makes it compatible with most of SCADA’s and PLCs etc. Based on the alarm, it sends pre-configured SMS text to pre-configured mobile numbers. In this way even when user is far off he can get to know the system’s alarm and take preventive measures by connecting to the control room. By this user can have control on the system even from remote location.     FEATURES Modbus TCP/IP trigger based SMS alert Configurable SMS string from SD Card Firmware update feature for future up gradation Alerts to multiple mobile numbers Timely indication of alarms, irrespective of user locations Register for signal strength Configurable up to 1000 SMS   BENEFITS Instant SMS to user Sends SMS to multiple users Remote alerts to users and senior managers for timely intervention Industry standard Modbus TCP/IP interface Easy and simple to integrate Less power consumption   APPLICATIONS Industrial Automations Building Automations Fire safety panels General Alarm notifications

Server Watchdog monitors the server and also the server environment. It also has the facility to connect temperature, fire, smoke, humidity sensors which are installed in the server room. Whenever a server goes down or any other alarm gets activated, the device generates varieties of alarms such as pre-recorded voice alarm to alert the nearby users, SMS alerts & pre-recorded voice based call alerts to remote users. In addition to that it can generate e-mail alerts also so that user has the convenience of looking into the alarm conditions. All these types of alerts are completely configurable depending on the user requirements. Server Watchdog can monitor internet based servers also, apart from the intranet based servers and any other IP based devices. Our product will be a worthy investment for securing both the hardware assets and data assets.   FEATURES Sends SMS about online / offline status of the server Up to 20 servers can be scanned at regular intervals Monitor the server room temperatures / fire / smoke sensors Facility to hook up humidity and other sensors Different kinds of configurable alerts Has voice/email/SMS/call alerts Server name/IP address, mobile numbers, alert type etc are configurable Able to monitor both local and internet based servers Has relay outputs for any control actions   BENEFITS Quick and assured alerts for server status Monitors the server room Standalone system and no risk of virus attacks Ready to configure andd easy to use Low power consumption   APPLICATIONS Industrial automation server rooms IT and IT enabled industry server rooms Data hosting centres Bank & hospital server rooms

Serial Data Logger is an easy to add data storage to any device or system. The SDL-01 is a compact, rugged device that captures data from any device equipped with a serial port and stores it in FAT16 to FAT32 compatible files on a Secure Digital card. It also has an USB port with standard Mass storage driver, which can emulate the device as USB pen drive, for retrieving the files. Features: • Low-power consumption • Low-cost • Built in RTC • Standalone unit • USB Mass storage Port • Industrial real-time export capabilities. • Support text, raw, binary data and protocols • Use any baud rate, number of data bits or stop bits, parity, hardware and software flow control. • Programming is not required to configure the software to collect data.

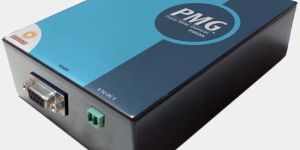

Power Meter Gateway is a cost effective device which can hook up to energy meters or any other device which has Modbus RTU protocol. It can be configured to read the data on the particular interval and post the data to the local server or internet based servers. In case of any server down time, Power Meter Gateway will time stamp the data and store it locally. When the server is back online all the data will be automatically sent to the server. In this way Power Meter Gateway ensures data is available 24/7. Power Meter Gateway is highly configurable and can read up to 500 parameters. It has inbuilt MicroSD card which gives storage capacity of 4GB. It runs a small web server which can be used to configure the device and also monitor the performances. Power Meter Gateway uses HTTP medium to communicate to the server which makes it compatible with internet based servers. With simple scripts data can be easily inserted into the database. Power Meter Gateway doesn’t have any inbuilt operating system and is not prone to any type of virus attacks and saves energy. Power Meter Gateway also works in tandem with our EMS solutions.     FEATURES Monitor energy or general data logging RTC timestamp Configuration via browser USB Port – for diagnostic Local storage of data in case of server down time Ability to send data to internet based servers Firmware update feature for future updates Less power consumption and small foot print   BENEFITS Plug & Play gateway for data gathering Enables internet based monitoring Ensures data continuity Cost effective and Less power consumption 4GB storage facility   APPLICATIONS Monitor energy consumptions Internet based monitoring of field devices Energy audit applications Internet based data logging applications

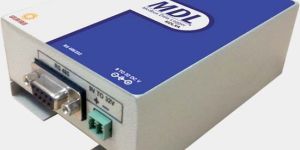

DESCRIPTION Ethernet Modbus Data Logger is an advanced data logger which allows the user to gather data from different serial Modbus RTUs at regular intervals. It gathers all these data and archives it as CSV files. Ethernet Modbus Data Logger has inbuilt RTC, which helps the system to time stamp the data as and when it is gathered. EMDL has inbuilt ethernet interface which helps the user to download the log files from anywhere in the Local Area Network. There is no need to shutdown the system to recover the data. User can simply download the CSV files, whilst EMDL will continue to log the data without any interruptions. EMDL offers versatile web interface for data download and also for configuring the device. All the configuration pages are password protected. User can browse the device anywhere from LAN and set the required configurations and download the desired files.     FEATURES Automatic recording of data at particular interval Built in RTC - time stamp adding to the data Standalone unit, compact, economical and robust design Browser based data retrieval Support Modbus RTU protocol Configurable Baud rate and serial settings Supports up to 32 RTUs Configurable logging interval Configuration through web pages served by inbuilt web server   BENEFITS For monitoring and analysing the data for quality & logging purposes Ideal for paperless record Ready-to-use and easy to configure Low-power consumption No software is required for configuration of the data Download the file from anywhere on the local network   APPLICATIONS Industrial automation data logging Temperature & Energy monitoring PLC data monitoring Process parameter monitoring Energy audit application

Mobile technology is creating wonders around the globe. We at Gauranga have used this technology in industrial usage to speed up the communication process. Every Industry has a standard protocol set for safety measures and when there is a deviation from that, the system alerts the pre-configured users with voice call alerts. Call Alert module has industry standard Modbus TCP/IP interface which makes it compatible with range of SCADA, HMI and PLCs, and also has inbuilt codec and GSM module. The Modbus Call Alert module, with the help of SCADA or PLC can trigger a pre-recorded voice call to a pre-configured mobile number and plays the pre-recorded voice file. The voice file is stored in the MicroSD card. The MicroSD has 24bit codec for voice clarity and supports multilingual voice recording. The module can also maintain the log of each call for further analysis.     FEATURES Modbus TCP/IP trigger based call alert Easy integration Easy configuration of mobile numbers Recordable voice alerts Up to 4GB of voice data Ethernet interface Web-based configuration with password protection Repeat play option Network recovery through USB port Logs the alerts with RTC time stamping Supports .WAV format with different sampling frequency Firmware update feature for future up gradation   BENEFITS Pre-recorded voice based call alerts for different alarms Clear voice notification of alarms to the remote users Multilingual voice alarm for different users Reliable instant communication Industry standard Modbus TCP/IP interface Simple and easy to integrate Less power consumption   APPLICATIONS Industrial Automations Building Automations Fire safety panels General Alarm notifications

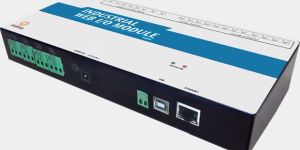

Industrial web IO module is an internet enabled device, which helps to achieve the internet based data gathering and control operations. Web IO module is a cost effective solution running on standalone code with necessary internet capabilities such as HTTP protocol for server connectivity, SMTP for any mailing operations, SNTP for internet time synchronisation etc. Web IO module also ensures data continuity by the help of local storage. All the devices are internet programmable and can be automatically updated with the latest firmware. Web IO has range of inputs and four relay outputs for different field devices. Web IO can take the commands back from the server and trigger particular outputs. Apart from this it also runs a simple logic parser, with which output action can be triggered based on any input condition or time.   FEATURES Collects data from various sensors, inputs and Modbus RTU devices and posts the data to web server Converts RTU registries data to user defined data format Managing the network down time – Data is stored when network is lost and posted to the web server when the network is restored Inbuilt RTC for time stamping the recordsUp to 4GB storage Network recovery through USB port Trigger outputs based on preconfigured trigger logic or internet server based commands Diagnosis LEDs for showing network establishment, successful server connection, error status etc Device sends email for the faults that occur to a pre-configured email Monitor and control I/O from any web browser Versatile mix of interfaces Supports Industry standard protocol   BENEFITS Integration of field data to the server room Collects multiple different types of data inputs No data loss due to managed network connectivity Internet based control operations Internet based data logging   APPLICATIONS Energy monitor solutions Renewable energy monitor solutions Internet enabled IO solutions Agriculture pump monitor solutions

We are offering ethernet modbus gateway. The ethernet modbus gateway allows serial modbus rtus to communicate and interoperate with modbus/tcp based controllers. The modbus standard protocol is an asynchronous protocol designed to connect directly to computer asynchronous ports. Modbus has been extended to operate over ethernet using the ip protocol suite. This gateway converts between the modbus tcp/ip protocol and modbus ascii/rtu protocols transparently. the emg-01 can operate in four different modes viz, modbus rtu slave, modbus rtu master, modbus ascii slave or modbus ascii master. Depending up on the mode the modbus tcpip connection is emulated. the emg-01 is powered by powerfull 32bit controller and can support multiple socket connections. Emg-01 has built in web server which servers web pages to monitor the status of the device and also to set the various device configurations. multi mode operation configuration via browser protocol aware: minimum configuration needed two serial ports that each support rs-232, rs-485 2 or 4 wire 10 or 100 mbps ethernet rs-232 interface speeds to 230 kbps

We are offering energy monitoring system. Energy monitoring system is an energy monitoring tool that helps you save energy and money. Using energy information provided by utility smart meters and energy monitoring devices, ems enables you to view your energy consumption from anywhere online. ems is an hardware adapter, which can read the energy reading from the different energy meters and upload the information to power meter tool. Using ems-01 any energy meter can be brought out online without much hassles. Energy meters can be hooked up with ems-01 through rs485 port or through digital pulses emanating from the energy meters.ems-01 can be hooked to the internet via the ethernet port and through the local internet proxy servers. plug & play gateway can monitor energy from multiple meters helps to tack energy online helps to predict your energy costs reduced system cost turns dump meter into smart meter

The Food Process industry largely depends on the cold storage houses. Cold storage houses need to maintain the temperature within range and an increase or decrease in temperature would result in spoilage of the products or produce. Monitoring temperature and other safety parameters are very critical in the cold storage house to safeguard the produce and also the equipments. Cold Storage Watchdog, monitors the temperature along with the other environmental parameters such as fire, smoke, humidity etc. Whenever there are changes in the set parameters our product will send alerts such as pre-recorded voice alarm to alert nearby users, SMS and pre-recorded voice calls to alert remote users. Our Product also has the facility to generate email alerts so that the user has the convenience of looking into the alarm conditions. All the alerts are configurable according to the user requirements. Our product will be a worthy investment to safeguard the machineries and the produce stored in the cold storage house.   FEATURES Monitor the cold storage set temperature /fire/smoke sensors Customizable configuration Has both local and remote alarms Accurate temperature measurement with PT100 sensors Facility to hook up humidity, pressure sensor etc Local intranet web-based status monitoring Has relay outputs for any control operation     BENEFITS Quick and assured response Monitors the permissible environment conditions Stand alone system and has less maintenance Ready to configure and easy to use Low power consumption Safeguard the produce and machines     APPLICATIONS Cold storage plant Chiller plant Process Industry Food processing plant
