Motor Controllers Dealers

Ic motor controller analog 24dip mc33035p make on the mc33035 is a high performance second generation monolithic brushless dc motor controller containing all of the active functions required to implement a full featured open loop, three or four phase motor control system. Features 10 to 30 v operation undervoltage lockout 6.25 v reference capable of supplying sensor power fully accessible error amplifier for closed loop servo applications high current drivers can control external 3-phase mosfet bridge cycle-by-cycle current limiting pinned-out current sense reference internal thermal shutdown selectable 60â° 300â° or 120â° 240â° sensor phasings can efficiently control brush dc motors with external mosfet h-bridge

Details : Fully solid-state design. Linear variation of speed. Suitable for 1/4 HP to 5 HP / single phase (4-wire or PMDC motors). Adjustable maximum and minimum Speed. Built in Current Limit / over Load Trip and Field Failure Protection. Control signal is optically isolated in modular design. Accepts speed control signal of (0-5) VDC, (0-10) VDC or (4-20) mA, hence suitable for machine automation. 1/4 DIN Size (TDM-10). Operates on 230VAC.

We are offering 3 phase dc motor controller. we offer dc drives with following spec : input : 415 vac 3 phase output armature : 440 vdc current : 40amps max. field : input : 200 vac output : 170 vdc current : 1amp. up to 100kw available.

Avail from us, a wide range of pmdc motors, which is manufactured as per international standard thus find application in various industries. We have developed an import substitute 30,000 rpm rotor and starter for precision machine. Besides, we offer pmdc motors in various specifications. known for : longer working lifelow maintenance costprecision designhigh performance specifications : pmdc motor controller : 6v, 12 v, 24 v current – 30 ampswitching frequency 20 to 22 khzspeed variation: 0 -100%

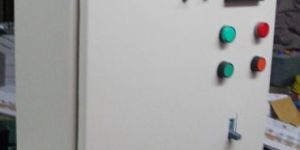

We are offering dol starter panel we design and manufacture a wide range of automatic direct on line motor control panel boards that consists of power contactors, thermal overload relays, amps and volts meters. It finds its application in submersible pumps, agriculture pump sets, mines motors, quarry motors and industrial motors. These direct on line motor control panel are available in different capacities up to 250 hp and are incorporated with all types of safety features that makes them the most preferable choice. Our products are designed as per the specifications and requirements of our esteemed client's needs. Further, these delta control panels are designed and tested by professionals to deliver a powerful and reliable performance.

We are offering solar ac pump controller. Special attraction of our solar ac water pumping system: dual mode operation: can be operating on electric power at night and solar power at day time. Inbuilt mppt tracking facility to get maximum power output from the solar array. Higher efficiency higher life cycle sensor less dry running protection higher temperature protection reverse polarity protection tank over flow protection over voltage protection under voltage protection over load protection high durable and reliable component of solar ac water pumping system solar panel: iec 61215 & iec 61730 certified solar panels with 35 year life. Ac motor + pump: high life cycle pump with high efficiency and better discharge. Solar ac pump controller: transformer less high efficient and micro controller based pump inverter. Module mounting structure: galvanized iron mounting structure with dual axis manualauto tracking facilities for long time operation in a day. Accessories: cable, connectors, pipe and other accessories. Note: for best competitive solution for your required solar water pumping system following details should be given. Pump setting depth (in metersfeet). Requirement of daily water (in littersgallon). Site location of solar water pumps installation. Advantages irrigation possible at remote locations environment friendly operations conventional grid electricity is not required highly reliable and durable ac high efficient motor + pump eco-friendly (zero noise pollution -zero co2 emission ) complete independence from grid connection for water supply 25 years power output warranty on the solar panels no fuel required almost no maintenance required provide consistent water solar pv arrayit consists of an array of solar panels connected in series and parallel combination to achieve the desired voltage and current necessary to drive the ac pump. The power rating of the solar array will be suitable to the design of the pump. Conventional ac 3 phase motor & pumpac pumps are conventional pumps that are currently in use across the world for various applications. Currently these pumps run on ac power from the grid (batter overall efficiency of the pumpset will lead to reduce the number of solar panel) solar ac pump controller with inbuilt mppt function (solar ac pump inverter)a transformer less inverter system, 415 vac 3-phase output voltage and vf control to manage pump starting condition (soft start). The equipment is micro controller based and operated with software for digital control of inverter parameters, fault finding diagnostics and digital io signalling. With the inbuilt mppt (maximum power point tracking) function, it regulates the output frequency according to irradiation in real time to achieve the maximum power. Adopting the proposed dynamic vi maximum power point tracking (mppt) control method, fast response and stable operation can be possible, better than the conventional methods, it can overcome the problems including poor tracking performance, unstable or even cause water hammer damaging when the irradiation on the array changes rapidly. Mounting structure galvanized iron dual axis manual tracking structure will ensure the long time hassle free operation. Optionally we will provide auto tracking or fix tilt tracking. Accessories hdpegi isi standard pipe for higher strength and easy installation with higher life expectation. Isi standard copper cable to ensure fire proof operation.

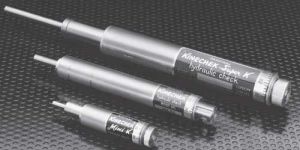

We bring forth a comprehensive variety of Drill Speed Regulator. Designed to perfection, the Drill Speed Regulators supplied by us are extensively used for regulating the speed of the regulators. The company imports these Drill Speed Regulators from highly trusted and well-known manufacturers. Avail from us, our Drill Speed Regulators that are very powerful and can bear load up to 400 kg's. Attributes Compact designEasy to InstallLeak proofConstant Speed

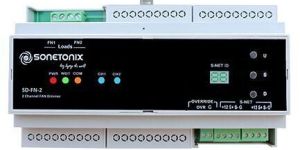

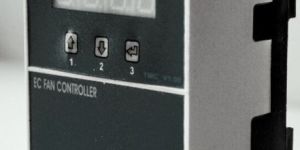

We are offering dc fan controllersmart cooling system dc fan controller is a intelligent temperature controlling devices which is used to control temperature of out door panels, this take command over two dc centrifugal fans which is used to control temperature and equipments .dc fan controller keep monitoring temperatures of panel and ambient by its high precision temperature sensors . Based on this temperature�s dc fan controller logically take decision to operate fan and also control speed of fan. by these unique features dc fan controller ensure maximum saving of energy with effecting panel operation by maintaining its temperature within defined range.

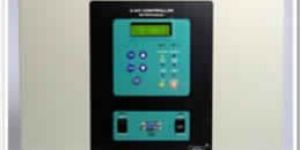

2 A/C CONTROLLER is provided with independent power supply for each AC. Controller can work with any one or both power supplies. Under normal working condition at Power, depending on the Room Temperature & Set points IDFAN1 & ODFAN1 will be started after Fan Startup Delays. Compressor will be On after Cp1 Startup Delay & after Startup Delays of IDFAN2 , ODFAN2 .Cp2 will be started if required ( depending on room temperature ).If a fault occurs then ALARM indication on the front panel will be ON & the fault is displayed in the fault status also fault is stored in the Fault log history. Salient Features : 1. Fully programmable. 2. Complete protection for AC from unhealthy condition. 3. All set points programmable from keypad. 4. Password protection for controller. 5. Different Passwords for Normal set points, Offset Set points. 16 char. 2 lines LCD display with back lit on controller front panel. 6. Simple 5 Key keypad for on site programming. 7. Separate alarm contacts for AC 1 fail alarm AC 2 fail alarm, power fail 8. Protection of Compressor from High Pressure, Low Pressure 9. Automatic display of AC parameters one by one in Run Mode. 10. Status & Healthy indication by LED on front panel. 11. Alarm indication by LED on front panel. 12. Room temperature sensing by precise sensor. 13. Grill High/Grill Low sensing for each AC. 14. PC connectivity via RS232 port. 15. Separate outputs for each fan and compressor. 16. Direct display of Line voltage & actual current drawn by compressor. 17. Direct display of actual room temperature. 18. Sequencing of comp. for equal run hours, Site selectable. 19. Automatic Timer mode operation if Room sensor fails. 20. All Faults Auto reset. 21. Smoke fire sensing. 22. Fault log History. (last 10 faults) 23. Compressor hour run 4 digit display. 24. Time remaining for change over display. 25. Total hour run from installation. 26. Each AC supply is protected by individual Miniature Circuit Breaker.
