Mounting press for metallurgical specimen mounting. Models – manual, semiautomatic & fully automatic.

Hot Mounting Press is designed user friendly for efficient and quality production of the specimen mounts. The Press has rigid construction complete enclosed body and elegant look. Design of the heater, operation ease, good quality hydraulic integrated jack. One can produce absolutely consolidated embedded single specimen mount with good finish, out of this mounting press. This machine has manual operation with lever.   FEATURES: Higher results in measuring Image Analyses study. Temperature controller for setting heat cycle. Timer System for completion of process. Thermocouple Inside for indication of heat produce. TECHNICAL DETAILS : Product Metallurgical Hot Mounting Press Operation :- Manual with lever Mould Diameter :- 25 mm Heater :- 750 Watts Hydraulic Jack :- 6-8 Tons Thermocouple :- 1 No. Temp. Range :- 0-300° C

Manufactured by using German design structure made of solid steel plates to give sufficient mounting pressure. All metallic structure. Sufficient to resist wear and tear due to daily usage. Efficient combination of metal and casting parts to give each component a longer life without maintenance. Sufficiently large pressure beds (made of cast iron) 305 mm X 381 mm. Upper bed contains 4 heating elements made of magnesium foil and tungsten wire which can generate heating temperature up to 110 degree Celsius. Heating elements regulated by a thermostat controller to provide low, medium and high mounting temperature. Pressure bed provided with ball bearing thrust system to ensure effortless operation. Pressure beds coated with stoving color to resist high temperature generated by heating elements. Ply laminated base board provides stability and easy mobility. Usage of state-of-an-art craftsmanship for developing each component providing an export quality finishing.

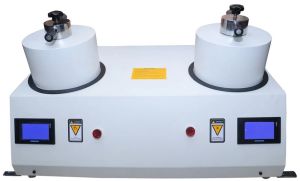

Automatic operation mm, 30 mm, 40mm, 50mm mold capacity Duplex mold Fast 1250 watts mold heater unit with water cooling Digital temperature timer control unit with LCD display Feather touch control panel Pneumatic application Alarm indicators for cycle completion

We are offering metallurgical mounting press. After cutting the specimen, the next step is mounting. The aim of mounting is to handle small or odd shaped specimens and to protect fragile materials, thin layers or coating during preparation as well as to provide good edge retention. Mounting produces specimens with uniform size so that it is easier to handle in automatic holders for further preparation steps. Basically, two methods are available: hot mounting, cold mounting in hot mounting, the specimen is mounted under heat and pressure with a hot mounting press. Cold mounting is preferred for samples which are sensitive to damage from heat and pressure (like coatings, pcb, etc.) cold mounting resins are easy to use and require mixing which is then poured into a mould and allowed to set.

MECAPRESS 3 is a fully automated hot mounting press.Very easy to use, MECAPRESS 3 offers all the features expected in a high precision machine: memorisation and adjustment of all mounting parameters, custom programmability, rapid cycle option and water saving mode. A powerful and flexible machine.

We are offering specimen mounting press. Xq-1 is manual mechanic mounting press with 3 different size of mounting mould. Temperature and heating time can be setup and shown manual on the panel.

Specimen Metallurgical Press Is Used For Mounting The Specimen With Bakelite Powder. It Is Also Used To Handle The Specimen Properly Without The Conduction Of Heat To The Operator While Grinding/Lapping. It Also Helps For Proper Alignment While Using With Microscopes.   Product Code : SAMS MET - 002

This is a mechanical type machine. By turning the hand-wheel of the machine, a couple of bevelgear is rotated to drive the screw rod which in turn pushespulls the lower die up and down along the mould sleeve. The thermo set plastics together with specimen being mounted is formed under heated conditions....

Automatic metallography specimen mounting press is a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.   Technical specifications: Diameter of specimen: Ø25mm, Ø30mm, Ø40mm, Ø50mm 2. Power supply: 220V, 50Hz 3. Max. power consumption: 1800W 4. Setting range of system pressure intensity: 0-2MPa (corresponding preparing pressure intensity: 0-72MPa) 5. Temperature setting range: 0-300 ºC 6. Heat preserving time: 0-99m99s 7. Dimensions: 615 × 510 × 500 cm 8. Net weight: 110Kg 9. Cooling method: water cooling

We offer mounting presses. Bainmount-h high speed mould heater with built-in water cooling coils. Built in hydraulic system. 1200 watts mould heater provision to accomodate 1 12" and 2" dia. 1 14" dia. Comes with the machine as standard quick heater for speedy operation digital temperature indicationcontrol timer and buzzer for heating and cooling cycles

For mounting the specimens with Bakelite powder Specimen is kept face down in the Cavity & bakelite Powder is Hot moulded around it with hydraulic pressure. -> Mould dia 30 mm. -> With Digital timer. -> Operates on 220 V AC

Vaiseshika’ Offers Mounting Press, the next step is mounting after Cutting the specimen. The aim of mounting is to handle small or odd shaped specimens and to protect fragile materials, thin layers or coating during preparations as well as to provide good edge retention. Mounting produces specimens with uniform size so that it is easier to handle while analyzing them.           Basically, two methods are available :       HOT MOUNTING                COLD MOUNTING In hot mounting, The specimen is mounted under heat and pressure with a hot mounting press. Cold mounting is preferred for samples which are sensitiva to damage from heat and pressure (like coatings, PCB etc.) Cold mounting resins are easy to use and require mixing which is then poured into a mould and allowed to set.
