Multigrade Filters Dealers (38 products available)

• Type: Multigrade Filters
• Material: Carbon Steel
• Shape: Cylindrical Shape
• Application: Water Treatment Use
• Color: Black
• Working Temperature: 0-100 Deg C

We are a trusted Manufacturer, Supplier and Exporter of Multigrade Filters. The Multigrade Filters we make available are manufactured using quality-tested components and the latest technology.  Our Multigrade Filters are extensively used to filter seawater and chemical solutions.  Owing to our brilliant logistics network, we are capable of delivering g bulk orders of the Filters within the promised timeframe. Buyers can obtain the Filters at reasonable rates from us.Details Multigrade filter is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small-suspended particles. This filter performs at a substantially higher specific flow rate than conventional filters. It is extensively used in side stream filtration of cooling water and in potable water treatment. It is ideal for filtration of clarified water. In addition, it finds application in seawater filtration and in the filtration of chemical solutions.

Water from Natural Sources contains suspended colloid. The conventional sand filter, multi grade filters are used to remove suspended matters in raw water. The activated carbon filters are used for removal of colour, order and free chlorine content of water. In effect, raw water with micron size un-dissolved matters should be passed through Micron Cartridge Filter. The water filtration process involves the flow of water via a granular bed of filtring sand or another suitable media. The water to be filtered flows at a low speed. The media (the filter) retains most of the solid matters and let the water pass through it. The process of filtration is generally repeated to ensure sufficient removal of unwanted particles in the water.

These filters are the most popular method for removal of turbidity from water. The Pressure Sand Filter consists of a multiple layer of sand with a variety in size and specific gravity. These Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop. These Filters are custom designed to suit the process requirement. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves.

For satisfaction of our valuable consumers, we have engaged ourselves in providing a wide assortment of Multigrade Sand filter. This Multigrade Sand filter is highly applicable in industrial and domestic areas for purify the water. Offered Multigrade Sand filter can be avail from us in safe packaging. Features: 1. Reliable working 2. High performance 3. Cost effective

• Condition: Good
• Item Name: Multigrade Sand Filter
• Brand Name: BIOTIC
• Feature: Efficient Turbidity and TSS Removal,Filter up to 20 â�� 30 Microns,Two, Three and Multi layer filter
• Place Of Origin: Delhi
• Min. Order Quantity: As per client requirement

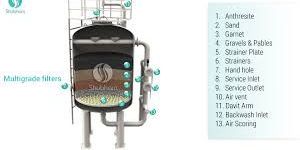

We are an ideal destination to procure high-quality Multigrade Sand Filter. We manufacture Multigrade Sand Filter as per industrial standards to ensure the supply of a reliable filter. Multigrade Sand Filter performs at a substantially higher specific flow rate than conventional filters. The basic difference between Pressure Sand Filter (PSF) and Multigrade Sand Filter (MGF) lies in the use of media for vessel and velocity variation. Components Vertical or horizontal pressure vessel Set of frontal pipe work and valves Media of different sizes and grade mixed and supported by layers of pebbles and gravels A top distributor to distribute the incoming water uniformly throughout the cross section of the filter An under drain system to collect filtered water Features Efficient Turbidity and TSS Removal Filter up to 20 � 30 Microns FRP, CS, MSEP, SS Vessel available ASME Pressure Vessel is also available Two, Three and Multi layer filters Low Pressure drop across the vessel Air scouring available for high flow pressure vessel Manual, Semi Automatic and Automatic features are provided Long filter cycles between backwashing with minimum loss of pressure Pneumatic and electrical operating automatic valves Two elliptical manholes Hand-holes Automatic control and electrical cabin

• rate: 220 m3/hr max

The term "multi -grade,” refers to a type of filter bed which is graded by size of sand. Coarse less dense particles are at the top of the filter bed, and fine, denser particles are at the bottom. Down flow filtration allows deep, uniform penetration by particulate matter and permits high filtration rates and long service runs. Because small particles at the bottom are also more dense (less space between particles), they remain at the bottom. Even after high-rate backwashing, the layers remain in their proper location in the mixed media filter bed.

depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small suspended particles. Multigrade sand filter is highly recommended for the removal of suspended solids & un-dissolved impurities like dust particles & heavy metals etc. doing so it reduces turbidity. Pressure Sand Filter is an ideal solution for the systems with high sediment, silt, sand, and turbidity. Our Sand filters are well established in media filtration technology. The sand filters are specially designed to take care of the range of suspended impurities. Chemtronics filtration series multigrade sand filter include vessel complete with piping & valves sand media and gravel support bed.

Manufacturer & Supplier of Activated Carbon Filter. Our product range also comprises of Reverse Osmosis Plant, Sewage Treatment Plant and Water Plant. We offer a wide range of Activated Carbon Filter to our esteemed clients. This filter is prepared using advance methodologies and machines as per the set industry standards. Moreover, our quality controllers check this plant on varied quality parameters in order to make sure delivery of defect-free plant at customers' end Multigrade Sand Filters are use for removal of suspended matter in raw water the media used in this filter is specially graded sand (Coarse and fine). Which can be handle feed water from 25NTU. Turbidity to 100NTU Turbidity the treated water from the sand filter will be less than 1 NTU Turbidity. Features: High efficient absorption High quality Long operation life

A latest concept in the water treatment technology, a Multi Grade Filter consists of vertical or horizontal pressure sand filters that contain multiple layers of coarse and fine sand (pebbles and gravels) in a fixed proportion. It is a kind of a deep filter bed with adequate pore dimensions for retaining both large and small suspended solids and un-dissolved impurities like dust particles. As compared to conventional sand water filter, this multigrade filtration system works on higher specific flow rates. It is also a low cost pre-treatment system for ion exchangers (deionizer and softener) and membrane systems such as reverse osmosis etc. With high throughputs, high dirt-holding capacity and capacity to reduce turbidity and TSS (< 5ppm) from water, it protects ion-exchange resins and membranes from physical fouling due to suspended impurities present in the water.

• Vessel Diameter: 0-200 mm,200-400 mm
• Type: Filter System
• Flow Rate: 0-500 (Cubic Meters/Hr)
• Valve Size: 1/2 Inch
• Brand Name: Soft-Tech

Multigrade Sand Filter also consist of a vertical or horizontal pressure vessel with a set of frontal pipe work and valves, media consist of different sizes and grade mixed and supported by layers of pebbles and gravels, a top distributor to distribute the incoming water uniformly throughout the cross section of the filter, and an under drain system to collect filtered water. This filter performs at a substantially higher specific flow rate than conventional filters. The basic difference between Pressure Sand Filter (PSF) and Multigrade Sand Filter (MGF) are media used in vessel and velocity variation.

Multi Grade Filter:- B S Enviromulti grade filter is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. The arrangement produge a filter bed with adequate pore dimensions for penetrations of larger suspended particles. Dispersal of fine media throughout the bed also produces zones throughout the bed, which are conductive to flocculation of smaller particles and their retention. Specific flow rates of of 2-200m3h have been successfully obtained for treating water containing 25-50ppm suspended solids respectively to produce a filtrate with less than 5ppm.

Multigrade filter is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small suspended particles. This filter performs at a substantially higher specific flow rate than conventional filters. Specific flow rates of 0.82 – 1.64 ftmin have been successfully obtained for treating waters containing 25 – 50 ppm suspended solids respectively to produce filtrate with less than 5 ppm.

We have maintained high quality standards in the market by offering quality-centralized lot of products. And, this is done by using high grade raw material obtained from reliable sources. We keep the finished assortment of products in the highly developed and capacious storage unit. This helps us in keeping the products safe and sorted till the final dispatch.Applications : Pre-treatment for industrial water treatment plants and reverse osmosis plants. Pre-treatment for mineral water bottling plants. Swimming pool waterfilteration. Drinking water supplies. Specifications : One FRP pressure vessel fitted with plastic internal fittings. One Set of plastic frontal piping, linking multi-port valve/plastic ball valves to FRP vessel. One complete charge of suitable filter media with supporting underbed media. One pressure gauge.

• Usage/Application: Water Filter
• Vessel Diameter: 200-400 mm
• Vessel Height: 800-1000 mm
• Media Quantity: 50-100 kg
• Flow Rate: 500 m3/hr
• Body Material: MS
• Features: Purification process without the use of chemicals , Particulate solid capture mechanism , Rapid pressure technology .

• capacity: 20 to 30 Microns

These filters are used for removal of turbidity and suspended solids, clour, odour and smell. Multigrade filter can filter up to 10-20 micron size. The filter bed is specially designed to have different layers of under-bed and filter media. The advantages offered by these filters are higher filtration rates (15-30 MtrsHour) as compared to conventional pressure sand filters (8-12 MtrsHour) and higher dirt holding capacity besides better filtered water quality.

We offer sand filter & multigrade filter. This range of sand filters which we offer is used for removing suspended solids and turbidity. These filters have multiple layers of sand having different size and specific gravity. This range of sand filters is available in both hand operated and fully automatic options. These are also effective to remove suspended solids to less than 5ppm.

Multigrade Filter that we offer is manufactured by experienced technicians in order to leave no scope of defects. We are counted among the topmost Manufacturers and Suppliers of filter in Haryana, India. It is widely used to treat wastewater in different industries. We make available filter in different sizes and specifications as per the requirements of buyers. We believe in delivering Multigrade Filter within the promised time frame. Features : High rate of filtration. High filtrate quality. Lower frequency of backwash. Low pressure drop. High dirt holding capacity. Lower capital cost.

Domestic Multigrade Filter

Multigrade Sand Filter, water treatment machinery, Water Softeners

Shubham mgfs are available in diameters from 0.225 mts. To 4.0 mts.(vertically) and in length from 3.0 mts. Mm to 11 mts. (horizontally) with flow ratesup to 450m3hr. These rugged, pre-engineered, pre-assembled units minimize installation and start-up costs. Whether you require rofeed process water or filtered water, shubham can full fill applications requirement

Multigrade Filter, Pressure Sand Filter, Water Treatment Plants

Multigrade Filter, Water Treatment Plants, Water Treatment Equipment

Multigrade Filters, vibro destoner, husk separator, paddy cleaning machine
