Oil Mist Collectors Dealers (34 products available)

Oil mist collectors works on basic principle of static filtration. Filters having more surface area are provided to increase the cleaning frequency of filters. These units offers 97.1% filtration efficiency can be extended up to 99% efficiency with clip on high efficiency particulate arrestor (HEPA) filters.Most Suitable for : The machining applications having mist along with high dust load concentration like grinding, CI machining etc.

• Country of Origin: India
• Type: Oil Separator
• Brand Name: Airtas Environics
• Certification: ISO 9001 : 2015
• Color: Custom Color
• Warranty: 1 Year
• Shape: Rectangular
• Material: MS / SS
• Condition: New
• Specialities: Excellent Functionality

• Model : OMDC-1-1-150
• Motor : 0.75 KW 1 HP 3 Phase
• CFM : 650
• Suction Inlet : 1 x 150 mm OD
• Electricals : Without Starter
• Overall Dim. : L x W x H 970 x 610 x 630mm
• Nett. Weight : 70 KG

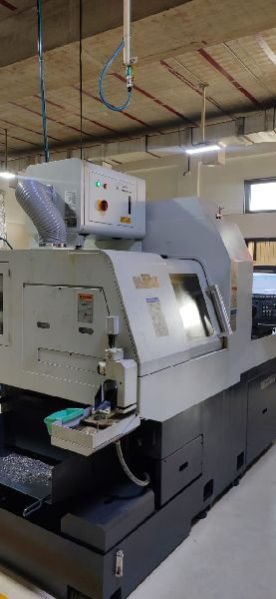

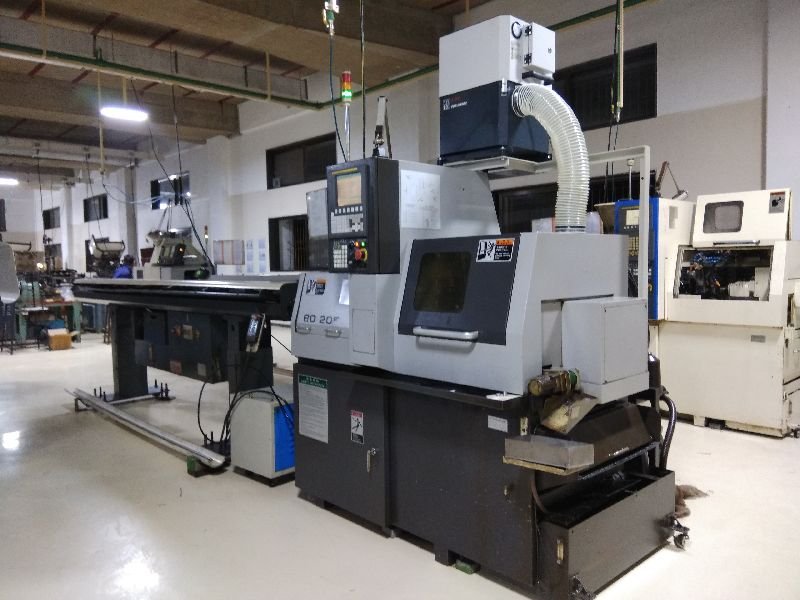

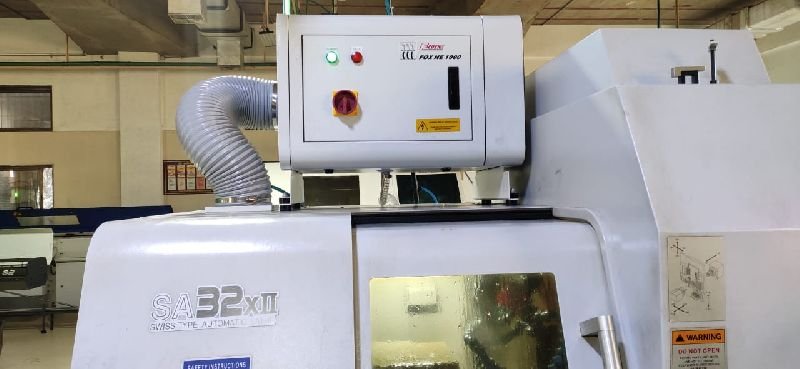

“Power Master” Oil Mist & Dust Collectors are the requirement of today for Pollution Control. These are specially designed for the collection of oil mist along with grinding dust. Aesthetically designed in a compact size, these can be mounted on top of CNC machines or behind a Grinding Machine. These Oil Mist & Dust Collectors are complete with flexible connecting pipe and built-in noise suppressor. Multiple staged filtration Oil slump with Oil return outlet to connect to tank Energy Saving : Low power consumption Low noise, below permissible noise levels

• Type: High Pressure coolant
• Model Number: HE1000
• Application: CNC Machining
• Color: White
• Purity: 99%
• Feature: High Reliability
• Ash Content: NA
• Pakaging Type: NA
• Brand Name: TAIWAN / CHINA
• Voltage: 220/440 V
• Power Source: ELECTRIC
• Warranty: 1 year
• After-Sales Service Provided: YES.
• Flow: 1000 CMH

As a trusted name, we make use of only premium packaging material to pack the products in order to ensure their complete safety during transit. Moreover, our packaging experts strictly check the same. We are supported by such storage facility that provides protection from diverse damaging factors such as dust, moisture, rain, sunlight, etc. Also, we maintain complete hygiene inside the unit.   Technical specifications : Please contact your local Dynavac representative or send an e-mail to info@dynavac.org for detailed technical specifications   Features : Low Vibration Low Noise Effective Filtering Minimum Maintenance Increased Flexibility Rigid & Durable High Reliability Lower Energy Costs   Applications : CNC Machine Stations CNC Lathe Stations Metal machining and cutting operations Screw machines and grinders Machinery Factory Punching Factory Ceramic Factory Glass finishing Factory Petrochemical Processing

BENZEAR Oil collector is used to collect waste oil from Two-Wheeler lift. Fitted with stainless steel tray with preforated filter, easy movable with pivot wheel, capacity of 25 litres & powder coated.

With our capacious storage facility, urgent and voluminous requirements of the buyers are easily furnished by us. Located in Maharashtra(India), we ensure safe and secure deliveries, throughout the country, within the agreed time frame.

The Oil Mist Collector (Filtermist) is specifically utilized in various industrial processes to clean the working ambiance by complete sucking of oil mist. The Filtermist Xcel2 is the most advanced oil collector that is highly efficient in removing the oil mist completely from the industrial working environment. This device can easily be fitted into the internal structure of the machine and it completely meets with the sanity, safety and occupational health requirements of the industry. The mist collector offered by us is the best available package for the employee and environmental protection in industrial premises. Features Compact in size Improvised airflow with curved vanes Optimum mist collection efficiency with entry cone Split casing consents to easy maintenance Maximum filtration capacity by means of drum and case gap Energy efficient Silent operation Improvise productivity Effective combining aesthetics and functionality Work zone filled with pure air Easy to integrate with wide machine tool range through Aesthetics Clean oil is backed to machine Automatic removal of oil mist from source Centrifugal impaction allows efficient collection of oil mist   Applications Automotive Industry Rubber Processing Unit Aerospace Component Manufacturing Process Wood Working Process Heavy Engineering Industries

• Weight: 14 kg
• Features: Low energy consumption , Low operation cost, Easy replacement of filter cartrige, Indicator showing clogging level,Fan os mounted directly on the filter
• Capacity: 500 m3/h
• Filtering Surface Area: 10 m2
• Inlet Diameter: 160 mm
• Outlet Diameter: 160 mm
• Model Number/Name: CNC
• Brand: Sovplym

• Model: Portable & 360 degree rotatable
• Total Weight: 30 Kg. Approx
• Total Height of the Unit: 4 1/2 feet
• Adjustable Bowl Height: 2 feet
• Rotating angle of the Bowl: 360 degrees
• Container Capacity: 80 lts

This unit is mobile; having a handle and three wheels and rotates 360 degrees. The capacity of the container is approximately 80 litres. The container is provided with a bowl having perforations. The impurities in the oil get filtered and the oil alone is drained into the container.The rotatable bowl is provided with a locking knob. It can be lifted upto two feet high from the container.At the bottom of the container a ball valve is attached to drain the oil. To see the oil level,a transparent nylon tube is attached,which runs from top to bottom of the container.

We offer our clients a wide range of Oil Mist Collectors to the patrons. These products are manufactured using premium grade raw material and technically advanced machines. Available in various specifications, these products are suitable for flexible fabrications and 3-shift-operations.

• Brand Name: NEOS AIR FILTRATION PRIVATE LIMITED
• Material: MILD STEEL
• Surface Finish: POWDER COATED

Our Mist Collectors marketed under the Fumekiller™ brand name are available in a wide range of suction capacities starting from 500 cu mtrs per hour (CMH) to 8000 cu mtrs per hour (CMH) as standard. These work on the principle of electrostatic filtration and can control all types of mist including oil mist as well as coolant mist. One large capacity equipment may be used for multiple machines for the capture and control of mist. This product is extensively used for removal of mist from specific generating sources such a

Oil Mist Collectors Oil mist causes slippery floors and can cause damage to electrical switchgear and circuitry.Reduce energy and heating costs by recycling clean air back into the factory.

• Brand Name: Powertech
• Power: 2-5 kW
• Automation Grade: Automatic
• Material: Mild Steel
• Voltage: 220 V
• Frequency: 50 Hz
• Fume Removal Rate: 96.4%
• Surface Treatment: Color Coated

 Oil mist is hazardous to your health.• Oil mist causes slippery floors and can cause damage to electrical switchgear and circuitry.• Oil mist can lead to coating of ventilation pipes, a potential fire risk.• Official regulations are becoming increasingly stringent.• Reduce energy and heating costs by recycling clean air back into the factory.• No expensive media filters to replace results in low maintenance costs.HOW FILTERMIST UNITS WORK 1. Oil mist is removed at source2. Oil mist is removed from the air by centrifugal impaction3. Clean oil is returned to machine4. Clean air is returned to workplace5. Smoke & fume can be removed and efficiency increased with the addition of a clip-on afterfilterA perforated drum with specially designed vanes rotates at high speed. Oil mist is drawn into the unit and impacts on its vanes at high velocity. Special drum pads assist the coalescing process and filter out stray solid particles. Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection and clean air is returned to the workshop through the top of the unit. PROVEN EXPERIENCE UK manufacturer, Filtermist International Ltd, have over 40 years experience in providing oil mist extraction systems around the world. Filtermist has worked alongside government research institutes and global machine manufacturers to develop the most well-known and well-used oil mist extraction system in the world.     Filtermist units are in operation on tens of thousands of applications, from high precision CNC machining centres to traditional open grinders. Filtermist is an industry standard from aerospace to medical and automotive to food processing.Units are available in mild steel and stainless steel with dozens of installation accessories to create bespoke solutions for almost any type of oil mist problem. With over 150,000 units in daily use, Filtermist is backed up by an extensive spares and support network, with 35 distributors covering over 50 countries.

• Power: 2.2kW
• Weight: 36.8 kg
• Model Name/Number: FX6002
• Automation Grade: Automatic
• Voltage: 220-440 V
• Frequency: 50 Hz
• Flow Rate: 2750 m3/hr
