Portable Keyway Milling Machine Dealers

(10 products available)

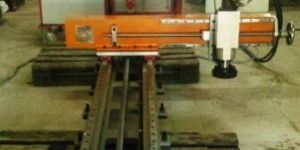

  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    125,000 / Piece

    • Number Of FlowerPortable Keyway Milling Machine
    • CertificationISO 9001:2008
    • Availability70-200kg
    • Country of Origin110V, 220 V
    • ConditionNew
    • Rated Power1-3kw, 3-5kw, 5-7kw, 9-12kw
    • Automatic GradeAutomatic, Fully Automatic, Manual
    • Driven TypeElectric
    • Warrenty1 Year
    • Place of OriginIndia
    • Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 404 Keyway Cutter is designed to mill (6mm) to (36mm ) wide by 200 mm long keyway slots in 110mm to 400 mm diameter shafts. The cutter may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided for by a manual ratched system. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 36 mm and clamping systems from 110 mm to 400mm diameter shafts and with a 50 mm cross stroke .The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis . Machines are now available with magnetic clamping also
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    TCI is pleased to introduce itself as the Manufacturer of Steel Rollers like Tension Leveller Rolls, Work Rolls, Back Up Rolls, Calender Rolls, Single and double jacketed Rolls, Paper Mill Rolls, Accumulator, Bridle and various types of Solid Induction Harden Rolls. Well equiped machining shop having 8 turning lathe machine, Maximum 1200 mm diameter and 4 mtrs in length, Shaping, Drilling, Arc and Tig Welding rectifires and Portable Keyway Milling Machine. The Machine shop is forced with excellent team of engineers.
    ...more

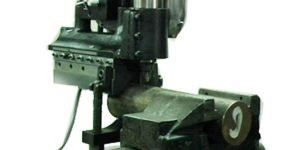

  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    Needs only 38mm space on the end of shaft to cut new keyway, without dismantling the shaft from assembly. Cutting time for 25 mm wide, 12.5 mm deep & 150 mm long keyway is less than 15 Minutes. M/c makes a Keyway on a Ball Mill Shaft, while the shaft is in assembly. Sealed lubrication permits operation at any position of the machine.With the "V" type-mounting base, the Keyway Cutter will self-center onto an existing shaft, once the milling machine tool is clamped in place. The Keyway Cutter is capable of cutting keyways.
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    • Number Of FlowerPortable Keyway Milling Machine
    • Availability100-1000kg
    • Country of Origin110V
    • ConditionNew
    • Rated Power1-3kw
    • Our portable key way milling machines are extremely handy & useful for making key ways on large shafts of mills, rolls, cranes, process plants etc. The machines can cut key ways fast and accurate. Running on single phase stepless variable speed of 350 to 750 RPM, the machine can cut key ways in one setting up to 36Wide X150Long with model TPKN16250 & 80 wide x 200 long with model 75SS on shafts diameter 38-250 & 200-600 respectively. Length of key ways can be extended by sliding machine on the shaft. Uses Sugar plants Cement Paper Textile Heavy engineering industries
    ...more

    Tecsupply

    Narhe, Pune
    GST 16 yrs 5.0 (3)
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    Any plant with a continues process operation will, at any given time, need repairs and replacements which could include a host on things from flange facing, line boring, drilling an milling which could be serviced by our on-site machining groups
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    Any damaged or new Key-ways or Key-slots can be cut INSITU on any shafts. Key-ways upto 2000mm length can be cut. Internal key slots can also be machined, if required.
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    9,000 - 35,000 / Piece

    • Brand NameRamato
    • Driven TypeElectric
    • ColorLight Grey
    • ConditionNew
    • Rated Power9-12kw,7-9kw
    • Automatic GradeSemi Automatic,Manual,Fully Automatic,Automatic
    • CertificationISO 9001:2008,CE Certified
    • Voltage440V,220V
    • Rajlaxmi Machine Tools Offers HMP, Ramato and Roent Make All Type of Drill Machine, Drilling Machine, Pillar Drill Machine, Pillar Drilling Machine, Mini Radial Drilling Machine, Pillar Cum Radial Drilling Machine, Radial Drilling Machine, Drilling Cum Milling Machine, Drilling Cum Tapping Machine, Automatic Threading Machine, Drilling + Milling + Tapping Machine, Automatic Drilling Machine, CNC Drilling Machine, Tapping Machine, Electric Motor, Concrete Vibratory Motor, Unbalanced Vibratory Motor, Electro Magnetic Brake Motor, Tool Post Motor, ISI Electric Motor, Motor Pump, Pump Motor, Single Phase Electric Motor, Three Phase Induction Motor, Bench Grinder, Pipe Type Bench Grinder, Bench Grinding Machine, Flexible Shaft Grinder, Universal Tool Grinder, Extra Heavy Duty Pedestal Grinder, Swing Frame Grinder, Jhulla Grinder, Flap Bruch Grinder, Bandsaw Grinder, Long Center Heavy Duty Pedestal Stone Grinding Machine, Bench Polisher, Buff Polisher, Buffing Machine, Tyre Retreading Machine, Automatic Grinding Machine, Automatic Polishing Machine, Automatic Deburring Machine, Automatic Buffing Machine, Flat Surface Finishing Machine, Single Two Three And Four Head Hinges Polishing Convertor Based Automatic Belt Grinder, Belt Sander, Belt Disc Sander, Glass Polisher, Abrasive Belt Grinder, Belt Grinding Machine, Single Side and Double Side Heavy Duty Abrasive Belt Grinding Machines, lathe Mounted Tool Post Belt Grinder, Lancer machine, Coolant Pump, Air Pump, Rotary Gear Pump, Motor Coil Winding Machine, Automatic Motor Coil Winding Machine, Industrial Motorised Cutoff Chop saw Machine, Hand Shearing Machine, Manual Pipe Bender, Hydraulic Pipe Bending Machine, Section and Motorised Three Roller Pipe Bending Machine, Single Stage Air Compressor, Two Stage Air Compressor, Screw Air Compressor, Oil Free Air Compressor, Dental Air Compressor, Pressure Pump, Car Washer, Three Piston Pump, Plunger Pump, Air Blowers, MS Fabricated Centrifugal Air Blower, Ring Blower, Suction Air Blower, Pressure Air Blower, Biofloc Ring Blowers, Welding Machine, Stud Type Transformer Based Arc Welding Machine, Moving Core Type Regulator Based Arc Welding Machine, CO2 Mag Welding Machine, Mig Welding Machine, Stainless Steel Argon Gas Welding Machine, Tig Welding Machine, Spot Welding Machine, Butt Welding Machine, Resistance Projection Welding Machine, Seam Welding Machine, Laser Welding Machine, Automatic Machine, CNC Machine, AC Drive, Gear Drive, Servo Drive, Servo Motor, Gearbox, Automation Products Manufacturer, Dealer And Exporter From Rajkot, Gujarat, Bharat (INDIA).
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    190,000 / Piece

    • Country of OriginIndia
    • Availability35kg
    • Country of Origin220V
    • MaterialMild Steel
    • Capacity20mm
    • Automation GradeAutomatic
    • Power SourceElectric
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    • After-Sales Service ProvidedTechno Spark
    • Brand NameTechno Spark
    • Driven TypeElectric
    • Warrenty1 Year
    • Automatic GradeSemi Automatic, Manual
    • ConditionNew
    • Country of OriginIndia
    • Packaging TypeRed
    • AvailabilityApprox. 28-30 kg
    • Total Carbohydrate1 r.
    • Number Of FlowerPortable Keyway Milling Machine
    • Portable keyway milling machine (available in 2 models) needs only 38 mm space on the end of shaft to cut new keyway, without dismantling the shaft from assembly. Cutting time for 25 mm wide, 12.5 mm deep & 150 mm long keyway is less than 15 minutes. Mc makes a keyway on a ball mill shaft, while the shaft is in assembly. Sealed lubrication permits operation at any position of the machine. With the "v" type-mounting base, the keyway cutter will self-center onto an existing shaft, once the milling machine tool is clamped in place. The keyway cutter is capable of cutting keyways. Specifications slide travel 150mm vertical travel spindle 35mm over length 320 mm over all width 185mm overall height 305 mm mini.shaft dia. 25mm min.shaft die for end mounting 40mm max.shatdia 250 mm spindle hole 16 mm weight 26.6kg h.p.(single phase) 1.5 current 5.5amps voltage 230v or 110v 0n request speed 350 to 750 rpm stepless variable
    ...more
  • Portable Keyway Milling Machine

    Portable Keyway Milling Machine

    Get Price Quote

    Portable Keyway Milling Machine, Spares of above Machines Minin
