Priming Pumps Dealers

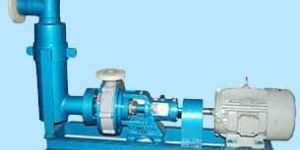

SELF-PRIMING PRINCIPLEAir is drawn into the pump by the vacuum produced as the Impeller rotates and is emulsioned with the liquid contained in the pump casing. The air/liquid mixture is driven into the priming chamber where the air, which is less dense, separates out and vents through the delivery line while the liquid, due to the higher density, falls back and is recirculated. When all the air has been evacuated from the suction line, the pump primes and operates like a normal centrifugal pump, it can also handle a mixture of air and liquid. The check valve mounted in the pump suction serves two purposes: it prevents the liquid from draining out of the suction line when the pump is not in operation, and if the suction tine is drained by accident, enough liquid is retained in the pump casing for the pump to reprime. The delivery line must allow the air drawn from the suction line to vent to atmosphere. JMD series pumps are self priming centrifugal pumps with open / semi open impeller handling polluted liquids with large diameter suspended solids. The solid rugged design with replaceable wear plate and back pull out design makes it most reliable option . FEATURES- Simple Construction having back-pullout design.- Easy inspection of impeller.- Quick Self-priming action without foot-valve up to 7.5m.- Pumping large size diameter solid in suspension.- Available in Mono-block & Bare-shaft design forv-belt /couple set version.- Various options for material of Construction, like -AlSLSs304, AISI316, Bronze & Sealing.- Option for separate volute design and replaceable wear plate Gland Plate for quick. Low-cost & easy maintainance.- Standard model having SS410 Sleeve.Wear Plate Screw, lmp.Nut;C40 Shaft, Rest in FG200 Cast Iron. GENERAL VIEW OF PARTS OF SELF PRIMING COUPLED PUMP 1   volute chamber2   delivery flange3   gasket packing4   wear plate5   impeller6   lantern ring7   GLAND8   OIL SEAL9   BEARING BRACKET10  PUMP SHAFT11  NDE1 BEARING 12  lock nut (noe1 bearing!13  de-bearing14  water deflector15  gland plate16  gland packing17  bottom drain plug plate18  front drain plug19  volute chamber plate20  suction flange21  non return valve   APPLICATIONSJMD pumps are used when one or more of the following are required : • Self priming • Solid / Polluted handling. • Resistance to abrasion.JMD Pumps can handle liquids up to a Viscosity of about 50 mm /s (cst) WASTE TREATMENTPumping Out settled Sludge,Dosing Neutralizing Liquids, Filteration, Pumping Out Settled Sludge. Pumping Polluted, Corrosive Waste Water Containing sand, Mud Or Solids In Suspension. Effluent Treatment Plant.INDUSTRYTransfer of clean or dirty, neutral, acid or alkali Liquids, Liquids containing sand, mud or suspended solids, Clean or dirty low viscosity petroleum products or solvents, milk or lime suspicion soda, washing, cooling, circulation, smoke scrubbing, emergency duty.CIVIL ENGINEERINGDe-Watering Construction Sites, basement, trenches, Food Waste in restaurants. Swimming pool Alteration.MARINE DUTYLoding or Unloading Sanitary duty. Cleaning bilges.AGRICULTURESurface irrigation, Liquid manure Oxygenation, Distribution & Liquid animal feed. Portside Liquid or fertilizers

R.k / Horizontal Self Priming Pump with Mechanical Seal & Gland Packing Being a customer focused organization, we are involved in offering a  Horizontal Self Priming Pump with mechanical seal and gland packing. The entire range offered by us is made from high-grade molded plastic with latest technology. These pumps are suitable for positive and negative suction head as well as self priming conditions. Given below are some of its Specifications capacity range:  Up to 15-20 meter cubic/hour Head range: Up to 30 m npsh: 7-9 feet

The SJP Series Self Priming Pump is a self-priming, single-stage centrifugal pump with axial suction port and radial discharge port, G1 or Rp1. The pump has a built-in ejector with guide vanes for optimum self-priming properties. The common applications are compact water supply systems for domestic, agriculture and horticulture with pressure boosting properties. It is easy to install and operate. Performance Head : Max: 40mDischarge : Max. 77 lpmFlow, Q : 4.6 m3/hrRating : 1HP to 2HP Features Self primingStable operation even in case of air pockets inthe liquidBuilt � in ejector, fitted with an ejector valve or a plug having two different setting possibilities (open & close) for maximum discharge and maximum efficiency etc.Easy installationDynamically balanced rotating parts to ensureMinimum vibration during runningReplaceable wearing parts and hence longer life.Easy maintenance and spares availabilityAutomatic start/stop when equipped with press controlBooster sets for small-scale water supplyLow noise level Applications Wide variety of water supply & transfer duties in homeUsed for agriculture and horticultureUsed for small scale services industriesGardening and hobby activities

Our self priming mono block pump is widely preferred among our clients in the domestic as well as international market due to the fact that they offer rapid automatic self priming process and offer automatic air release while carrying out the self priming process. Our pumps are designed and engineered by the professional experts. We employ the best grade of raw-material as well as components together with the advanced technology of the industry to make our products. We make sure that they comply with the international standards hence they offer optimal functionality in an energy efficient manner. Our quality control department checks the quality of these pumps to ensure that they will offer smooth performance for a good working life. They have impeller that prevents clogging up, to deal with the floating solids. They have excellent design for easy maintenance and they can be maintained without affecting the installation and the operation. The pump requires no foot valve and produce negligible noise and vibrations. We offer them at very reasonable prices and we being the leading self priming mono block pump exporter, export them to the countries like North Korea, South Korea, Germany, Oman and Qatar.   Salient features : Negligible noise Low vibrations Requires no foot valve Easy maintenance Quality tested High performance Energy efficient Cost-effective Excellent for versatile applications

Havells 0.5 HP Self Priming Domestic Monoblock Pump Hi Flow V2   Features:- Motor Insulation Class F with IP-55 Protection Copper Winding In built thermal overload protector (T.O.P.) TEFC Motor Suitable for 180-240V with single phase AC power supply Dynamically balanced rotor gives minimum vibrations Pump Casing is made up of Cast Iron with stainless steel shaft & forged brass impeller for longer life Low power consumption hence highly efficient.   Applications:- Used in gardening, farm houses & building construction. For lifting water to overhead storage tanks. Hotels, Hospitals & Fountains. Water circulation in Industries. Pressure Booster System.

Developed for HEAVY VEHICLES FACTORY is used to lubricate the engine parts before starting. It consists of a dc motor and a gear pump. Pressure relief valves are provided for safety of the pump.

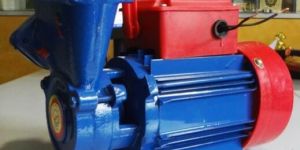

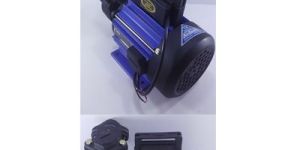

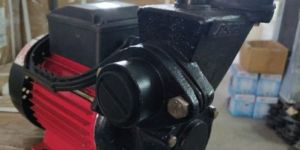

domestic monoblock pumps are replacing centrifugal pumps at a number of places because of some of the inherent advantages, such as. • uni-casing no air lock problem. • balanced and rigged construction. • no centrifugal switch. • less operational and maintenance cost. application of domestic monoblock pumps at home or small farm house for drinking water and other applications construction of domestic monoblock pumps cast iron casing with brass impeller and with standard carbon-ceramic mechanical seal motor will be tefc type and available in single and three phase with wide voltage fluctuation..

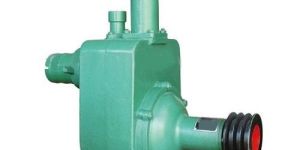

Being one of the reputed organizations in the market, we are engaged in providing an exclusive range of Vacuum Priming Pump. Use : Ideal for pumping water Features : Efficient operations Long working life Excellent performance

These pumps are suitable for handling clean water not containing abrasive particles and fluids, which are not chemically aggressive to the pump components. They are extremely reliable, light, economic and simple to use, finding many use in household applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient main water pressure.

CROMPTON Self Priming Pumps "Mini Series" are specially designed and developed to meet water requirements of Residential Bungalows, Small Farms, etc.

Features Extruded Powder Coated Aluminium Body Double Sealed Ball Bearing TEFC Motor, Capacitor Start And Run Fitted With T.O.P (Thermal Overload Protector) Forged Impellers

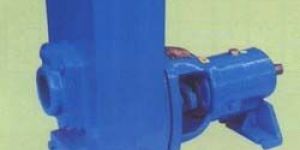

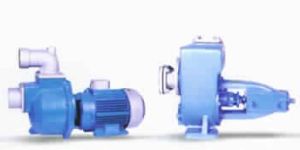

we offer self priming pump with semi open or open impeller to handle mud, dirty water or sewage. As pumps are made with wear plates, the efficiency of pump is very high. These pumps are available from 1" to 3" in cast iron, s.s., and any other metals. Application For cooling tower water circulation, Power plants, Irrigation systems, Sugar industry, Paper industry, Wine distillery, Water supply systems of Municipal Corporation and Different chemicals according to MOC, Sprinkler systems, swimming pools, Dam sites.

Crompton Greaves Mini Pacific Self Priming Monoset Pumps is mostly used for water supply to the farms and residential bungalows. It is made up of rust resistant material and liked by most of customers because of its long life feature. Experts team of CG’s has designed this product in a way that it gives you hassle free installation and very easy to use Features It gives excellent performance Compact and very simple to use Very economical, no need to spend extra bucks on installation Hassle free functioning without additional couplings and base plates which also add to the cost part Saves power and it is suitable to function at low voltage Made up of rust free material that gives longer life It has a self sustaining characteristics Applications Majorly used in farms The pump is used for maintaining pressurized water supply in small industries & dairies Used for high pressurized water supply in the fountains Maintaining water supply to hotels, bungalows, and hospitals etc. It can be used for sprinkling in the gardens and nurseries.
